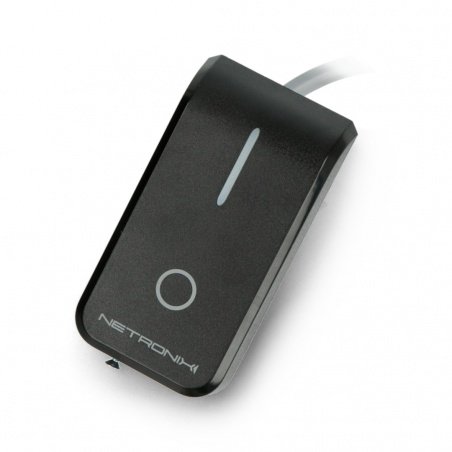

MW-R4B wall RFID reader - 13,56MHz - black

Index: NEX-19467 EAN: 5904422365479
Wall mount RFIDcard and transponderreader operating at 13.56 MHz. Compatible with MIFARE Classis, MIFARE Plus, MIFARE Ultralight C, MIFARE DESFire, ICODE SLI, iClass (CSN) standards. Supported communication interface is RS485. The reader is equipped with three GPIO pins. Device has built-in RGB LED, buzzer and touch button. Housing version is black.
MW-R4B wall RFID reader - 13,56MHz - black
€49.90
€40.57 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: Netronix

Attention!

The product has been discontinued. Check other products in category.

Product description: Wall mounted RFID reader MW-R4B - 13.56 MHz - black

Wall-mountedRFIDcardand transponder reader operating at frequencies of13.56 MHz. It is compatible with MIFARE Classis, MIFARE Plus, MIFARE Ultralight C, MIFARE DESFire, ICODE SLI, iClass (CSN) standards. The supported communication interface is RS485. The reader is equipped with two inputs and one output of any purpose. Device has built-in RGB LED, buzzer and touch button. Housing version in black colour. Mounting pins are included.

Pinout description

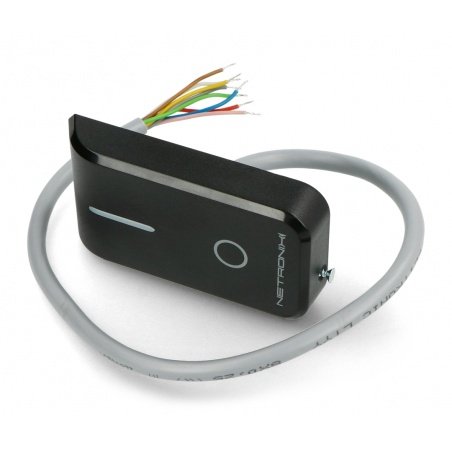

The reader haseightpins in a form of wires with stripped insulation, located on the back of the casing. Detailed description of each connector is given below.

Czytnik RFID MW-R4B - 13,56MHz - czarny

RFID reader MW-R4B - 13,56 MHz - black.

Leads description of MW-R4B reader
Cable color Cable color Name Function
Red VCC Power supply
Blue GND GND
White Anti-collision Lead for connecting readers working close to each other
Brown PinOUT Any purpose output
Green PinINTERFACE1 Serial interface line: RS485_B
Yellow PinINTERFACE2 Serial interface line:RS485_A
Gray PinIN0 Any purpose input
Pink PinIN1 Any purpose input

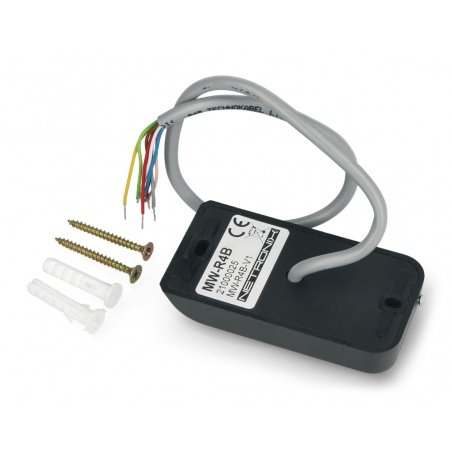

Zawartość zestawu.Set contents.

Specification for MW-R4B RFID Reader

  • Supply voltage: 8 V to 15 V
  • Maximum supply current: 120 mA
  • Average current consumption: 25 mA
  • Rated RF Frequency: 13.56 MHz
  • Supported standards: MIFARE Classis, MIFARE Plus, MIFARE Ultralight C, MIFARE DESFire, ICODE SLI, iClass (CSN only)
  • Supported communication interfaces: RS485
  • Operation with Netronix and MODBUS-RTU protocol
  • Number of GPIO pins: 3
  • Card and transponder reading distance: up to 8 cm
  • Protection class: IP54
  • Front button type: capacitive
  • Built-in buzzer, antenna, RGB LED
  • Housing colour: black
  • Dimensions: 83 x 44 x 14 mm
Colour black
Frequency from 13.56 MHz
Frequency to 13.56 MHz
Package width 8 cm
Package height 12.5 cm
Package depth 2.5 cm
Package weight 0.059 kg
