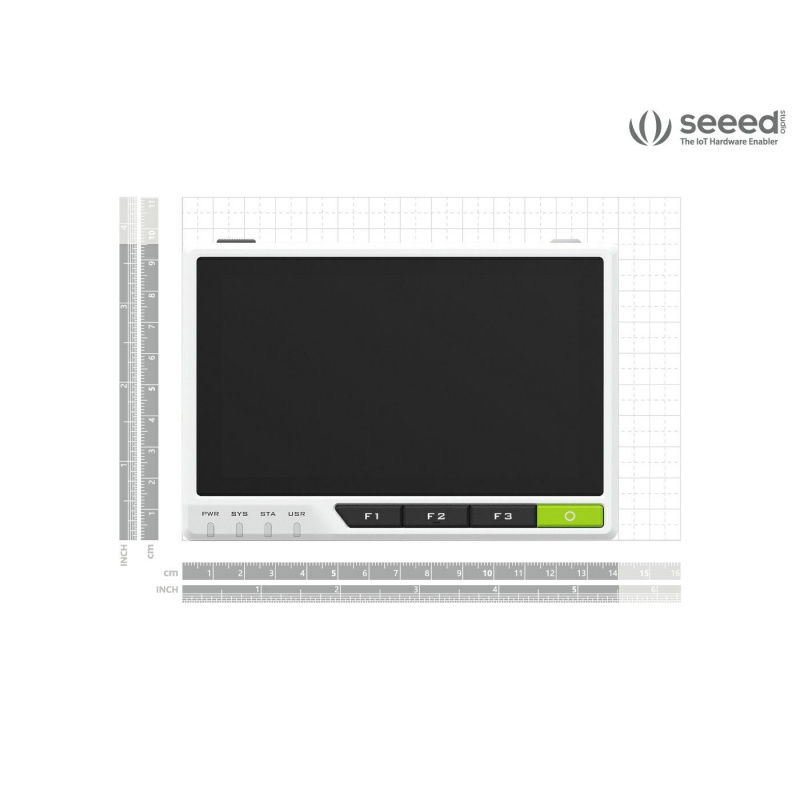

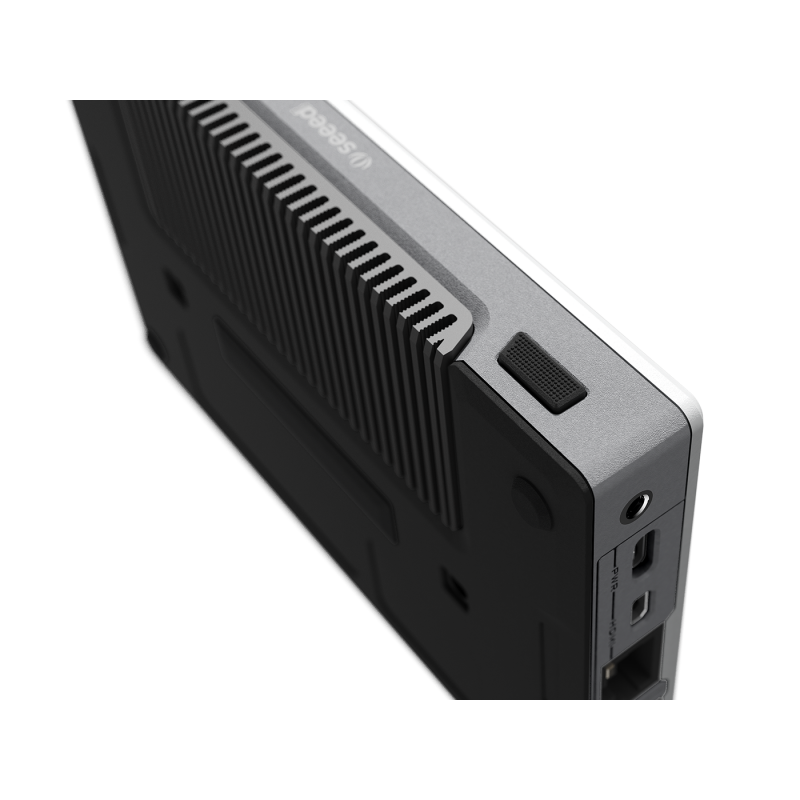

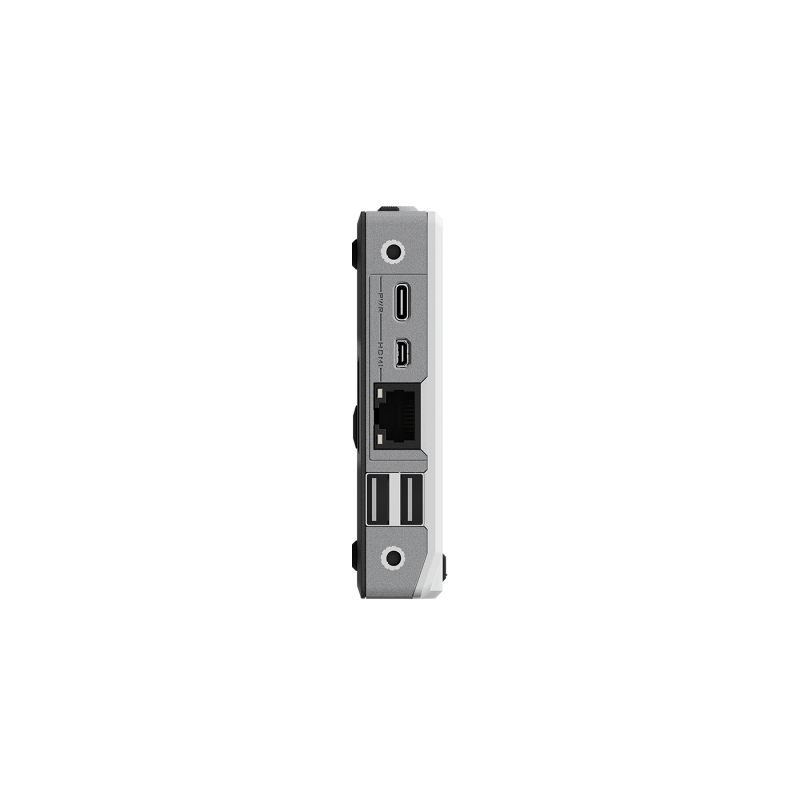

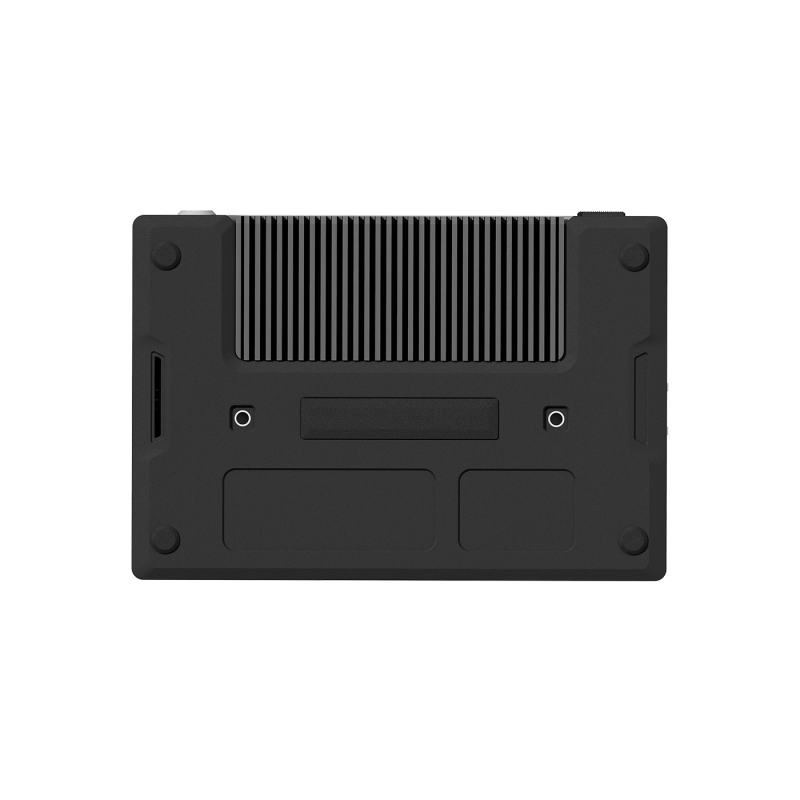

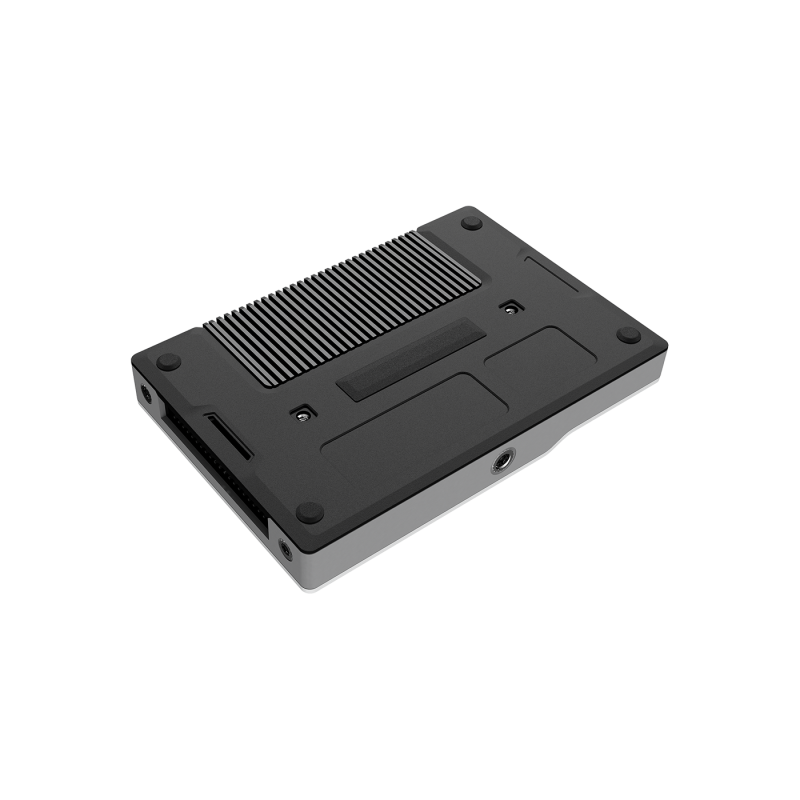

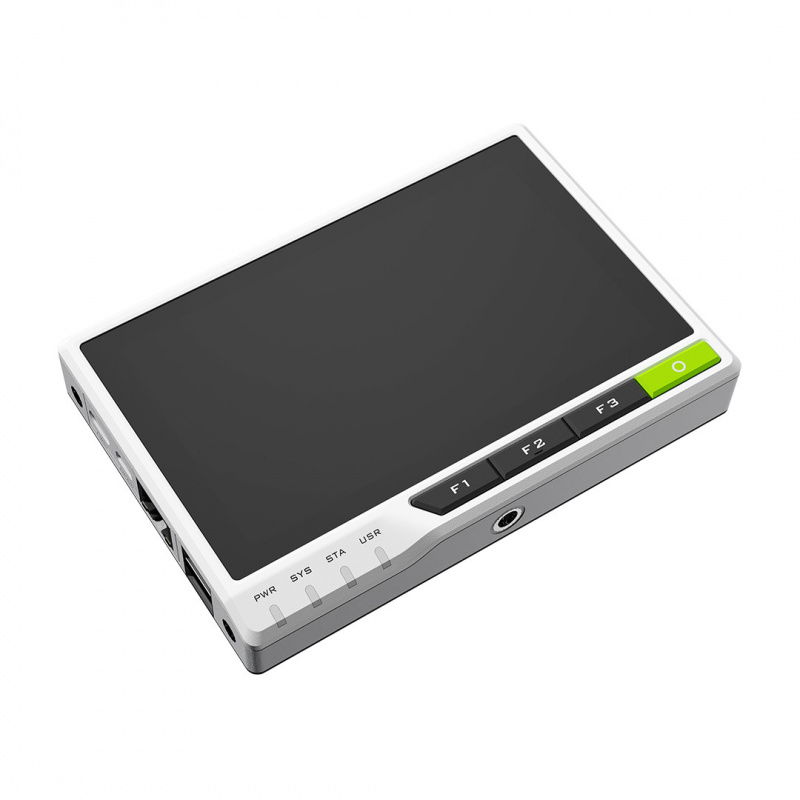

Product description: reTerminal - embedded Linux with Raspberry Pi CM4 and 5'' touchscreen - SeeedStudio 110070048 - Outlet
Current product status:
- The product comes from a customer return
- The Raspberry Pi CM4 module has been replaced
- STM chip updated
| reTerminal module specification | |
|---|---|
| Processor | Broadcom BCM2711 quad-core Cortex A72 ARM v8 |
| Clocking | 1.5GHz / 64-bit |
| RAM | 4 GB |
| RAM technology | LPDDR4 with on-die ECC |
| eMMC memory | 32 GB |
| WiFi | 2.4 GHz / 5 GHz IEEE 802.11 b/g/n/ac |
| Bluetooth | 5.0 Low Energy |
| LCD | 5" 1280 x 720 px |
| Touch panel | capacitive (multi-point touch) |
| HDMI | 1 x microHDMI (up to 4K and 60 fps) |
| CSI | 1 x 2-lane MIPI CSI camera interface |
| Multimedia | H.265 (4K 60fps decoding) H.264 (1080p 60fps encoding) OpenGL ES 3.0 |
| RTC | NXP PCF8563T 0.25 μA at 3 V and 25°C |
| Accelerometer | LIS3DHTR 16-bit, ±2g/±4g/±8g/±16g full-scale dynamic scaling |
| Encryption | ATECC608A Secure hardware key storage, asymmetric signature, verification, key agreement |
| Light sensor | LTR-303ALS-01 digital light sensor |
| I/O expander | MCP23008-E |
| Buzzer | ≥ 85 dB at 10 cm 2700 ± 300 MHz |
| GPIO | up to 5 x UARtT up to 5 x I2C up to 5 x SPI 1 x SDIO 1 x DPI 1 x PCM 1 x PWM up to 3 x GPCLK outputs |

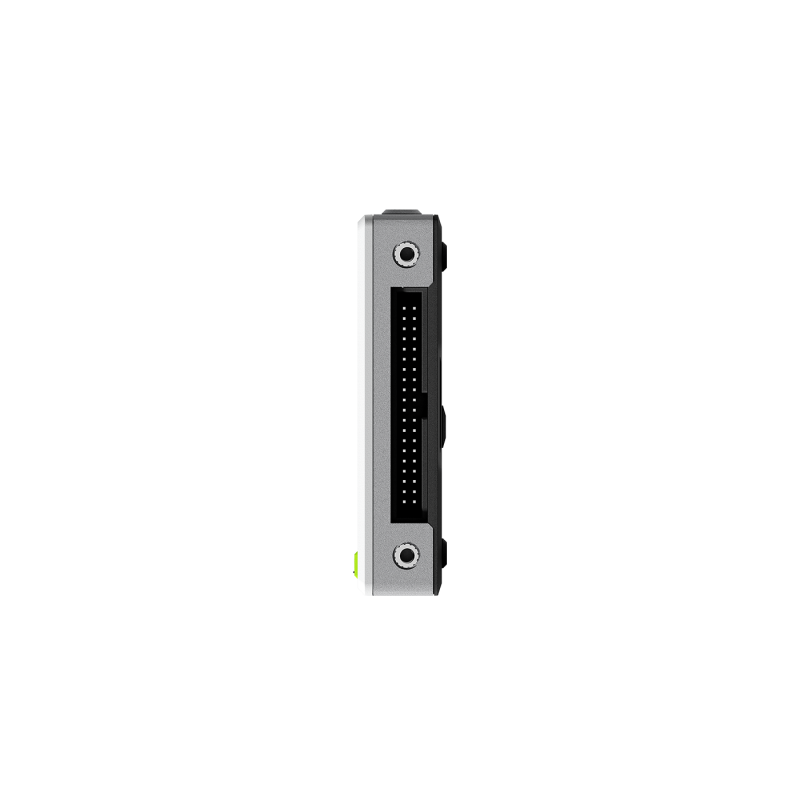

| Vertical Extension Interface | 1 x PCIe 1-lane Host, Gen 2 (5 Gb/s) 1 x USB 2.0 26 x GPIO PoE |
| Power supply | 5V/4A DC |
| Dimensions | 140 x 95 x 21 mm |
