Maker Pi Pico Mini - base board for Raspberry Pi Pico

Index: CTN-22112
The base board is designed for projects with Raspberry Pi Pico or Raspberry Pi Pico W. It inherits most of the useful functions that occur in its larger versions, such as GPIO status LEDs, RGB LED WS2812B, buzzer and two buttons - reset and programmable button.
Maker Pi Pico Mini - base board for Raspberry Pi Pico
€11.50
€9.35 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Cytron
Compatibility: Raspberry Pi

Product description: Maker Pi Pico Mini - base plate for Raspberry Pi Pico

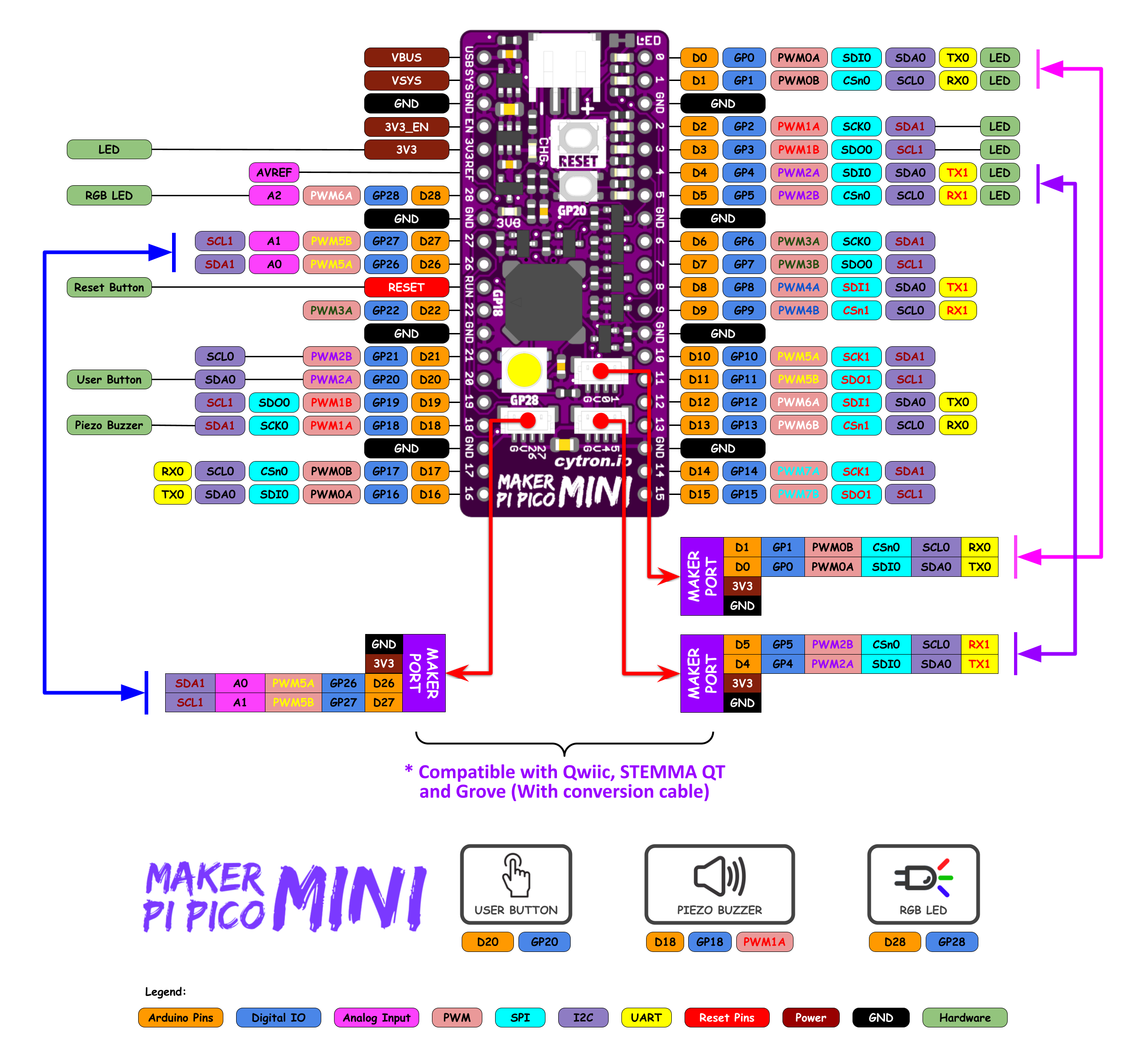

Do you want to use Maker Pi Pico in your project , but its dimensions do not match the design? Maker Pi Pico Mini will solve your problem! The base board is designed for projects with Raspberry Pi Pico or Raspberry Pi Pico W. It inherits most of the useful functions that are present in its larger versions, such as GPIO status LEDs , RGB LED WS2812B, buzzer and two buttons - reset and programmable button. In addition, Maker Pi Pico Mini can also be powered by one Li-Pol cell and has protection circuits against overcharging or discharging. Due to the small size of the board, the Grove connector was abandoned and replaced with three Maker ports . They are compatible with Qwiic, STEMMA QT and Grove plugs.

Maker Pi Pico Mini - base shield for Raspberry Pi Pico.

The subject of the sale is the Maker Pi Pico Mini overlay only.

Main features of Maker Pi Pico Mini

  • Compatibility with Raspberry Pi Pico / Pi Pico W
  • Possibility of powering through a Li-Pol cell
  • 6 GPIO status LEDs
  • WS2812B RGB LED
  • Piezoelectric buzzer for playing sounds or melodies
  • RESET button
  • User programmable button
  • Three Maker ports compatible with Qwiic, STEMMA QT and Grove

The kit does not include the Raspberry Pi Pico / Pi Pico W module - it must be purchased separately.

Many programming languages

The Raspberry Pi Pico and Pi Pico W can be programmed using CircuitPython , MicroPython , as well as C and C++ . With an extensive library and plenty of examples, especially for the Arduino IDE and CircuitPython, you'll be ready to build an app in no time, whether for educational purposes or creating useful projects.

The board is fully compatible with the Raspberry Pi Pico W.

Components included in the set.

Product technical specification

  • Manufacturer: Cytron
  • Power:
    • 4.5 V - supplied via the USB connector
    • 3.3 V - supplied through a Li-Pol cell
  • Dimensions: 53.82 x 23.12mm

Kit contents

  • Maker Pi Pico Mini
  • 3 x JST-SH cable

Voltage to 3.3 V
Voltage from 4.5 V
Package width 5.7 cm
Package height 5.3 cm
Package depth 2.2 cm
Package weight 0.023 kg
