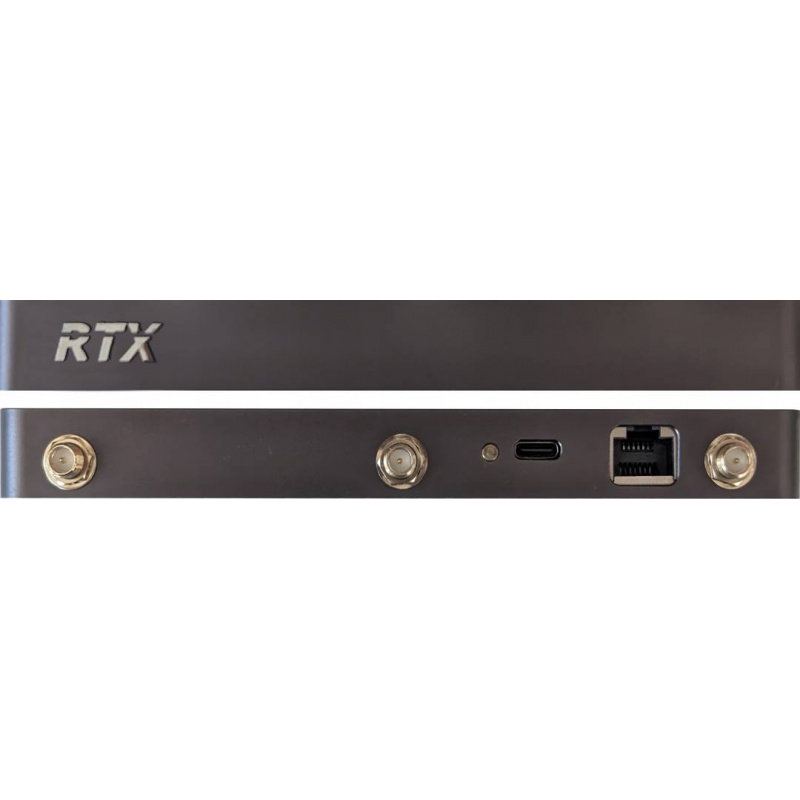

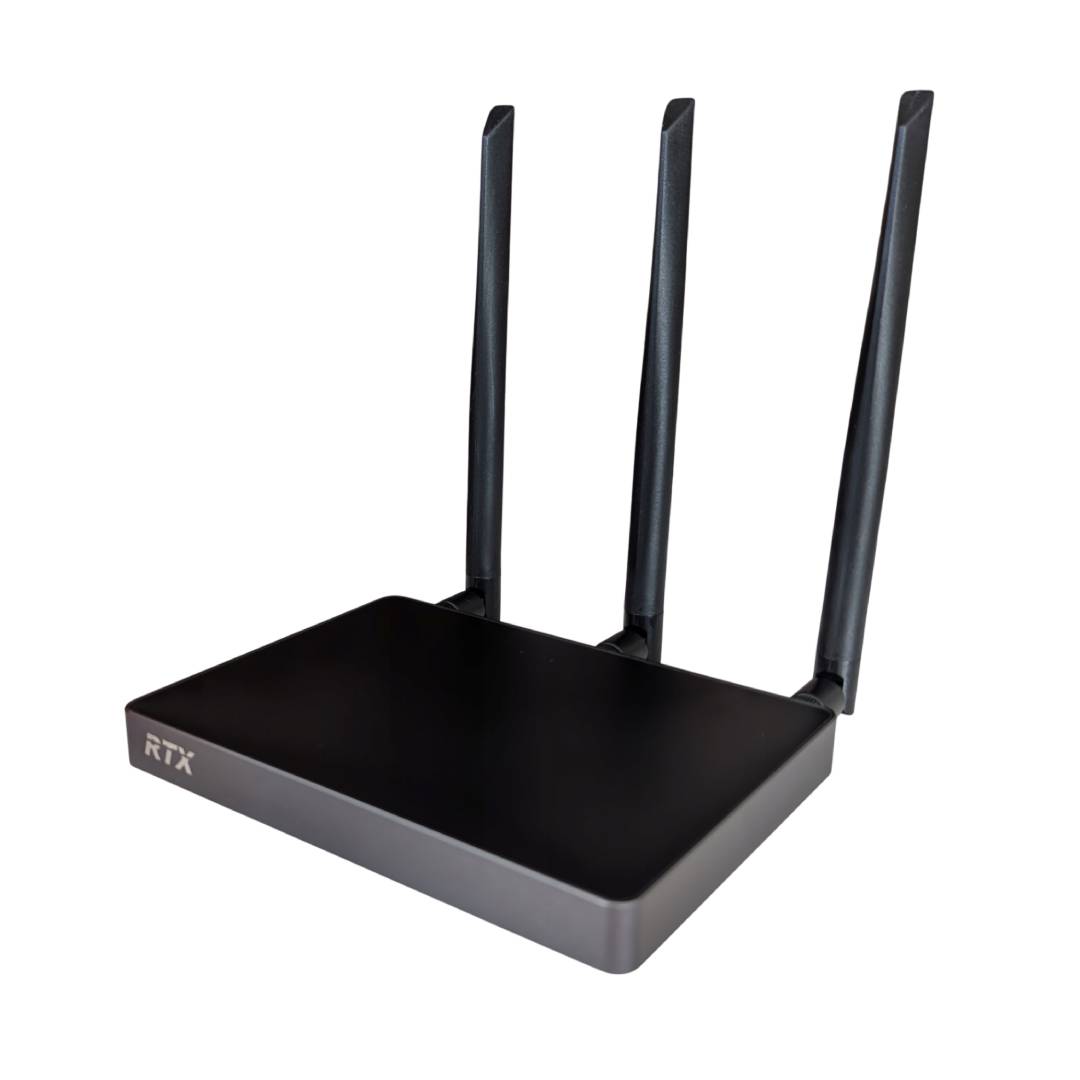

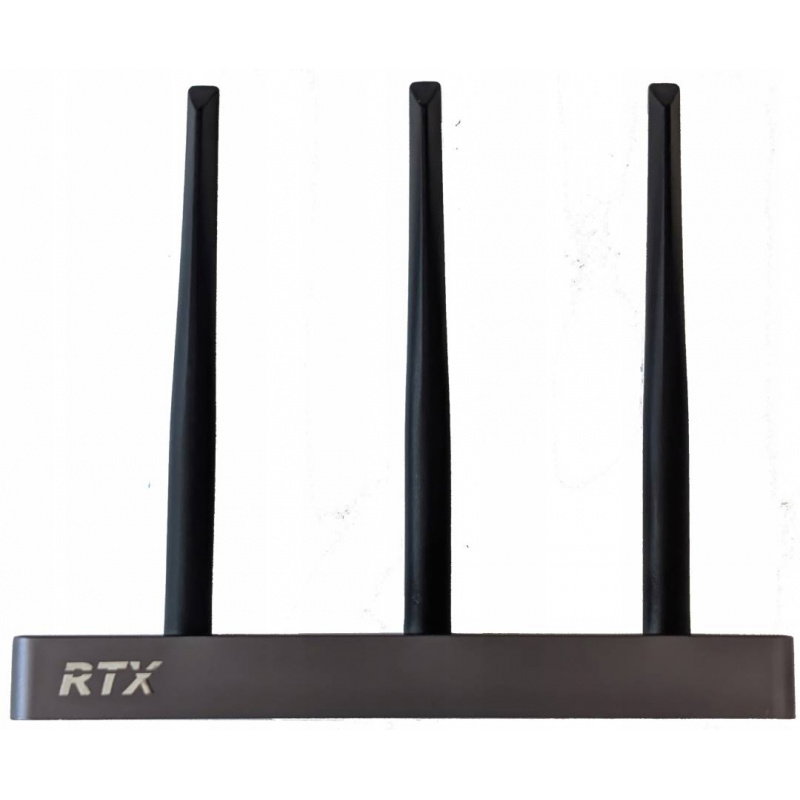

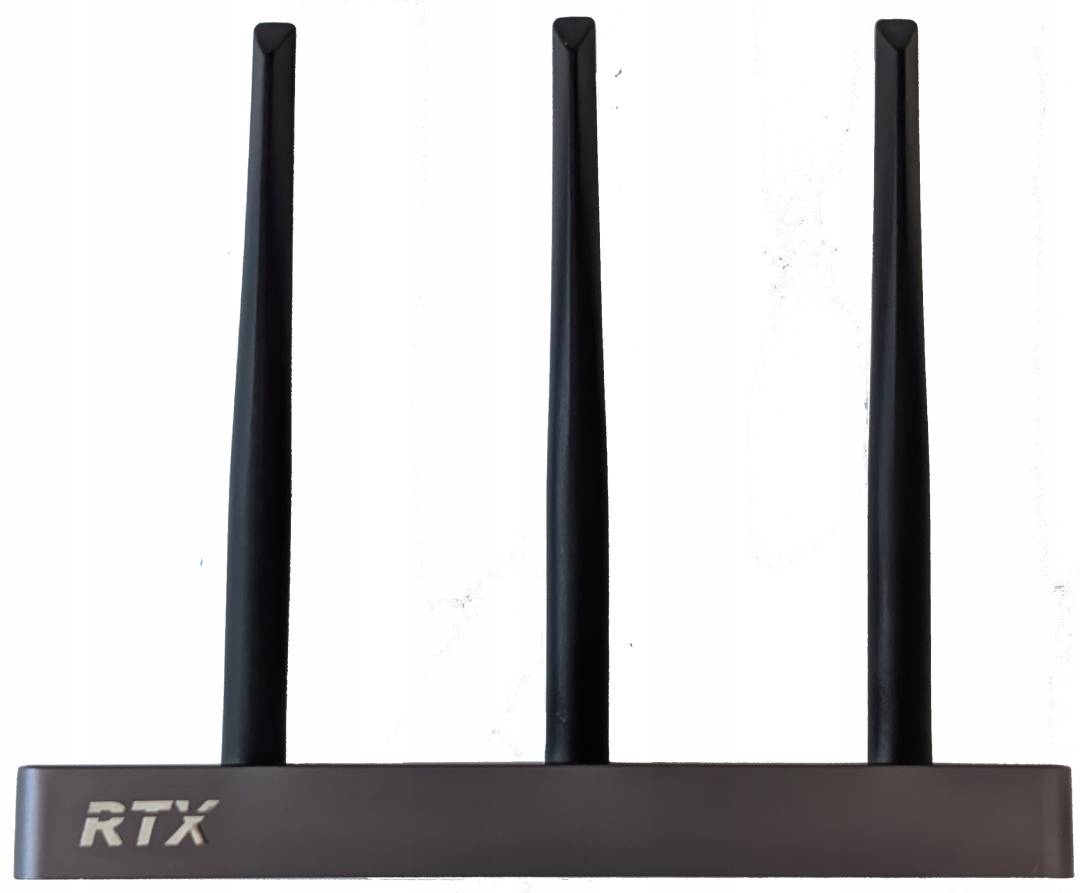

Product description: Tuya - ZigBee / LAN / WiFi gateway - RTX ZGL3 PRO
The RTX ZGL3 PRO is a ZigBee 3.0 gateway that allows you to integrate compatible smart home devices into the Tuya or Smart Life apps. The gateway supports up to 128 devices and is equipped with three external 5 dBi antennas that support communication with system components located in different parts of the building. The Dual-link function allows you to connect the gateway to a router via LAN cable or WiFi . Automation memory allows you to execute saved scenarios even during a temporary internet outage. The anodized aluminum metal housing increases the device's durability, and the 5V USB Type-C power supply simplifies installation.
Tuya - ZigBee / LAN / WiFi gateway - RTX ZGL3 PRO.
The RTX ZGL3 PRO gateway allows you to integrate compatible sensors, smart relays, controllers, valves and other ZigBee devices that work with Tuya or Smart Life.
Main features of the RTX ZGL3 PRO gateway
- ZigBee 3.0 : supports communication compliant with the IEEE 802.15.4 standard
- Support for up to 128 devices : allows you to create an extensive home automation system consisting of many sensors, controllers and other compatible elements
- 3 external 5 dBi antennas : support stable communication with ZigBee devices in an extensive installation
- SMA connector : allows the use of a compatible external antenna, also located on the cable
- LAN or WiFi connection : Dual-link function allows you to choose how the control unit communicates with the router
- Automation memory : allows the execution of saved scenarios even in the event of a temporary lack of Internet access
- Tuya and Smart Life compatibility : lets you manage compatible devices from a single app
- Metal housing : anodized aluminum construction increases the durability of the control unit
- USB Type-C 5V power supply : allows convenient powering of the gateway, and a suitable power supply is included in the kit
- 2 LED indicators : make it easier to check the device's operating status
Technical specifications of the RTX ZGL3 PRO gateway
- Communication protocol: ZigBee 3.0
- ZigBee communication standard: IEEE 802.15.4
- Supported applications: Tuya, Smart Life
- Maximum number of devices: 128
- Connection to the router: LAN or WiFi
- Network connector: RJ45 LAN
- Antenna type: external
- Number of antennas: 3
- Antenna gain: 5 dBi
- Antenna connector: SMA
- Automation memory: yes
- Housing material: anodized aluminum
- RESET/Pairing Button: Yes
- Status indicator: 2 x LED
- Power connector: USB Type-C
- Supply voltage: 5 V DC
- Power supply included: 5V/2A
- Operating temperature: -10°C to 55°C
- Operating humidity: 10% RH to 90% RH non-condensing
- Dimensions: 140 x 91 x 2.5 (180) mm
- Weight: 180 g
Kit contents
- ZigBee 3.0 Gateway RTX ZGL3 PRO
- External antennas - 3 pcs.
- 5V/2A USB power adapter
- USB Type-C cable
The ability to connect the control unit via LAN or WiFi makes it easier to adapt the installation to the building's network infrastructure.
