Parameters:
- Supply voltage: 3 V to 5.5 V
- Average current consumption: 0.2 mA
- It does not require additional external components
- 3 x female-female wires - included
- Temperature
- Measuring range: 0 - 50 °C
- Resolution: 8-bit (1 °C)
- Accuracy: 1 °C
- Response time: 6 - 15 seconds (usually 10 seconds)
- Humidity:
- Measuring range: 20 - 90% RH
- Resolution: 8-bit (±1 % RH*)
- Accuracy ±4 RH* (at 25 °C)
- Measuring range: 6 - 30 sec
Details inthe documentation.
*RH- relative humidity is expressed in percents. It is the ratio of actual humidity in the air to its maximum number that air can keep at a given temperature.
Description

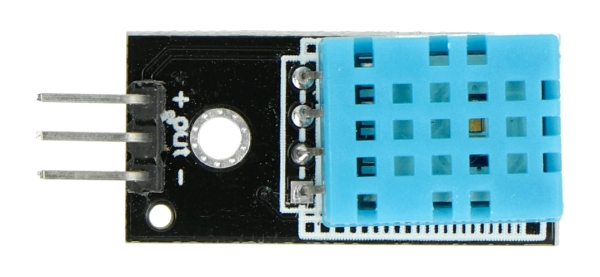

The module includes a popular sensor for measuring temperature and humidity. On the board are also, required for proper operation of the system: a resistor and a capacitor to filter the supply voltage. The sensor can be controlled using a microcontroller or any commissioning set, for example,Arduino. Before using, you need to see thedocumentation.
|
The product is compatible with Arduino Library and connection diagram with Arduino can be found on thissite. We have also prepared a briefuser manual. |

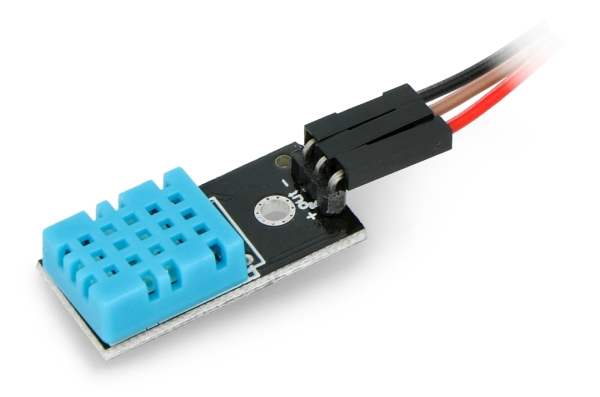

Pins are populargoldpin connectors(2.54 mm pitch) for connecting the sensor viawiresor to directly attach to the breadboard. The set includes three colorful wires.
Connection example
The system contains passive components necessary for the proper operation of the sensor. The module is sufficient to connect via wires, to any microcontroller or commissioning set:
- VCC ( + ) - supply voltage from range: 3 V to 5.5 V
- GND ( - ) - the ground of the system
- OUT- digital output connected to the input of the microcontroller
