Product description: M5Stack Station - ESP32 IoT development kit - RS485 version - M5Stack K123
M5Stack Station - IoT development kit from M5Stack equipped with the ESP32-D0WDQ6-V3 chip . It supports WiFi wireless communication and includes a built-in 2.4 GHz 3D antenna . In the central part of the module there is a 1.14'' display, four buttons - one power switch and three programmable utility buttons and as many as seven programmable SK6812 LEDs. The M5Stack Station has also been equipped with an integrated boost DC / DC voltage converter SCT12A0DHKR , as well as the INA3221 and INA199 systems that allow you to control the voltage and current consumption. Among the pins on board the module, we find six Grove connectors (I2C + I/0 + UART), one USB type A port and one PWR485 port. M5Stack Station is a powerful executive module that can be used to control industrial devices, intelligent buildings, multi-channel data acquisition nodes and broadly understood prototype applications.

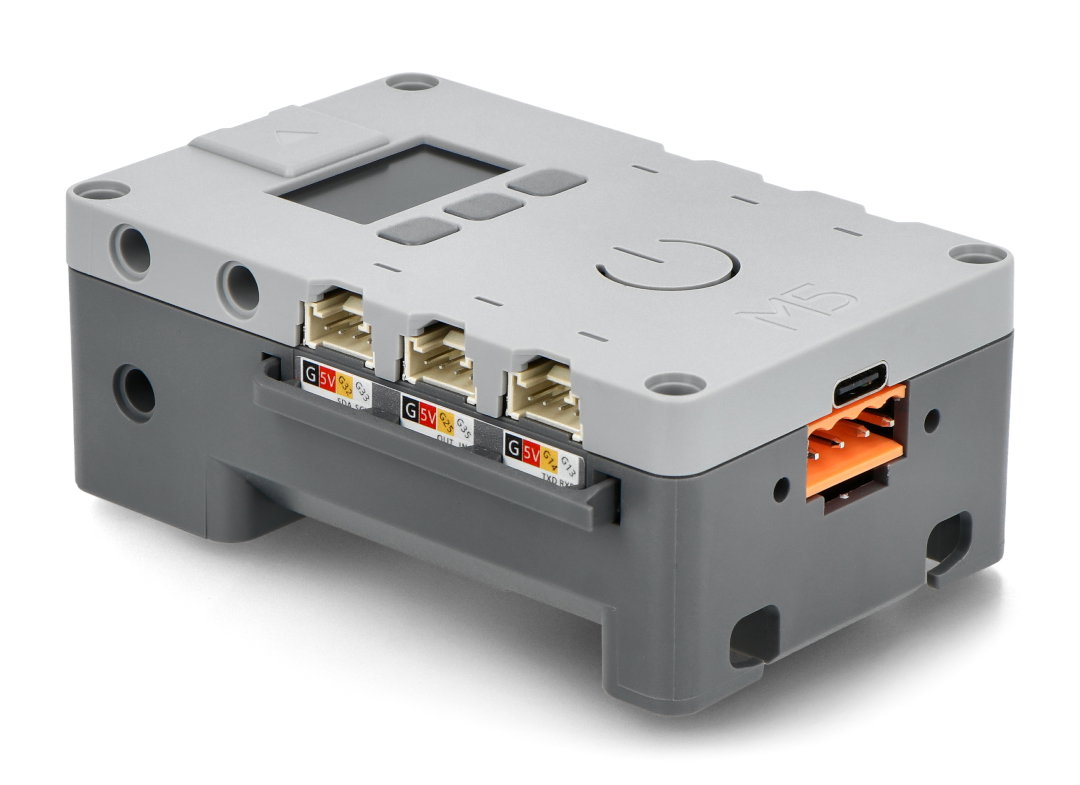

M5Stack Station - ESP32 IoT development kit - RS485 version - M5Stack K123.

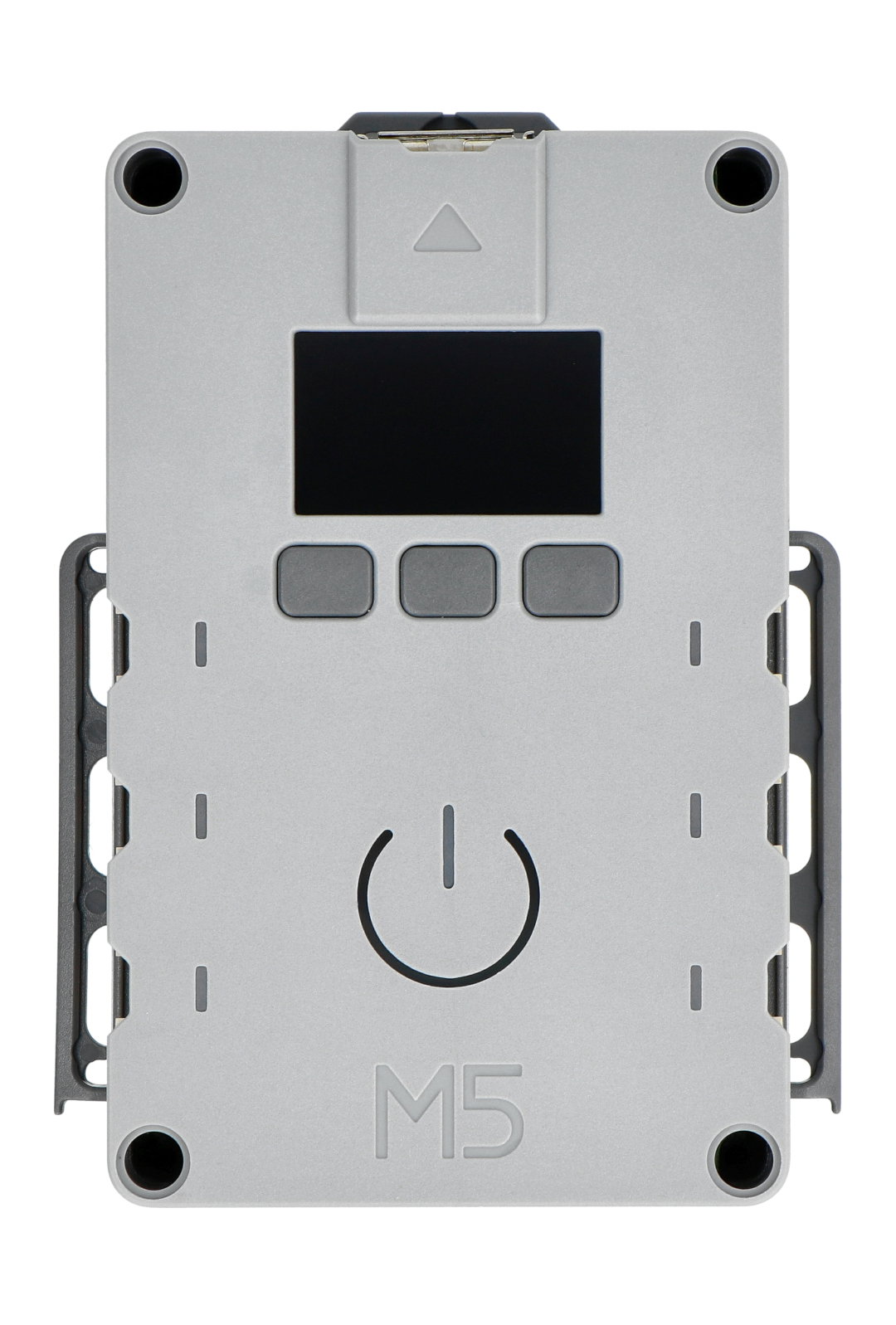

M5Stack Station Technical Specification
- Built-in chip: ESP32-D0WDQ6-V3
- Number of cores: dual-core
- Clock frequency: 240MHz
- SRAM memory: 520KB
- 600 DMIPS and wireless WiFi communication
- Flash memory: 16MB
- Power:
- via USB type C connector: 5 V / 1 A
- via RS485: 9 V to 24 V / 1 A
- Interfaces: 1x USB type C, 6x Grove (I2C + I/0 + UART), 1x USB type A
- LEDs: 7x SK6812
- Buttons: 1x power button, 3x function button
- Display: 1.14'' diagonal, resolution 240 x 135 px, ST7789V2 control system
- Built-in RTC: BM8563
- Built-in PMU: AXP192
- Built-in voltage/current sensor: INA3221 + INA199
- USB chip: CH9102F
- Step Down Chips: SY8303
- DC/DC voltage converter: SCT12A0DHKR
- Power Switch: SGM2553D
- Antenna: 2.4GHz 3D
- Operating temperature range: 0°C to 60°C
- Fixing screws at the base: M2 x 8 mm hex head screw
- Material: ABS + PC
- Module dimensions: 92 x 64.5 x 35 mm
- Weight: 63.1g

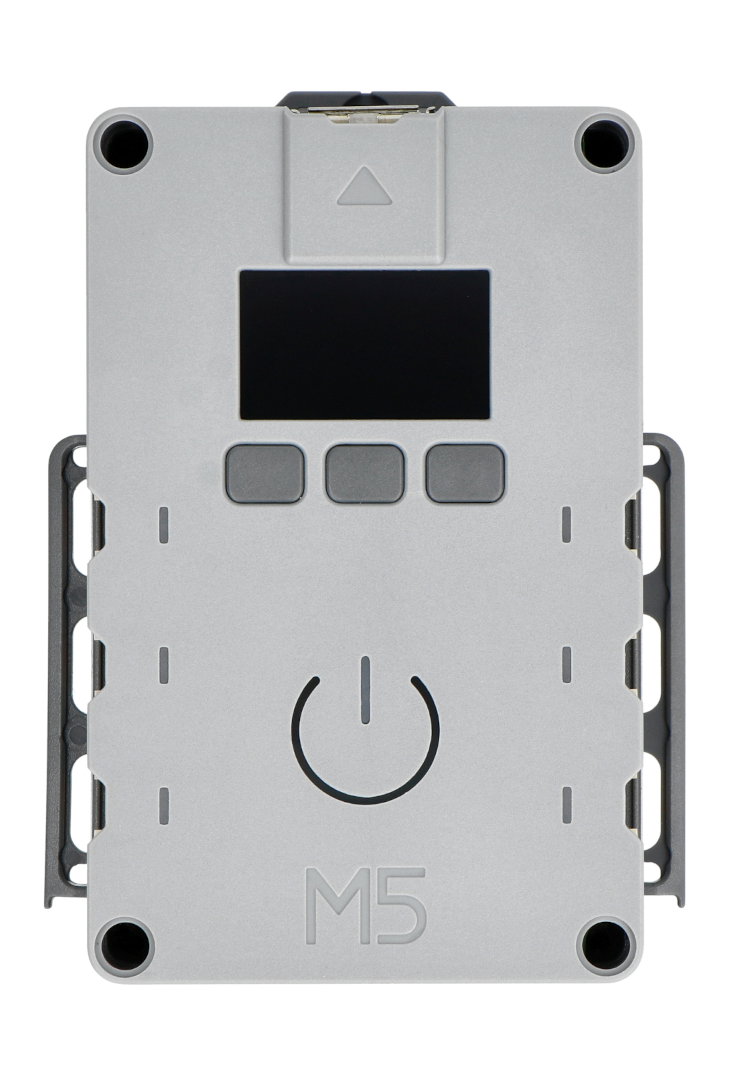

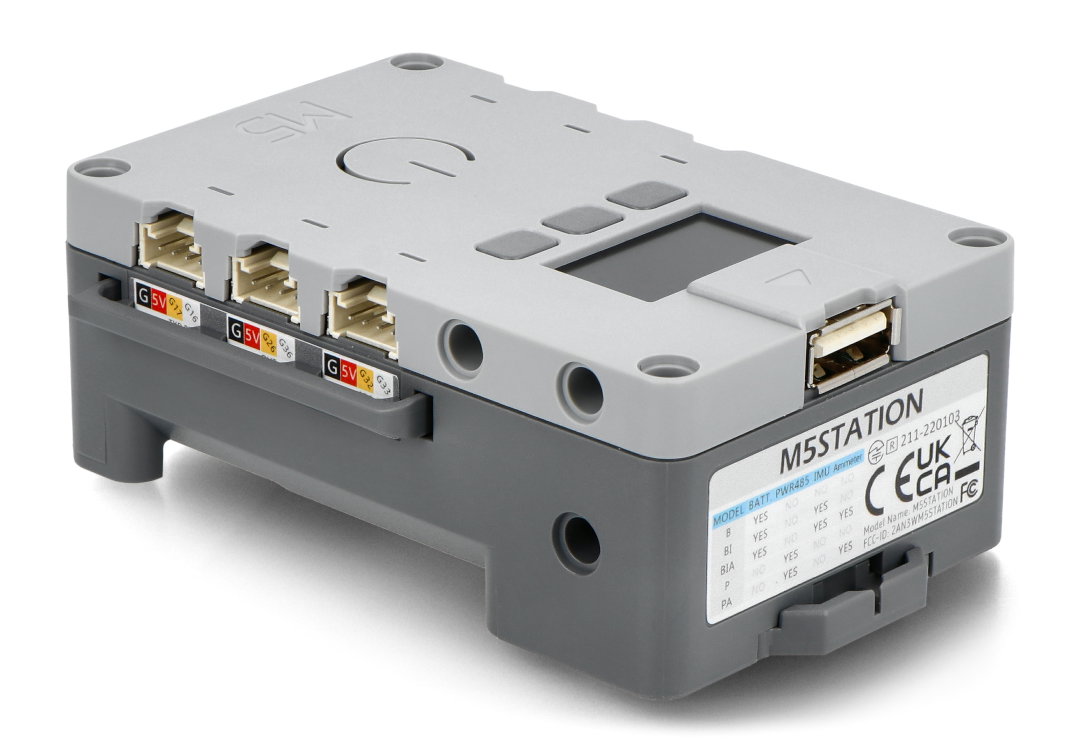

Suggested use
- IoT controllers
- STEM education
- DIY projects
- Smart Home Devices and Smart Home
- IoT product prototyping

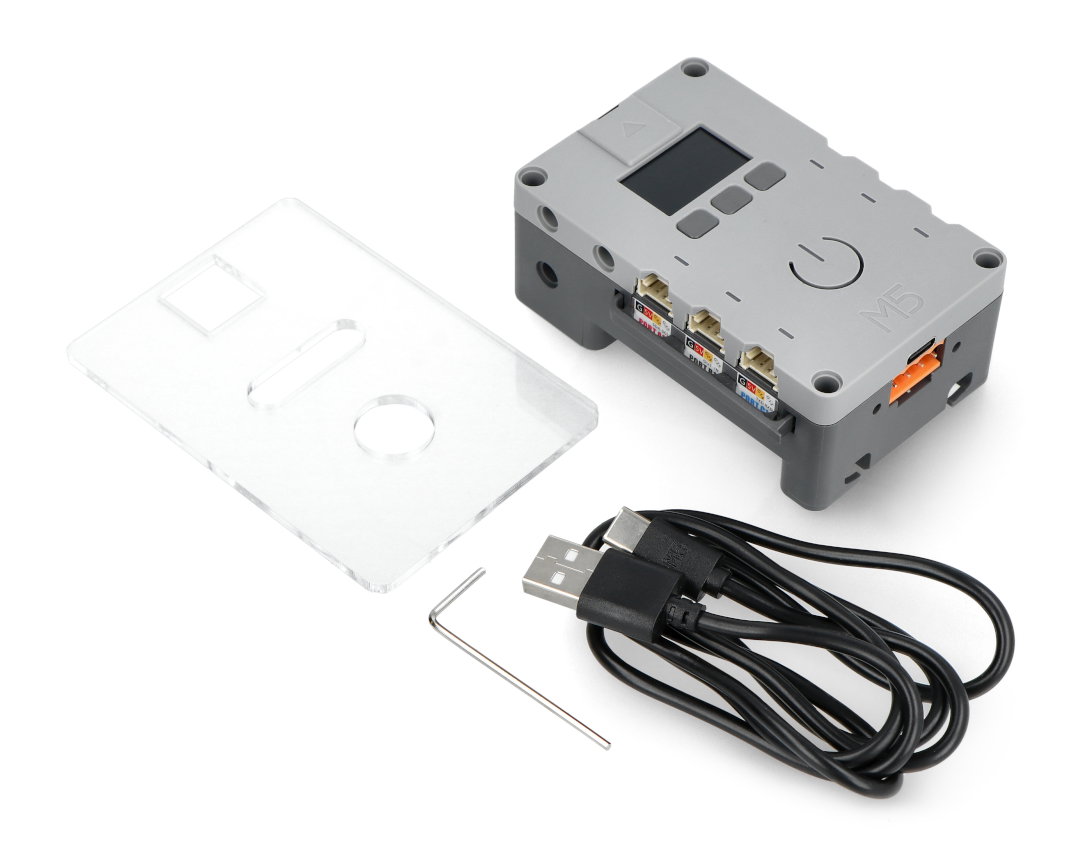

Kit contents
- M5Stack Station - ESP32 IoT development kit - RS485 version
- Connection cable with USB type C connector, 100 cm long
- Protective plexiglass
- Allen key
