Product description: M5Stack Station - ESP32 IoT development kit - battery version - M5Stack K124-B

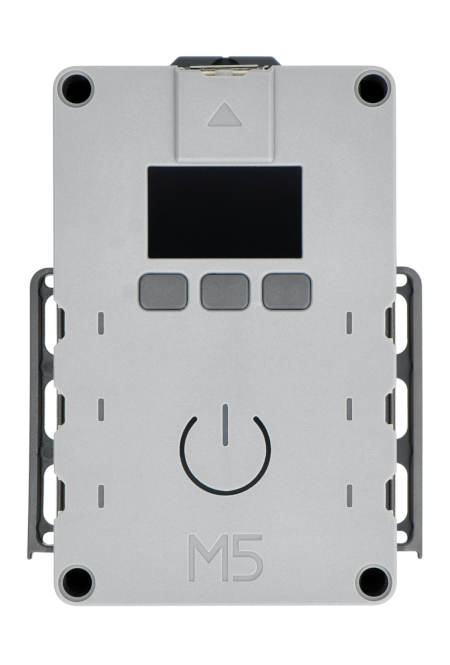

The M5Stack Station is a multifunctional IoT development kit equipped with the ESP32-D0WDQ6-V3 chip , supports WiFi wireless communication , and has a built-in 2.4GHz 3D antenna . In the front part of the module there is a 1.14'' display , four buttons - one power switch and three programmable utility buttons and as many as seven programmable SK6812 LEDs. In addition, the M5Stack Station has been equipped with a number of functional systems - a 6-axis IMU MPU6886 , an integrated DC / DC voltage converter of the SCT12A0DHKR type, as well as the INA3221 system that allows you to control the voltage and current consumption. Among the pins on the board of the module you will find six Grove connectors (I2C + I/0 + UART), one USB type A port and one USB type C port. M5Stack Station is a powerful executive module that can be used to control industrial devices, intelligent buildings, multi-channel data acquisition nodes and widely understood prototype applications. It is possible to mount the product on a DIN rail, the set also has magnets for mounting.

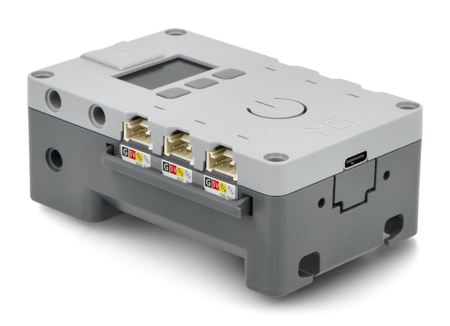

M5Stack Station - ESP32 IoT development kit - battery version - M5Stack K124-B.
M5Stack Station Technical Specification
- Built-in chip: ESP32-D0WDQ6-V3
- Number of cores: dual-core
- Clock frequency: 240MHz
- SRAM memory: 520KB
- 600 DMIPS and wireless WiFi communication
- Flash memory: 16MB
- Power:
- via USB type C connector: 5 V / 1 A
- via built-in battery: 18650 x2 (parallel connected) 2200 mAh
- Interfaces: 1x USB type C, 6x Grove (I2C + I/0 + UART), 1x USB type A
- LEDs: 7x SK6812
- Buttons: 1x power button, 3x function button
- Display: 1.14'' diagonal, resolution 240 x 135 px, ST7789V2 control system
- Built-in IMU sensor: MPU6686
- Built-in RTC: BM8563
- Built-in PMU: AXP192
- Built-in voltage/current sensor: INA3221 + INA199
- USB chip: CH9102F
- DC/DC voltage converter: SCT12A0DHKR
- Antenna: 2.4GHz 3D
- Operating temperature range: 0°C to 60°C
- Fixing screws at the base: M2 x 8 mm hex head screw
- Material: ABS + PC
- Module dimensions: 92 x 64.5 x 35 mm
- Weight: 79.5g
Suggested use
- IoT controllers
- STEM education
- DIY projects
- Smart Home Devices and Smart Home
- IoT product prototyping

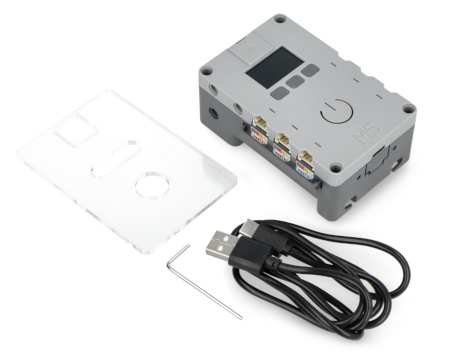

Kit contents
- M5Stack Station - ESP32 IoT development kit - version with built-in battery
- Connection cable with USB type C connector, 100 cm long
- Protective plexiglass
- Allen key
