E-paper E-Ink (B) 1.54'' 200x200px - three-color display (without module) - Waveshare 13275

Index: WSR-09819 EAN: 5904422314408

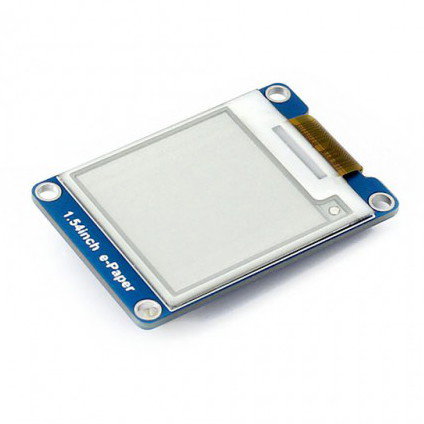

Module with 1.54" e-paper display with an E-Ink technology with a resolution of 200 x 200 pixels. Works with a voltage of 3.3 V. Designed for use with the main module. Communicates via the SPI interface.

E-paper E-Ink (B) 1.54'' 200x200px - three-color display (without module) - Waveshare 13275
€8.90
€7.24 tax excl.
Delivery 2 pcs scheduled for 2024-03-04
Waiting for delivery
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino Raspberry Pi

Description

Module with 1.54" e-paper display with an E-Ink technology with a resolution of 200 x 200 pixels. Works with a voltage of 3.3 V. Designed for use with the main module. Communicates via the SPI interface and supports. Displays 3 colors: black, white and red.  This kind of displays can be used for reading e-books and e-journals.

The subject of the sale is the display itself.The main modulemust be purchased separately.



The product is compatible with Adruino and Raspberry

The manufacturer provides auser's guidefor Arduino and Raspberry Pi.

To connect the system with the module operating with a voltage of 5 V, for example Arduino, you must usea voltage converter.

Inputs

The basic module has an 8-pin connector.

Pin Description
VCC Supply voltage: 3.3 V
GND The grounf of the system.
DIN Pin MOSI of SPI interface.
CLK Clock pin of SPI.
CS Chip select activated at low state.
DC

Selection data / command.

High state - data

Low state - command

RST External reset activated at low state.
BUSY Output status "busy", activated at low state.



Specification

  • Supply voltage: 3.3 V
  • Power (screen refresh): 26.4 MW
  • Interface: SPI
  • External dimensions: 77 x 90,1 x 1.18 mm
  • Display size: 84.8 x 63.6 mm
  • Pixel: 0.212 x 0.212 mm
  • Resolution: 400 x 300 px
  • The gray level: 2
  • Displayable colors: black, white and red
  • Viewing angle: 170°



Screen - type e-paper
Screen - diagonal 1,54''
Screen - interface GPIO
Screen - touch no
Screen - resolution 200x200px
Test 3
Package width 6 cm
Package height 1.1 cm
Package depth 11 cm
Package weight 0.004 kg
