Mini LoRaWAN gateway WiFi/Ethernet/LTE - white - Milesight UG63-L08GL-868M
Milesight UG63 is a compact and versatile LoRaWAN gateway, equipped with 8 control channels and versatile WiFi, PoE and LTE (2G, 3G, 4G) connectivity options. Ideal for indoor use, it is perfect for smaller deployments and as a complement to larger gateways. Equipped with the SX1302 chip, it supports various network applications and is compatible with popular servers such as TTN and ChirpStack. The gateway comes with two external antennas included (4G and LoRaWAN). The range of the central unit covers up to 15 km in open areas and up to 2 km in built-up areas.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Mini LoRaWAN WiFi/Ethernet/LTE central - white - Milesight UG63-L08GL-868M
The Milesight UG63 mini central is a modern LoRaWAN gateway equipped with the advanced SX1302 chip, created for smaller deployments and expansion of existing networks. Its compact design with dimensions of 25 x 17 x 9 cm makes it an excellent solution for indoor use in various environments, such as offices, universities or underground parking lots. It supports 8 LoRaWAN channels , which allows for effective network management with over 2000 end devices. Additionally, the gateway is compatible with the most popular network servers, such as ChirpStack, TTN and Actility . Thanks to the possibility of connecting two antennas - LoRaWAN and cellular, the gateway provides flexibility and excellent signal quality. It supports various communication technologies, including WiFi, Ethernet and 4G , which ensures reliable connections in various conditions. UG63 is an ideal solution for both stand-alone deployments and as a complement to larger gateways in larger LoRaWAN networks.
Mini LoRaWAN WiFi/Ethernet/LTE switchboard - white - Milesight UG63-L08GL-868M.
A device based on the SX1302 chip, enabling LoRa / WiFi / LAN / LTE communication.
Main Features of the Network Gateway
- Efficient SX1302 chip : handles more data traffic with less power consumption.
- 8 half-duplex channels : enables simultaneous connection to over 2000 end devices.
- Compact size : easy to carry and install.
- Support for various mounting methods : desktop, wall or ceiling mounting possible.
- Multiple Connectivity Options : Supports both Ethernet and 4G, providing a variety of backup options.
- Dead Zone Mitigation : Enables improved LoRaWAN network coverage by transmitting data to Milesight UG56 / UG65 / UG67 control gateways.
- Device Management : Milesight DeviceHub2.0 and IoT Developer Platform provide easy and centralized management of remote devices.
- Compatibility with popular web servers : Supports servers such as The Things Industries, ChirpStack, AWS IoT Core for LoRaWAN, and more.
Comprehensive connectivity options
The central unit provides versatility in terms of connectivity. It offers support for various technologies, including WiFi (2.4 GHz), Ethernet (10/100 Mbps) and cellular modem (2G, 3G, 4G LTE) . Two external antenna ports allow you to connect LoRaWAN antennas and a cellular antenna, ensuring optimal range and signal stability. With these options, the gateway ensures reliable connections under various operating conditions.
Connecting to multiple devices
The LoRaWAN gateway supports connection with over 2000 end devices simultaneously, thanks to which it effectively manages a large number of connections in extensive IoT networks. With this functionality, users can seamlessly integrate and monitor many devices in real time , which significantly increases the management and monitoring capabilities of extensive installations.

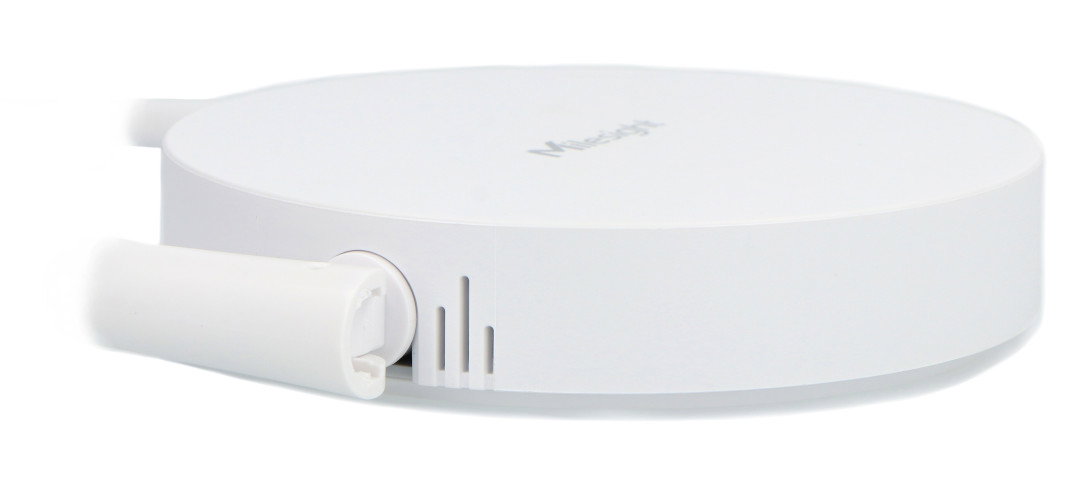

Gateway equipped with a SIM card slot and an Ethernet socket.

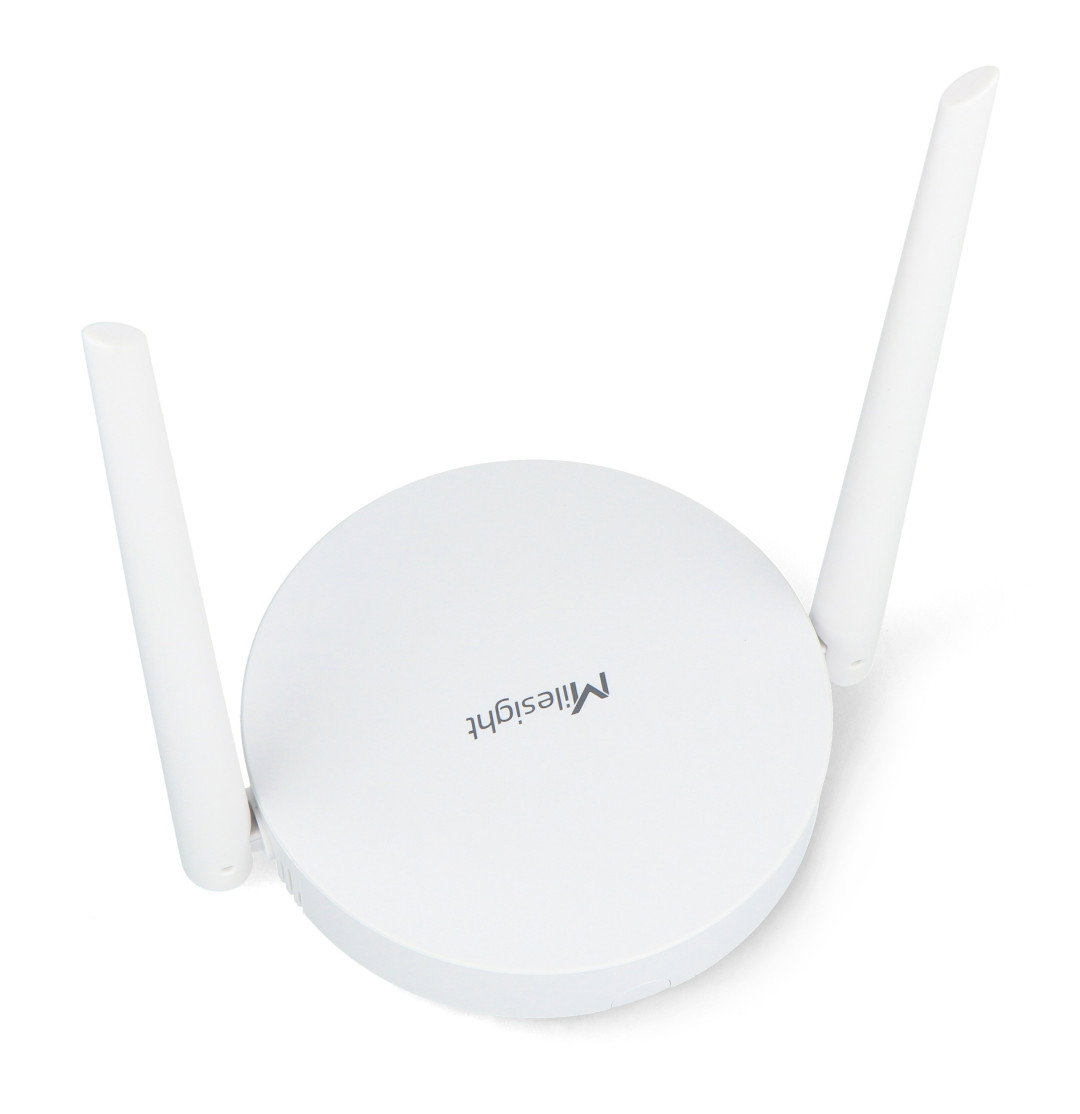

Two antennas significantly improve wireless range.
8 available communication channels
The LoRaWAN gateway offers exceptional flexibility in data transmission thanks to up to 8 communication channels. This allows simultaneous transmission and reception of data from multiple sources , which ensures smooth and reliable operation of the system. This is an excellent solution for more complex applications that require multi-channel information exchange.
Synchronization with smartphone app
This is a product compatible with the Milesight ToolBox smartphone app. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization is performed via NFC technology, which ensures fast and intuitive pairing of the device with the app. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specification of the central unit
- Model: UG63-L08GL-868M
- Processor: Dual-core 240 MHz, 32-bit Xtensa LX7
- Memory: 8MB PSRAM, 16MB Flash
- LoRaWAN Channels: 8 (Half-duplex)
- LoRaWAN Frequencies: 868 MHz
- Sensitivity: -140 dBm at 292 bps
- Output power: max. 27 dBm
- Cellular interface: 4G LTE (CAT 1) with external antenna
- Connectors: 1x RJ45 WAN Port (10/100 Mbps), 1x USB 2.0 Type-C
- WiFi: IEEE 802.11b/g/n, 2.4 GHz
- Power: 5V via USB Type-C port, 5V to 12V DC via 3.5mm 2-pin terminal block, PoE (802.3af)
- Power consumption: 3.1 W max
- Device operating temperature range: -20°C to 50°C
- Device operating humidity range: 0% to 95% RH
- IP protection class: IP30
- Certifications: CE, FCC, RoHS
- Application: Milesight ToolBox, Milesight IoT Cloud
- Product color: white
- Dimensions: Ф 115 x 21 mm

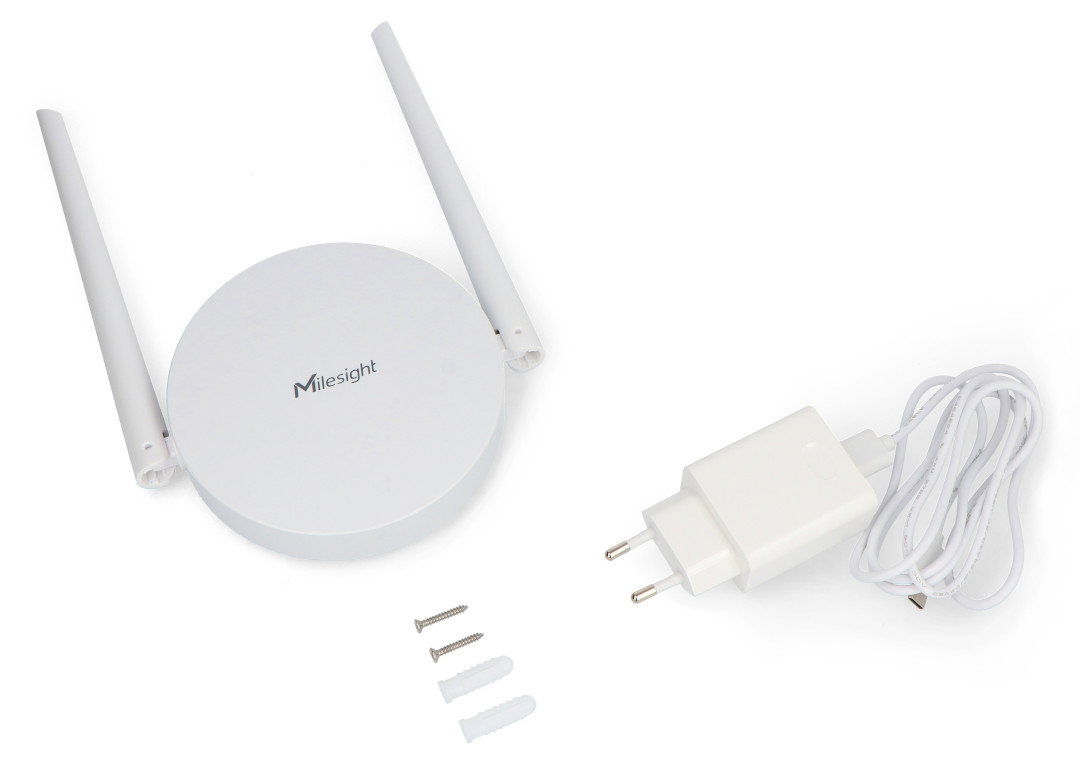

Kit contents.
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries must function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize range and power consumption.
Useful links
| Name | Value |
|---|---|
| Colour | white |
| Smart Home | Central unit |
| Communication |
|
| Width | 27 cm |
| Height | 17.5 cm |
| Depth | 5.5 cm |
| Weight | 0.405 kg |
