MPQ6612A - single-channel motor controller 40V/4A - Pololu 5285
One DC motor up to 40 V and about 4 A with current sensing: the Pololu MPQ6612A driver with an H-bridge.
- 200 mV/A current sensing output
- Current limiting and protections
- 1.5-5 V logic, two PWM inputs
We could not load the price.
The promotional price does not combine with quantity discounts.
One DC motor up to 40 V with current sensing and limiting
Pololu MPQ6612A is an H-bridge module from MPS for driving a single brushed DC motor in both directions, at a motor voltage of 4 V to 40 V. It delivers about 4 A continuously. You control it with two PWM inputs with 1.5 V to 5 V logic, so you can connect it to an Arduino, ESP32 or Raspberry Pi Pico.
The driver measures the motor current: the VISEN output gives 200 mV per amp, and the built-in current limit is set to 7.5 A by default. It has overcurrent, thermal and reverse power protection, and LEDs show the direction and speed of the motor.

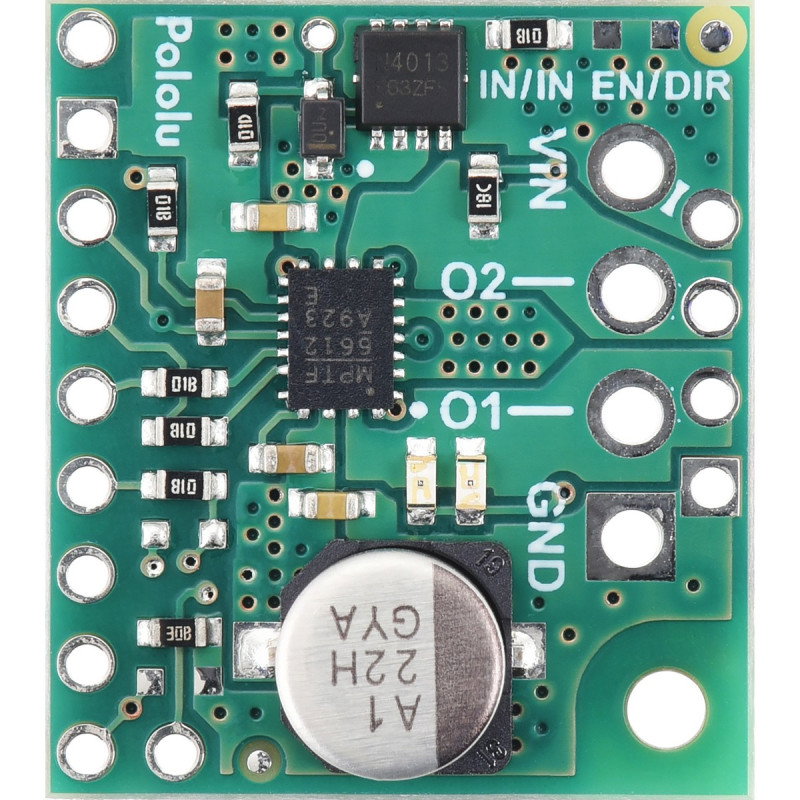

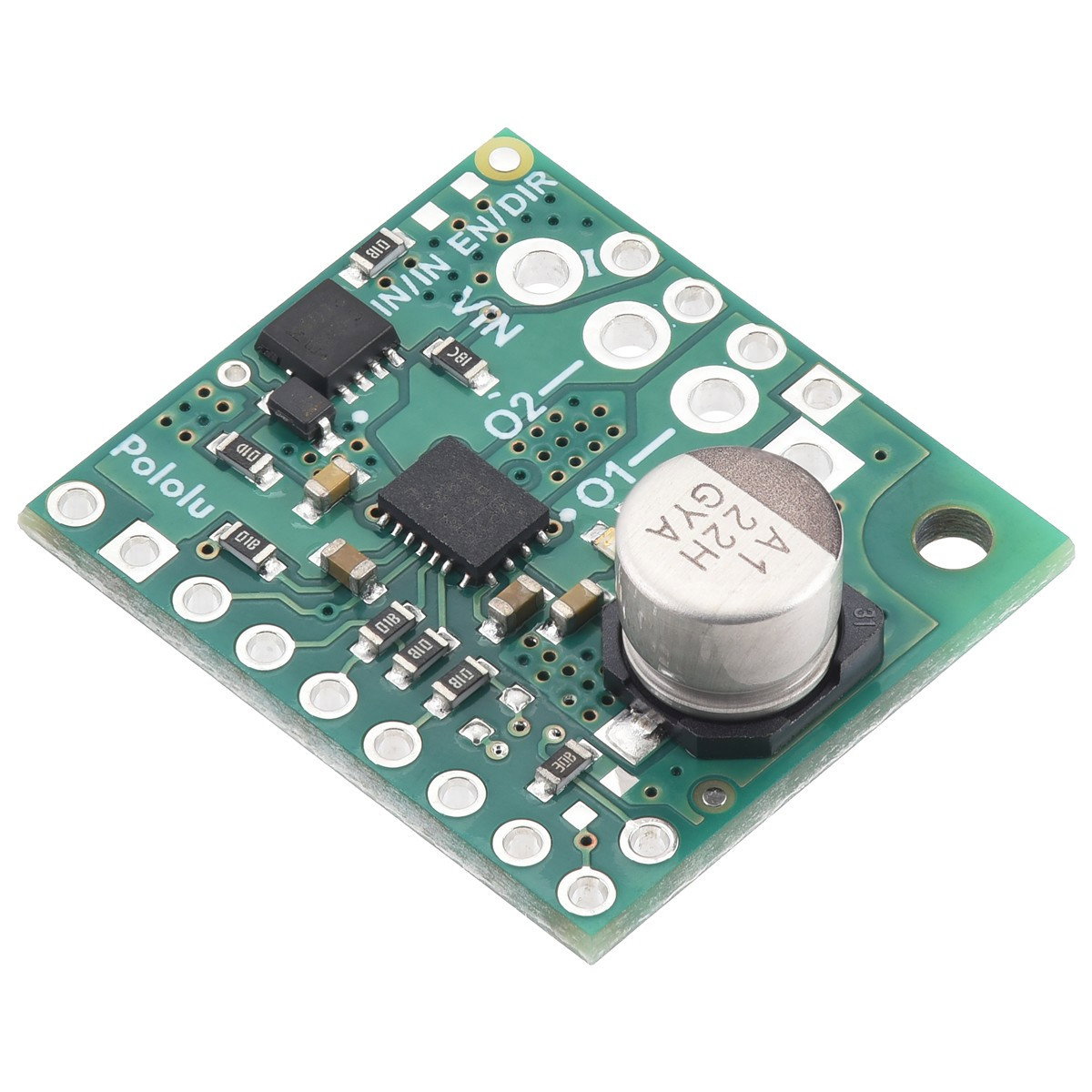

Pololu MPQ6612A DC motor driver board
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
4-40 V
motor supply voltage
approx. 4 A
continuous current without additional cooling
200 mV/A
VISEN current sensing output
20.3 x 22.9 mm
board dimensions
A good choice for you?
A good choice if:
- you control one 12 V or 24 V DC motor in a robot or a drive
- you want to measure the motor current and limit it without additional components
- you need protections and a small board
Consider another option if:
- a lower current is enough for you: see Pololu DRV8874 37 V/2.1 A driver
- you control two small motors: choose Pololu DRV8835 dual-channel driver
Technical specifications
| Parameter | Value |
|---|---|
| Chip | MPS MPQ6612A, H-bridge |
| Number of channels | 1 brushed DC motor |
| Motor voltage | 4-40 V |
| Continuous current | approx. 4 A (5 A with cooling) |
| Current limit | default 7.5 A, adjustable with the ISET resistor |
| Current sensing | VISEN output, 200 mV/A |
| Logic | 1.5-5 V (max. 6.5 V) |
| Inputs | IN1, IN2 (PWM), SLEEP; FAULT output |
| Auxiliary output | VCC 5 V from the built-in regulator |
| Protections | overcurrent, thermal, reverse power connection |
| Dimensions | 20.3 x 22.9 mm, mounting hole for an M2 screw |
| Included | module without connectors |
| Manufacturer | Pololu (number 5285) |
Did you know?

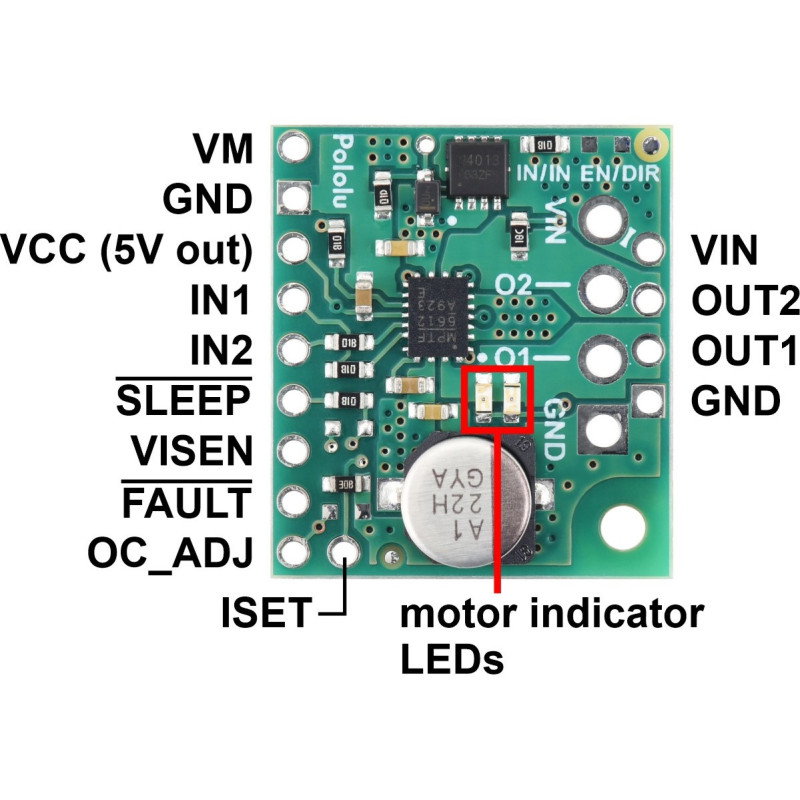

LEDs that show motor movement
There are two LEDs on the board: the brightness shows the speed and the color shows the direction of rotation. They work even without a motor connected, so you can check the control signals before mounting the drive.
Source: Pololu: product page
Frequently asked questions
Why does the driver not respond to signals?
Most often the SLEEP input is low. The driver is asleep by default and you need to apply a voltage of 1.5 V to 5.5 V to SLEEP. The VCC output is not suitable for this because it is off in sleep mode.
How do I reduce the current limit?
The limit is set by the ISET resistor. To reduce it, you need to remove the 2 kΩ resistor from the board and add your own with a higher value.
Can I brake the motor?
Yes. Controlling the IN1 and IN2 inputs lets you choose rotation in both directions, coasting or braking.
