Odroid Go Super - Portable Game Console - Dim Gray

Index: ODR-18859 EAN: 5904422365677

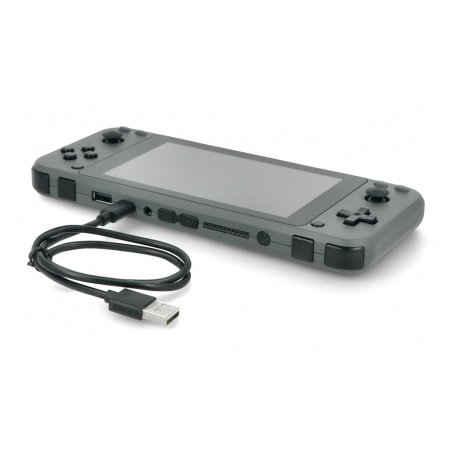

An upgraded version of the Odroid Go Advance console. It is equipped with a 5-inch LCD display with a resolution of 854 x 480 px. Display is covered with tempered glass, making it more resistant to scratches and breakage. Powering the module is the efficient battery with a capacity of 4000 mAh, which allows for about 10 hours of gameplay, depending on the brightness of the display backlight.
€118.58
€96.41 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Odroid

Product description: Odroid Go Super - portable game console - Dim Gray

An upgraded version of the Odroid Go Advance console. It is equipped with a 5-inchLCD displaywith a resolution of854 x 480 px. Display is covered with tempered glass, making it more resistant to scratches and breakage. Powering the module is an efficientLi-Pol batterywith a capacity of4000 mAh, which allows for about10 hours ofgameplay, depending on the brightness of the display backlight. Unlike the previous set, Go Super version has beenpre-assembled. Console does not have built-in wireless communication module.

Piny GPIO konsoli.

Console GPIO pins.

Console pinouts

Console is equipped with10-pinGPIO connector. There are7 input/outputconnectors,5Vpower connector,3.3Vpower connector and GND connector. The pin layout is as follows:

Pin Description
1 GND
2 GPIO3_C1 IN/OUT I2S0_8CH_MCLK
3 GPIO3_C2 IN/OUT I2S0_8CH_LRCKTX / TDM_FSYNC
4 GPIO3_C3 IN/OUT I2S0_8CH_SCLKTX / TDM_SCLk
5 GPIO3_C4 IN/OUT I2S0_8CH_SDO0 / TDM_SDO
6 3,3 V
7 GPIO3_C5 IN/OUT I2S0_8CH_SDI0 / TDM_SDI
8 GPIO3_C6 IN/OUT
9 GPIO3_C7 IN/OUT
10 5 V

System installation

Recommended system for this console isLinux Ubuntuwith previously installed emulator. Ready system can be downloaded frommanufacturer's website. The installation process is identical to that used for minicomputers, e.g. Raspberry Pi OS. The system should be transferred to amemorycard using aflashcard utility. The manufacturer recommends using a card with a minimum capacity of4 GB.

Do ładowania konsoli wykorzystywane jest złącze USB C. Odpowiedni przewód znajduje się w zestawie.

To charge the console USB C connector is used. An appropriate cable is included in the set.

Technical specifications

Parameter Range
CPU RockChip RK3326 (Quad-Core ARM 64-bit Cortex-A35 1.3 GHz)
GPU Mali-G31 MP2
RAM 1GB DDR3L, 786 MHz
Memory
  • SPI Flash Memory: 16 MB
  • MicroSD Memory Card Slot
Display 5-inch TFT LCD display, resolution: 854 x 480 px
Audio Jack connector for connecting headphones
Power supply Li-Pol 3.7 V / 4000 mAh rechargeable battery
Operating time on a single charge Up to 10 hours, depending on the brightness of the display backlight
Connections
  • USB 2.0 Host
  • 10 x GPIO
  • USB C 5V for device charging
Buttons F1, F2, F3, F4, F5, F6, A, B, X, Y, 2x side buttons, crosshairs, 2x analogue knobs
Wireless communication None, USB adapters can be used
Current consumption 350mA to 600mA
Battery charging time 3.4 to 4 hours with device off. 4.5 to 5.5 hours playing
Dimensions 204 x 86 x 25 mm
Weight 280 g
UC - Microcontroller RK3326
UC - RAM 1 GB
UC - core 4. Quad Core
UC - External memory microSD card
UC - freq 1.3 GHz
UC - USB 1x USB
UC - I2C yes
UC - UART yes
UC - Connector USB typ C
UC - LCD interface yes
