Wireless charging module - 5V/5A - DFRobot FIT0702

Index: DFR-19029 EAN: 5904422361594
The power module from DFRobot uses wireless charging technology that is based on magnetically coupled resonance. The input voltage to be applied to the transmitting element is 24 V and the receiver generates an output voltage of 5 V / 5 A. Used to power mobile electronic devices such as phones (which support inductive charging technology), game consoles or shavers.
Wireless charging module - 5V/5A - DFRobot FIT0702
€20.62
€16.76 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot

Product description: wireless charging module - 5 V / 5 A - DFRobot FIT0702

Power modulefrom DFRobot useswireless charging technologythat is based on magnetically coupled resonance. The input voltage to be applied to the transmitting element is24 Vand the receiver generates an output voltage of5 V / 5 A. Used to power mobile electronic devices such as phones (supporting inductive charging technology), game consoles or shavers.

In our shop offer you will also find otherpower modules.

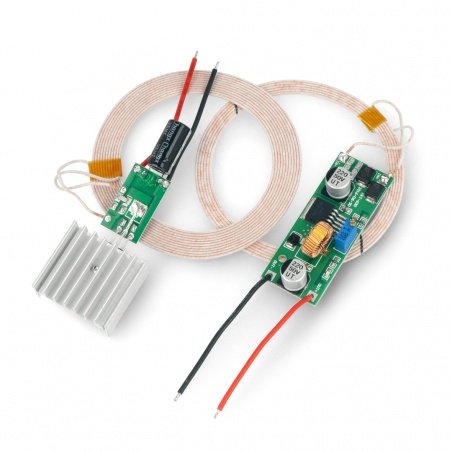

Moduł ładowania bezprzewodowego wyprodukowany przez DFRobot.

Wireless charging module produced by DFRobot.

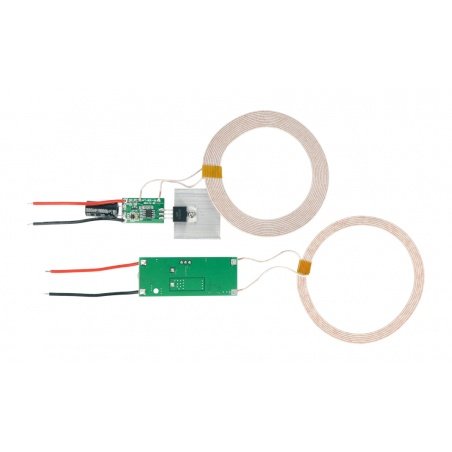

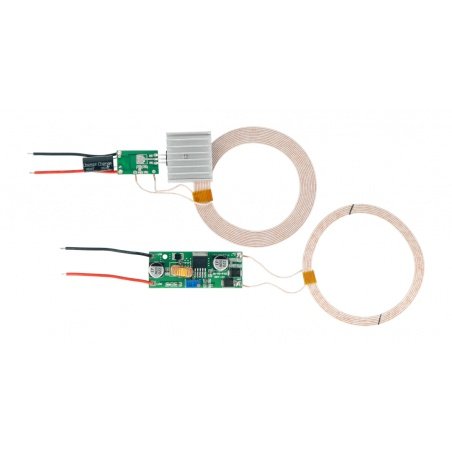

Grubość cewki nadawczej oraz cewki odbiorczej jest równa 1,3 mm, a ich średnica wewnętrzna wynosi 70 mm.

The thickness of the transmitting coil and the receiving coil is 1.3 mm and their inner diameter is 70 mm.

Wireless charging

The module manufactured by DFRobot uses anelectromagnetic fieldto transfer energy between two objects. The energy is transferred through media such as air, paper or plastic. The module can realize long distance transmissionup to 65 mmwith a maximum output power of5 V / 5 Aand an efficiency ofup to 97%. It provides high efficiency and stability even during long operating hours. In addition, the magnetic field it uses has similar properties to the earth's field, so it will not affect the human body or other devices in the vicinity.

Contents of the kit

  • Wireless power supply module
    • transmitter - 1 pc.
    • receiver - 1 pc.

Technical specification

  • Input voltage 24 V
  • Maximum output voltage: 5 V
  • Maximum output current: 5 A
  • Optimal receiving distance: up to 65 mm
  • Leads: wires with removed insulation
  • Wiring connection:
    • red wire - power supply
    • black wire - ground
  • Dimensions of transmitting coil:
    • external diameter: 88 mm
    • internal diameter: 70 mm
    • thickness: 1.3 mm
  • Dimensions of the receiving coil:
    • external diameter: 83 mm
    • internal diameter: 70 mm
    • thickness: 1.3 mm
  • Dimensions of transmitter module: 17 x 28 mm
  • Dimensions of receiver module: 25 x 64 x 16 mm

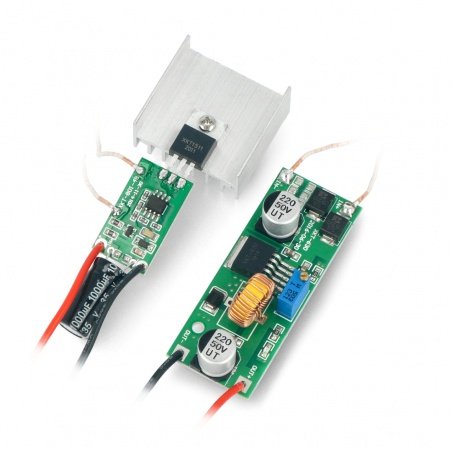

Wyprowadzeniami nadajnika i odbiornika są przewody ze zdjętą izolacją, do których podłączyć należy zasilanie.

Transmitter and receiver terminals are wires with stripped insulation, to which the power supply has to be connected.

Voltage to 24.0 V
Voltage from 24.0 V
Output voltage to 5.0 V
Current 5 A
