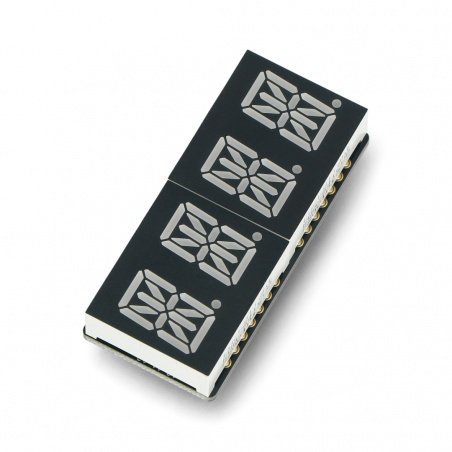

Module 4x display - 14-segment red - overlay for Feather - Adafruit 3130

Index: ADA-19093 EAN: 5904422354749
Module with four 14-segment displays manufactured by Adafruit. It features LEDs that display the declared values in red. Also included is a Feather matrix, containing a controller based on the HT16K33 chip, which uses the I2C bus to communicate with the controller module. It is compatible with Feather Huzzah, Feather nRF52840 or Feather M0 Express 32-bit, among others. The diagonal of the dual display is 0.54'' and the dimensions are 21 x 25 x 7 mm.
Module 4x display - 14-segment red - overlay for Feather - Adafruit 3130
€15.50
€12.60 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: Adafruit

Attention!

The product has been discontinued. Check other products in category.

Product description: 4x display module - 14-segment red - overlay for Feather - Adafruit 3130

Module withfour14-segment displaysmanufactured by Adafruit. Equipped withLEDsthat display the declared values inred. The kit also includes a Feather matrix, containing a controller based on the HT16K33 chip, which uses the I2C bus to communicate with the controller module. It is compatible with FeatherHuzzah,Feather nRF52840or FeatherM0 Express 32-bit, among others. The diagonal of the dual display is 0.54'' and the dimensions are 21 x 25 x 7 mm. The module can be programmed using Arduino environment andCircuitPython- one of the fastest growing programming languages.

Product compatible with Arduino

A detaileduser guideandinstallation instructionsare available on the manufacturer's website.

Matryca Feather została wyposażona w sterownik oparty o układ HT16K33.

The Feather matrix is equipped with a driver based on HT16K33 chip.

Technical specification of the segmented display from Adafruit

  • Display type: segmental, alphanumeric
  • Chip: HT16K33
  • Number of displays: 4 (14-segment + dot)
  • LED display with a common cathode
  • Diagonal of dual display: 0,54''
  • Communication interface: I2C
  • I2C interface address: selectable between 0x70 - 0x77
  • Maximum distance from module for clear reception: 7 m
  • Module background: black
  • Display color: red
  • Module dimensions: 51 x 23 x 4.2 mm
  • Dimensions of double alphanumeric display: 21 x 25 x 7 mm
  • Height with pins: 14 mm
  • Weight: 4.7 g
  • Soldering required

Set contents

  • 4 x 14-segment display
  • Feather matrix with HT16K33 driver
  • Goldpin strip - 2,54 mm pitch - 2 x 16 pins

In our shop you can also find othersegment displays and LED matrices.

W skład zestawu wchodzi także listwa goldpin o rastrze 2,54mm 2 x 16 pin, którą należy przylutować do matrycy Feather.

The set includes also a 2,54mm 2 x 16 pins goldpin strip, which should be soldered to the Feather matrix.Installation instructionscan be found in the user guide.

Screen - type sectional LED
Screen - touch no
LED - color red
Package width 15 cm
Package height 25 cm
Package depth 2.5 cm
Package weight 0.024 kg
