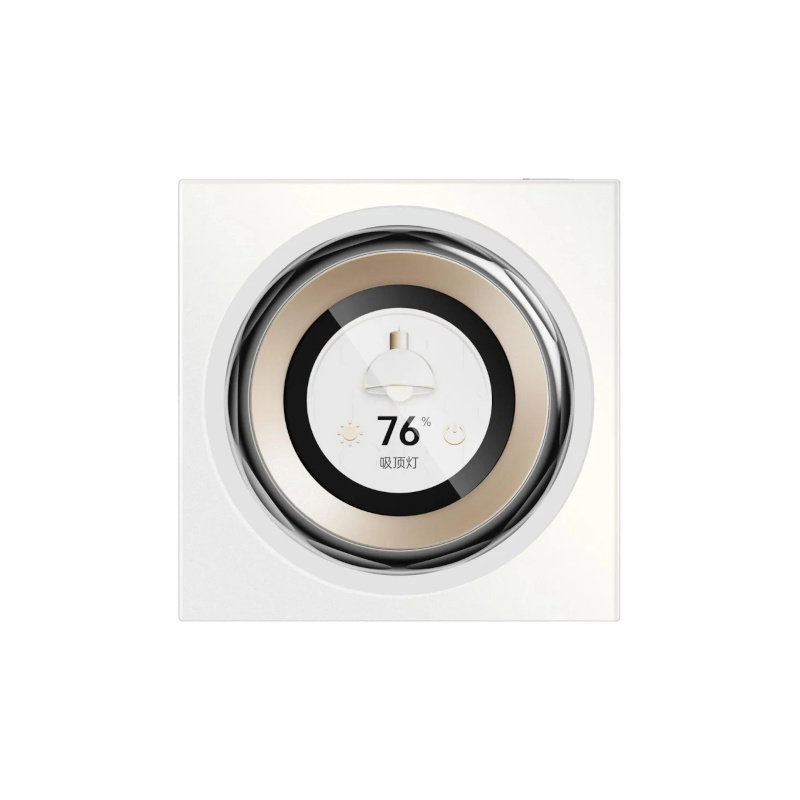

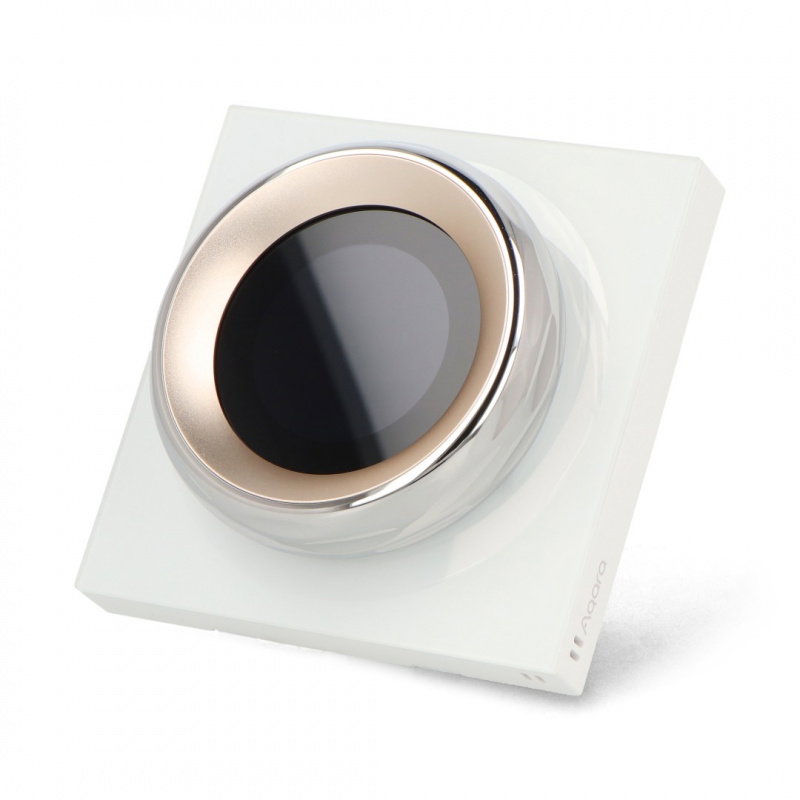

Product description: Aqara Touchscreen Dial V1 EU DS-K01D - Smart Home control panel - WiFi / Bluetooth / ZigBee - white

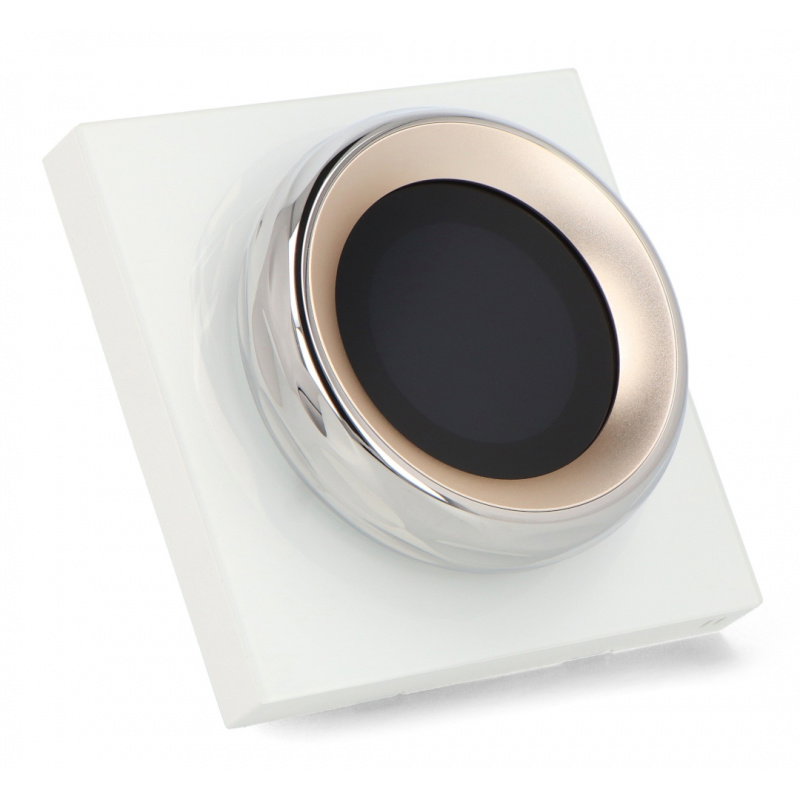

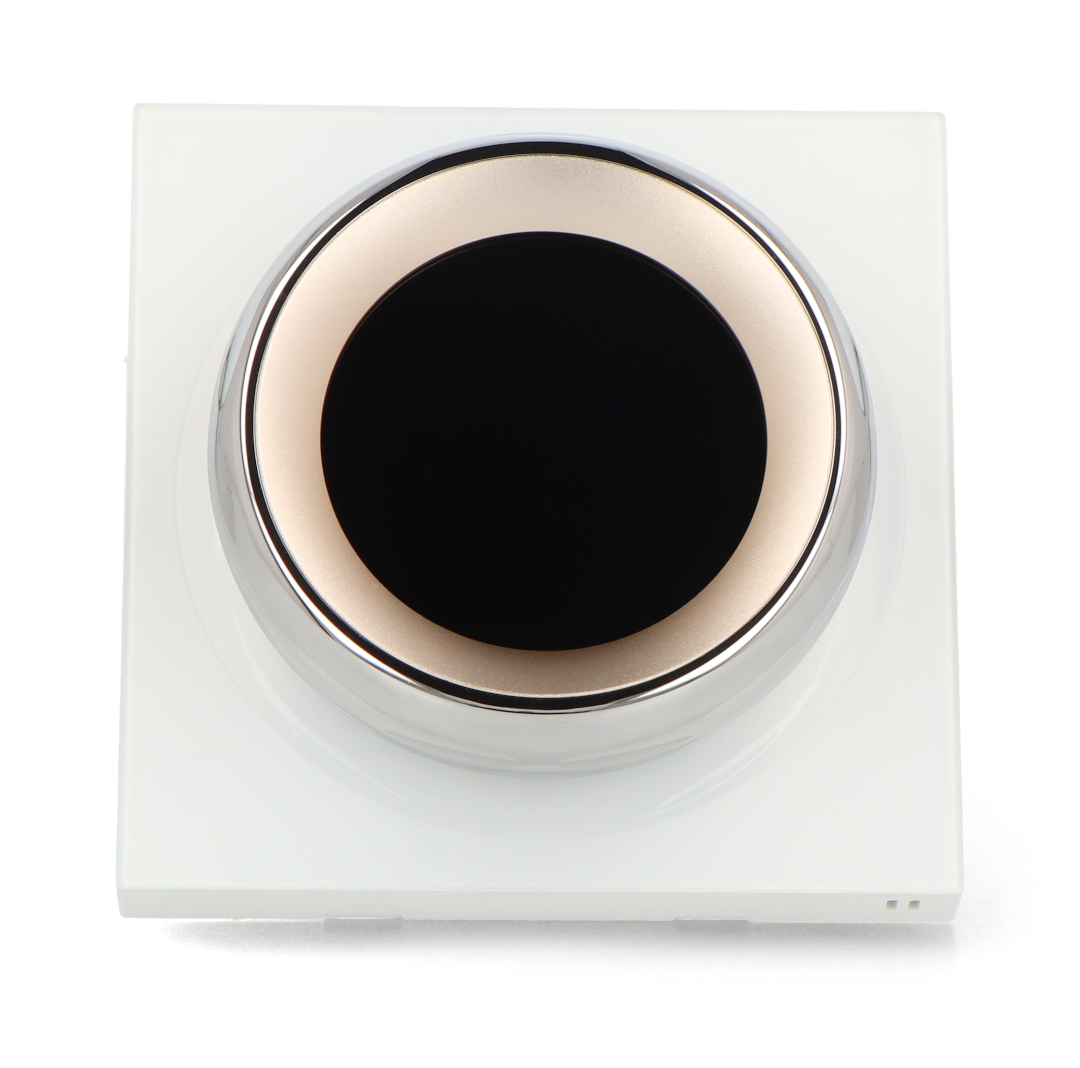

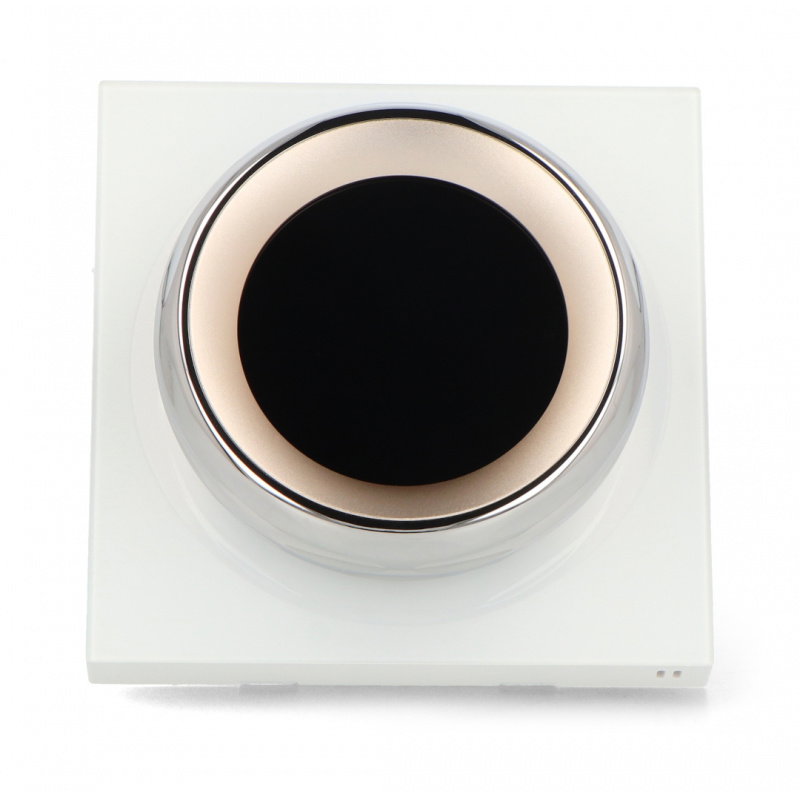

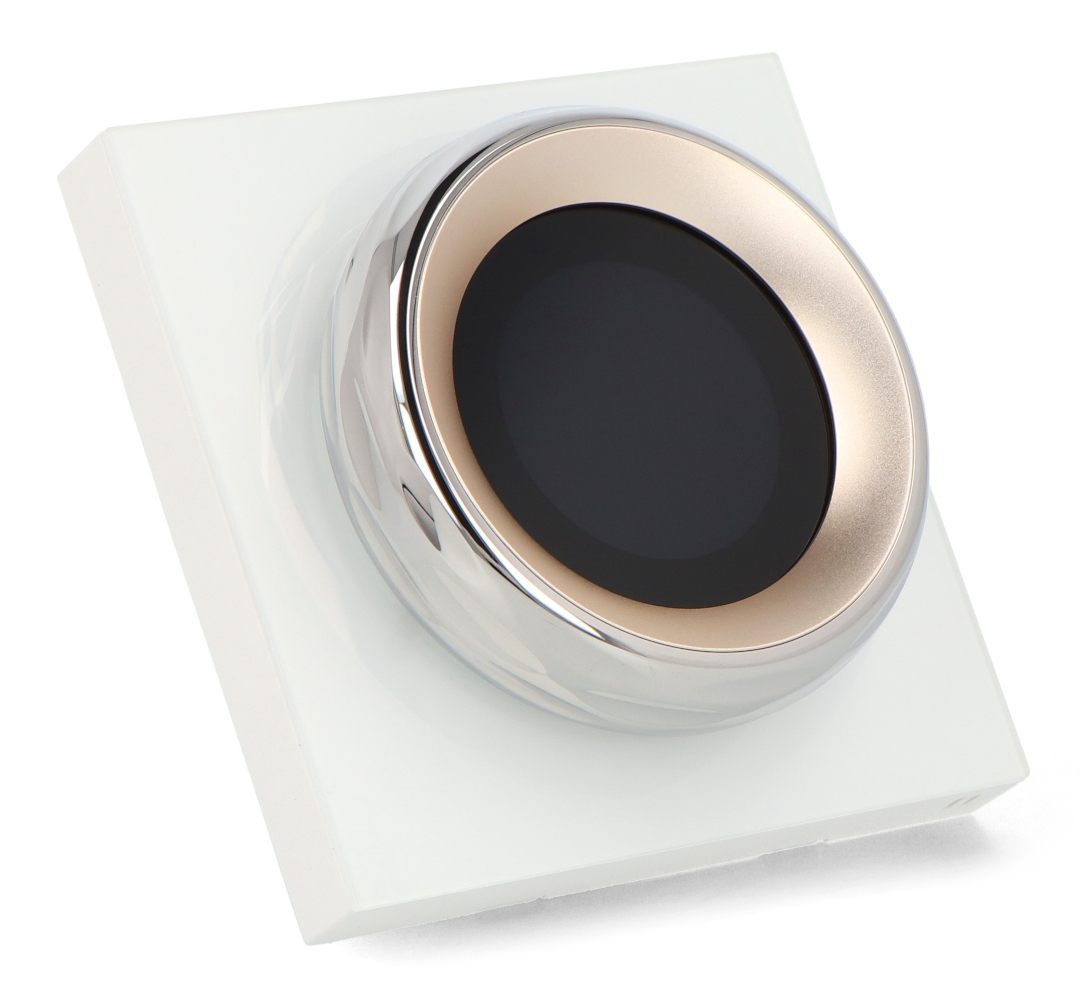

The Aqara Touchscreen Dial V1 EU is a multi-functional panel that allows you to replace several traditional controls with one aesthetically pleasing device. The circular touchscreen combined with a rotating bezel allows for convenient management of smart home devices and scenes. The dial provides haptic and audible feedback , making precise adjustments to light brightness, temperature, or blinds more intuitive. The panel also features a temperature and humidity sensor and proximity activation . The display can be personalized, displaying information such as the time, date, weather, and room conditions. The manufacturer also includes two built-in switches and six wireless switches .
From the panel, you can manage compatible lighting, adjust its brightness and parameters, control blinds, change temperature settings or run previously prepared scenes.
Main features of the Aqara panel
- 1.32" round touchscreen : provides a clear interface for operating devices, scenes and smart home parameters
- Haptic feedback knob : vibrations and sound signals make it easier to enter precise settings
- Multi-Device Control : Default configuration includes 2 built-in switches and 6 wireless switches
- Smart Home Scene Support : allows you to run configured automations and centrally manage your home equipment
- Dual Band WiFi : supports 2.4 GHz and 5 GHz networks
- ZigBee and Bluetooth : increase the communication capabilities and integration of the panel with the smart home installation
- Wide compatibility : the manufacturer indicates cooperation with Aqara, Apple Home, Amazon Alexa, Google Home and Home Assistant
- Temperature and humidity sensor : allows you to monitor room conditions and use them in automation
- Proximity activation : the screen can automatically respond to the user's proximity, and the activation distance can be adjusted
- Screen personalization : allows you to display, among other things, the time, date, weather, room temperature and humidity
- MARS Technology : Helps keep compatible smart lighting available on your network while using the switch
Aqara Touchscreen Dial V1 Connectivity and Smart Home Ecosystem Compatibility
Aqara Touchscreen Dial V1 EU supports WiFi IEEE 802.11 a/b/g/n/ac in the 2.4 GHz and 5 GHz bands, ZigBee IEEE 802.15.4 and Bluetooth . The manufacturer declares compatibility with the Aqara, Apple Home, Amazon Alexa platforms, Google Home and Home Assistant. Connectivity to popular ecosystems makes it easy to integrate the panel into an existing Smart Home installation and centrally control compatible devices and scenes. Thanks to dual-band WiFi, the device can also operate without an additional gateway in supported external ecosystem applications. However, the range of available features may depend on the selected platform – for example, the manufacturer indicates that the knob rotation function is not shared with third-party systems.
The rotating knob with haptics allows for intuitive and precise adjustment of Smart Home device parameters, such as light brightness, temperature or roller blind opening level.

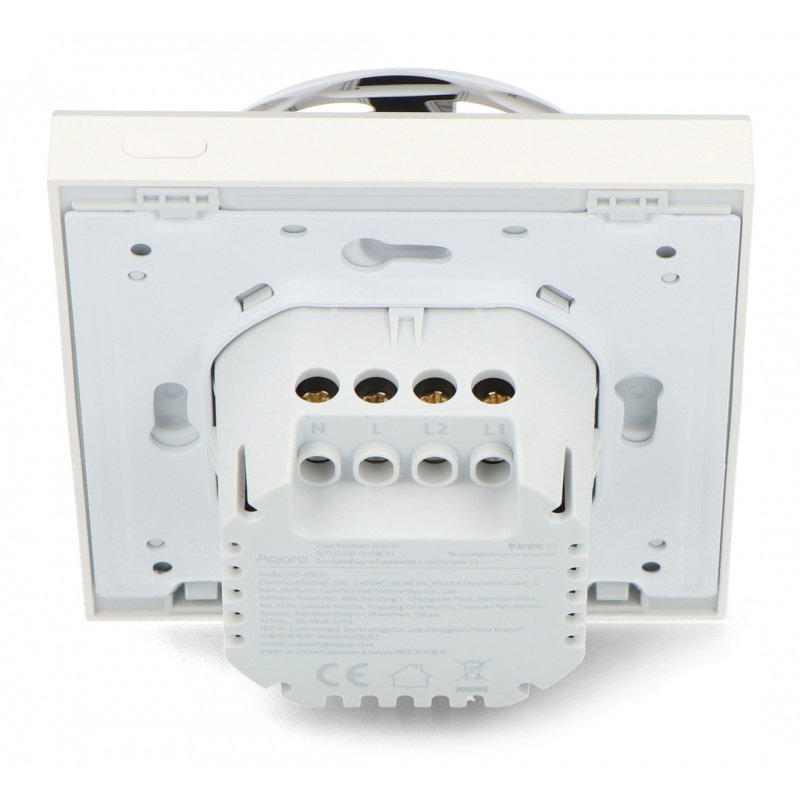

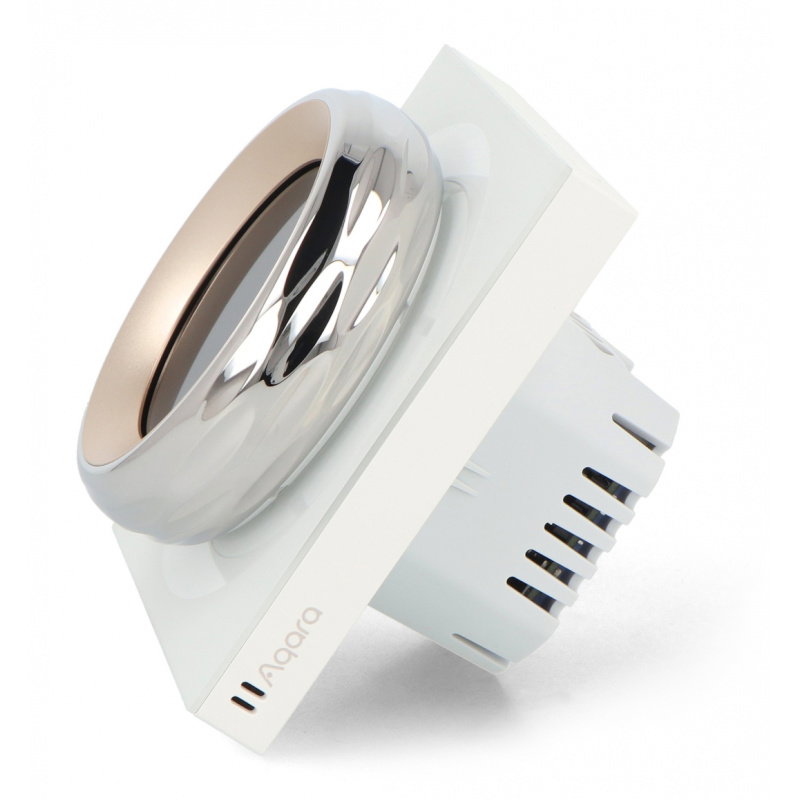

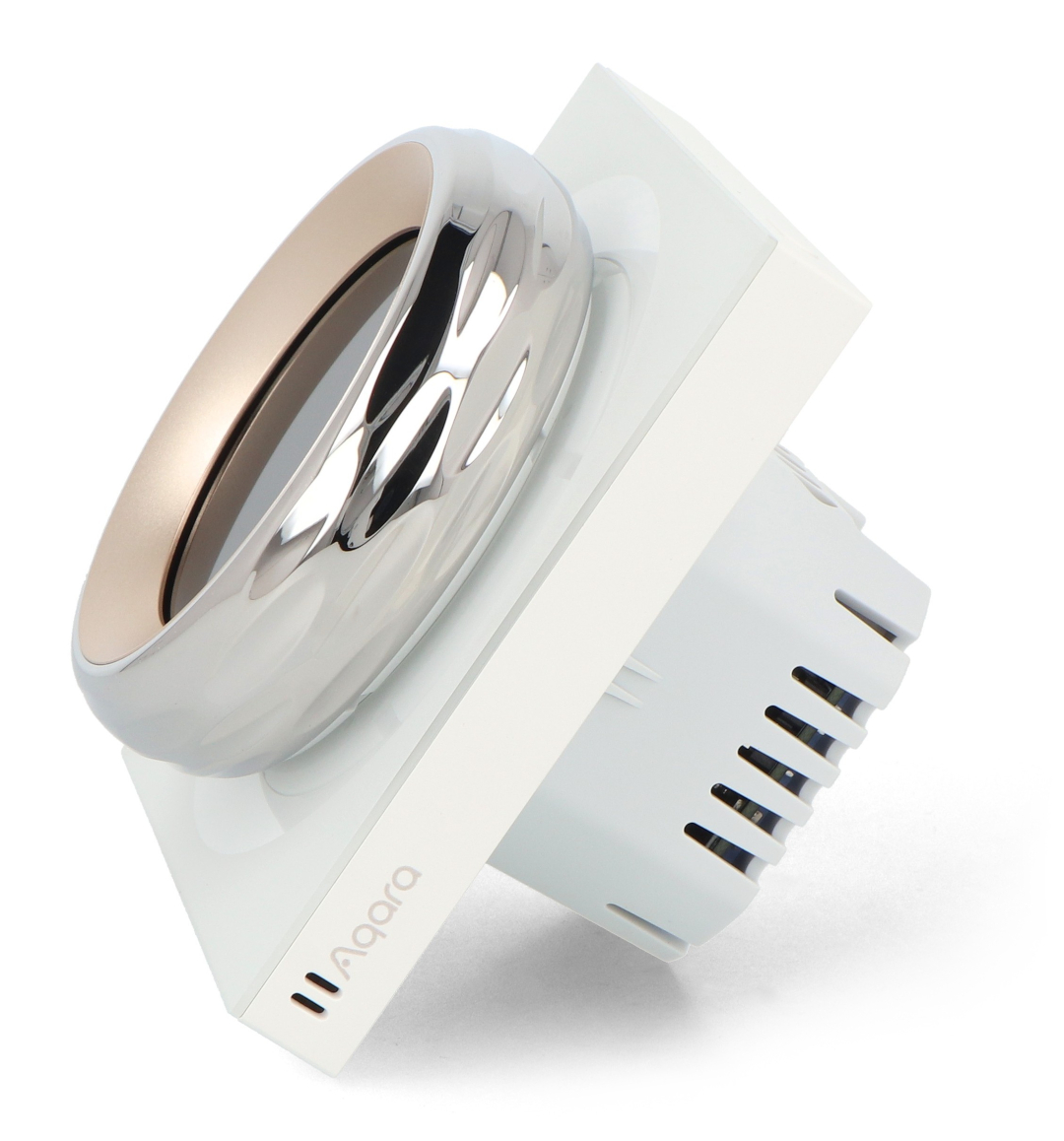

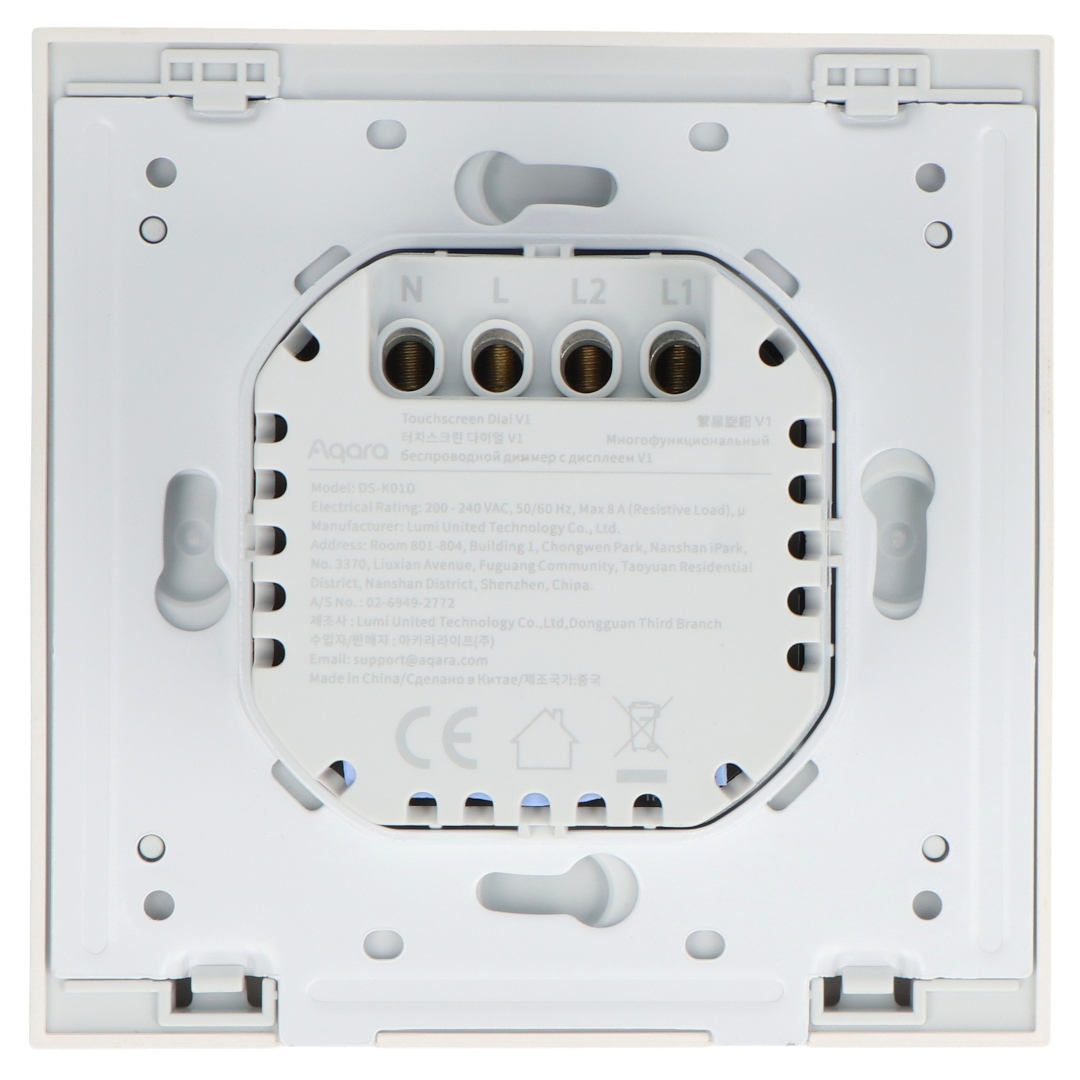

The Aqara Touchscreen Dial V1 EU is designed for flush mounting in a standard single wall box.
Technical specifications of the Aqara Touchscreen Dial V1 EU
- Model: DS-K01D
- Type: Smart Home wall control panel
- Display: 1.32" round touchscreen
- Operation method: touchscreen, knob, click
- Feedback: haptic and auditory
- Switches: 2 built-in and 6 wireless
- WiFi: IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz
- ZigBee: IEEE 802.15.4
- Bluetooth: yes
- Compatible platforms: Aqara, Apple Home, Amazon Alexa, Google Home, Home Assistant
- Sensors: temperature, humidity, proximity
- Supply voltage: 200 V to 240 V AC
- Power frequency: 50/60 Hz
- Maximum load: 8 A - resistive load
- Operating temperature: -10°C to 40°C
- Operating humidity: 0% RH to 95% RH, non-condensing
- Color: white
- Dimensions: 86 x 86 x 62.1 mm
- Weight: 369 g
Contents of the set
- Aqara Touchscreen Dial V1 EU
- Screw set - 2 pcs.
