Product description: Soil moisture sensor and mini irrigation pump - Unit extension module for M5Stack development modules
Unit typeexpansion module compatible withM5Stackseries of developer modules includingM5Atom,M5StickandM5Core. Extension in the form ofsoil moisture sensorand mini irrigation pump. It is used in the implementation of projects for intelligent irrigation of soil or small crops. Allows you to control the watering process, which positively affects the growth of plants. The sensor has a built-in capacitive touch measurement system. The device is connected to the main module using a cable equipped with a plug compatible withGrove seriesconnectors. The set includes a dedicated connection cable, mini water pump and measuring plates to detect soil moisture and to control the pump. The device can be programmed using UIFlow graphical environment and Arduino IDE.

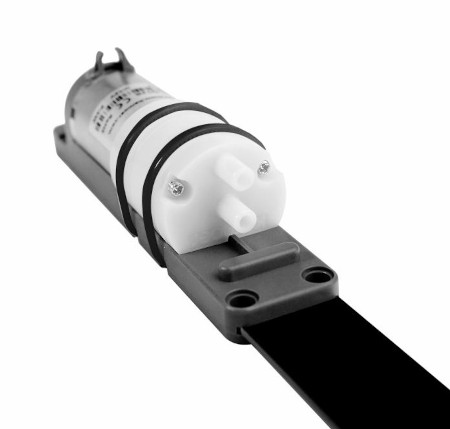

The kit includes mini water pump EDLP600-D12B.

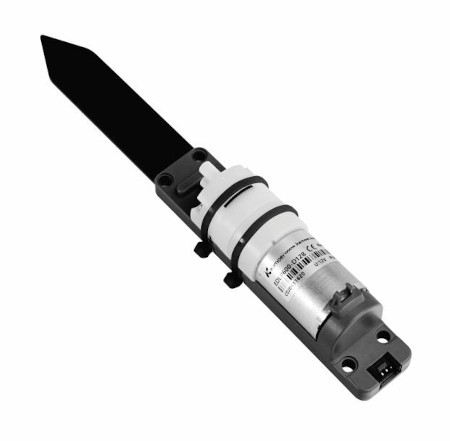

Power of the pump is 5W.
Suggested application
- Crop cultivation
- Soil moisture sensor
- Part of smart irrigation projects
Technical specification
- Supply voltage: from 3.3 V to 5 V
- Pump power: 5 W
- Communication interface: GPIO
- Supported programming platforms:Arduino,UIFlow
- The module has mounting holes compatible with LEGO system
- Dimensions: 192.5 x 24 x 33 mm
- Weight: 78 g
There's auser guideavailable on manufacturer's website, which contains sample program codes for UIFlow and Arduino.
Contents of the kit
- Soil moisture sensor
- Water pump EDLP600-D12B
- Irrigation tube - 2 pcs.
- 4-pin connection cable
In our offer you will also find other products of M5Stack series, includingUnit type extensionsfor developer modules,M5Atom,M5StickandM5Coreseries modules.

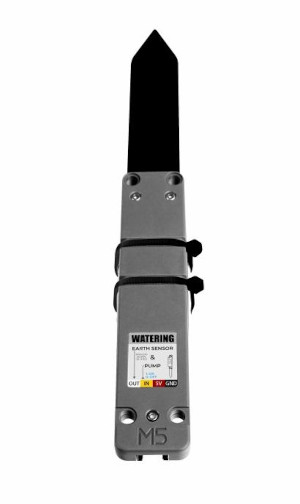

Module can be supported by most popular development platforms like Arduino and UIFlow.
