Product description: 3D Printer - Creality CR-6 Max
FFF/FDM3D printer, which is manufactured by Creality. The device offers a large working area of dimensions:400 x 400 x 400 mmwith a carborundum glass surface. Creality CR-6 Max is equipped with an upgraded leveling system,a filament sensoranda 32-bit motherboardwith silent stepper motor drivers. The vertical part of the frame on which the Z-axis movement takes place was additionally reinforced with transverse supports, thus increasing the stability during operation. The dimensions of the CR-6 Max are 725 x 640 x 691 mm. The product is supplied as a kit for self-assembly.

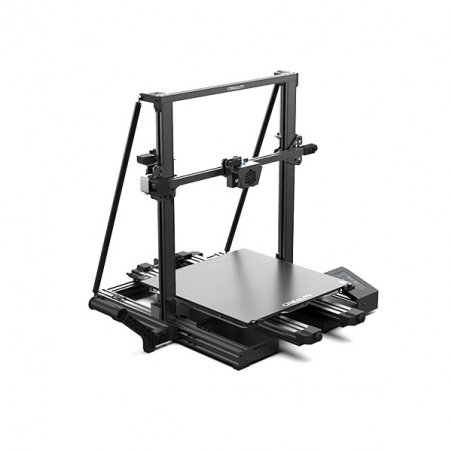

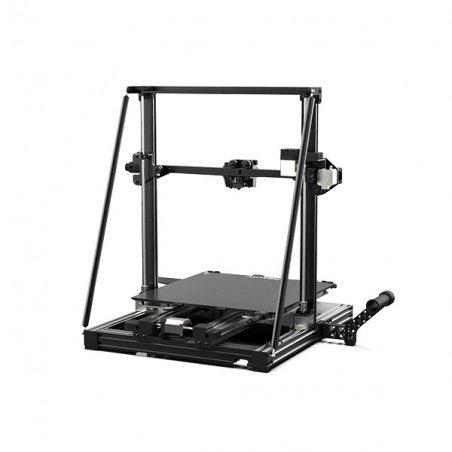

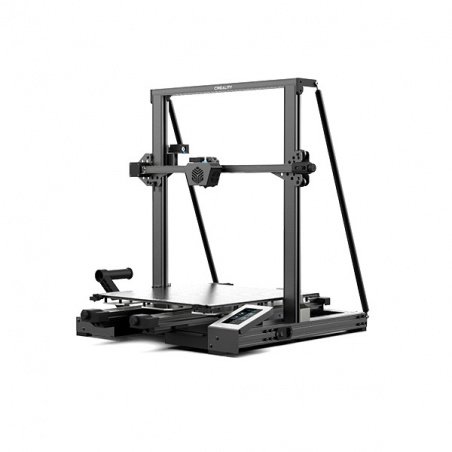

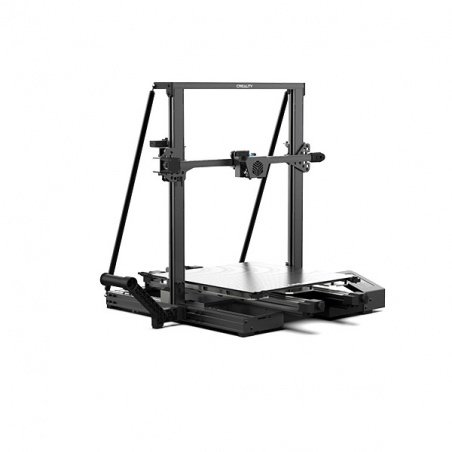

3D Printer - Creality CR-6 Max.
Creality CR-6 Max construction usesa double Z axiswith two trapezoidal screws driven by independent motors. The whole frame is stabilized by brackets placed at the back. Thanks to applied solutions the printer is very stable during work.
Due to the large working area, Creality CR-6 Max has adouble Y axis with two synchronous toothed belts. By using this solution, the stability of the 3D printer and thus the quality of the final 3D prints is significantly improved.
Convenient device leveling system
The Creality CR-6 Max has an extremely convenientwork platform leveling system. The printer uses a special sensor that detects where the hotend heads touch the heating table during the calibration procedure. The automatic leveling system allowed to eliminate knobs on the bottom of the hotbed.
Modernized print head and felt feeding mechanism
Newly designed printhead with a new nozzle module provides efficient filament flow while maintaininguniform heat dissipation.
Improved filamentextrusion mechanism, enables easy loading of material for printing. Precise thermoplastic feed allows you to make even more accurate 3D models.
Felt sensor and print resume function
The Creality CR-6 Max featuresa filament sensor that pauses the printer if it detects the end of the print material or if it is interrupted. The device also featuresa resume functionwhen power is restored.
Other 3D printer features
- Convenient mounting brackets on the work table
- Built-in storage compartment
- Holder for spool offilament
- Convenient and aesthetic cable connections
- Worktable surface made of carborundum glass, showing excellent adhesive properties
- 4.3'' touch screen display with intuitive menu
Creality CR-6 Max 3D Printer Specifications
|Supply voltage:||100 V to 240 V (AC - mains)|
|Output voltage:||24 V|
|Nozzle diameter:||Standard: 0.4 mm|
|Supported filament:||PLA, TPU, PETG, WOOD|
|Filament diameter:||1.75 mm|
|Print thickness:||0.1 mm to 0.4 mm|
|Operating mode:||USB, SD card|
|Print size:||400 x 400 x 400 mm|
|Printer dimensions:||725 x 640 x 691 mm|
