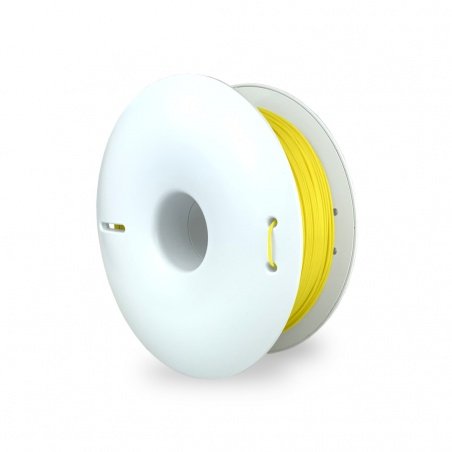

Description: Fiberlogy ASA 1,75 mm 0,75 kg - Yellow
Filament ASA(acrylonitrile-styrene-acrylate)inyellowcolor produced byFiberlogy. ASA plastic is characterized by high resistance to high temperature and humidity. It combines high mechanical strength and ease of printing. The weight of the material wound on a spool is0.75 kg.
In our offer of filaments you will also find other materials and colors.
Fiberlogy ASA 1,75 mm 0,75 kg - Yellow.
Properties of Fiberlogy ASA filament
- It shows high mechanical strength (it is used to print, among others, electronic casings and sports pads).
- It is resistant to UV radiation.
- In comparison with ABS, it is characterized by low emission of unpleasant smells that appear during printing.
- It shows much smaller shrinkage than ABS, so it does not require heated working chamber of the printer.
- It is characterized by high color durability.
- It is resistant to temperatures up to 94°C.
- Printouts made of ASA can be smoothed and glued with acetone. The finished model can also be sanded and painted.
Printing tips
- Printing with ASA does not require a closed working chamber
- Manufacturer's suggested airflow settings: up to 25%
- Flowrate value: from 90% to 100%
- Substrate type: glass, kapton tape
- Retraction settings:
- for Direct type extruders: from 1 to 2 mm
- for Bowden-type extruders: from 4 to 6 mm
- Suggested retraction speed: from 20 to 45 m/s
- When printing in an unheated chamber, it is recommended to avoid drafts and sudden gusts of air directed at the developing model
- Suggested airflow settings: up to 25%
- Retraction: from 2 mm to 3 mm
Properties graph for Fiberlogy ASA felt.
Suggested parameters for printing with the filament
| Printing temperature: | 255°C to 270°C |
| Table temperature: | 90°C to110°C |
| Printing speed: | up to 100 mm/s |
|
Due to differences in printer construction, the above data should be treated as guidelines, and the relevant values should be determined experimentally. |
Specifications of ASA filament
| Parameter | Range |
|---|---|
| Filament diameter: | 1.75 mm |
| Dimensional tolerance of the filament: | +/- 0.02 mm |
| Colour: | yellow |
| Printing temperature: | 255°C to 270°C |
| Table temperature: | 90°C to 110°C |
| Spool - material: | acrylonitrile-styrene-acrylate(ASA) |
| Spool diameter: | 200 mm |
| Spool width: | 80 mm |
| Mounting hole diameter: | 52 mm |
| Moisture absorber: | yes |
| Vacuum packaging: | yes |
| Roundness: | +/- 0.01 mm |
| Package dimensions: | 205 x 205 x 90 mm |
| Net weight: | 0.75 kg |
