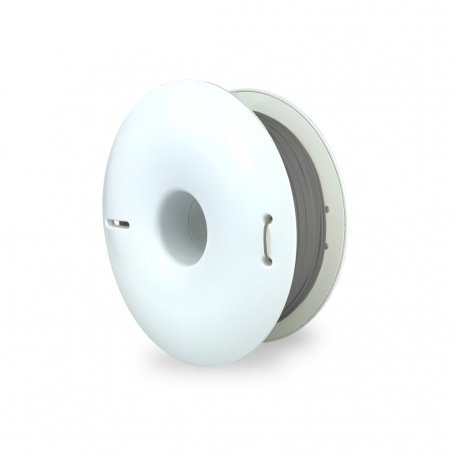

Description: Fiberlogy ASA 1,75 mm 0,75 kg - Graphite
ASAfilamentingraphitecolor fromFiberlogy. ASA plastic is characterized by highstrength,easy printingandcolorfastness. It is widely used in automotive, electronics, and also during the printing of elements of everyday use. The material does not require a heated chamber to ensure successful printing. ASA can be treated with acetone, so that the printed layers are not visible. The material is suitable for sanding and painting. The mass of material wound on a spool is0.75 kg.
In our offer of filaments you will also find other materials and colors.
Fiberlogy ASA 1,75 mm 0,75 kg Graphite.
Properties of Fiberlogy ASA filament
- Versatile use thanks to high printing strength
- Used to print sports accessories, interior design elements, as well as car and motorcycle parts
- Resistant to ultraviolet UV radiation
- Compared to other types of felt, ASA does not emit as unpleasant odour as other materials
- It has significantly less shrinkage than ABS, so there is no need to use heated printer working chamber. Increased adhesion prevents the phenomenon of "curling" of the model
- It is characterized by very high color durability
- resistant to high temperatures, even up to 94°C
- Models printed with ASA filament can be smoothed, sanded, painted
Printing Tips
- Printing with ASA filament does not require a closed working chamber
- Suggested airflow rate: up to 25%
- Flowrate value: from 90% to 100%
- Base type: glass,kapton tape
- Retraction settings:
- for Direct type extruders: from 1 to 2 mm
- for Bowden-type extruders: from 4 to 6 mm
- Suggested retraction speed: from 20 to 45 m/s
- When printing in a chamber that is not heated, it is recommended to avoid drafts and sudden gusts of air
Properties graph for Fiberlogy ASA felt.
Suggested parameters for printing with the filament
| Printing temperature: | 255°C to 270°C |
| Table temperature: | 90°C to110°C |
| Printing speed: | up to 100 mm/s |
|
Due to differences in printer construction, the above data should be treated as guidelines, and the relevant values should be determined experimentally. |
Specifications of ASA filament
| Parameter | Range |
|---|---|
| Filament diameter: | 1.75 mm |
| Dimensional tolerance of the filament | +/- 0.02 mm |
| Colour | graphite |
| Printing temperature | from 255°C to 270°C |
| Table temperature | from 90°C to 110°C |
| Spool material | Acrylonitrile-Styrene-Acrylate(ASA) |
| Spool diameter | 200 mm |
| Spool width | 80 mm |
| Mounting hole diameter | 52 mm |
| Moisture absorber | yes |
| Vacuum packaging | yes |
| Roundness | +/- 0.01 mm |
| Packaging dimensions | 205 x 205 x 90 mm |
| Net weight | 0,75 kg |
