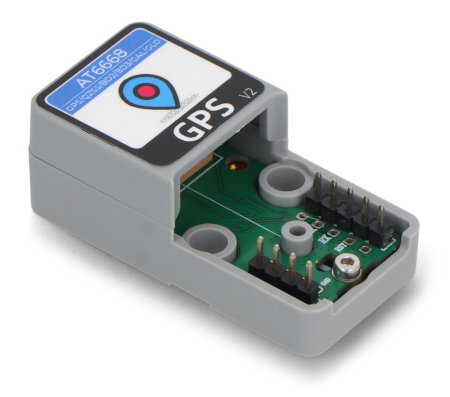

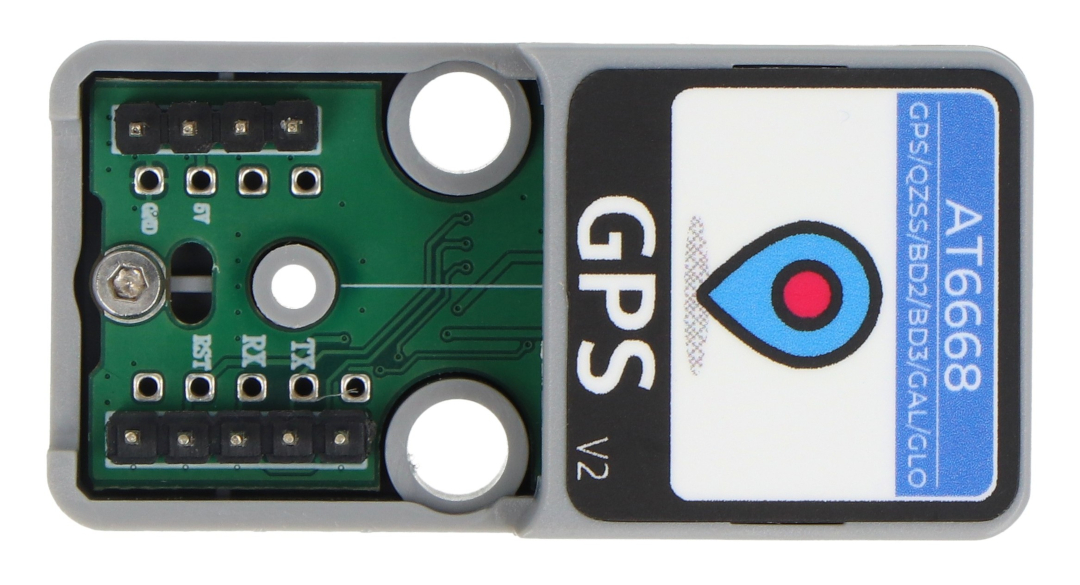

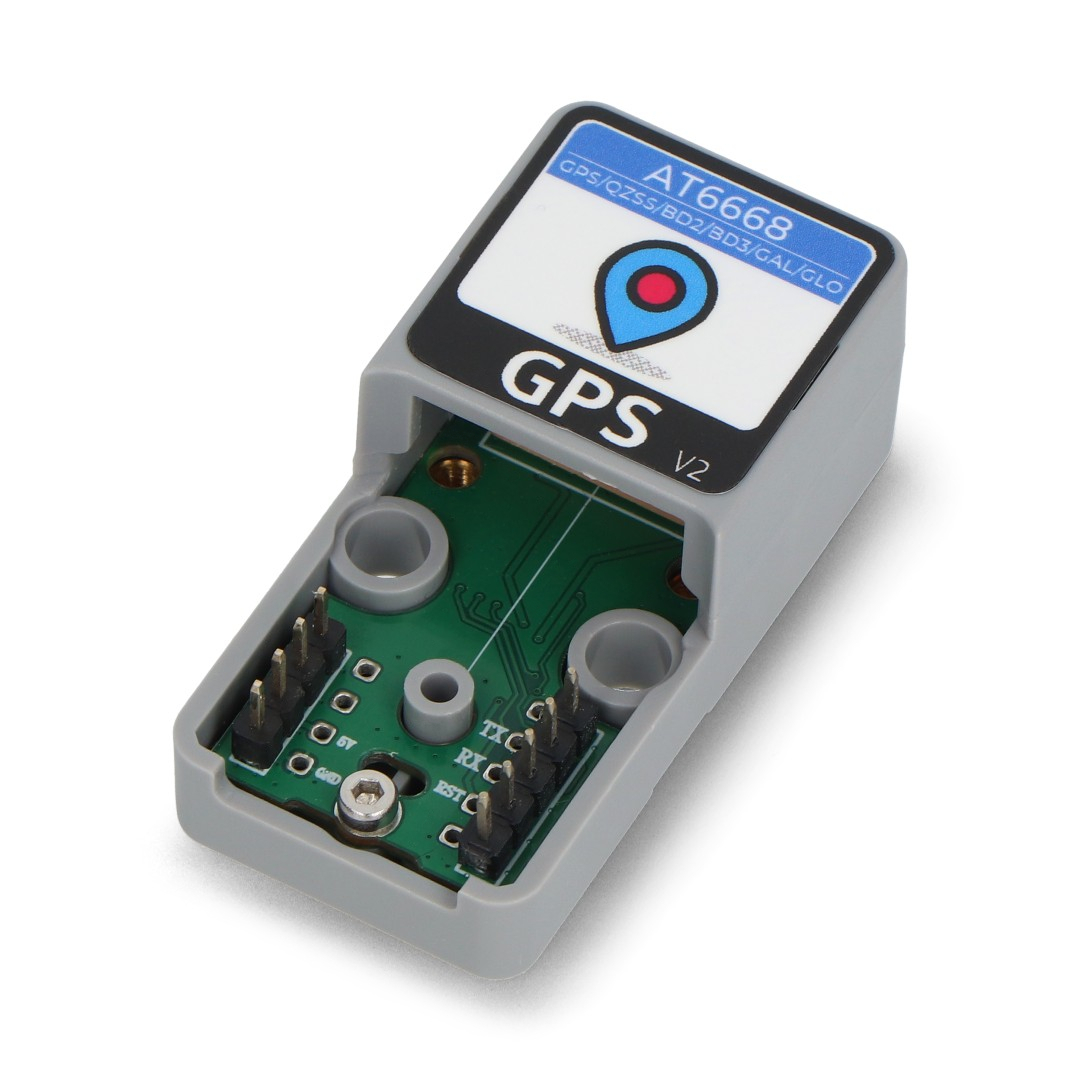

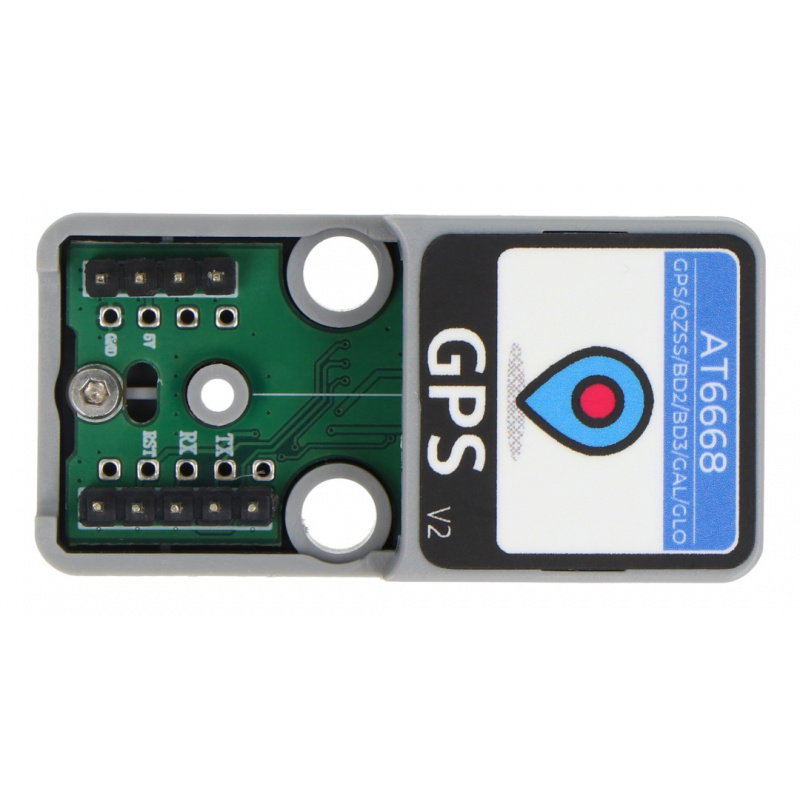

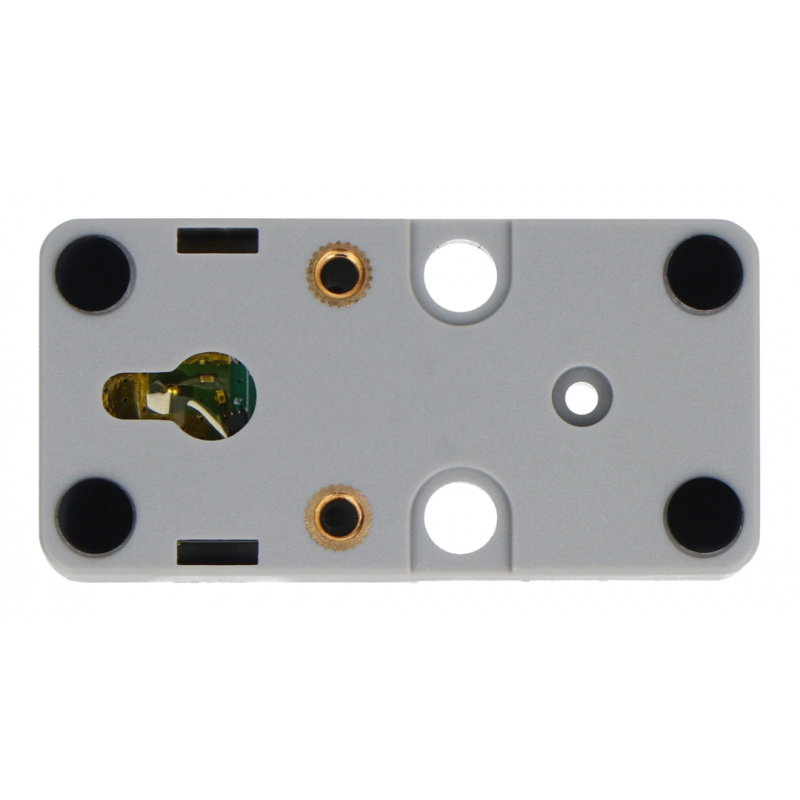

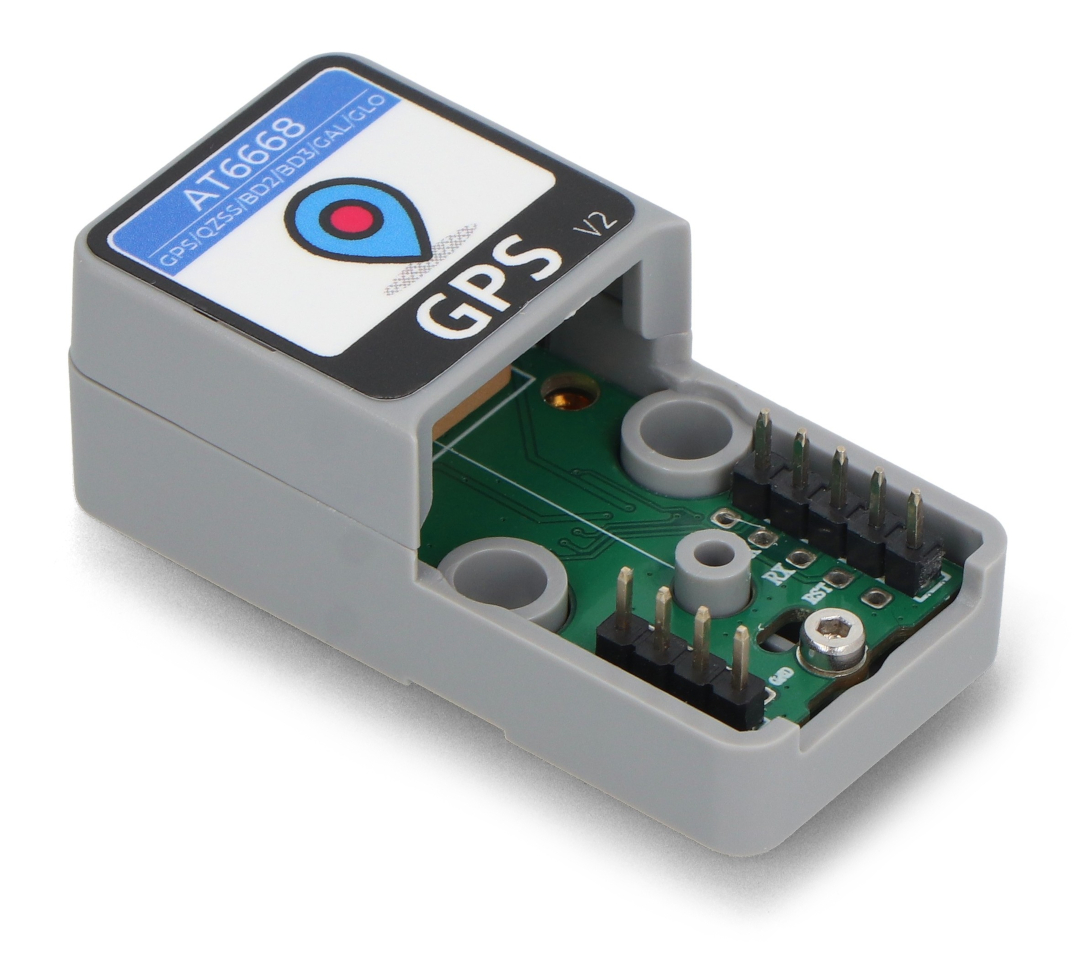

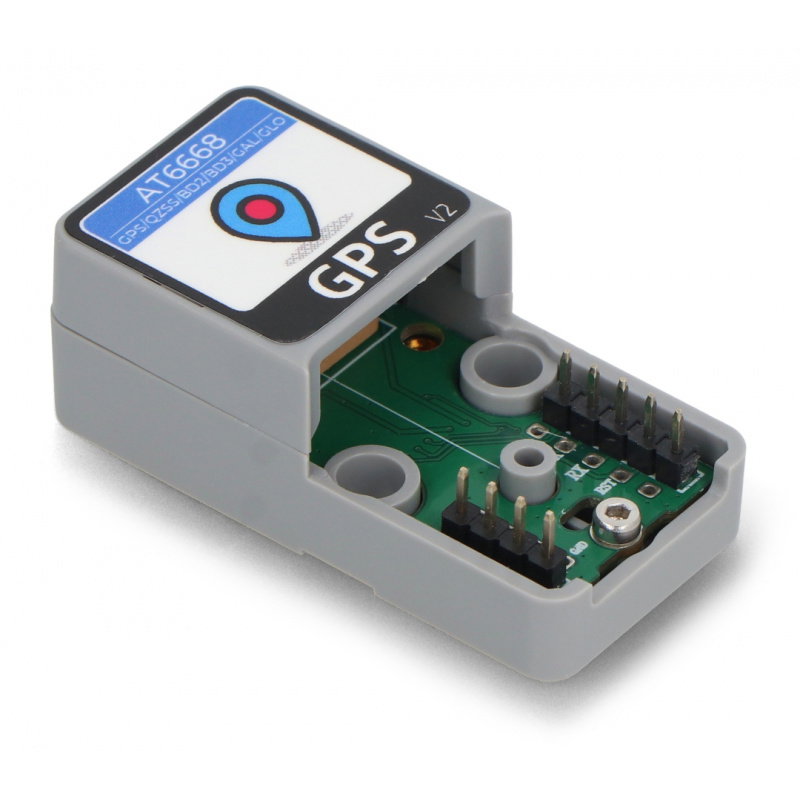

Product description: ATOMIC GPS Base v2.0 - GPS module - Atom extension module for M5Stack development modules
The Atomic GPS Base is an advanced GPS module that integrates the AT6668 chip . It features built-in flash memory and a battery that maintains user settings even after a power outage. Compatible with Atom series controllers, the module can be used in a variety of applications, such as vehicle navigation, marine navigation, bus stop announcements, and route tracking. The module supports NMEA-0183 communication, enabling interoperability with a wide range of devices and systems. It supports multiple satellite systems, including GPS/QZSS, GLONASS, GALILEO, and BDS: B1 and B1C . With 72 search channels , the module can accurately receive and track satellite signals, ensuring precise positioning. It is compatible with Atom Lite, Atom Matrix, Atom S3, and Atom S3 Lite .
ATOMIC GPS Base v2.0 - GPS module - Atom extension module for M5Stack development modules.

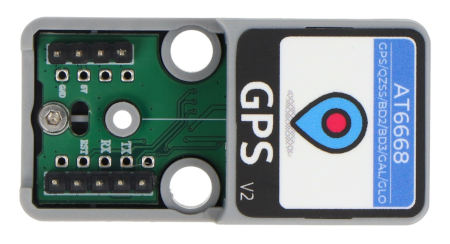

Atomic GPS Base v2.0 is an advanced GPS module that integrates the AT6668 chip.Detailed features
- M5Stack Compatibility - Atomic GPS Base is compatible with various ATOM series controllers, making it a versatile module for various applications
- High signal reception sensitivity - the module offers high reception sensitivity, which ensures accurate and stable positioning even in difficult conditions
- Support for satellite systems: GPS/QZSS, GLONASS, GALILEO and BDS: B1 and B1C - supports multiple satellite systems, which increases its reliability and precision in various regions of the world
Technical specifications
- SoC: ATGM336H-6N-74 module, AT6668 chip
- Positioning accuracy: <1.5 m (CEP50)
- Number of channels: 50
- Update rate: 1 Hz to 10 Hz
- Sensitivity:
- Tracking: -167 dBm
- Signal acquisition: -160 dBm
- Cold start: -148 dBm
- Hot start: -156 dBm
- Start time:
- Cold start: 23 seconds
- Hot start: 1 second
- Baud rate: 115200bps@8N1
- Output protocol: NMEA-0183
- Typical NMEA messages: RMC, VTG, GGA, GSA, GSV, GLL
- Product dimensions: 48 x 24 x 17.5 mm
- Weight: 13.2 g

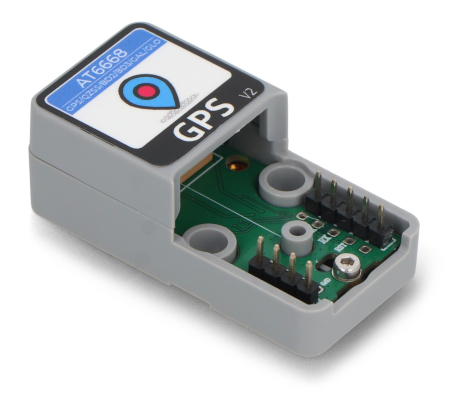

The module supports communication via the NMEA-0183 protocol, which enables interoperability with many devices and systems. Useful links |
