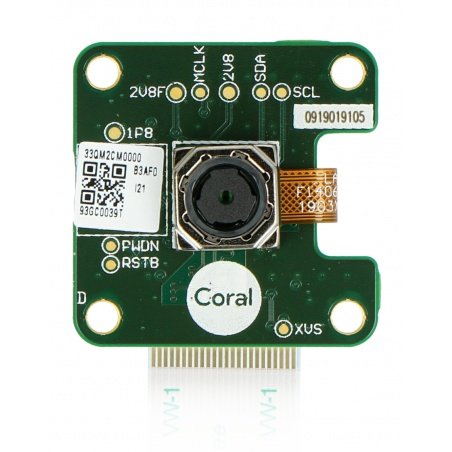

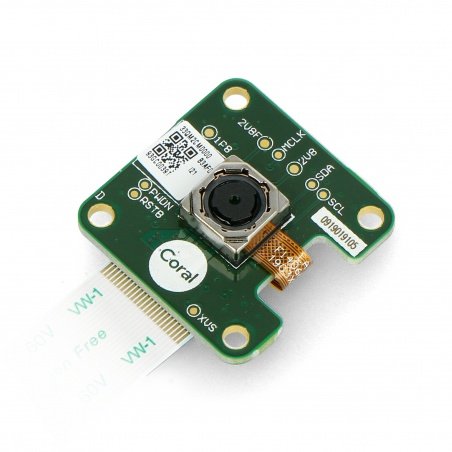

Product description: Google Coral Camera - G840-00180-01 5 MPx 2582 x 1933 px
Coral camera module G840-00180-01 equipped with1/4"lens with parameters: field of view 84° / 87.6°, focal length: 2.5 mm, focus range: from 10 cm to ∞. The camera is designed for theGoogle Coral Dev Board. The device has an OmniVision5 MPxsensor.
Camera features
- Automatic exposure control
- Automatic white balance
- Automatic band pass filter
- Cancels image shaking that occurs under artificial lighting
- Automatic black level calibration
- Controls image quality
- Color saturation
- Shade
- Gamma
- Sharpness
- Lens correction
- Noise correction
- Autofocus with built-in VCM AF controller
Google Coral Camera - G840-00180-01 5 MPx 2582 x 1933 px.

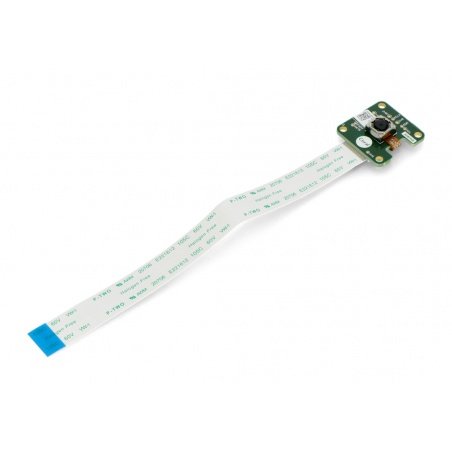

The camera comes with a ribbon cable that allows you to connect the device to the Google Coral Dev Board.
Specifications of Coral camera
- Manufacturer: Coral
- Sensor OmniVision OV5645 SoC (embedded ISP) 5 MPx
- Pixel size 1.4 x 1.4 μm
- Active array size 2582 x 1933 px
- Diagonal: 1/4"
- Field of view: 84° / 87,6°
- Focal length: 2.5 mm
- Focus: autofocus
- Focus range: from 10 cm to ∞
- Dual-band MIPI output interface
- Cable length: 150 x 12.5 mm
- Dimensions: 25 x 25 x 6.98 mm
- Weight: 25.3 g
Included
- Google Coral Camera
- Tape to connect with Google Coral Dev Board
