Product description: IP67 LoRaWAN temperature and humidity sensor - Milesight EM320-TH-868M
The Milesight EM320-TH is a compact sensor utilizing the precise Sensirion SHT41 chip to measure temperature and humidity . It communicates wirelessly in the European LoRaWAN 868 MHz band, enabling remote data collection without running communication cables. Local storage of 3,000 measurements and retransmission reduces the risk of data loss during a temporary network outage. This standard version, without a magnet , is designed for wall or pole mounting . Parameters, alarm thresholds, and reporting frequency can be configured using the Milesight ToolBox app via NFC . Powered by two replaceable Li-SOCl2 batteries, the device achieves long operating times without frequent maintenance.

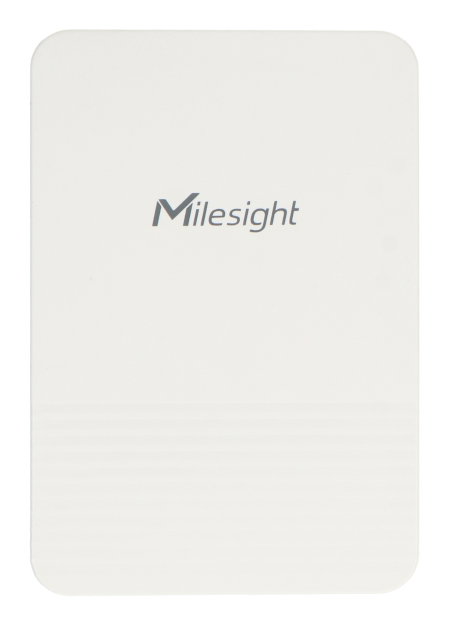

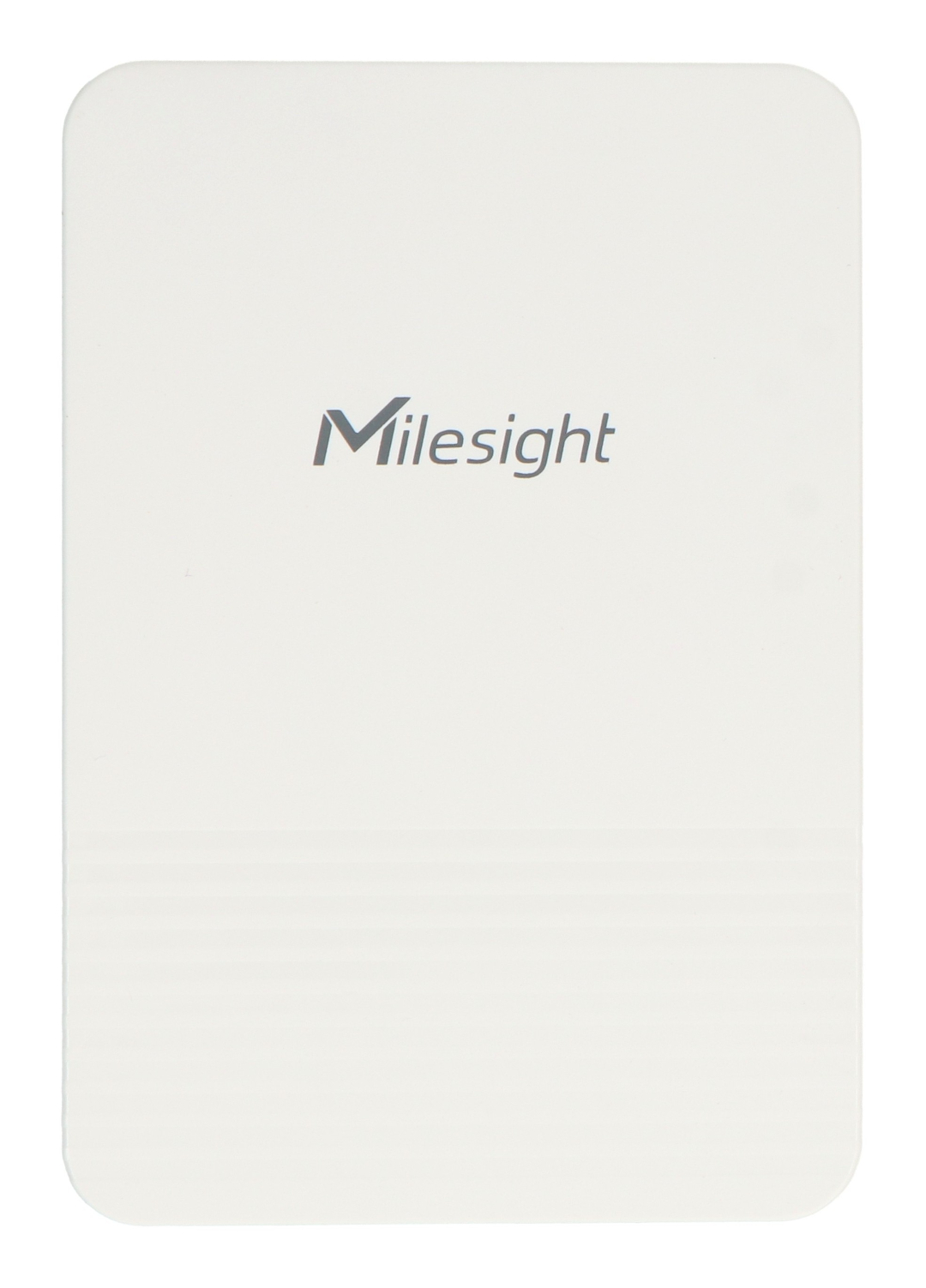

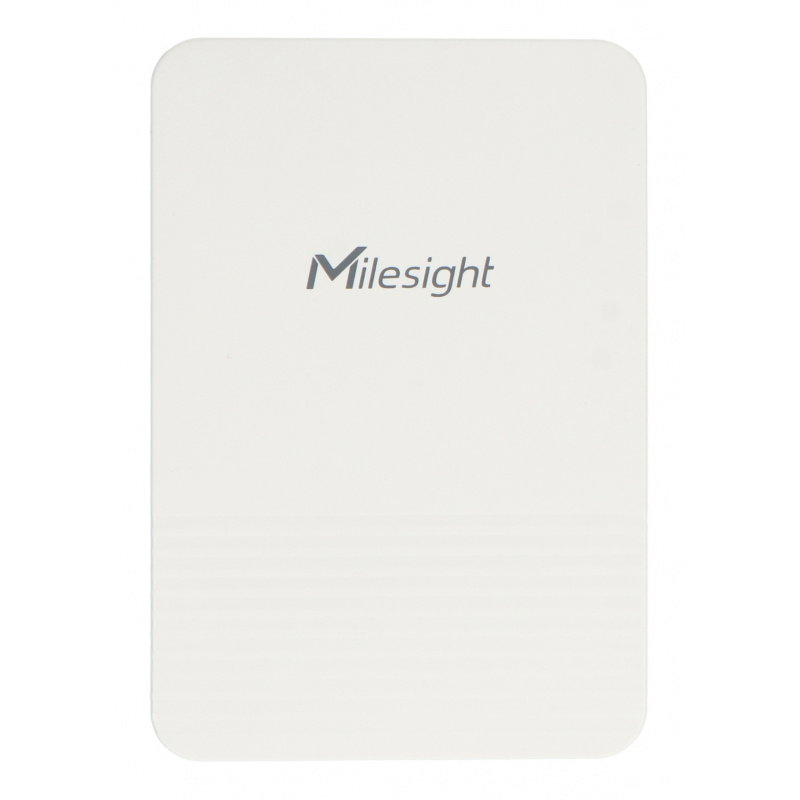

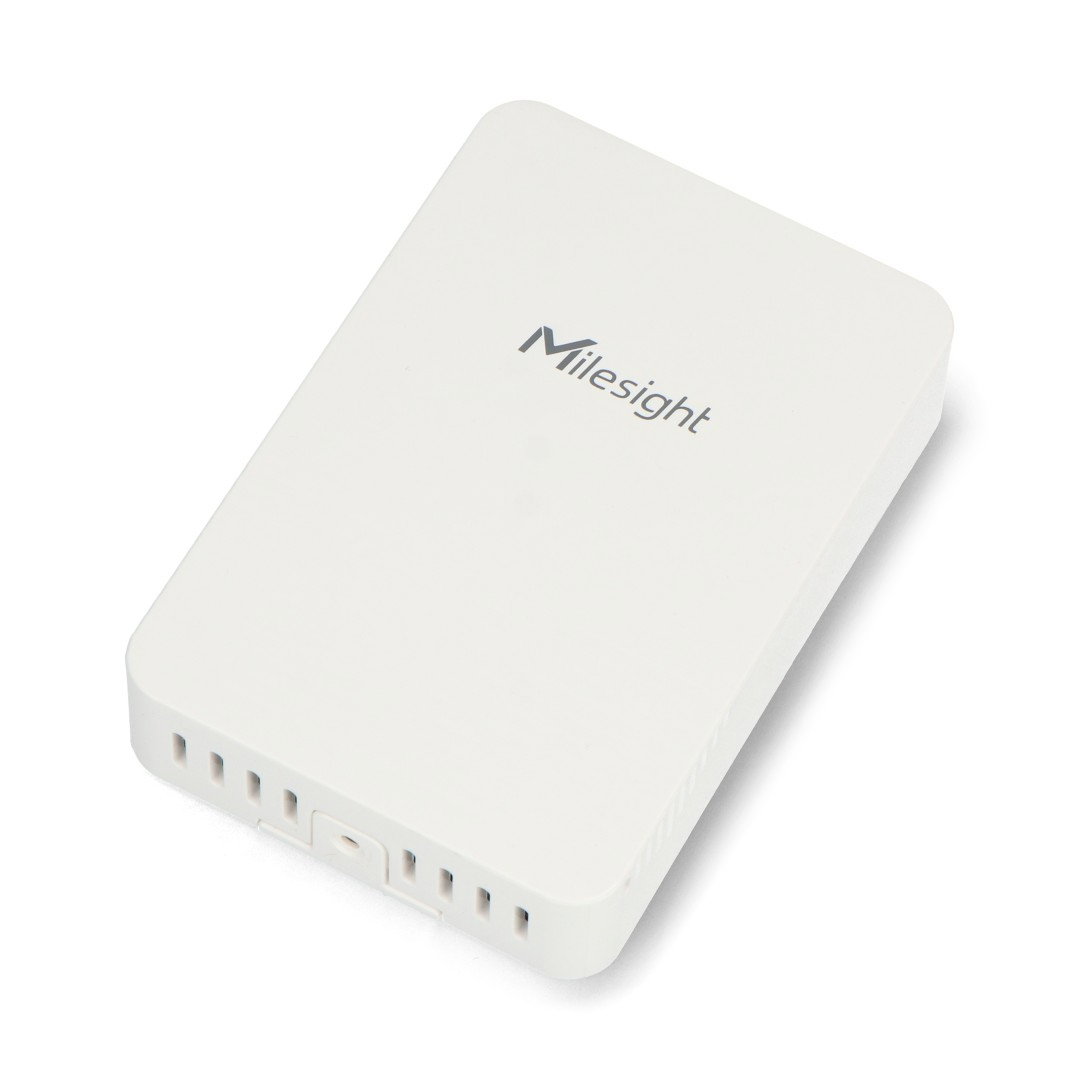

IP67 LoRaWAN temperature and humidity sensor - Milesight EM320-TH-868M.

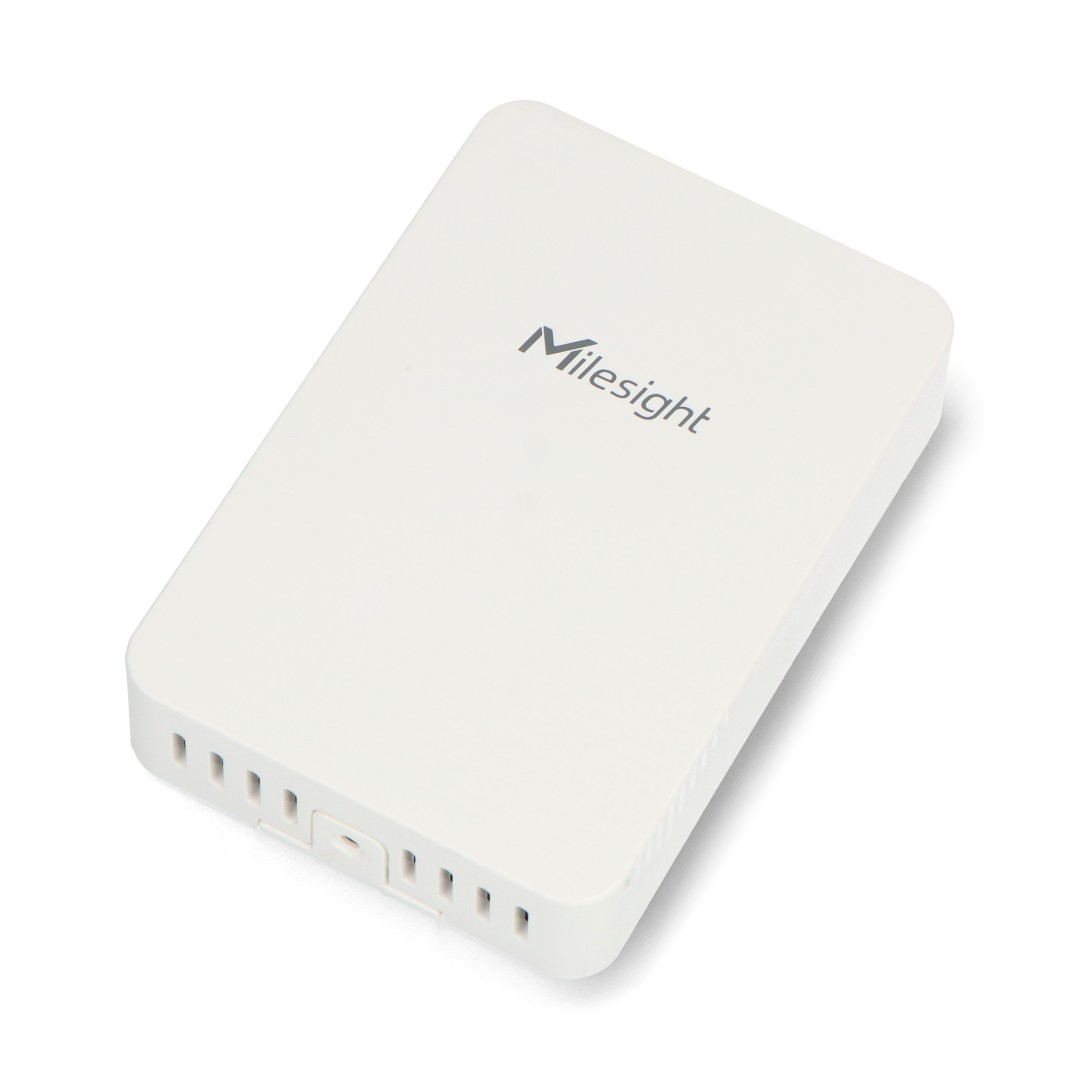

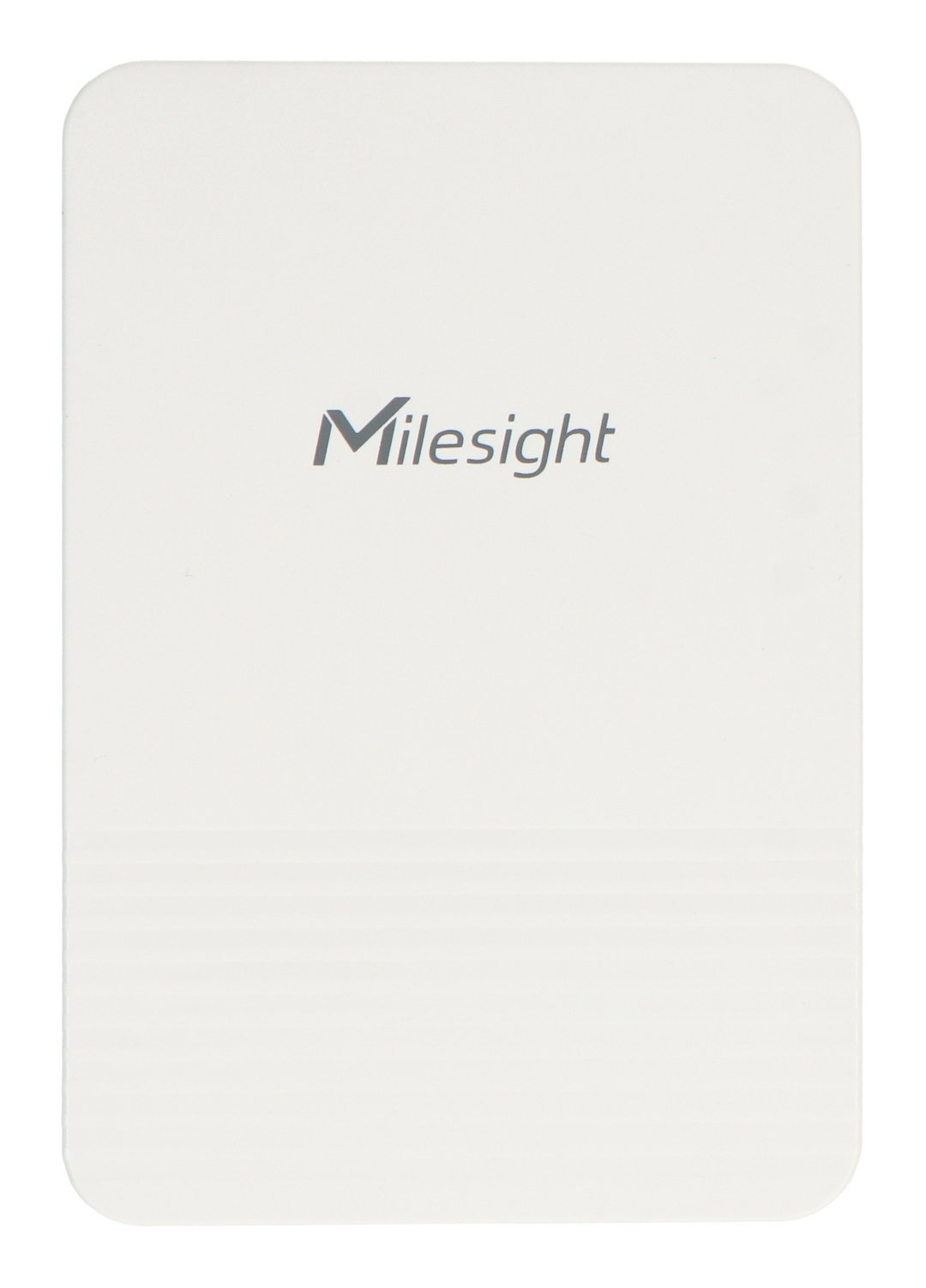

The IP67 housing allows operation in demanding conditions.
Milesight sensor main features
- Temperature measurement : range -30°C to 60°C, resolution 0.1°C and typical accuracy ±0.2°C in the range 0°C to 60°C
- Humidity measurement : range 0% RH to 100% RH, resolution 0.5% RH and typical accuracy ±2% RH at 25°C
- Precise Sensirion SHT41 chip : enables detection of small changes in environmental conditions
- LoRaWAN 868 MHz communication : allows data to be transmitted over long distances with low power consumption
- 3000 record memory : saves measurement results with time stamps
- Data retransmission : allows you to resend saved measurements once the network connection is restored
- Threshold alarms : allow you to react when configured temperature or humidity values are exceeded
- Configuration via NFC : makes it easy to start and change parameters using the mobile application
- IP67 protection class : protects electronics against dust and the effects of temporary immersion in water
- EN12830 certification : confirms the suitability of the temperature monitoring device for cold chain applications
- Energy-saving power supply : two replaceable ER14505 batteries with a total capacity of 5400 mAh
- Standard mounting option : sensor can be mounted on a wall or pole
- Milesight Compatibility : Works with LoRaWAN gateways, Milesight IoT Cloud and Milesight Development Platform
LoRaWAN 868 MHz connectivity and reliable data transmission
LoRaWAN technology enables the transmission of small data packets over long distances with very low power consumption . The EM320-TH operates in the European EU868 band and supports OTAA and ABP activation modes, as well as Class A devices. Under favorable conditions, the transmission range can be up to 2 km in urban areas and up to 15 km in open areas . The sensor can be used with standard LoRaWAN gateways and network servers. If the connection is interrupted, the device continues to take measurements and store them in memory. Upon reconnection to the network , the stored data can be retransmitted , helping to maintain continuous documentation of environmental conditions.
Food-safe housing and IP67 protection
The sensor's housing is made of food-grade PC and ABS materials, approved by the FDA for contact with food and drugs . This allows the device to be used in storage areas for food, beverages, vaccines, and pharmaceuticals. The EN12830 certification further supports the sensor's use in cold chain monitoring systems. The IP67 rating protects the sensor from dust and moisture ingress, allowing it to be used in demanding environments.

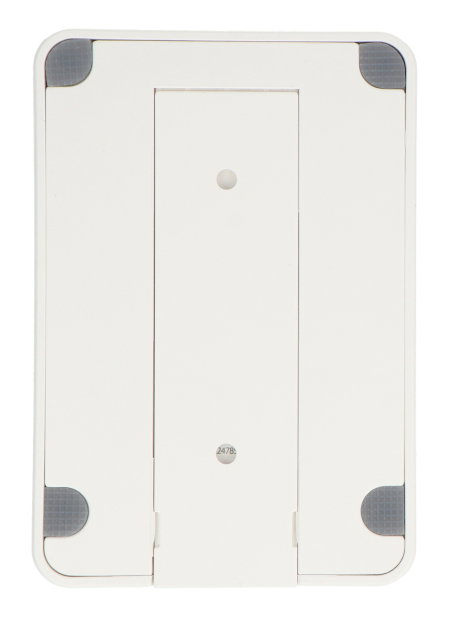

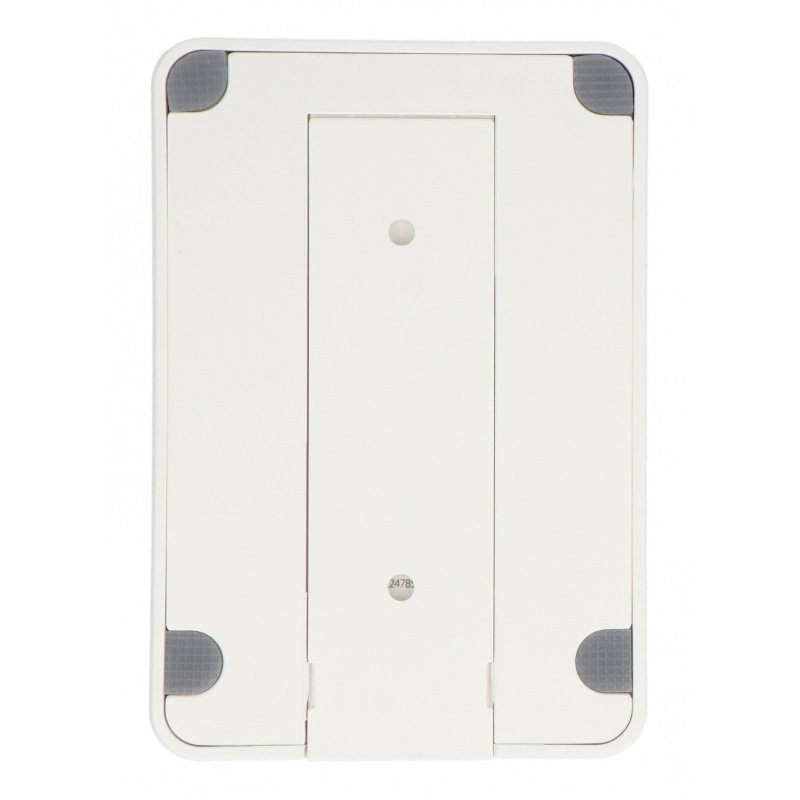

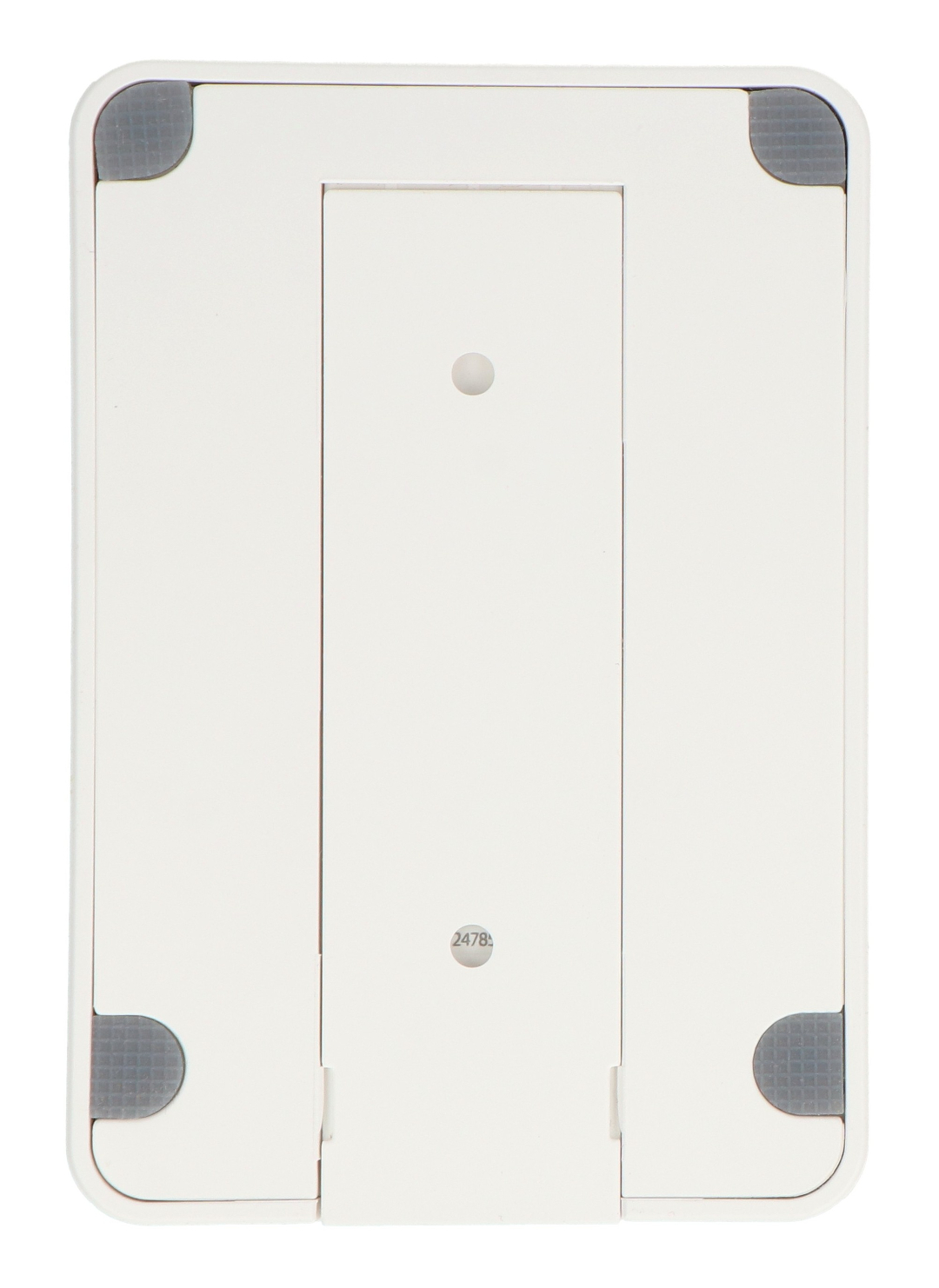

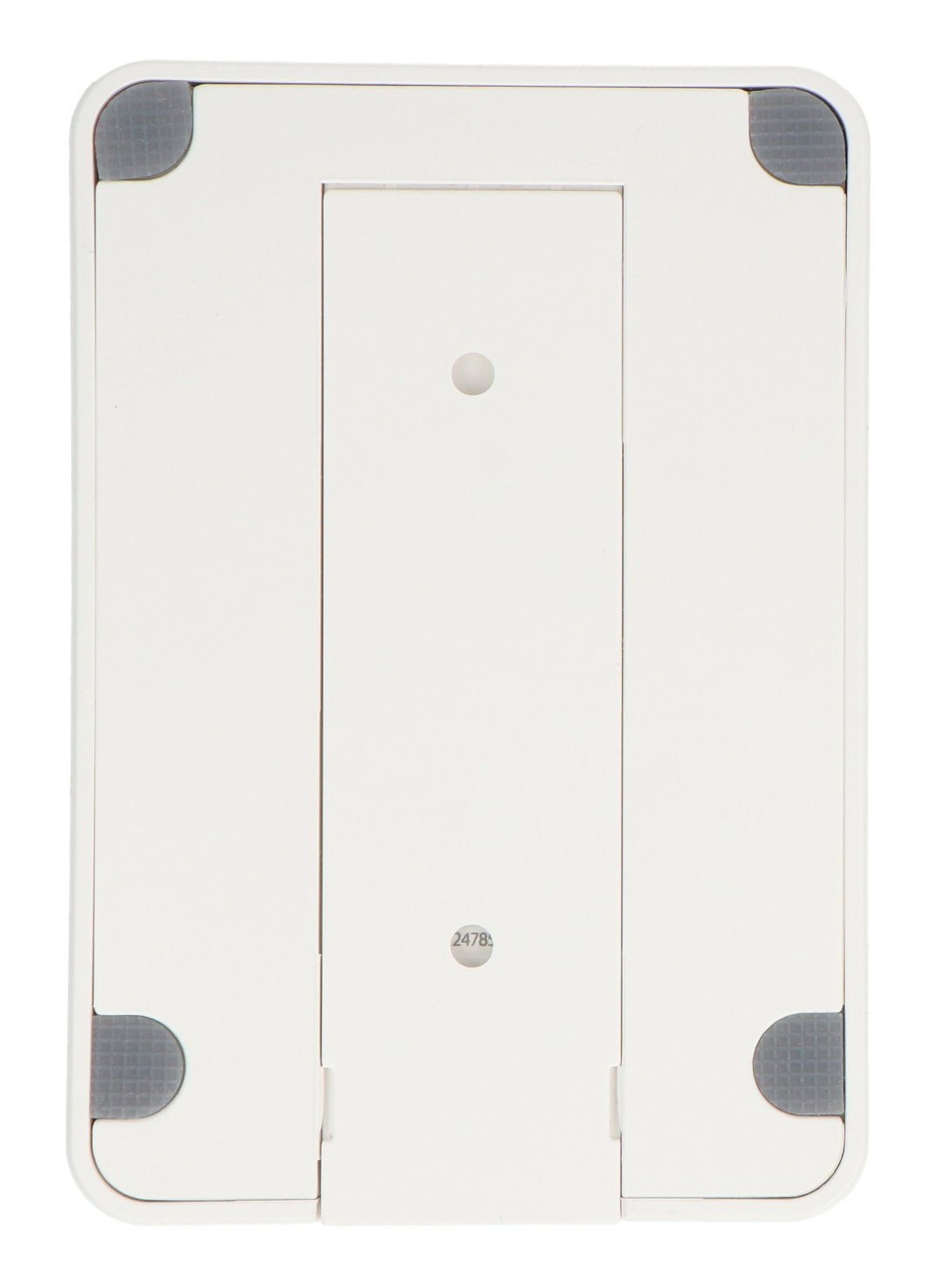

The EM320-TH-868M model is suitable for wall mounting.

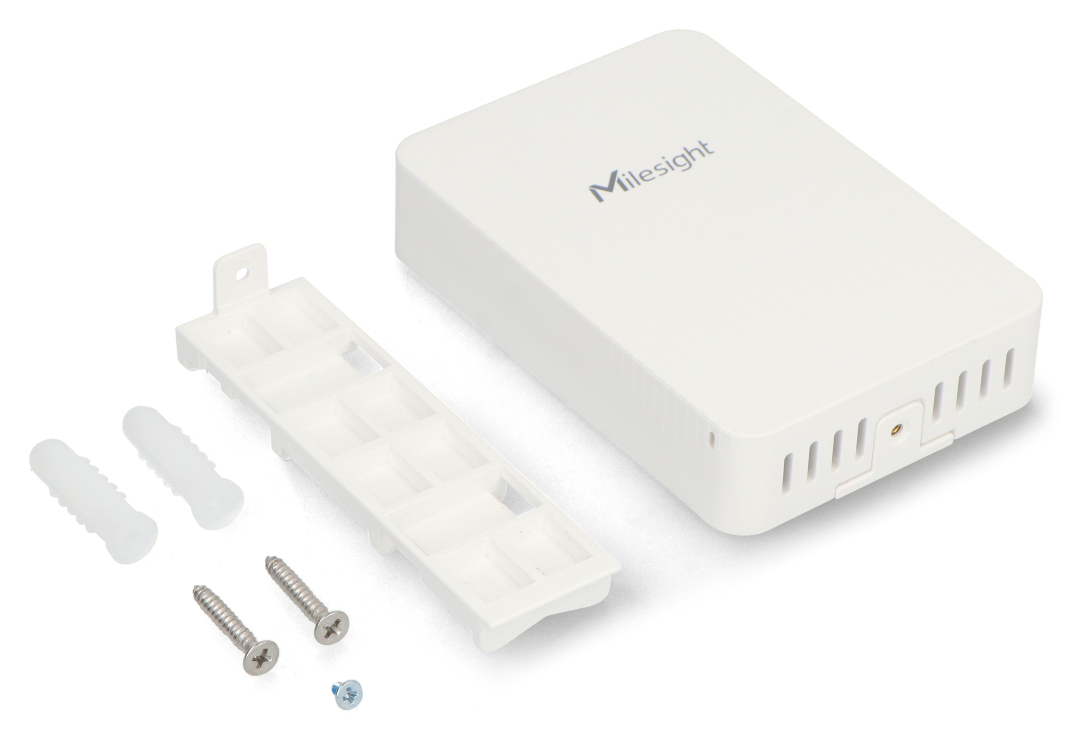

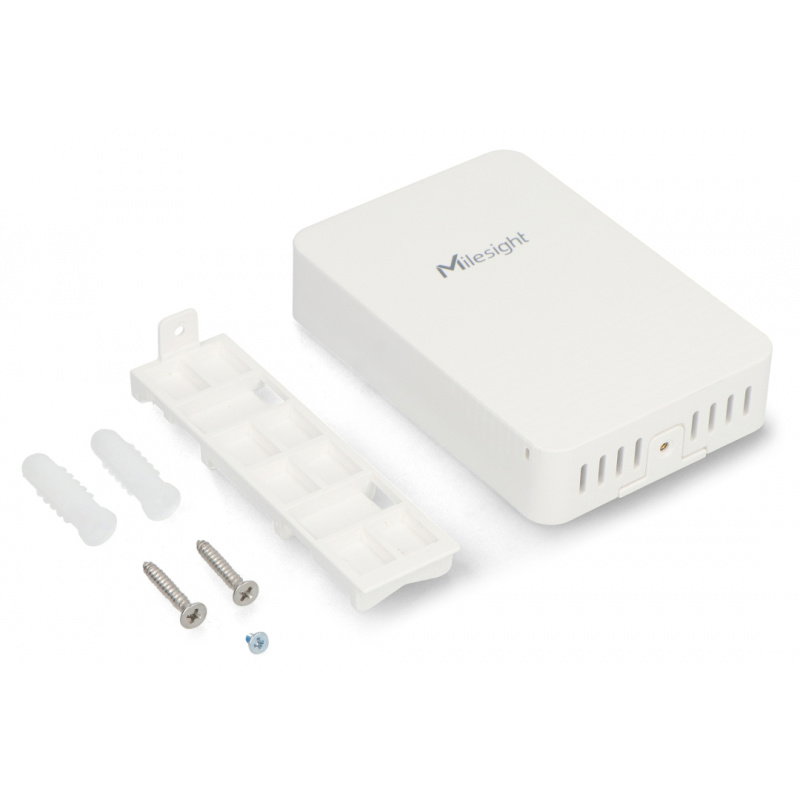

Elements included in the set.
Technical specifications of EM320-TH-868M
- Model: EM320-TH-868M
- Variant: standard, without magnet
- Communication technology: LoRaWAN
- Frequency band: EU868
- Antenna: internal
- Transmitting power: 16 dBm for 868 MHz
- Receiver sensitivity: -137 dBm at 300 bps
- Activation Mode: OTAA or ABP Class A
- Measuring sensor: Sensirion SHT41
- Temperature measurement range: -30°C to 60°C
- Typical temperature accuracy: ±0.3°C from -30°C to 0°C and ±0.2°C from 0°C to 60°C
- Temperature measurement resolution: 0.1°C
- Humidity measurement range: 0% RH to 100% RH
- Typical humidity accuracy: ±2% RH at 25°C
- Humidity measurement resolution: 0.5% RH
- Internal memory: up to 3000 records
- Additional functions: threshold alarms, data recording, data retransmission, historical data download
- Setup: Milesight ToolBox app via NFC
- Turning on and off: via NFC or internal button
- Default reporting interval: 10 min
- Adjustable reporting interval: 1 min to 1080 min
- Indicator: 1 internal LED
- Power supply: 2 ER14505 Li-SOCl2 batteries with a capacity of 2700 mAh each
- Declared operating time: at least 10 years at 10-minute intervals and a temperature of 25°C, according to the manufacturer's laboratory tests
- Operating temperature: -30°C to 60°C
- Permissible ambient humidity: up to 95%
- Housing material: food grade PC + ABS
- Color: white
- Protection class: IP67
- Mounting method: wall or pole mounting
- Certifications and compliance: CE, FCC, Telec, EN12830, RoHS
- Dimensions: 85 x 58 x 18 mm
- Weight: 93.2 g
Contents of the set
- Milesight EM320-TH-868M Temperature and Humidity Sensor
- Mounting elements
