Specification
- Supply voltage: from 3.3 V to 4.7 V
- The operating voltage of the pins: from 3.3 V to 4.7 V
- Driver: BC118 (documentation)
- Current consumption: 16 mA
- It has a built-in antenna
- Communication: UART (RX, TX)
- Data transfer rate UART: 9600 bps
- Range: up to 30 m
- Operating frequency: 2.402 GHz to 2.480 GHz
- Standard: Bluetooth 4.0 Low Energy (BLE)
- Dimensions: 45 x 16.5 mm
Description

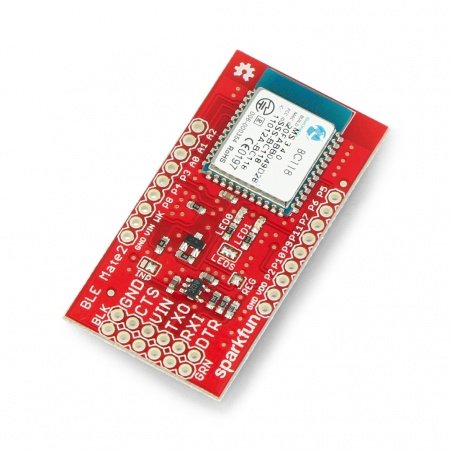

Bluetooth 4.0 Low Energy (BLE) module communicates via serial UART (RX, TX) interface with a speed of 9600 bps, its working range is up to 30 m. Thanks to the use of voltage regulators, the device can be powered with any voltage in the range from 3.3 V to 4.7 V. The signal RX and TX pins also tolerate voltages of 3.3 V to 4.7 V.
