Product description: Hanging rack installation cabinet - 19'' 9U 570 x 450 mm - black - Lanberg WFFA-5409-10B
The hanging installation cabinet from the WFFA series, designed by the Lanberg manufacturer, is intended for the construction of telecommunications networks, installation of cabling and equipment in the 19'' rack standard and provides a load capacity of up to 60 kg . It will be perfect for small and medium-sized companies. The cabinet can also be used for low-current installations, such as cable television networks, alarm systems, fire protection systems, access control and video monitoring (IP, Datacenter and Big Data). Thanks to the high-quality rolled steel , the cabinet is exceptionally solid, and its assembly is easy and intuitive. The cabinet has an IP20 tightness , which provides basic protection against dust. The front door with a lock and a tempered glass window allow convenient access to the interior. Ventilation holes in the ceiling panel guarantee excellent air flow and effective cooling . The cabinet allows for cabling through the top, bottom and rear panels. The set also includes mounting accessories , M6 screws and entry panel plugs. The product is packed in Flat Pack format, which makes it easier to transport.
Hanging rack installation cabinet - 19'' 9U 570 x 450 mm - black - Lanberg WFFA-5409-10B.
Ventilation holes provide excellent airflow.
Special features of the Lanberg WFFA series server cabinet
- 19" size: allows for mounting a wide range of devices
- 9U data communication height: provides space for mounting devices with a total height of up to 9 rack units (U)
- Maximum load capacity 60 kg: the structure can withstand loads of up to 60 kg, suitable for most network and telecommunications equipment
- IP20 protection class: protects against dust and accidental touch, ideal for indoor use
- Glazed front door: single-leaf doors made of 5 mm tempered glass, equipped with a lock, provide security and easy viewing of the interior
- Solid construction: high-quality cold-rolled steel for durability and solidity of construction, which translates into longevity and stability
- Ventilation holes: possibility of installing 4 fans for effective cooling of devices inside the cabinet
- Cabling: Cable entry through top, bottom and rear panels allows for cable management and keeping the cabinet tidy
Practical purpose of the rack cabinet
The Lanberg server cabinet is an ideal solution for managing network infrastructure in both companies and home IT networks . It is distinguished by its solid housing construction and ease of assembly. It is suitable for storing servers, switches, routers, UPSs and other telecommunications devices with a load of up to 60 kg . It allows you to keep the cables in order, which makes it much easier to manage and maintain the equipment. The glass front door allows for a convenient view of the devices , while protecting them from dust and mechanical damage. Additionally, the ventilation holes installed in the cabinet allow for better air flow.
Contents of the set
- Wall-mounted rack cabinet - 19'' 9U 570 x 450 mm - black - Lanberg WFFA-5409-10B
- Mounting accessories:
- Phillips screws M6 x 12 mm
- M5 x 10 mm self-tapping crosshead screws
- M6 x 12 mm Phillips screws with M6 cages
- spirit level with magnet
- double keychain
- User manual
- Wall mounting strip
- Numbered vertical mounting rails for rack-mounting devices

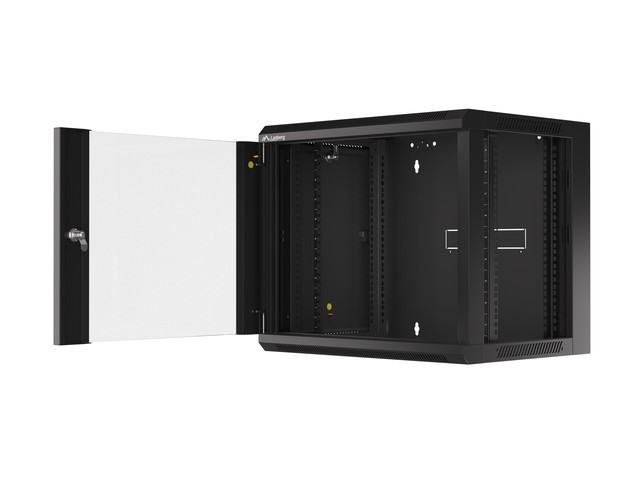

Front door with lock and tempered glass window.
Items included in the set.
Technical specifications of the wardrobe
- Wardrobe type: hanging
- Size: 19''
- Telecommunication height: 9U
- Assembly: self-assembly
- Mounting depth: 261 mm
- Front door type: glazed
- Door type: single leaf
- Maximum static load: 60 kg
- Number of places for fans: 4
- Number of vertical rails: 4
- Tightness class: IP20
- Front door thickness: 5 mm
- Thickness of top and bottom panel: 1 mm
- Side panel thickness: 1 mm
- Thickness of mounting rails: 1.2 mm
- Frame thickness: 1 mm
- Thickness of other elements: 1 mm
- Color: black
- Dimensions: 570 x 450 x 500 mm
- Weight: 18.5 kg
