Product description: 75 '' interactive monitor - eBoard VE 7520TDQ PRO 4K SlimFrame - Vision Distribution
eBoard VE 7520TDQ PRO 4K SlimFrame is a 75 '' interactive whiteboarddisplay with multi-point , smooth touch operation. Equipped with upgraded IPS LCD matte anti-reflective panels that provide 10-bit color depth (1.08 trillion colors). The interactive board presents content in a resolution of 3840 x 2160 px 4K UHD . The displayed image is very realistic and detailed . The eBoard series monitors support HDR (High Dynamic Range Image), which allows you to view content in quality with an increased spread between the brightest and darkest points. As a result, the colors become more saturated and the details more distinct. The monitor also has an extensive system of audio-video interfaces (HDMI, AV, Display Port, VGA, yPbPr) and USB communication ports. Supports WiFi wireless communication and Android 8.0 system.
75 '' interactive monitor - eBoard VE 7520TDQ PRO 4K SlimFrame - Vision Distribution.
Highlights of the eBoard monitor
- Android 8.0 system and all-round system compatibility
- High resolution 3840 x 2160 pixels and 4K matrix, which significantly improves the comfort of use
- The life of the matrix is about 50,000 hours of use
- Multi User - smooth multi-touch supported
- 10-bit color depth - displaying as much as 1.08 trillion colors
- Contrast 5000: 1
- EClass software included
- PIP (Picture in Picture) and wide viewing angle
- HDR (High Dynamic Range)
Android 8.0 on interactive monitors
EBoard monitors have Android 8.0 installed - with a new graphic design and equipped with a number of additional solutions that improve the comfort of use - primarily improve work and interaction. Among the most important advantages are:
- Increased screen handling performance
- Express installation of additional applications
- Manual disk manager
- Improved File Browser
- Refined support for Bluetooth wireless communication
- Complementing the PIP function - "picture in picture" - movie playback (ANDROID TV)
- Support for monitors with an aspect ratio of 1:86
- Support for AAudio, aptX, aptX-HD and LDAC audio codecs
- Java 8 API
- Project Treble - quick system updates
EBoard monitor connections.
75 '' interactive monitor - eBoard VE 7520TDQ PRO 4K SlimFrame.
VE-7520TDQ PRO 4K - functionality
- PIP (Picturie in Picture) - the function of playing two movies at the same time
- The ability to call the interactive whiteboard function in all monitor modes - creating notes, comments and others
- Multi Screen - the function of displaying an image from a phone or tablet
- Generating a QR code that redirects to a page with saved materials (e.g. from a conducted lesson)
- Google Play TV Store - download free and paid applications
- PC-USB connector for connecting, for example, a wireless keyboard that works on both devices at the same time
- Wireless connectivity - WiFi in the 2.4 GHz and 5 GHz range, WLAN sharing in the 2.4 GHz range, Bluetooth communication
- Possibility of expanding the monitor's memory thanks to a micro SD card (max. 64 GB)
- Quick menu - the ability to go to any assigned function
- Android system menu - sliding from the bottom and from the sides of the matrix, it provides the most frequently used functions
- Action Center (slides out from the side of the monitor screen) - Get instant access to quick tools, apps, and more

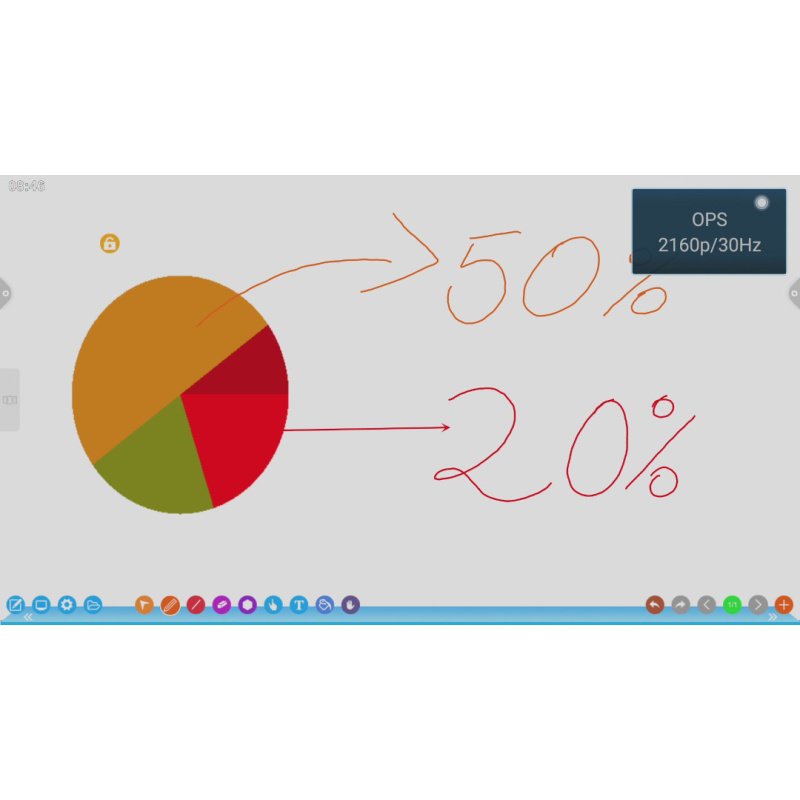

What is the interactive whiteboard for - an overview of the functions
- Brush function - setting roughness, thickness, transparency and brush effect
- Eraser function - standard or lasso to choose from
- Drawing - continuous lines, shapes, circles, squares, right triangles, isosceles and others
- Ruler - allows you to change the position
- Protractor - allows you to change the size and change the position
- Photos - the ability to insert a photo from the device memory or external storage
- Text - entering text with the possibility of configuring and styling parameters such as font, style and others
- Switching between tabs - with additional menu options such as the ability to save or play a saved lesson
- Ability to undo or return to the last action
The interactive whiteboard is a useful teaching tool used in schools.
| Technical specification of the eBoard VE 7520TDQ monitor | |
|---|---|
Model | eBoard VE 7520TDQ |
Diagonal | 75 " |
Touch precision | ≤ 1 mm |
Service | Pen, pointer, finger, any non-transparent element |
Backlight type | D-LED |
Resolution | 3840 x 2160 px |
Brightness | 500 cd / m² |
Contrast ratio | 5000: 1 |
Response time | ≤ 5 ms |
Pixel size | 0.124 x 0.372 mm |
Refresh rate | 60 Hz |
Viewing angles | 178 ° (H) / 178 ° (V) |
Saturation (x% NTSC) | 72% |
Display area | 1650.24 x 928.26 mm |
Number of displayed colors | 1.07 B (8bit) |
Screen lifetime | 50,000 h |
Security | 4 mm thick toughened glass, strength 7H on the Mohs scale |
Matrix | Matte, anti-glare, anti-reflection with an external light intensity sensor |
ChipSet | 811 Hisi |
System | Android 8.0 |
CPU architecture | CA53 x2 + CA73 x2 |
Processor operating frequency | 1.5 GHz |
Number of cores | Quad core |
GPU | Quad-core MaliG51 |
RAM | 4 GB DDR4 memory |
ROM memory | 32 GB as standard |
Power Supply | 100 V to 240 V / AC, 50/60 Hz 1.1A |
Standby power consumption | ≦ 0.5 W |
OPS power supply | 19 V DC / 5 A |
Speaker power | 15W x2 |
Power switch | x1 |
LAN output | x1 |
LAN input | x1 |
HDMI output | x1 |
COAX | x1 |
RS-232 connector | x1 |
OUT headphones | x1 |
Mini AV input | x1 |
Mini YPBPR | x1 |
PC-Audio input | x1 |
VGA input | x1 |
VGA and DP USB-Touch | x1 |
DisplayPort | x1 |
USB-Touch for HDMI | x3 (front x1) |
HDMI input | x3 (front x1) |
USB 3.0 connector | x3 (Front x2) |
USB 2.0 connector | x1 |
TF card | x1 |
Working temperature | 0 ° C to 40 ° C |
Storage temperature | -10 ° C to 60 ° C |
Air humidity during operation | 20% to 80% |
Air humidity during storage | 10% to 60% |
Recommended maximum use time (hours x days) | 18 hours x 7 days |
Net weight | 58.9 kg |
Product Dimension (L x D x H) | 1717.4 x 100.3 x 1056.3 mm |
VESA mount type | Hole for 4-M8 400 x 200 mm |
Housing material (front frame / rear housing) | Aluminum profile / sheet |
Coating color (front / rear frame) | Black |
The language of the OSD menu | Polish / Chinese / Korean / English / and 10 other languages |
WiFi antenna | x4 |
Pen | x1 |
Remote control | x1 |
User manual | x1 |
Quality certificate / warranty card | x1 |
Power cord | x1 |
USB cable | x1 |
HDMI 5M cable | x1 |
Wall bracket with installation accessories | x1 set |
