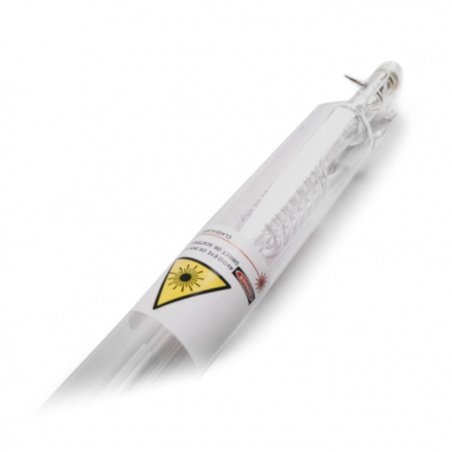

Product description: Laser tube 40 W - for Beambox laser cutting & engraving machine
Lasertubededicated to laser cutter and engraverBeambox, which has a laser power of40 W. It is used inCO2 plottersto generate laser beam. The frequency of replacement of the element depends on the intensity of laser use. The tube diameter is 50 mm and the length is 700 mm.
Technical specification
- Laser tube 40 W for Beambox
- Tube type: DC glass
- Rated Power: 35 W
- Maximum power: 40 W
- Wavelength: 10.6 um
- Beam divergence angle: 3.1 mrad
- Pulse frequency: up to 5 kHz
- Operating current consumption: 15 mA to 20 mA
- Stability: ≤ ±5%
- Beam quality: ≤ 1.1
- Cooling system: Water, 15°C to 25°C
- Operating voltage: 12 kV to 14 kV
- Dimensions:
- length: 700 mm ±5 mm
- diameter: 50 mm ±1 mm
Laser tube 40 W - for laser cutting and engraving machine Beambox.
