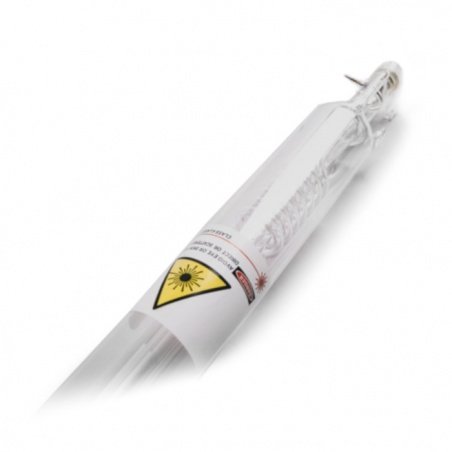

Description: Laser tube 50 W - for laser cutter and engraver Beambox Pro
Tubeused inCO2 laser plottersto generate a beam. Dedicated to laser cutter and engraverBeambox Prowhich uses laser with a power of50 W. Frequency of tube replacement depends on the intensity of laser use. The diameter of the tube is 50 mm and the length is 820 mm.
Technical specifications
- Laser tube with 50 W for Beambox Pro
- Tube type: DC glass
- Rated power: 45 W
- Maximum power: 50 W
- Wavelength: 10.6 um
- Beam divergence angle: 3.1 mrad
- Pulse frequency: up to 5 kHz
- Operating current consumption: 15 mA to 20 mA
- Stability: ≤ ±5%
- Beam quality: ≤ 1.1
- Cooling system: Water, 15°C to 25°C
- Operating voltage: 14 kV to 15 kV
- Dimensions:
- length: 820 mm ±5 mm
- diameter: 50 mm ±1 mm
Laser tube 50 W - for laser cutting and engraving machine Beambox Pro.
