Linear Actuator LA21 4000N 5mm/s 24 V - stroke 20cm
Linear actuator powered by 24 V. The maximum extension of the device is 20 cm and is limited by limit switches. The permissible load of the actuator is 400 kg (4000 N) . The device has an IP54 tightness class.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Electric actuator LA21 4000 N 5 mm/s 24 V - extension 20 cm
Linear actuator powered by 24 V. The maximum extension of the device is 20 cm and is limited by limit switches . The permissible load of the actuator is 400 kg (4000 N) . The maximum current consumption is 4.5 A. The device has an IP54 tightness class.

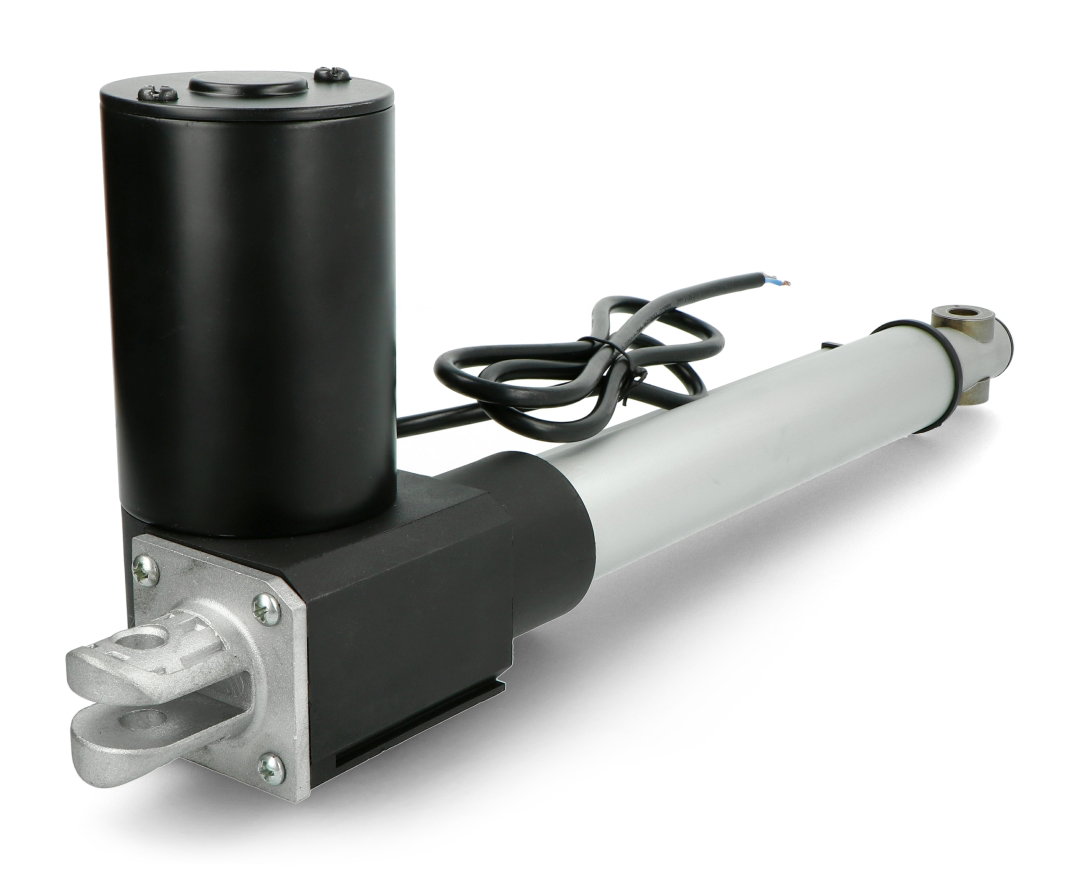

Electric actuator LA21 4000 N 5 mm/s 24 V - extension 20 cm .

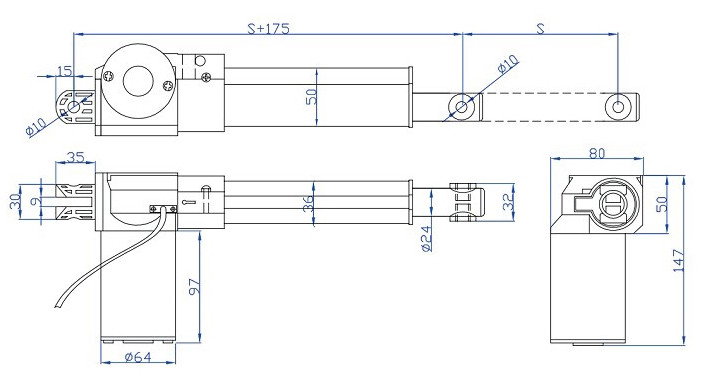

Dimensions of the LA21 linear actuator .
Example application of linear actuators
- Adjusting the angle of inclination of solar panels
- As elements of industrial automation
- Opening and closing industrial valves
- Adjustment of the position of beds and rehabilitation devices
As in DC motors, the direction is changed by reversing the polarity . |
LA21 linear actuator specifications
| Name | Parameter |
|---|---|
| Supply voltage | 24V DC |
| Power consumption | 4.5A |
| Speed | 5 mm/s |
| Maximum strength | 4000 N (400 kg) |
| Extension length | 200mm |
| Total length when folded | 375mm |
| Working temperature | from -25°C to 65°C |
| Security | Limit switches |
| Tightness class | IP54 |
Electric actuator LA21 4000N 5 mm/s 24 V - extension
A very strong actuator with a 20 cm extension and a load capacity of up to 400 kg will work well in the most demanding applications. At a nominal speed of 5 mm/s, it takes 40 seconds to cover the full range of movement of the piston rod, which allows for safe positioning of large machine elements, as well as elements of medical beds and rehabilitation equipment.
The 24 V linear actuator we offer can operate at ambient temperatures from -25°C to 65°C - please remember that the mechanism's protection class is IP54, so the drive is resistant to dust (although not completely dustproof) and water splashes from any source. direction. Therefore, the drive should not be used in places where it will often be exposed to large amounts of water or dust - in such situations, we recommend using actuators with an IP65 tightness class - you can also find such models in our offer.
Also check out the gate controllers and linear actuator controllers we offer in various versions (with a knob, remote control or as a built-in module).
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 400 kg*cm |
| Voltage nominal | 12 V |
| Motor - eject | 20 cm |
| Width | 42.5 cm |
| Height | 9 cm |
| Depth | 17 cm |
| Weight | 2.082 kg |
