Feetech FT5825M servo - standard waterproof

Index: FTC-19426 EAN: 5904422362201
Digital servo standard type Feetech FT5825M closed in aluminum, waterproof housing. With the use of reinforced stainless steel gearbox servo is ideal for modeling and DIY construction. Angle of rotation of the servo Feetech FT5825M is 180°, and the torque is 25kg*cm. Kit includes several additional servo mounts and components needed for their assembly.
Feetech FT5825M servo - standard waterproof
€36.00
€29.27 tax excl.
Unavailable
Discontinued product
PayPal payment
Feetech FT58 servo - torque:
Manufacturer: Feetech

Attention!

The product has been discontinued. Check other products in category.

Product description: Feetech servo FT5825M - standard waterproof

Digital servo standard Feetech FT5825M closed in aluminum, waterproof housing. With the use of reinforced stainless steel gearbox, the servo is ideal for modeling and DIY construction. Feetech FT5825M servo has an angle of180°and a torque of 25 kg*cm. Kit includes several additional servo mounts and components needed for their assembly.

The mechanism is equipped with a non-contact angle sensor to ensure longer service life of the system, which combined with the waterproof housing and reinforced gearbox made of stainless steel creates an ideal solution for remote-controlled cars, RC boats, helicopters and in the broader field of modeling.

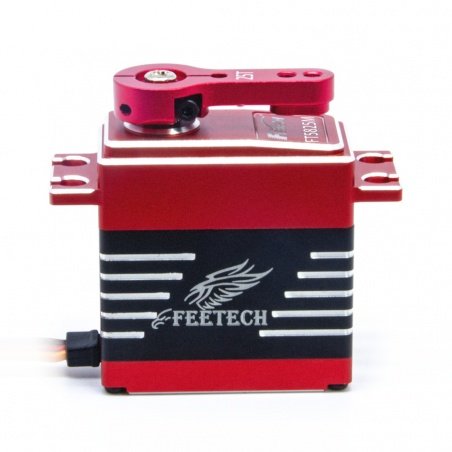

Serwo Feetech FT5825M

FT5825M servo.

Wodoodporne serwo Feetech FT5825M

Feetech FT5825M waterproof servo.

Servo specifications

  • Manufacturer: Feetech
  • Model: FT5825M
  • Supply voltage: from 4.8 V to 7.4 V
  • Servo type: digital
  • Operating range: 0° to 180°
  • Water resistance level: IP54
  • Pulse range: 500 to 2500 µs
  • Bearing: ball bearing
  • Connector: JR standard connector
  • Dimensions: 40 x 20 x 43 mm
  • Weight: 90 g

  • Specifications for 6V:
    • Torque: 20.5 kg*cm
    • Speed: 0.185 s / 60°.
  • Specifications for 7.4V:
    • Torque: 25 kg*cm
    • Speed: 0.151 s / 60°

Set includes

  • Feetech servo FT5825M
  • Set of pendulums
  • Mounting parts

Length 43 mm
Width 20 mm
Height 40 mm
Voltage to 4.8
Voltage from 7.4 V
Torque 25 kg*cm
Mass 90 g
Servo - Range 180 °
Servo - Size standard
Servo - Speed 0,15 s/60°
Servo - Type digital
Package width 6 cm
Package height 6 cm
Package depth 4 cm
Package weight 0.09 kg
