Product description: UT105 Universal car meter
Universal meter manufactured by Uni-T company. Allows quick measurements of DC and AC voltage, DC current and resistance. In addition, it allows to test the continuity of circuits, test diodes, determine theclosing angle of the interrupter contactand check therotational speed. The device is equipped with aData HOLDfunction allowing to freeze the measurement and alowbatteryindicator. All measurements are presented on a clearLCD displaywith a resolution of60 x 54 mm. Adjustment of the measuring ranges is done by a large, comfortable to use knob. All ranges have been described in detail, so that even novice users will cope with its operation. The meter is powered bya 9 V battery. A suitable battery is included in the package. At the back of the meter, there is a stand that facilitates the work with the device.

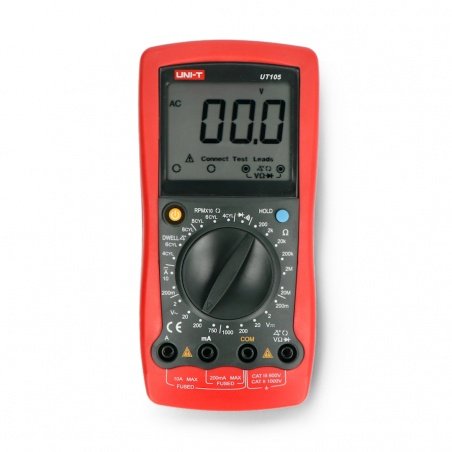

UT105 Universal car meter.
The meter is equipped with probes and crocodile connectors. The device is powered by a 9 V battery included in the set.
Key features
- Manual selection of ranges
- Diode tester function
- Ability to determine the contact closure angle of the interrupter and the rotational speed
- Low battery indicator
- Data HOLD function
- Circuit continuity tester
- Easy to read LCD display with 60 x 54 mm resolution
Included:
- Uni-T UT105
- Temperature probe
- Crocodile connectors
- Holster
- Battery 9 V
| Parameter | Range |
|---|---|
| AC voltage measurement | 2 V / 20 V / 200 V / 750 V ±(0,8%+5) |
| DC voltage measurement | 200 mV /2 V /20 V /200 V / 1000 V ±(0,5%+5) |
| Resistance measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
| DC current measurement | 200 mA / 10 A |
| Battery tester | No |
| Angle of interrupter contact closure | 4 Cyl / 6 Cyl / 8 Cyl ±(3%+5) |
| Speed of rotation | 4 Cyl / 6 Cyl / 8 Cyl ±(3%+5) |
| Continuity tester | Yes |
| Diode tester | Yes |
| Transistor tester | No |
| Power supply | 9 V battery (included) |
| Display | LCD 60 x 54 mm |
| Maximum reading | 2000 |
| Dimensions | 179 x 88 x 39 mm |
| Weight | 351 g |
