Product description: Voltcraft VC135 Universal Meter
Digital multimeterenables measurement ofDC and ACvoltageup to 600 V. The meter features non-contact AC voltage test and acoustic circuit continuity test. The Voltcraft VC135 has arobust housingadditionally protected by a layer of rubber. A bracket located at the back of the meter allows for easy adjustment of the meter to a proper angle.
As part of quality control, allVoltcraftmeasuring devices undergo calibration in accordance with a workshop standard after the production phase. The certificate is not issued in a hard copy.

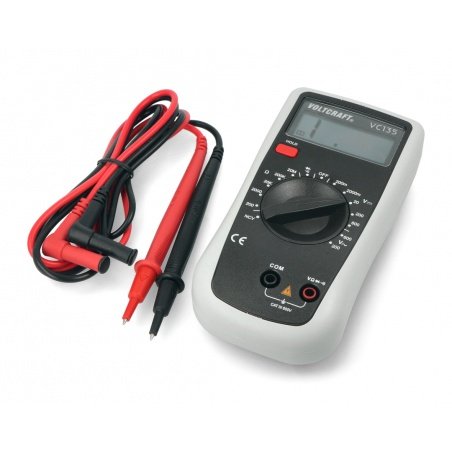

TheVoltcraft VC135 Universal Meter.

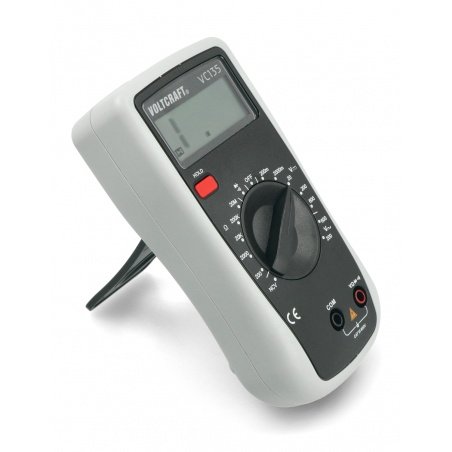

Front panel of the Voltcraft VC135 meter.
Functions of the Voltcraft VC135 meter
- Measurement of DC and AC voltage
- Manual setting of measurement ranges
- Acoustic circuit continuity tester
- Non-contact AC voltage tester
- Hold function allows to pause the displayed parameters
- Diode tester
- Low battery indicator
- Reinforced, rubber-coated housing, which, in addition to additional protection of the device, provides a better grip of the meter during operation
Voltcraft VC135 Universal Meter specification
| Parameter | Range |
|---|---|
| Minimum measurement range of DC voltage | 0.1 mV |
| Maximum measuring range of DC voltage | 600 V |
| Minimum measuring range of AC voltage | 0,1 V |
| Maximum measuring range of AC voltage | 600 V |
| Resistance measurement range | 0.1 Ω to 20 MΩ |
| Internal DC resistance | 10 MΩ |
| AC internal resistance | 4.5 MΩ |
| Basic accuracy (+/-) | 0,5% |
| Type of measurement | average value |
| Frequency range | 45 Hz to 400 Hz |
| Power supply | battery 9V 6LF61 (included) |
| Measuring category | CAT III 600 V |
| Type of display | digital |
| Dimensions of product | 150 x 75 mm |
| Weight | 200 g |
Contents of the set
- Voltcraft VC135 meter
- Test leads
- Instruction manual
- Battery 9V 6LF61
The set includes a9V 6LF61battery necessary to power the multimeter. Othermeasurement devicesare also available in our offer.
Elements of the Voltcraft VC135 meter set.
