Universal Multimeter Voltcraft VC251
Universal Multimeter Voltcraft VC251
Universal Multimeter Voltcraft VC251
Universal Multimeter Voltcraft VC251
Universal Multimeter Voltcraft VC251 - zdjęcie 1
Universal Multimeter Voltcraft VC251 - zdjęcie 2
Universal Multimeter Voltcraft VC251 - zdjęcie 3
Universal Multimeter Voltcraft VC251 - zdjęcie 4

Universal Multimeter Voltcraft VC251

Index: CNR-19331 EAN: 4053199521340
This universal meter enables to measure DC and AC voltage up to 600 V and DC and AC current flow up to 10 A. The device also allows resistance measurement in the range from 0.1 Ω to 20 MΩ. Additionally, it can be used for testing diodes and 1.5 V and 9 V batteries. The Voltcraft VC251 uses True RMS rms measurement, which allows for accurate measurement of asymmetrical voltages and currents deviating from the basic sinusoidal waveform.
€78.98
€64.21 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: Voltcraft

Product description: Voltcraft VC251 Universal Meter

Universal meterfor measuringAC and DCvoltageup to 600 Vand AC and DC current flow up to 10 A. The device also allows forresistance measurementin the range from 0.1 Ω to 20 MΩ. Additionally, it can be used for testing diodes and 1.5 V and 9 V batteries. The Voltcraft VC251 usesTrue RMSrms measurement, which allows for accurate measurement of asymmetrical voltages and currents that deviate from the basic sine wave shape.

As part of quality control, allVoltcraftmeasuring devices undergo calibration in accordance with workshop standard after the production phase. The certificate is not issued in a hard copy.

Miernik uniwersalny Voltcraft VC251

The VoltcraftVC251 Universal Meter.

Voltcraft VC251 - widok panelu przedniego

TheVoltcraft VC251 - front panel view.

Functions of the Voltcraft VC251 meter

  • Possibility to reduce the input resistance from 10 MΩ to 400 kΩ by a single button in order to eliminate measurement errors caused by stray currents
  • Switchable impedance
  • Large display with easy to read 19 mm high digits

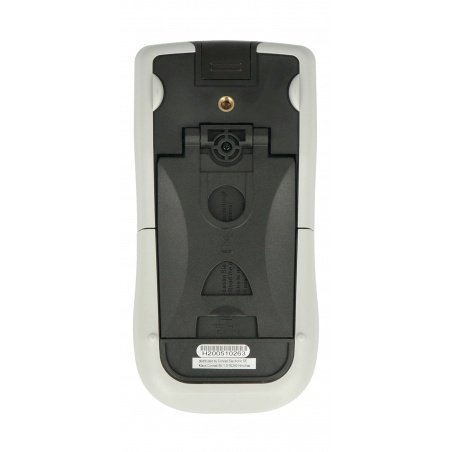

  • The meter's robust housing is additionally protected by a non-slip, thin layer of rubber. A bracket on the rear panel makes it easy to place the device at an angle to read the readings
  • Sound alarm for incorrectly connected test leads
  • Removable measuring cable caps
  • Described measuring sockets facilitate proper connection of the measuring wires
  • Protection against opening the casing if the test leads have not been disconnected
  • Longer battery life without the backlit display
  • Low battery indicator

Voltcraft VC251 Universal Meter specification

Parameter Range
Minimum measurement range of DC voltage 0.1 mV
Maximum measuring range of DC voltage 600 V
Minimum measuring range of AC voltage 0,001 V
Maximum measuring range of AC voltage 600 V
Minimum measuring range of DC current 0.1 µA
Maximum measurement range of DC current 10 A
Minimum measuring range of AC current 0.1 µA
Maximum measuring range of AC current 10 A
Resistance measurement range 0.1 Ω to 20 MΩ
Internal DC resistance 10 MΩ
AC internal resistance 10 MΩ
Basic accuracy (+/-) 0,9%
Type of measurement True RMS
Voltage measurement AC / DC
Current measurement AC / DC
Frequency range 40 Hz to 400 Hz
Power supply battery 9V 6LF61 (included)
Measuring category CAT III 600 V
Type of display digital
Dimensions of the product 185 x 91 x 43 mm
Weight 385 g

Contents of the set

  • Voltcraft VC251 universal meter
  • Test leads
  • Instruction manual
  • Battery 9V 6LF61

The kit includes a 9V6LF61battery that is required to power the multimeter.

Zawartość zestawu miernika

Contents of the meter set.

Meter - DC voltage yes
Meter - Diode tester yes
Meter - AC voltage yes
Meter - AC current yes
Meter - Capacitance no
Meter - DC current yes
Meter - Resistance yes
Meter - Transistor tester no
Meter - sound yes
Meter - Backlight no
Meter - Temperature no
