Product description: RS485 module - WisBlock IO extension - Rak Wireless RAK5802
RAK5802extension is a converter of standard RS485 interface to a serial port. It hasESD 18 kVprotection and low power consumption. It supports up to 16 RS485 nodes, automatically detectsTX / RXsignals. It is compatible with many WisBlock modules, it needs connection to WisBlockBase Boardand WisBlockCoredevelopment modules to work properly.
On manufacturer website there is auser guide, which makes it much easier to start working with the module.
WisBlockseries modules produced byRak Wireless. They allow to makeextended IoT projects, which can be used in advanced scenarios and in basic projects. WisBlock system includes: WisBlockBase Board, WisBlockCoredeveloper module, WisBlockSensorsand WisBlockIO expansionmodules. They are used for rapid deployment of engineering prototypes, and are also designed to create massive applications ready for industrial deployment.

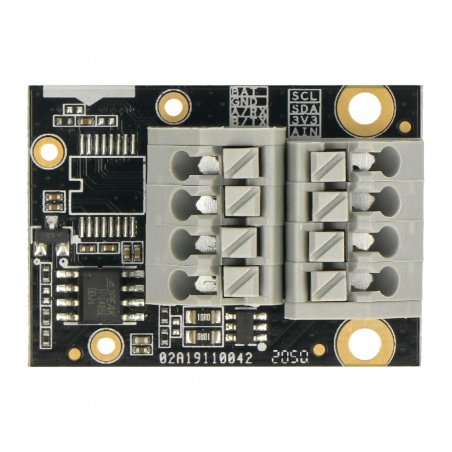

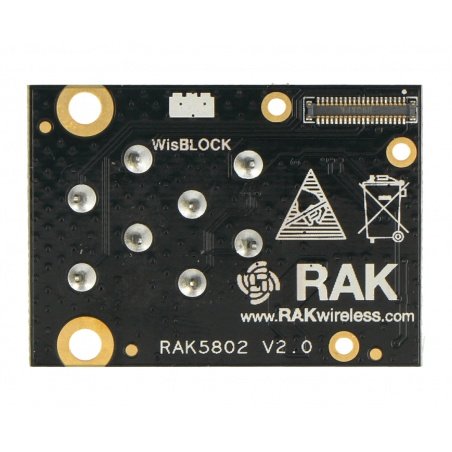

The module pinouts arescrew connectors. The pins used to connect the RAK5802 to theBase Boardare located on the underside of the module. For more information about mounting, please refer to the user guide,mounting mechanismtab. Pins mean:
4. Power supply from battery on base board (PWR)
5. Analog input 1 to MCU
6. Power supply 3.3 V
7. and 8. I2C interface bus
Technical specification of the module
- Compatible withWisBlockseries
- Conversion of RS485 transmission to serial port
- RS485 interface and Modbus protocol
- Automatic TX / RX signal detection
- Low power consumption mode
- Designed with 18 kV ESD protection level
- Module dimensions: 35 x 25 mm
