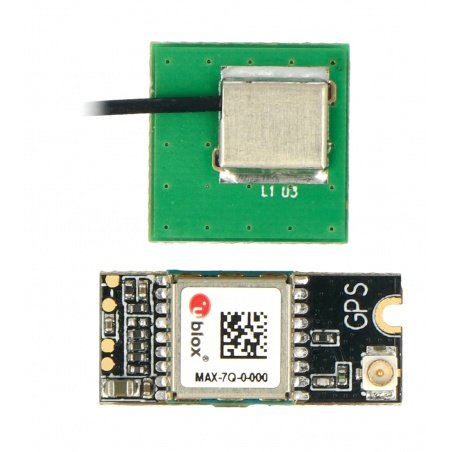

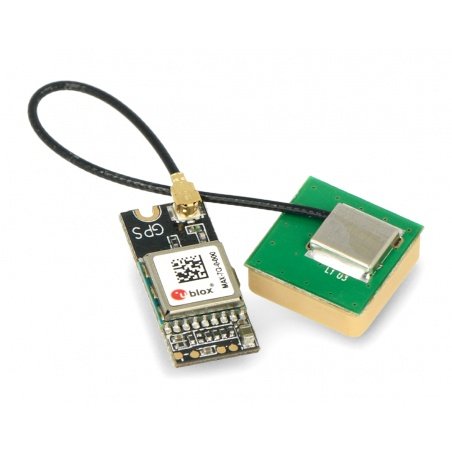

Product description: MAX-7Q GNSS location module - an extension for WisBlock Sensor - Rak Wireless RAK1910
Another product from WisBlock Sensor series - GNSS location module. It supports GPS and GLONASS satellites. The sensor from Rak Wireless allows to determine the location with an accuracy of 2.5 m. The frequency of data update is 10 Hz. It is used as a location tracking module, which it reports via LoRaWan and Bluetooth communication. The RAK1910 can be combined with other WisBlock sensors, such as an acceleration sensor or an ambient sensor, to collect additional data. It is designed to work with the WisBlock Base Board and WisBlock Core development modules. It can be programmed using a popular environment - Arduino IDE. Manufacturer also provides a friendly user guide and sample program code.
WisBlock Series modules are an intelligent solution, developed by Rak Wireless. It allows to create complex IoT projects applicable in advanced scenarios as well as in basic projects. They are used not only for rapid deployment of engineering prototypes, but can also be used to create massive applications ready for industrial deployment. The WisBlock system includes the WisBlock Base Board, WisBlock Core development module, WisBlock Sensors and WisBlock IO expansion modules.
WisBlock Sensor extensions are system components of the WisBlock series. They are designed to work with the WisBlock Base Board and are mounted according to the diagram shown in the photo opposite. Before commissioning, ensure that the module is properly attached. The RAK1910 module can be installed in slot A only.
Technical specification of sensor
- Type: GNSS Location Module
- Chip: MAX-7Q
- Compatible with WisBlockseries
- Supported development platforms: Arduino
- GNSS Support: for GPS / QZSS and GLONASS
- Position measurement accuracy: up to 2.5 m
- Update frequency: 10 Hz
- Speed measurement accuracy: 0.1 m/s
- Course accuracy: 0.5 degrees
- Location correction:
- 29 seconds from cold start
- 1 second from hot start
- Supports GPS and GLONASS satellites
- Power supply: 2.7 V to 3.6 V
- Module dimensions: 10 x 23 mm
