Product description: 1.3'' OLED display 128 x 64 px SPI - SH1106 - white
The 1.3- inch OLED display with the SH1106 controller is a compact module designed for presenting text, icons, graphics, and basic user interfaces. Its 128 x 64 px resolution, combined with its small screen size, ensures high pixel density and excellent readability. OLED technology eliminates the need for a backlight, providing the module with very high contrast and low power consumption . The module utilizes an SPI interface for fast data transmission. It operates with voltages of 3.3 V and 5 V , enabling easy integration with most microcontrollers and single-board computers .

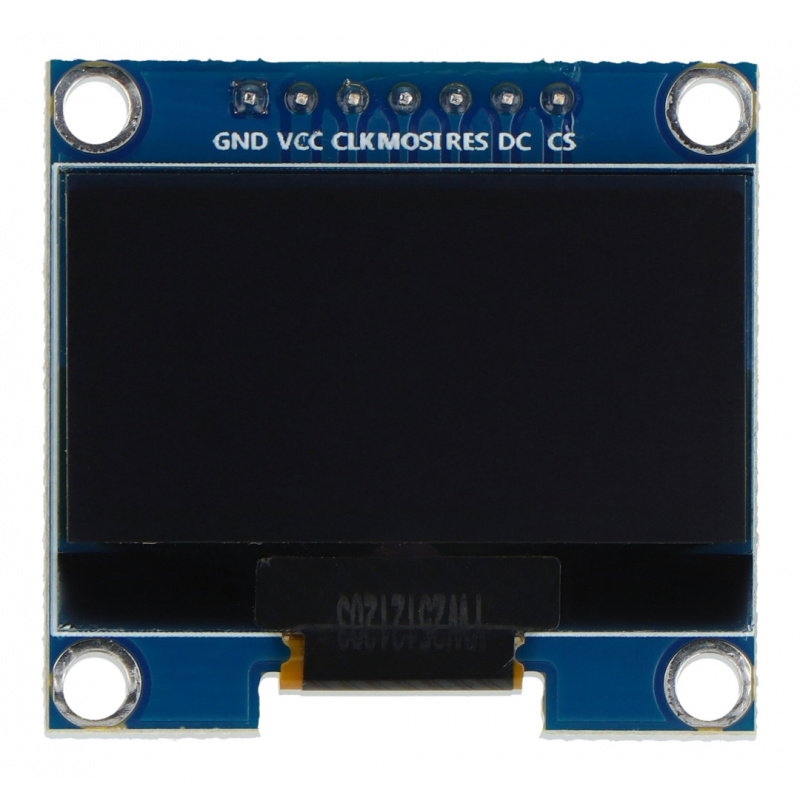

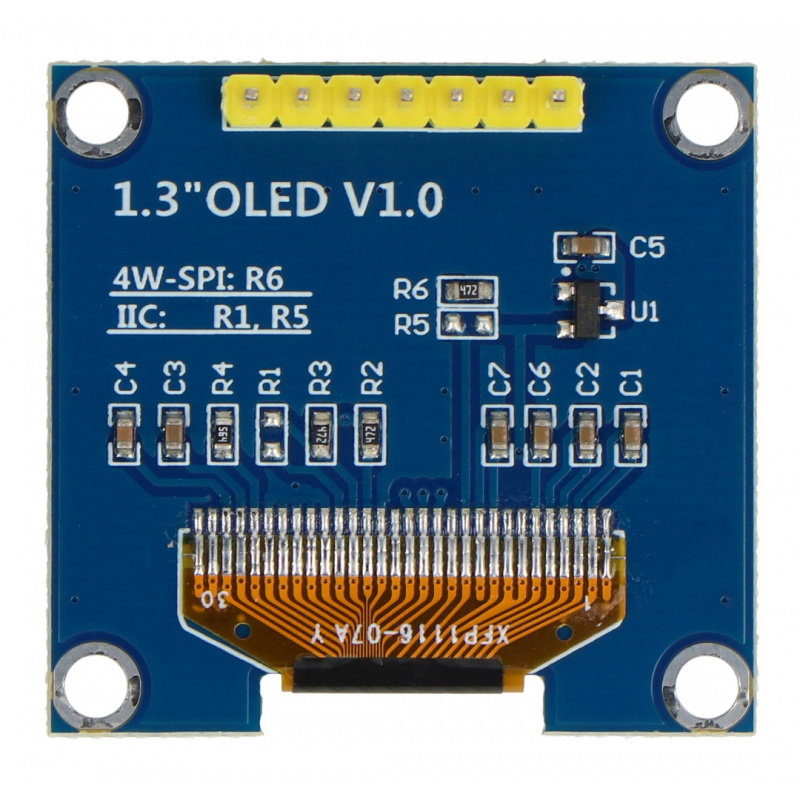

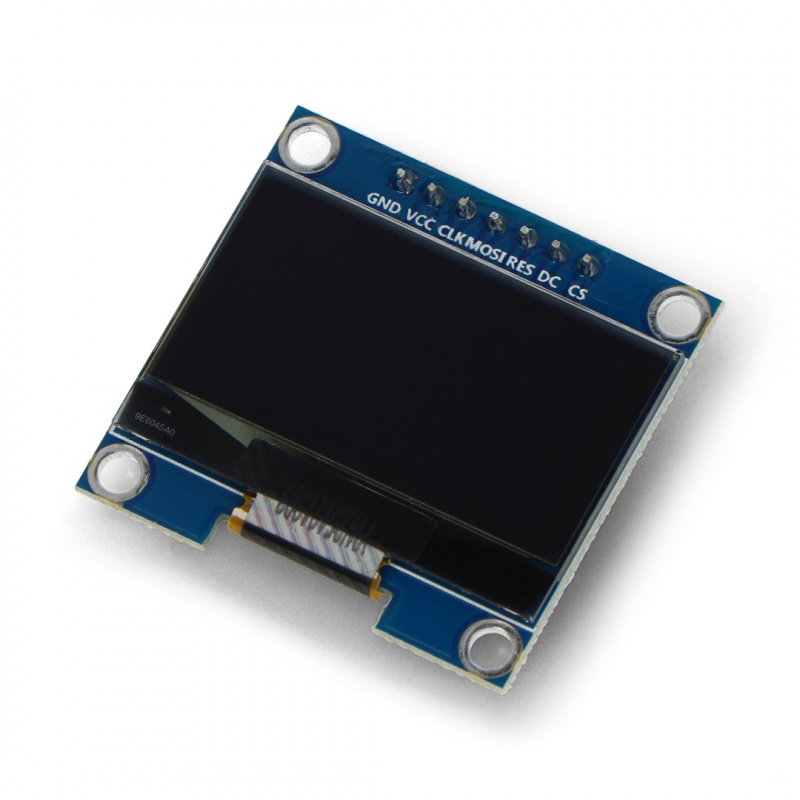

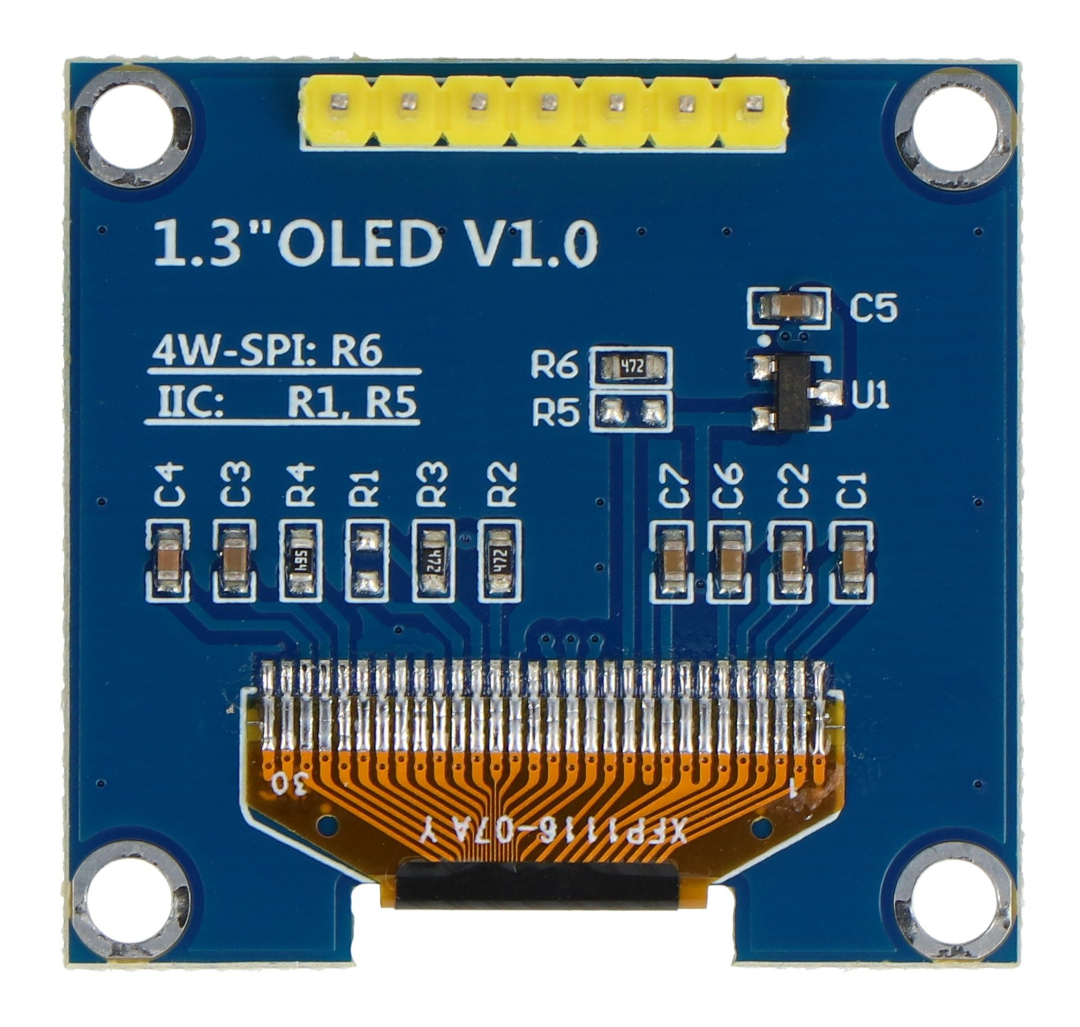

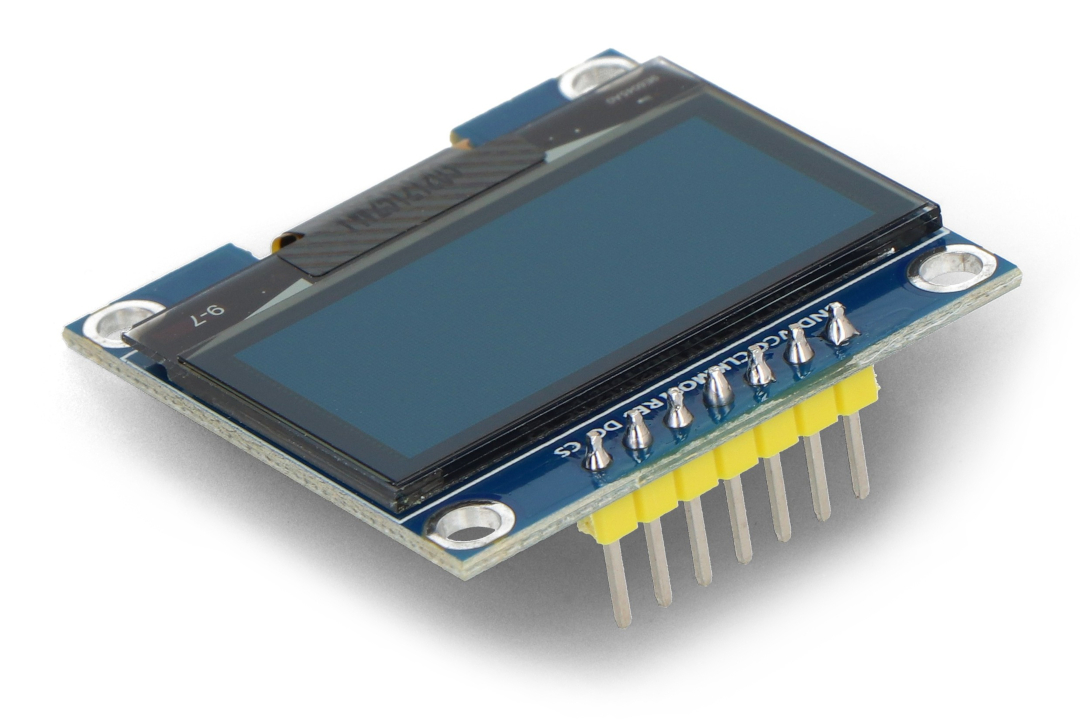

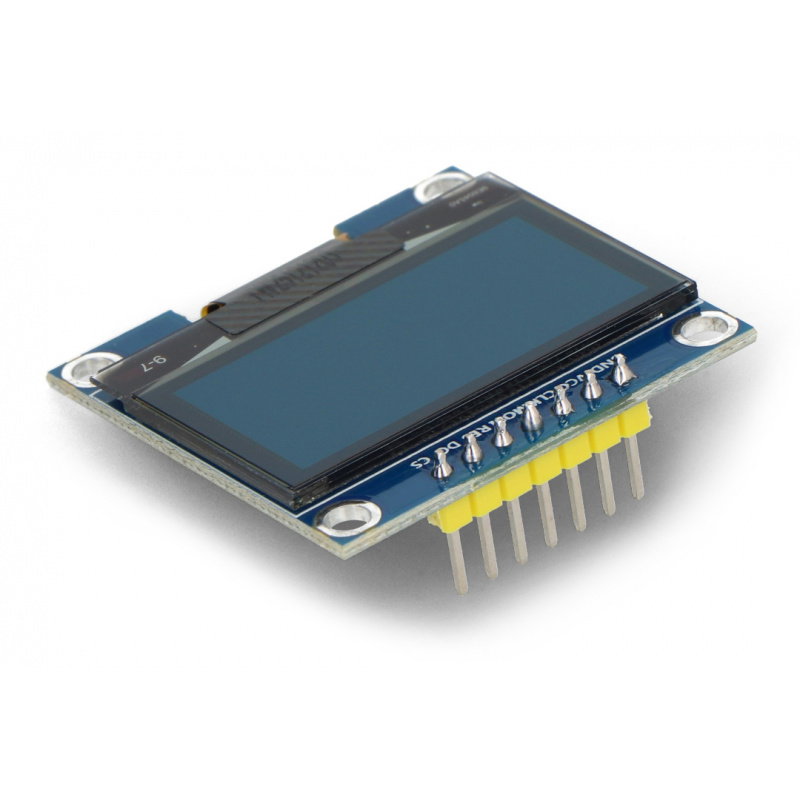

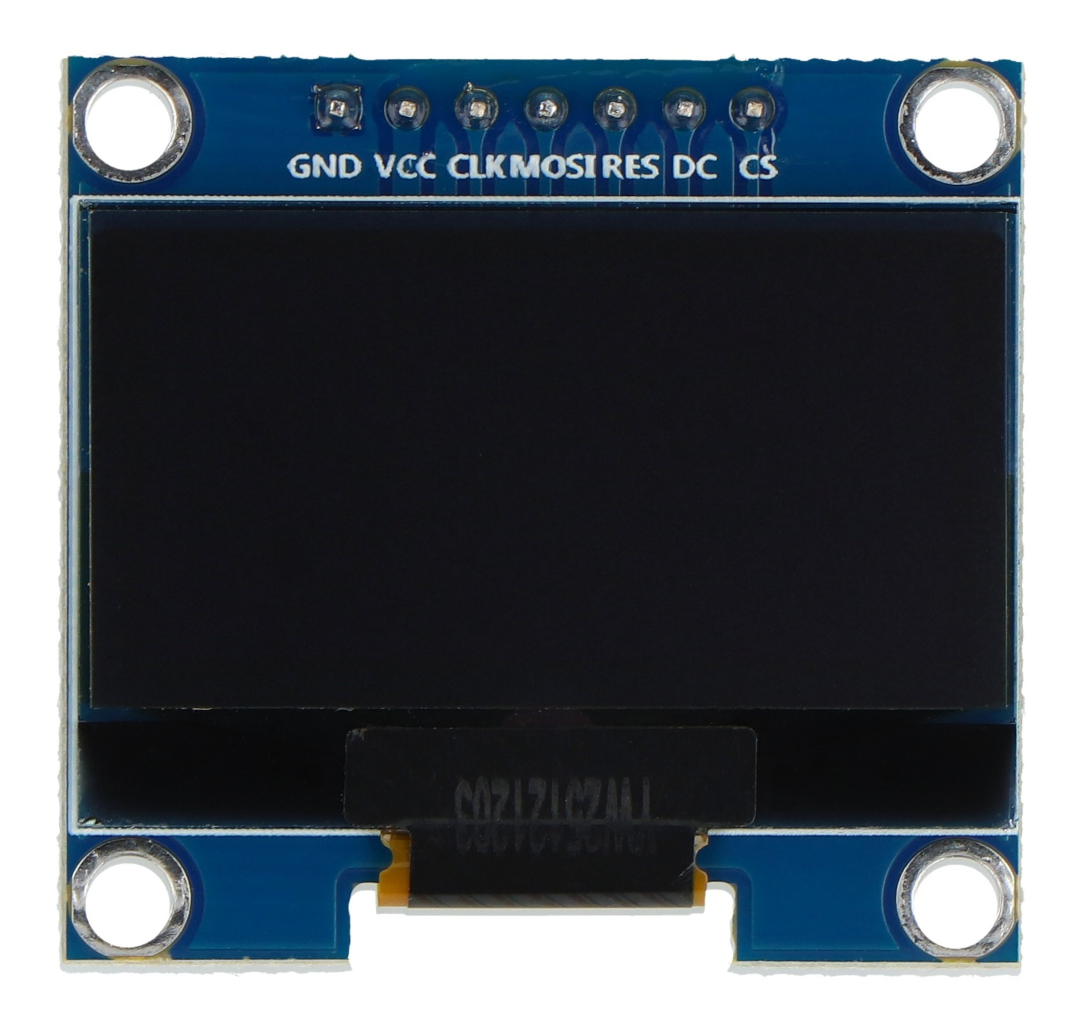

OLED display 1.3'' 128 x 64 px SPI - SH1106 - white.
OLED display based on SH1106 controller, works with voltages of 3.3 V and 5 V.
Main features of the OLED display
- 1.3'' OLED display : a compact screen for presenting data and graphics
- 128 x 64 px resolution : high pixel density ensuring good readability of displayed content
- SH1106 driver : a popular chip supported by many programming libraries
- SPI interface : fast communication with a microcontroller using a small number of signal lines
- Wide viewing angle of over 160° : clear image regardless of the viewing angle
- Low power consumption : typical power consumption around 0.06 W
- 3.3V to 5V power supply : compatible with popular development platforms
Display technical specifications
- Display type: OLED
- Screen diagonal: 1.3''
- Driver: SH1106
- Resolution: 128 x 64 px
- Display color: white
- Communication interface: SPI
- Supply voltage: 3.3 V to 5 V
- Logical IO voltage: 3.3V (TTL)
- Viewing angle: over 160°
- Typical power consumption: approximately 0.06 W
- Operating temperature range: -20°C to 70°C
- Active display area: 29.42 x 14.7 mm
- PCB dimensions: 33.5 x 35.4 mm
Contents of the set
- 1z 1.3'' SPI SH1106 OLED Display
The display communicates via SPI.
