Product description: Voltcraft MSS-103 crocodile clamp set
Set of two additional large crocodile clamps and test leads, designed to measure current parameters. The product is compatible with all measuring cables equipped with tower plugs (popular banana connector) 4 mm. Made of high quality materials the tips ensure high precision andsafety of measurements. The elements included in the set have measurement categoriesCAT III 1000 V and CAT IV 600 V.
Our shop also offers a wide range ofmeasuring devices, includinguniversal meters.

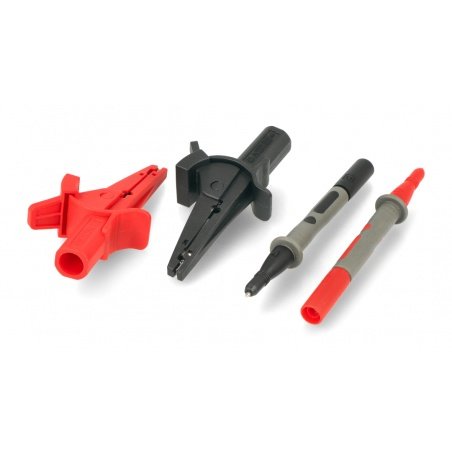

Voltcraft MSS-103 crocodile clamp set.
Specifications of the Voltcraft MSS-103 crocodile clamp set
| Parameter | Range |
|---|---|
| Diameter of sockets | 4 mm |
| Terminal diameter | 2 mm |
| Overall length of the measuring tip | 118 mm |
| Length of measuring tip | 2 mm |
| Maximum rated current | up to 10 A |
| Rated voltage | 1000 V, 600 V |
| Plug type | isolated |
| Measuring categories | CAT III 1000 V, CAT IV 600 V |
| Working temperature range | from 0°C to 40°C |
| Colour | black, red |
Crocodile clipkit contents.
Contents of the set
- Measuring tip - black
- Measuring tip - red
- Crocodile clamp - black
- Crocodile clamp - red
