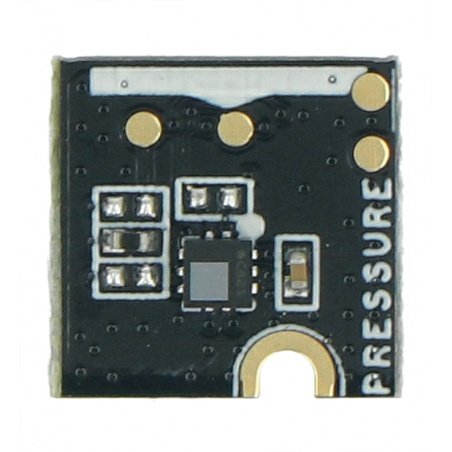

Product description: Pressure Sensor LPS22HB - WisBlock Sensor extension - Rak Wireless RAK1902
Pressure measurement sensormanufactured by Rak Wireless. The component is in the form of WisBlock Sensor extension, which is compatible withWisBlock Base Boardand WisBlockCoredevelopment modules. The pressure measurement range isfrom 260 hPa to 1260 hPa with an accuracy of ± 0,1 hPa. Module can be programmed using popular environment - Arduino IDE. The manufacturer also provides a friendlyuser tutorialandsample program code.
TheWisBlockseries modules are an intelligent solution developed byRak Wireless. It allows to createcomplex IoT projects, which are used both in advanced scenarios and basic projects. They are used not only for rapid deployment of engineering prototypes, but are also designed to create massive applications, ready for industrial deployment. The WisBlock system includes the WisBlockBase Board, WisBlockCoredevelopment module, WisBlockSensorsand WisBlock IO expansion modules.
The WisBlock Sensor extensions are designed to work with theWisBlock Base Boardand are mounted according to the schematic shown in the photo opposite. Before commissioning, make sure that the module isproperly attached.
Technical specification of the sensor
- Type: pressure sensor
- Circuit: LPS22HB
- Compatible withWisBlockseries
- Supported programming platforms: Arduino
- Pressure measurement range: from 260 hPa to 1260 hPa
- Measurement accuracy: ± 0.1 hPa
- Typical power consumption: 3 uA
- Power supply: 1.7 V to 3.6 V
- Module dimensions: 10 x 10 mm
