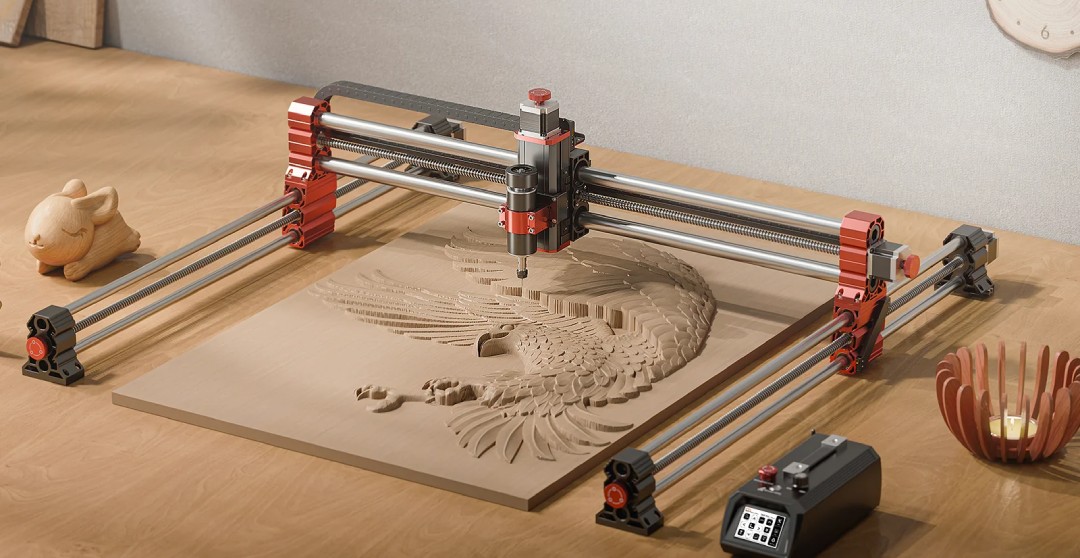

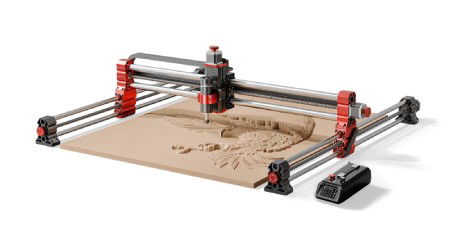

Product description: Two Trees TTC-H40 CNC milling machine
The Two Trees TTC-H40 CNC milling machine is an advanced device that combines performance with ease of use. Its spacious work area of 1000 x 1000 x 100 mm makes it ideal for medium- to large-scale projects. It is ideal for processing a variety of materials, such as wood , MDF, acrylic, plastics, aluminum, copper, and stainless steel . Thanks to open GRBL software, the device is compatible with popular CAD/CAM applications , enabling precise and fast engraving and cutting. A 3.5" touchscreen enables easy operation , and numerous safety features ensure safe operation.

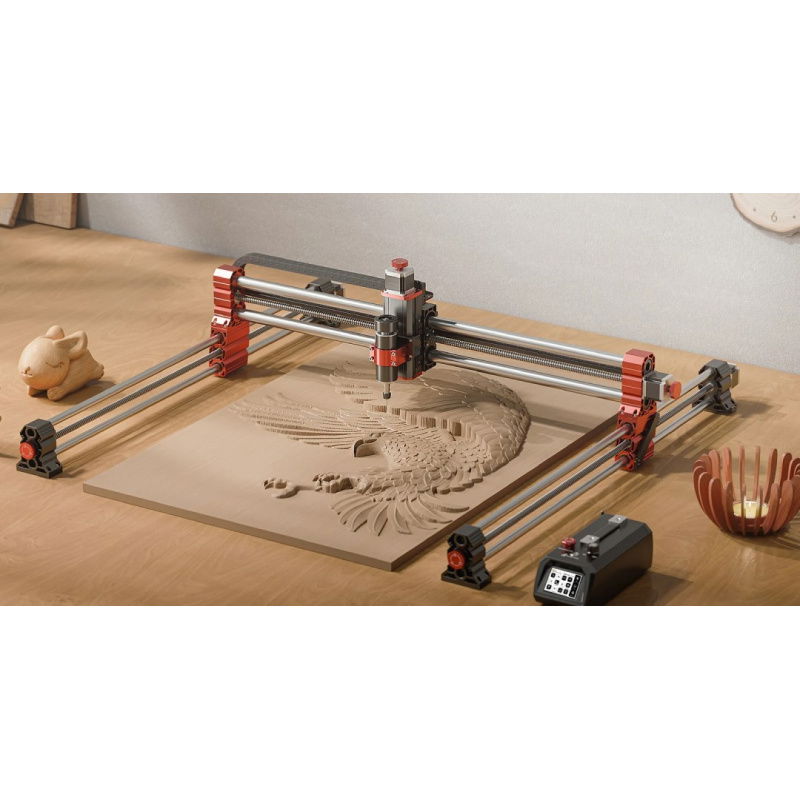

The milling machine offers all the most important safety features.
Intuitive operation and modern functions
The Two Trees TTC-H40 is the perfect solution for professionals and hobbyists looking for a versatile engraving and cutting tool. The machine has a working area measuring 1000 x 1000 x 100 mm , perfect for medium- to large-scale projects. The 3.5-inch touchscreen makes managing the milling machine easy and intuitive , even for beginners. A single button allows for quick switching between CNC and laser modes (optional module), making the device exceptionally versatile. A spindle shut-off function increases user safety , and the built-in safety system (including an emergency button ) ensures that every operation is safe and trouble-free.
Unmatched compatibility with a variety of materials
The TTC-H40 offers broad compatibility with a variety of materials, making it an exceptionally versatile tool. It supports plywood, MDF, wood, acrylic, carbon fiber, aluminum, copper, and stainless steel . This allows you to complete a wide range of projects, from simple engravings to complex furniture or decorative elements. The machine is also compatible with tools ranging in diameter from 0.5 mm to 7 mm (ER11 collet) , enabling precise machining of various materials. High precision, with an accuracy of up to 100 + 0.05 mm , allows you to achieve professional results in every project.
The TTC-H40 is ideal for creating functional items such as furniture and decorative elements.
Compatibility with numerous programs ensures versatility.
Endless creative possibilities with flexible software
The TTC-H40 supports a range of CAD/CAM applications, such as Vectric, Fusion360, EASEL, and Carveco Maker , providing extensive design capabilities. Thanks to the open-source GRBL software, you have complete freedom in customizing device settings and integrating with popular systems. It supports Windows, MacOS, and Linux , providing a flexible work environment. Furthermore, it supports various connection methods, such as USB, 2.4 GHz Wi-Fi, and TF card , making work easy and convenient, regardless of the location or device you're designing on.
Advanced technology, precision and efficiency in every detail
The TTC-H40 is a CNC machine with a robust aluminum construction , ensuring durability and stability during operation. It features a 500W spindle with adjustable speeds ranging from 8,000 RPM to 30,000 RPM , depending on the installed module. The milling machine boasts a maximum engraving speed of up to 1,800 mm/min and a maximum acceleration of up to 500 mm/s² , ensuring high efficiency and precision. Furthermore, the machine operates within an optimal temperature range of 0°C to 40°C, making it resistant to various operating conditions.

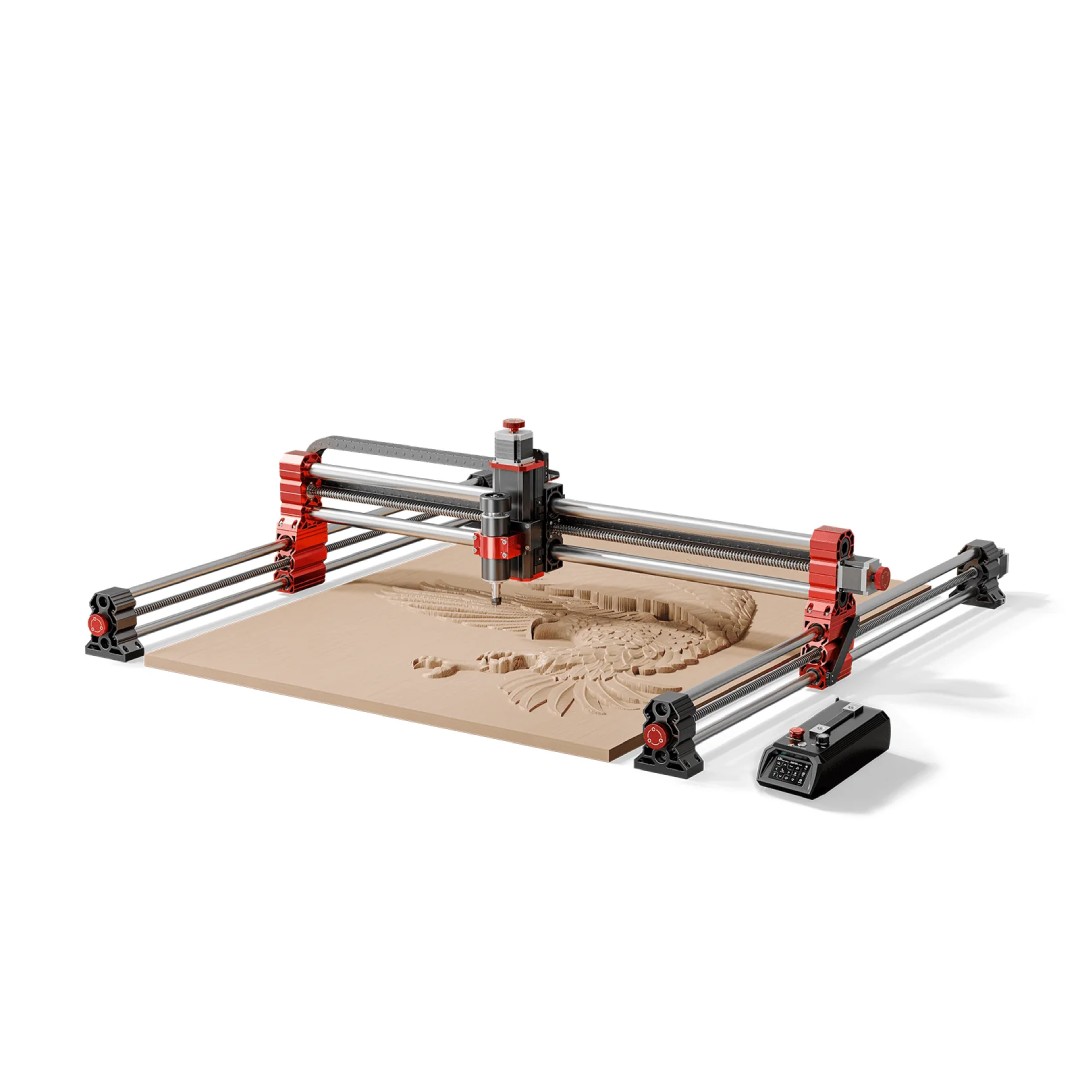

The working area of 1000 x 1000 x 100 mm is ideal for medium and large projects.
| Technical specifications of the Twotrees TTC-H40 CNC milling machine | |
|---|---|
| Spindle power | 500 W |
| Spindle speed | from 8000 RPM to 30000 RPM depending on the installation |
| Work area | 1000 x 1000 x 100 mm |
| Engraving accuracy | 100 + 0.05 mm |
| Maximum engraving speed | 1800 mm/min |
| Maximum acceleration | 500 mm/s² |
| Construction material | aluminum alloy |
| Engraving layer height | from 0.1 mm to 20 mm for non-metallic materials, from 0.1 mm to 0.2 mm for metals |
| Power supply | 216 W dual-channel switching power supply |
| Input voltage | from 100 V AC to 240 V AC, 50 Hz |
| Output voltage | OUT1: DC 24V/4A, OUT2: DC 0V to 100V |
| Touch screen | 3.5-inch resistive screen (480 x 320 px) |
| Software type | GRBL open source, supports CNC and laser |
| Supported systems | MacOS, Windows, Linux |
| Compatible engraving materials | wood, MDF, acrylic, plastics, aluminum, copper, stainless steel |
| Diameter of supported tools | from 0.5 mm to 7 mm (ER11 collet) |
| Communication | USB, WiFi 2.4GHz, TF Card |
| Software languages | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish |
| Supported software | Vectric, Fusion360, EASEL, Carveco Maker |
| Operating temperature | from 0°C to 40°C |
| Dimensions | 1292.5 x 1290.5 x 404.5 mm |
| Mass | 38.3 kg |
