Product Description: Raspberry Pi 3B WiFi kit + accessories
The kit includes aRaspberry Pi 3mini computermodel B 1 GB RAMwith a protectivehousingand a 5 V power supply with a current capacity of 2.5 A. A 32 GB memory card with NOOBs system, HDMI and ethernet cable are included.
Raspberry Pi 3B set + accessories.
L.p. | Photo | Name |
---|---|---|
1 | Raspberry Pi 3 Model B 1 GB RAM- popular minicomputer in the latest version with 64-bit1.2 GHzprocessor,1 GBRAM, built-inWiFiandBluetoothmodule. | |
2 | MicroUSB-tipped power supply- compatible with the Raspberry Pi mini-computer with a maximum current capacity of 2.5 A. Sent in black. | |
3 |

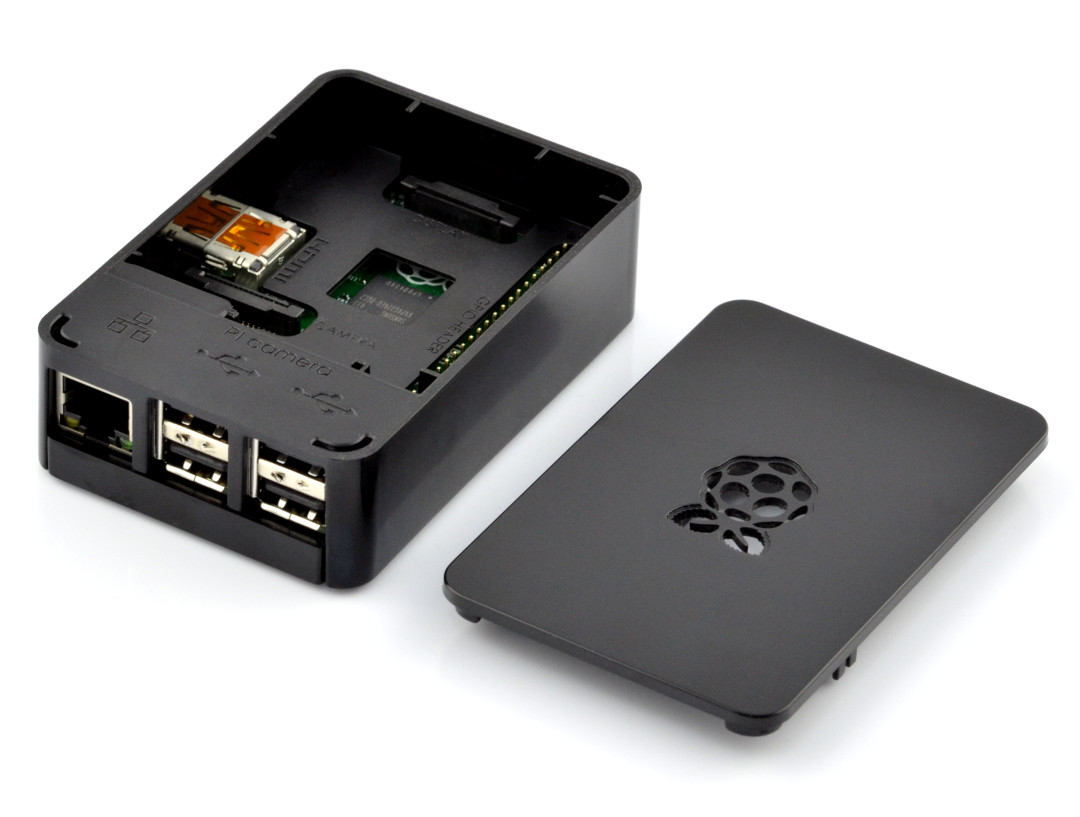

Case for the Raspberry Pi mini-computer- RS Proz flip-flop version, which gives access to audio, video, microSD power card and GPIO connectors. It is also possible to mount heat sinks. |
|
4 | Heat sink set- with adhesive layer for simple installation on mini-computer chipsets. The heat sinks are not required by the manufacturer, their installation is only recommended if the device will operate at maximum efficiency for a long time. | |
5 | 32 GB memory card with softwareNOOBs-which enables the installation of popular operating systems for the latestRaspberry Pi 4Bminicomputer. Read speed: up to 100 MB/sec, write speed: from 10 MB/sec. | |
6 |
HDMI cable- class 1.4,has gold-plated ends, and its length is 1.5 m. |
|
7 |
Patchcord- category 5e Ethernet black twisted-pair cable with 2 m RJ45 connectors mounted. |
The enclosed case has the ability to remove the top cover, so you can easily connect the circuits to the GPIORaspberry Piconnectors.
What's new with the Raspberry Pi 3?
|
Operating system
The raspberry drive isa microSD memory card. The operating system can be uploaded using a computer with a reader. In our shop there arecards with NOOBs program installed, which at the first start allows you to choose from the systems: Raspbian, Openelec, RaspBMC, OSMC Linux. You can also install Windows 10 IoT on your own.
Check how to install Raspberry Pi OS to Raspberry Pi |
A performance of the Raspberry Pi mini-computer.
Specification and comparison of the Raspberry Pi 2 and 3
Basic information | ||
Model | Raspberry Pi 3 model B | Raspberry Pi 2 model B |
Edition | 3 - 2016 r. | 2 - 2015 r. |
Technical specification | ||
Chipset processor | Broadcom BCM2837 64-bit | Broadcom BCM2836 32-bit |
Core | Quad-Core ARM Cortex A53 | Quad-Core ARM Cortex-A7 |
Operating systems |
Linux Raspbian Windows 10 loT |
Linux Raspbian Windows 10 loT |
Clocking | 1.2 GHz | 900 MHz |
Architecture | ARMv8-A | ARMv7-A |
Memory RAM | 1 GB LPDDR2 @ 900 MHz | 1 GB DDR @ 400 MHz |
Memory | microSD card | microSD card |
GPIO socket |
40-pin connector (2x20 pin) raster 2.54 mm |
40-pin connector (2x20 pin) raster 2.54 mm |
Power supply |
5.1 V / 2.5 A via microUSB |
5,0 V / 1,8 A via microUSB |
Dimensions of the tiles | 85 x 56 x 17 mm | 85 x 56 x 17 mm |
Interfaces | ||
USB interface | 4x USB 2.0 - socket type A | 4x USB 2.0 - socket type A |
Network interface | 10/100 Mbps Ethernet port | 10/100 Mbps Ethernet port |
WiFi interface | 802.11 b/g/n 150 Mbps | No |
Bluetooth | Low Energy, BLE 4.1 | none |
Camera | CSI socket | CSI socket |
Touchscreen display | DSI socket | DSI socket |
Video | HDMI HD 1080px / 30 fps | HDMI HD 1080px / 30 fps |
Communication | UART, SLEEPING, I2C, GPIO | UART, SLEEPING, I2C, GPIO |
