Sipeed MAIX-II Dock - Deep Learning AI+IoT Linux 1080p - Vision Development Board Set - Seeedstudio 114992604

Index: SEE-18807 EAN: 5904422369231
MAIX-II Dock development board set from Seeedstudio. It consists of the MAIX-II base module and the MAIX-II Dock development board. It is equipped with Allwinner V831 SoC processor with embedded NPU. It has the ability to run a full Linux environment and use with many peripherals to extend the functionality of the project.
€59.18
€48.11 tax excl.
Waiting time: approx. 6-8 weeks
Only on request
30-day returns
PayPal payment
Manufacturer: Seeedstudio

Product Description: Sipeed MAIX-II Dock - Deep Learning AI+IoT Linux 1080p - Vision development tile set - Seeedstudio 114992604

MAIX-II Dockdevelopment tileset from Seeedstudio. It consists of theMAIX-IIbase module and theMAIX-II Dockdevelopment board. It is equipped withAllwinner V831 SoCprocessor with embedded NPU (Neural Processing Unit). It has the ability to run a full Linux environment. It can be used with manyperipheralstoextend the functionality of the project.

Wyposażony w kamerę opartą na czujniku Omnivision SP2305.Equipped with a camera based on Omnivision SP2305 sensor.
Moduł posiada wbudowany procesor Allwinner V831.The module has a built-in Allwinner V831 processor.

Features

  • Equipped with an Allwinner V831 SoC processor with built-in NPU (Neural Processing Unit)
  • Ability to run full Linux environment
  • Rich peripherals for project expansion
  • Deep Learnig capability

Suggested use

  • Intelligent home applications- vacuum cleaners, smart speakers, electronic door locks
  • Medical industry - assistive diagnostics, medical image recognition
  • Industrial - intelligent sorting,monitoringof electrical equipment
  • Educational applications - interactive platforms, teaching effectiveness tests
  • Agricultural - monitoring of pests and growth progress

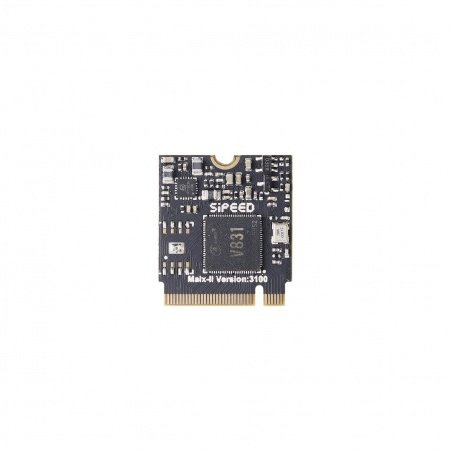

Layout of components on MAIX-II module

  1. V831 CPU
  2. Power supply
  3. M.2 interface
  4. SPI Flash Pad
Rozmieszczenie elementów na module MAIX-II.Arrangement of components on the MAIX-II base module.
Rozmieszczenie elementów na płytce rozwojowej MAIX-II Dock.

Arrangement of components on the MAIX-II Dock development board.

Arrangement of elements on MAIX-II Dock development board

  1. Camera
  2. TF card slot
  3. Microphone
  4. USB UART port
  5. USB OTG port
  6. 3-axis accelerometer
  7. Female IO connectors - 2.54 mm pitch
  8. Utility button
  9. RESET button

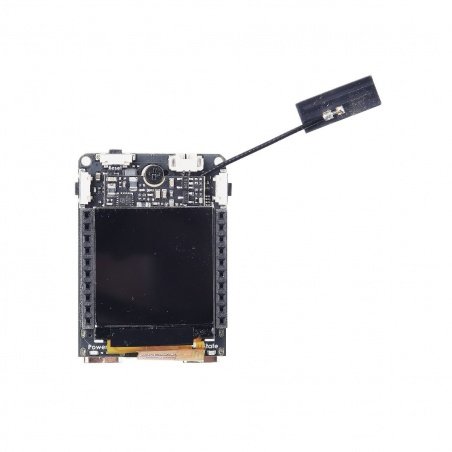

  10. 1.3'' LCD display
  11. Connector with 1.25 mm pitch for speaker connection
  12. WiFi antenna

Technical Specification

  • MAIX-II base module
    • SoC - Allwinner V831
    • processor: single core Cortex-A7
    • clocking: 800 MHz to 1000 MHz
    • system memory: 64 MB DDR2 in package (SiP)
    • optional memory: 16 MB Flash memory
    • M.2 B-Key edge connector:
      • storage: 2 x SD / MMC (SMHC) host controller interfaces
      • display: support for 8-bit MCU LCD and 10-inch RGB LCD via adapter card
      • networking: Ethernet 10 / 100 M
      • audio: line out, microphone input
      • low-speed I/O: 2 x SPI, 4 x I2C, 1 x I2S, 1-channel 6-bit LRADC
    • power consumption: 50 mA (in idle mode)
    • dimensions: 22.1 x 24.9 x 3.0 mm
  • MAIX-II Dock development board
    • M.2 key slot for MAIX-II base module
    • memory: 1 x microSD card slot
    • display: 1.3'' IPS screen with 240 × 240 px resolution
    • camera: 1080P 30 fps based on Omnivision SP2305 2MP sensor and M12 lens with 6 mm focal length (default)
    • audio: built-in 8 ohm 1 watt speaker connected to 2-pin connector, built-in microphone
    • connectivity: Realtek RTL8189FTV WiFi 4 module connected via SDIO and IPEX antenna connector
    • USB ports: 2 x USB type C ports, 1 x OTG, 1 x debug port via GD32F150G8 chip
    • sensors: 3-axis accelerometer
    • expansion: 2 x 10-pin female goldpin strips (2.54 mm raster)
    • additional elements: power and user LEDs, RESET button, 2 user buttons
    • power supply: 5 V via any USB type C port
    • power consumption: 490 mA under load (NPU + display + camera + WiFi)
  • Dimensions of full set: 48.9 x 33.9 x 36.1 mm
Zawiera dwa porty USB typu C.Includes two USB Type-C ports.
