Product description: 3D scanner - Shining 3D EinScan Rigil
The Shining3D EinScan Rigil is a professional hybrid 3D scanner that combines powerful technological capabilities with complete mobility. With three operating modes (standalone, wireless PC, and wired PC) and the ability to dynamically switch between laser modes , the scanner achieves excellent results in scanning small, medium, and large objects. The integrated 5 MPx camera provides full-color texture reproduction , while high resolution and volumetric accuracy of up to 0.04 + 0.06 mm/m guarantee precise reproduction of even the most demanding details.

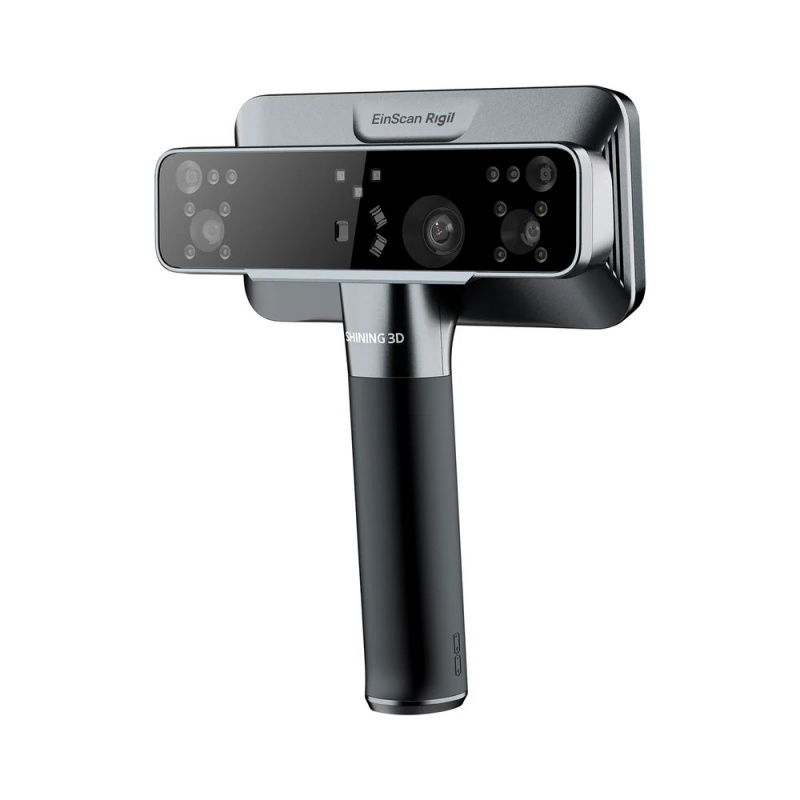

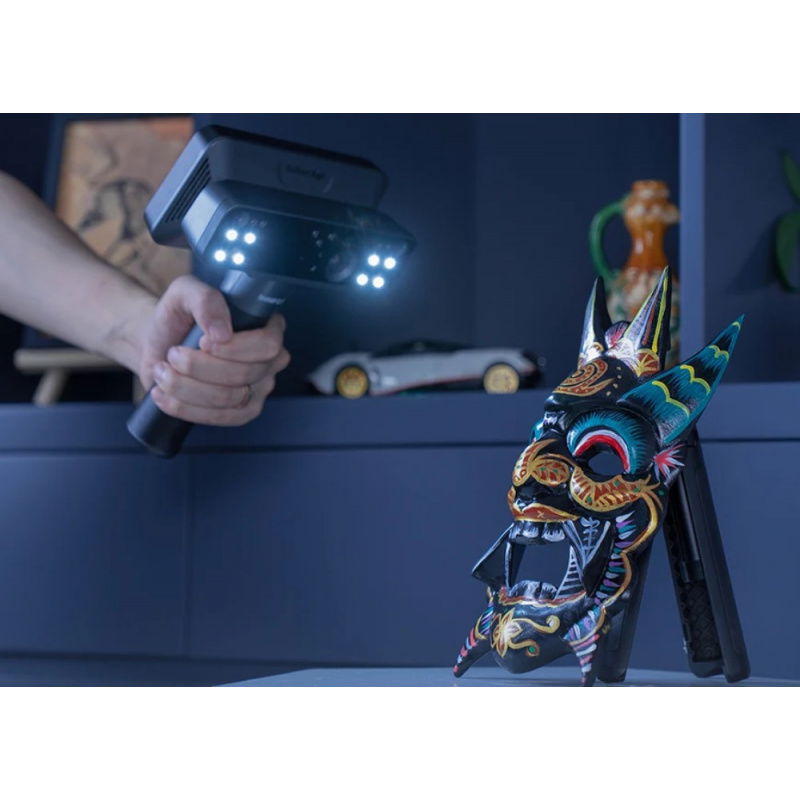

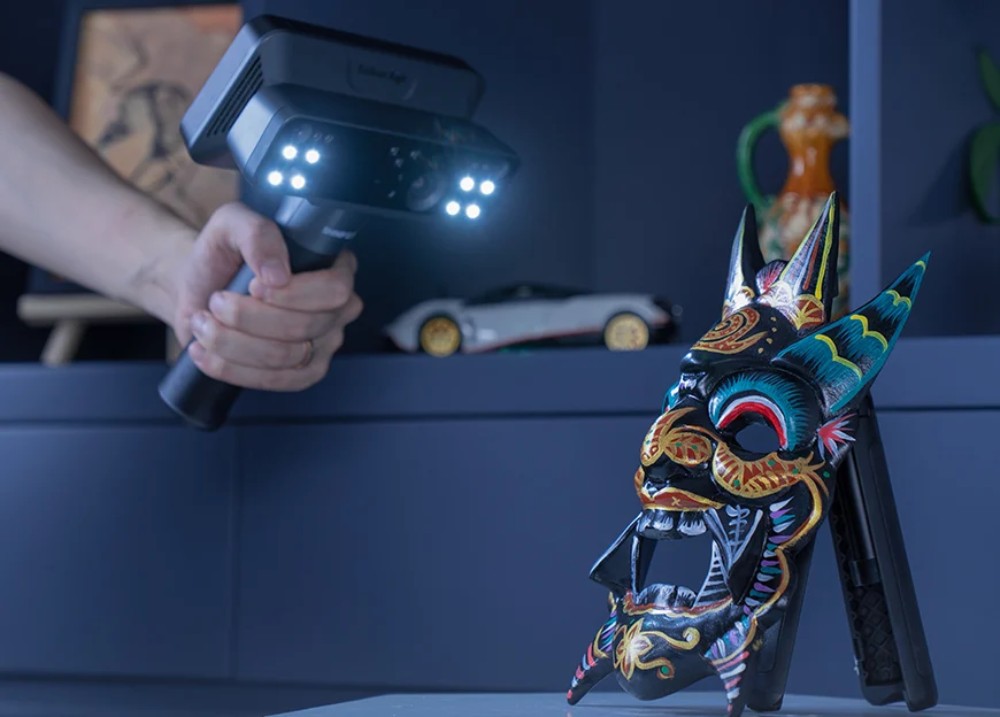

3D scanner - Shining 3D EinScan Rigil.

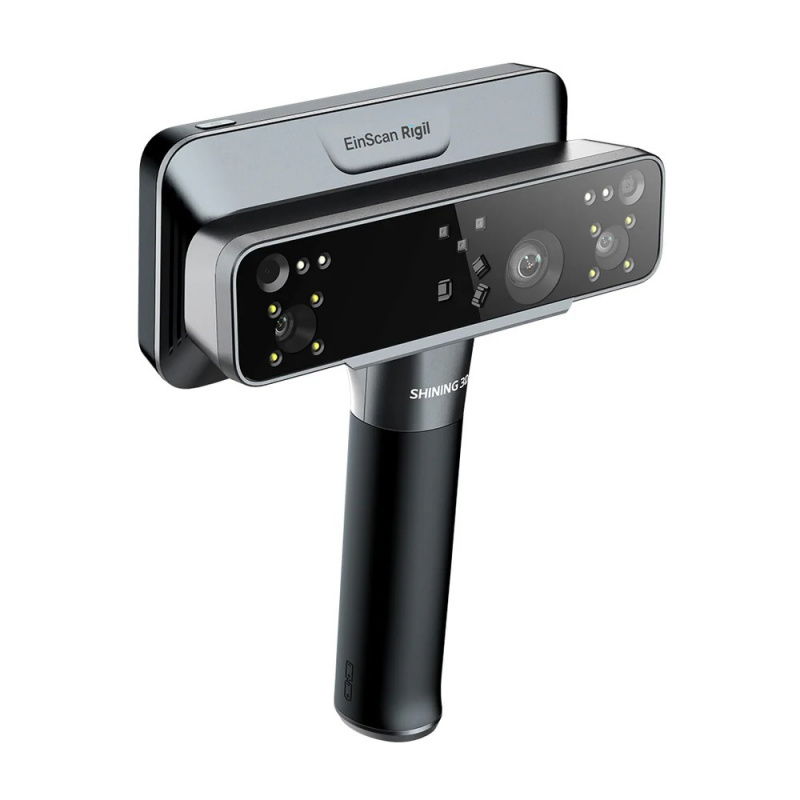

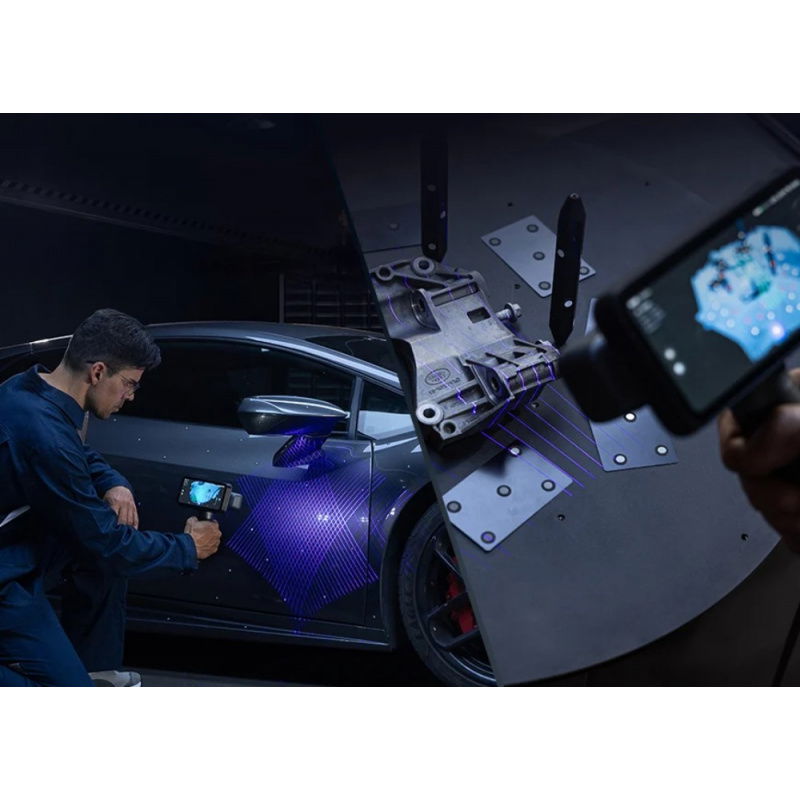

EinScan Rigil uses a dual light source - blue laser lines and infrared VCSEL.
Hybrid 3D scanner for professional digitization

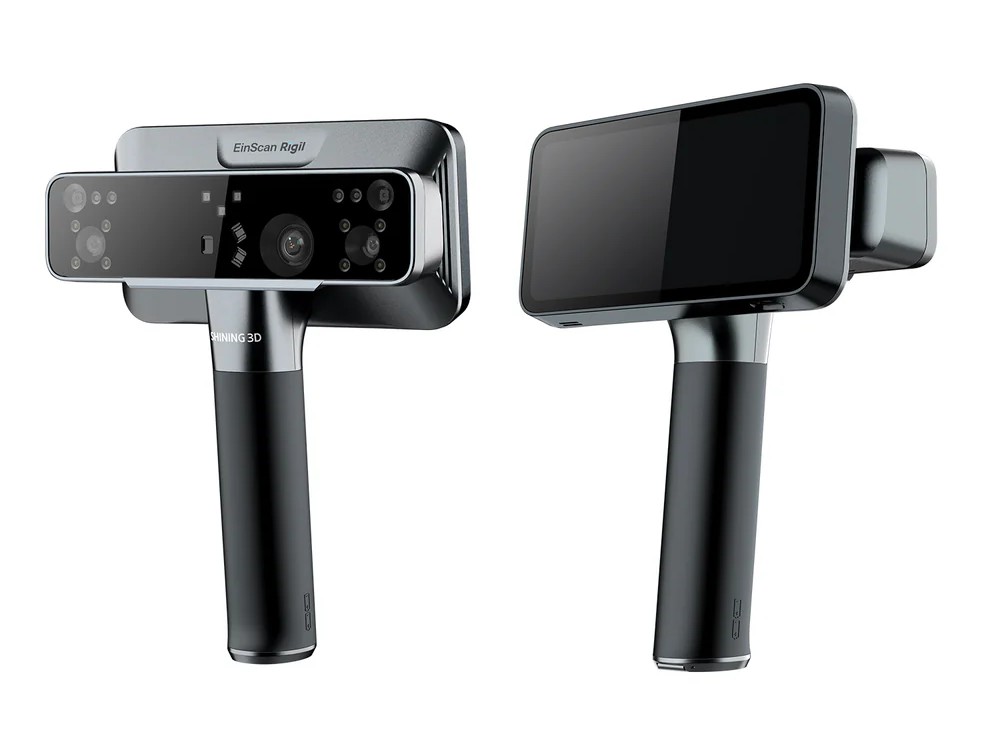

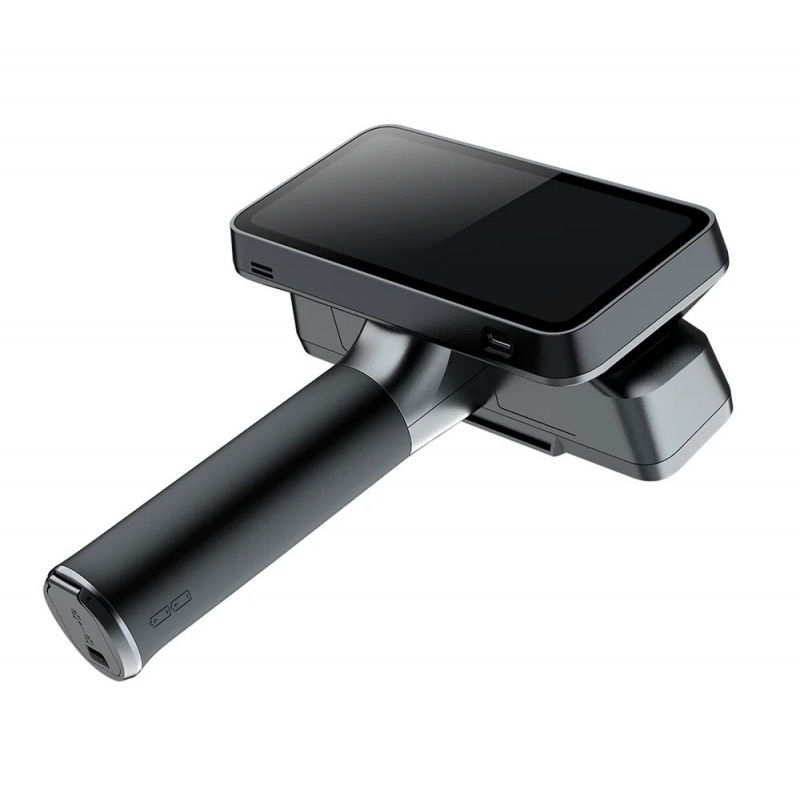

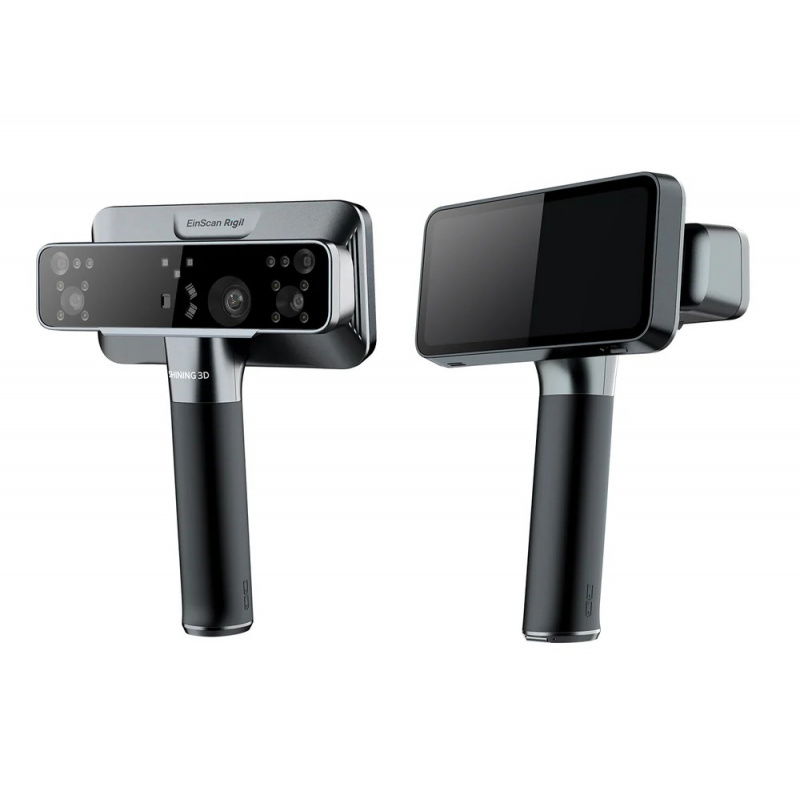

The Shining3D EinScan Rigil is an advanced wireless 3D scanner designed for engineering, art, and education. The device operates in three modes: standalone, wireless PC , and wired PC , providing maximum flexibility and portability. A built-in 6.4" AMOLED screen, 32 GB RAM, and a 1 TB SSD allow for full scanning without the need for a computer. The EinScan Rigil is ideal for both labs and field use.
Dual light source and dynamic mode switching
Rigil utilizes a hybrid light source : blue laser lines and infrared VCSELs, powered by two independent camera groups. In Laser HD mode, the scanner achieves a volumetric accuracy of 0.04 + 0.06 mm/m and a resolution of up to 0.05 mm , while IR Rapid mode allows for rapid scanning of large objects with an accuracy of 0.1 + 0.3 mm/m . You can dynamically switch between laser modes, combining data from different sources into a single project.
Markerless laser scanning and precision tracking
The EinScan Rigil supports markless scanning , utilizing a hybrid laser and infrared mode and tracking algorithms, eliminating the need to manually mark objects. This solution provides greater convenience and speed while maintaining high data quality. Automatic plane detection, a scan quality indicator, and the ability to resume and undo scanning optimize the digitization process. The scanner also offers XYZ model alignment and support for 3/6/12 mm marks.
Color texture scanning and 3D model editing
Thanks to its integrated 5MPx camera, the Rigil enables full-color scanning with high-fidelity texture detail . This makes the EinScan Rigil an ideal tool for designers, engineers, and digital artists. Models can be edited directly on the device —from calibration and closed-surface generation to data export and sharing. The built-in EinScan Rigil App allows for comprehensive process management without the need for additional hardware.

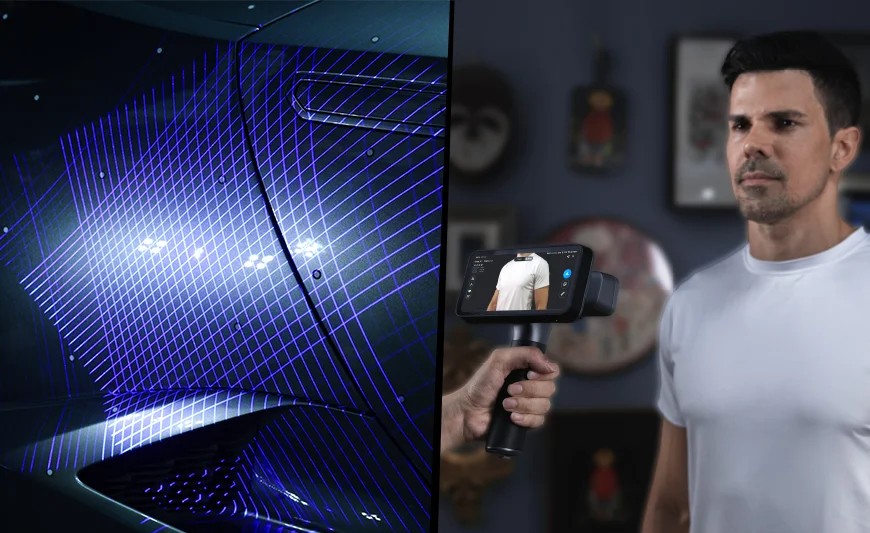

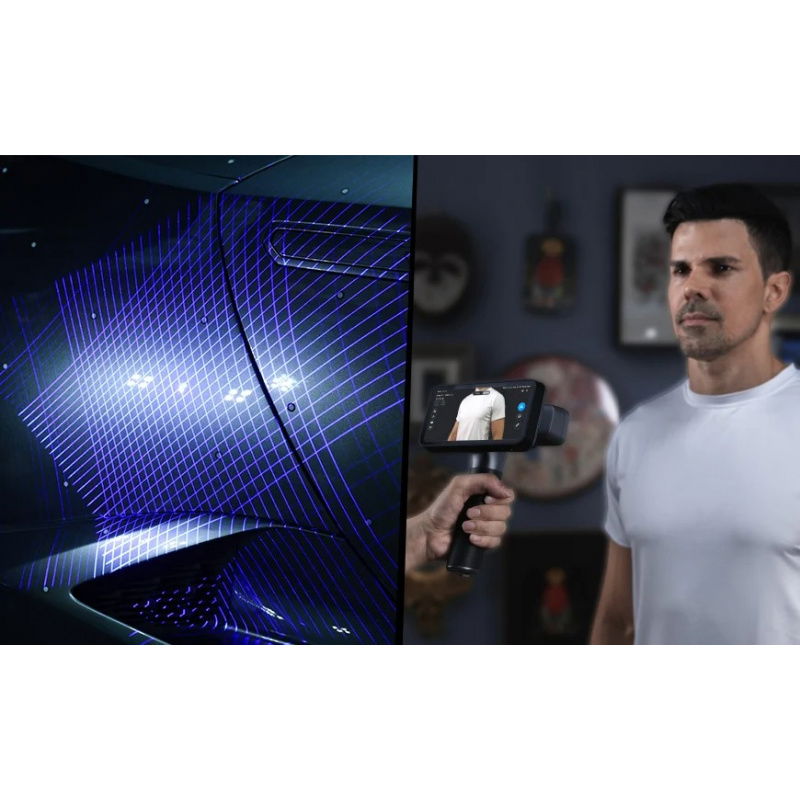

19 + 19 crossed laser lines are designed for fast scanning and 7 parallel laser lines for fine details.
Advanced EXScan Rigil software for professionals
When working with a computer, the EinScan Rigil utilizes dedicated EXScan Rigil software, offering extensive post-processing features . Tools such as Cutting Plane, Flip Normal, Mirror, Auto Hole Filling, and noise removal enable precise 3D mesh processing. The EXScan Rigil also supports reverse engineering (EXModel) and texture mapping (BlueStar Mapping), enabling easy integration into advanced design workflows.

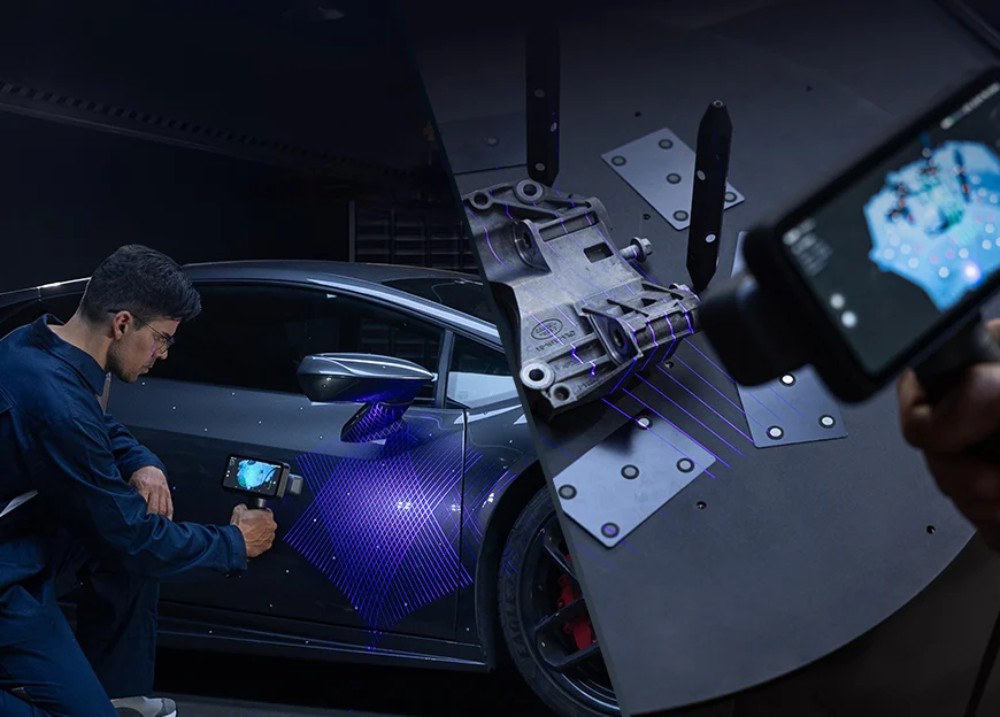

Versatile use - from automotive to education
The EinScan Rigil was designed as a versatile 3D scanner for industries such as automotive, art, research, and education. Its portability, accuracy, and ability to scan challenging materials (e.g., reflective or dark) without matting spray make it ideal for work in a variety of environments. Wireless presentation of results on an external screen facilitates demonstrations and training.
Contents of the set
- 1x EinScan Rigil 3D Scanner
- 2x 6000 mAh battery
- 1x Battery charger
- 1x USB Type-C cable
- 1x Power Supply
- 1x Calibration board and holder
- 1x Set of markers (3 mm, 6 mm)
- 1x Cleaning Cloth and Marker Remover
- 1x Carrying Case

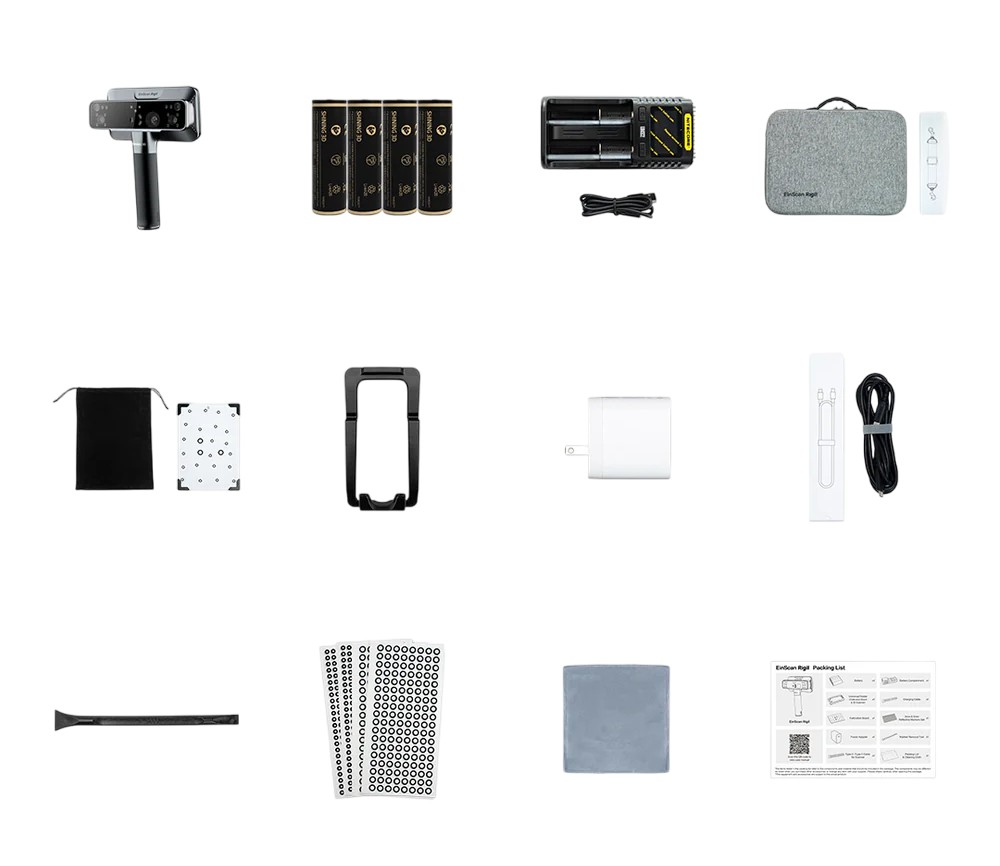

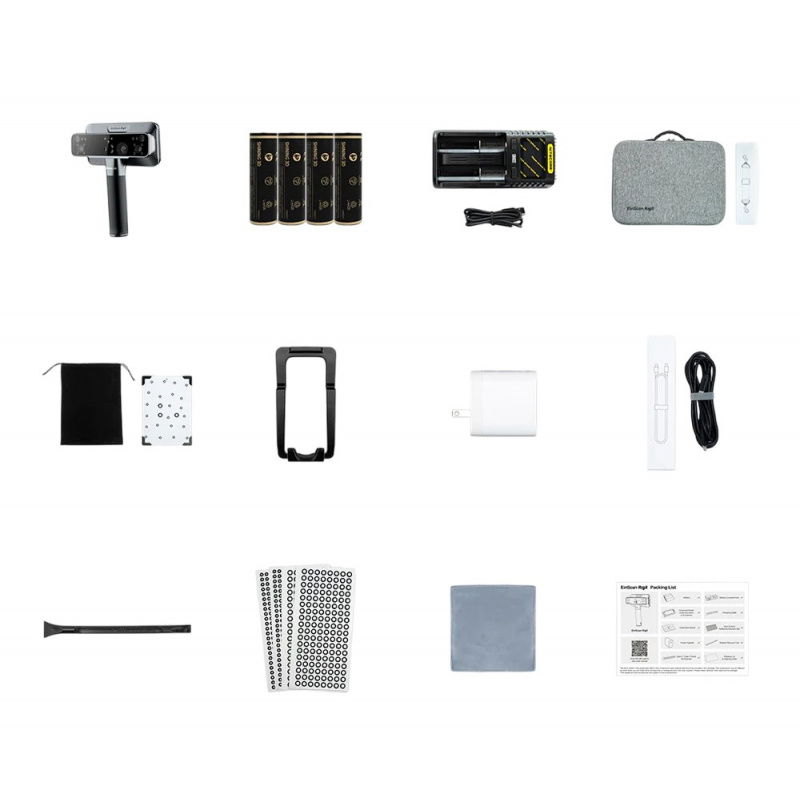

Elements included in the set.
| Technical specifications of the Shining 3D EinScan Rigil 3D scanner | |
|---|---|
| Operating modes | wireless | wireless PC | wired PC |
| Scanning modes | HD Laser | IR Rapid |
| Light source | 19 + 19 crossed blue laser lines | 7 parallel blue laser lines | IR VCSEL |
| Scanning resolution | HD laser: 0.05mm to 10mm | IR Rapid: from 0.2 mm to 10 mm |
| Scanning speed | Laser HD (19 lines): up to 4,400,000 dots/s | Laser HD (7 lines): up to 940,000 dots/s | IR Rapid: up to 1,600,000 dots/s |
| Working distance | HD laser: from 170 mm to 550 mm | IR Rapid: from 160 mm to 1500 mm |
| Matching modes | Laser HD: Global Markers / Markers / Features / Hybrid | IR Rapid: Global Markers / Markers / Features / Texture / Hybrid |
| Volumetric accuracy | HD laser: up to 0.04 + 0.06 mm/m | IR Rapid: up to 0.1 + 0.4 mm/m |
| Camera resolution | 3D: 2.3 MPx x2 + 1.3 MPx x2 | Texture: 5 MPx |
| Output formats | STL, OBJ, PLY, 3MF, ASC |
| Laser class | HD Laser: Class II |
| Screen | 6.4'' AMOLED 2K touchscreen |
| Working memory | 32GB DDR5 RAM |
| Built-in memory | 32GB eMMC + 1TB SSD |
| Processor | 8-core, 2.4 GHz |
| Power and interface | USB Type-C | supports 60W PD3.0 charging |
| Battery | 2x replaceable 6000 mAh batteries |
| Working conditions | from -10°C to 40°C |
| Recommended PC configuration | Intel Core i7-13700H or higher | NVIDIA GeForce RTX 3060 GPU or higher | VRAM 8 GB | RAM 64 GB DDR5 | USB 3.0 | Windows 11 Pro |
| Dimensions | 233 x 180 x 72.8 mm |
| Mass | 870 g (with batteries) |
