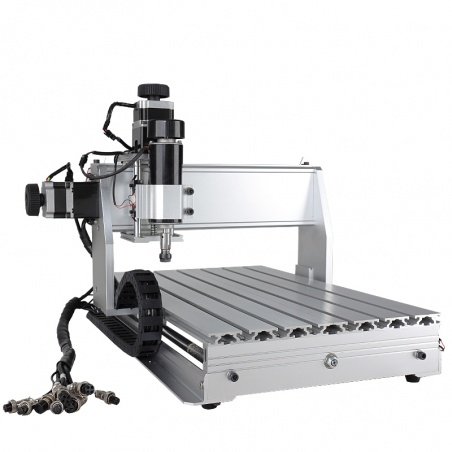

Product description: CNC 3040 milling machine

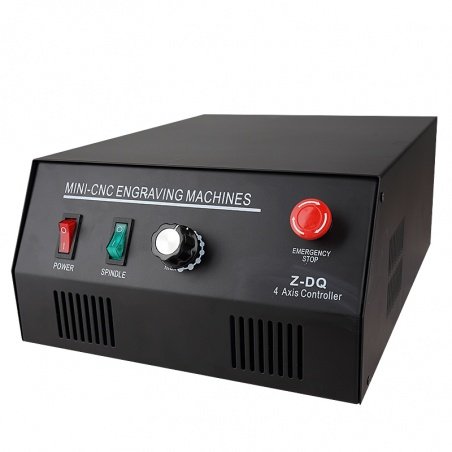

CNC3040 milling machine is aCNC class devicewhich enables comfortable and precise machining of many materials. Stable and proven design makes the milling machine works well as a tool for learning how to work with CNC equipment and as semi-professional equipment for workshops or companies wishing to introduce CNC technology to their business at low cost. The machine's frame is made of aluminium alloy, thanks to which it is extremely stable, and its accuracy is as much as 0.01 mm in each axis. Theworking area of the device is 300 x 400 x 75 mm, the milling machine has a T-table, which does not have limiters on the edges, so you can mount a workpiece longer than the working area. The milling machine comes with a controller which enables comfortable work withany program for CNC, it enables connection with a computer viaLPTinterface.
Possibility to work in many materials.
The CNC 3040 milling machine, thanks to its stable constructionand a 500W spindle, allows to process materials such as wood, Plexiglas, carbon fibre sheets, PCB laminate, wax, PVC, acrylic, MDF boards, aluminium and brass. It comes with a set of accessories such as material holders and cutters -this allows you to start working with the device right after unpackingit.
Construction of the 3040 milling machine.
Test and unboxing of the 3040 CNC milling machine on YouTube.
Technical specification
- Device dimensions: 610 x 480 x 400 mm
- Working area: 300 x 400 x 75 mm
- Spindle power: 500 W
- Spindle attachment standard: ER11 (3.175 mm)
- Accuracy: 0.01 mm
- Spindle speed: from 300 to 11000 RPM
- Communication interfaces with a computer: LPT
- Supply voltage: 220 V AC
- Included accessories: assembly accessories, cutters, USB cable, power cord
- Weight: 28 kg
