Product description: Two Trees TTC-450 Ultra CNC Milling Machine - Outlet
Current product status:
- The product comes from a customer return
- Minor scratches on the platform and structure
- Original packaging

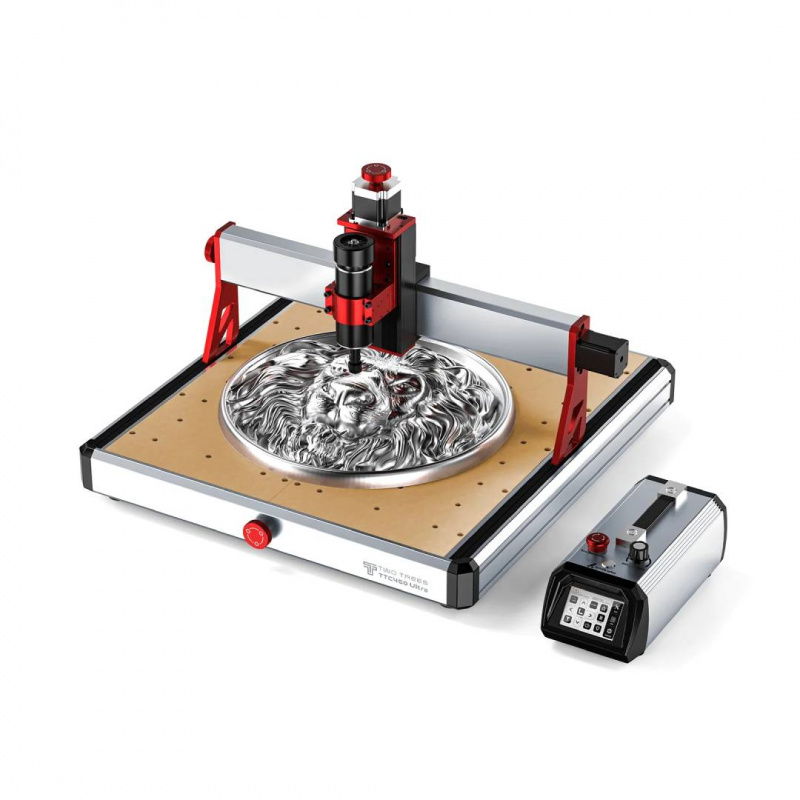

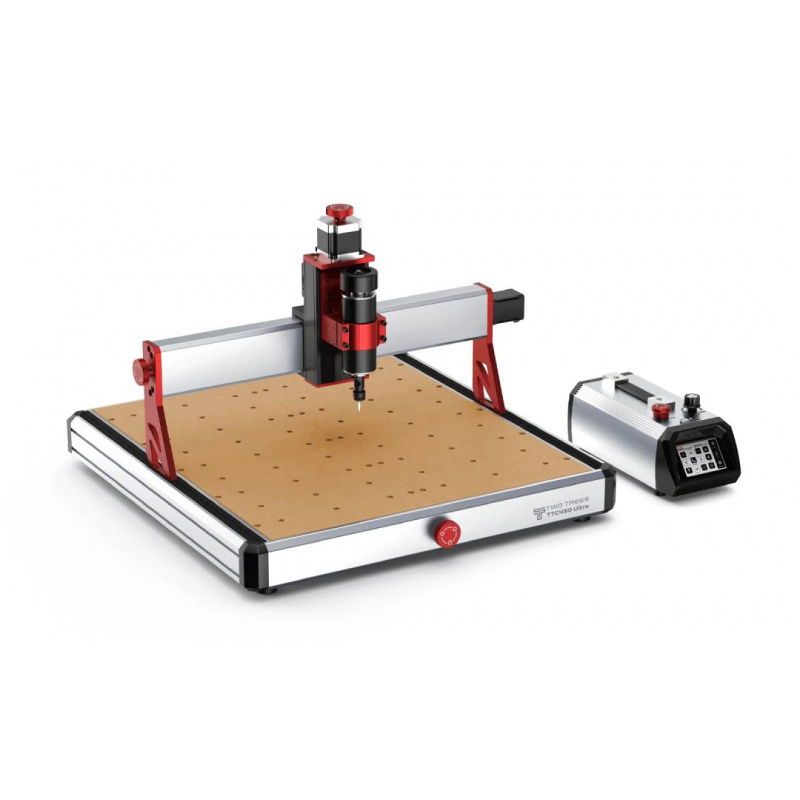

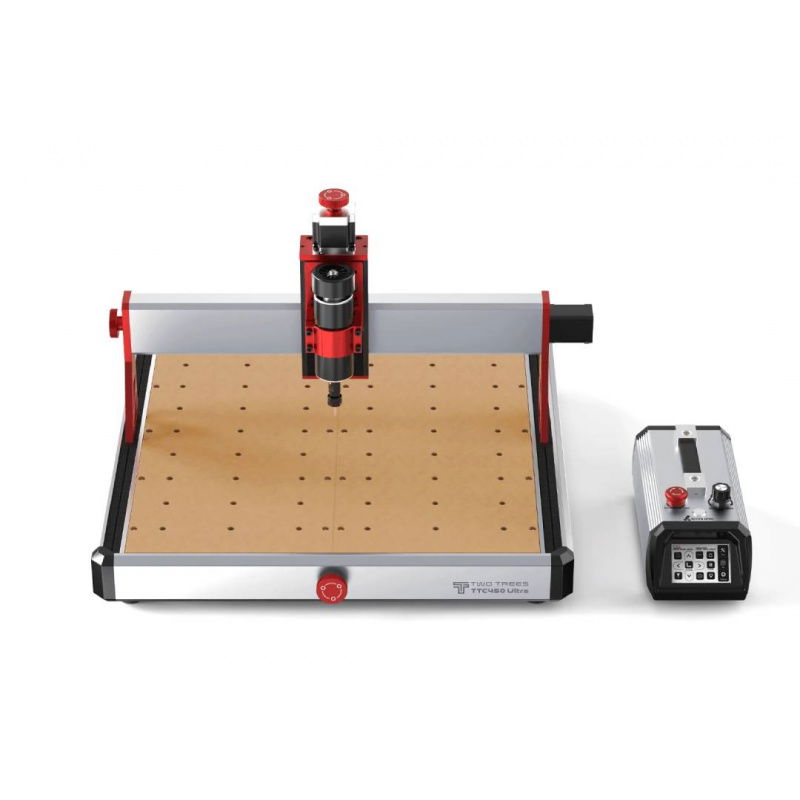

Two Trees TTC-450 Ultra CNC Milling Machine.
| Technical specifications of the Two Trees TTC-450 Ultra CNC milling machine | |
|---|---|
| Spindle power | 500 W |
| Spindle speed | from 8000 rpm to 30000 rpm (depending on installation) |
| Working field | 460 x 460 x 100 mm |
| Positioning accuracy (XY / Z) | 0.01 mm / 0.025 mm |
| Engraving accuracy | 100 ±0.05 mm |
| Maximum engraving speed | 3000 mm/min |
| Maximum acceleration | 500 mm/s² |
| Power supply | 216 W (switching power supply), input: 24 V |
| Power consumption | 80W maximum, 12.6W in standby mode |
| Display | 3.5'' IPS touchscreen (480 x 320 px) |
| Firmware type | GRBL open source |
| Supported file formats | .nc, .gcode |
| Compatible operating systems | Windows, macOS, Linux |
| Compatible programs | Fusion360, VCarve, EASEL, Carveco, FlatCAM, Carbide3D, Vectric |
| Interface languages | EN, ES, DE, FR, RU, PT, IT, CN, JP, KO, TR |
| Supported materials | plywood, MDF, wood, acrylic, carbon fiber, aluminum, copper, stainless steel |
| Engraving layer height | from 0.1 mm to 20 mm (non-metallic materials), from 0.1 mm to 0.2 mm (metals) |
| Operating temperature | from 0°C to 40°C |
| Construction type | XYZ axis with double 12H linear guides |
| Supported tool sizes | from 0.5 mm to 7 mm (ER11 holder) |
| Material of manufacture | aluminum + stainless steel + injection molded components |
| Dimensions | 745 x 660 x 473 mm |
| Mass | 19 kg |
