- Discontinued product
Product Description: Nvidia Jetson Orin Nano Super Developer Kit - ARM Cortex A78AE 6x 1,7 GHz, Nvidia Ampere + 8 GB RAM
Nvidia Jetson Orin Nano Super Developer Kit is a compact AI edge module that includes the Jetson Orin Nano 8 GB as well as a baseboard also compatible with Orin NX modules. Compared to the previous generation, it delivers up to 1.7x higher AI performance (67 TOPS) thanks to increased GPU and CPU clocks (up to 1.7 GHz) and higher memory bandwidth (102 GB/s). It is ideal for prototyping modern generative AI, robotics, and computer vision applications.

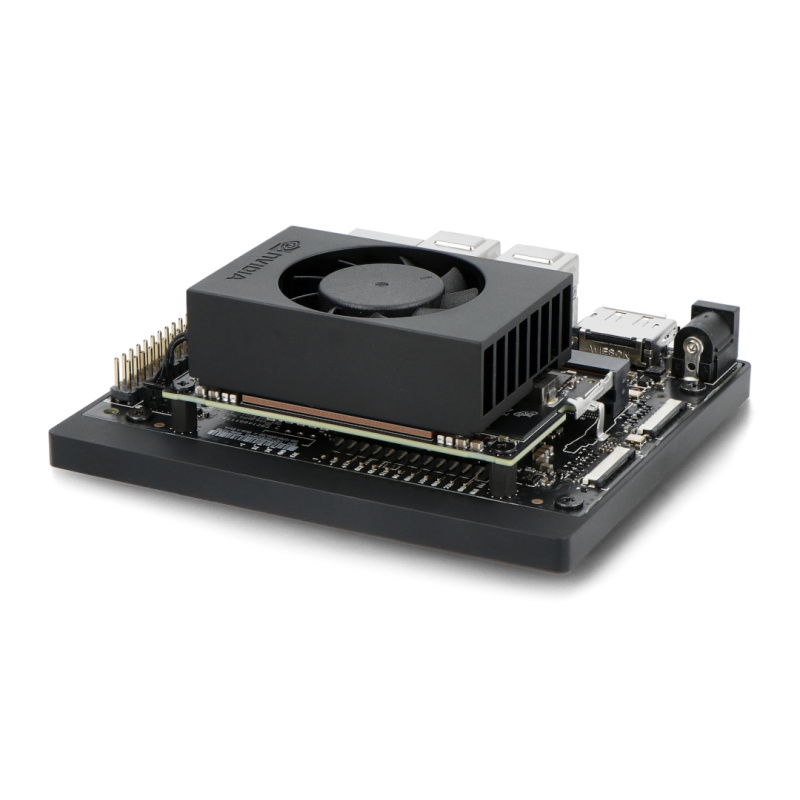

Nvidia Jetson Orin Nano Super Developer Kit.

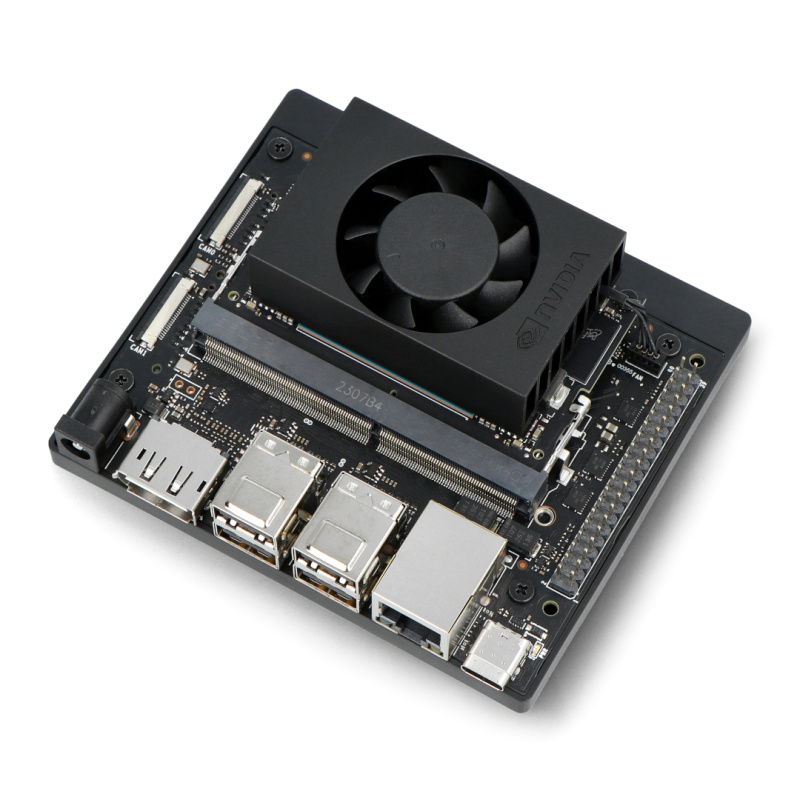

Nvidia Jetson Orin Nano Super Developer Kit - Ampere GPU, 6-core CPU 1.7 GHz, 8 GB RAM.
Main Features of Nvidia Jetson Orin Nano Super Developer Kit
- Excellent AI performance: up to 67 TOPS with optimal latency and low power consumption - 1.7x more than its predecessor
- Higher memory bandwidth: 102 GB/s for faster AI workloads
- Faster processor: ARM Cortex-A78AE clocked up to 1.7 GHz
- Palm-sized device: compact dimensions 100 x 79 x 21 mm
- Rich I/O and expansion options: 4x USB 3.2 Gen 2, DisplayPort 1.2 (MST), pre-installed WiFi / Bluetooth module (M.2 E), 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2, Gigabit Ethernet, 40-pin GPIO, 12-pin UART/control, cooling fan connector, CAN bus
- Flexible power supply: from 7 W to 25 W with MAXN SUPER mode for maximum performance
Nvidia JetPack Software
Nvidia JetPack SDK provides a complete development environment and includes CUDA-X accelerated libraries and other Nvidia technologies that speed up development. JetPack includes the Jetson Linux driver package, which provides the Linux kernel, bootloader, Nvidia drivers, flashing tools, sample file system, and toolchains for the Jetson platform. It also includes security features, over-the-air update capability, and much more.
Nvidia JetPack software and AI tools.
Contents of the Nvidia Jetson Orin Nano Super Developer Kit.Computer Vision, Machine Learning, and More
- Nvidia DeepStream SDK provides a complete streaming analytics toolkit for AI-based multisensor processing and video/image understanding on Jetson.
- Nvidia TAO Toolkit, based on TensorFlow and PyTorch, is a low-code version of Nvidia’s TAO framework that accelerates model training.
- Nvidia Riva is a GPU-accelerated SDK for building custom Speech AI applications, delivering real-time performance.
- Nvidia Isaac ROS GEM provides hardware-accelerated packages that simplify the development of high-performance ROS solutions on Nvidia hardware. Learn more about Nvidia developer tools here.

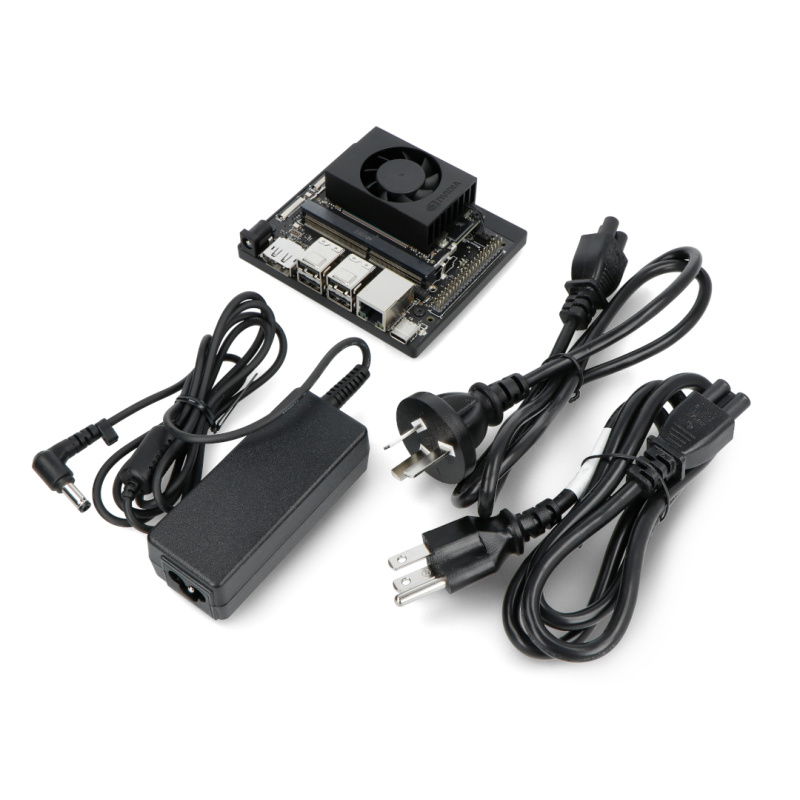

Kit Contents
- Nvidia Jetson Orin Nano Super Developer Kit
- 19 V Power Supply
- Power Cables
- UPC Label
- User Guide
| TECHNICAL SPECIFICATION AND COMPARISON | ||||
|---|---|---|---|---|
| Product | reComputer J3010 | reComputer J3011 | Nvidia Jetson Orin Nano Developer Kit | Jetson Orin Nano Super Developer Kit |
| Module | Jetson Orin Nano 4 GB | Jetson Orin Nano 8 GB | Jetson Orin Nano 8 GB (non-production version) with microSD slot | Jetson Orin Nano 8 GB, SD slot |
| AI Performance | 20 TOPS | 40 TOPS | 67 TOPS | |
| GPU | 512-core Nvidia Ampere with 16 Tensor cores | 1024-core Nvidia Ampere with 32 Tensor cores | 1024-core Ampere, 32 Tensor, 1020 MHz | |
| Processor | 6-core Nvidia Arm Cortex A78AE v8.2 1.2 MB L2 + 4 MB L3 | 6-core Arm Cortex-A78AE 1.7 GHz | ||
| RAM | 4 GB 64-bit LPDDR5 @ 34 GB/s | 8 GB 128-bit LPDDR5 @ 68 GB/s | 8 GB 128-bit LPDDR5 @ 102 GB/s | |
| Internal Storage | 128 GB NVMe SSD | - | microSD slot + 2x M.2 for NVMe SSD | |
| Video Codec | 1080p30 handled by 1-2 CPU cores | 1080p30 (1-2 CPU cores) | ||
| Video Decoder | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
1x 4K60 2x 4K30 5x 1080p60 11x 1080p30 |
||
| Ethernet | 1x RJ45 Gigabit Ethernet (10/100/1000) | 1x RJ45 Gigabit Ethernet (10/100/1000) | ||
| USB | 4x USB 3.2 Type A (10 Gb/s) 1x USB 2.0 Type C (device mode) |
4x USB 3.2 Gen2 Type A 1x USB Type C (UFP) |
||
| Camera Connector | 2x CSI (2-lane 15-pin) | 2x MIPI CSI-2 22-pin | 2x MIPI CSI-2 22-pin | |
| Display Connector | 1x HDMI 2.1 | 1x DisplayPort 1.2 (+MST) | 1x DisplayPort 1.2 (+MST) | |
| M.2 Key E | 1x M.2 Key E (with WiFi / BT) | 1x M.2 Key E (WiFi / BT) | 1x M.2 Key E (WiFi/BT pre-installed) | |
| M.2 Key M | 1x M.2 Key M | 1x M.2 Key M with x4 PCIe Gen3 1x M.2 Key M with x2 PCIe Gen3 |
1x M.2 Key M with x4 PCIe Gen3 1x M.2 Key M with x2 PCIe Gen3 |
|
| GPIO | 1x 40-pin UART, SPI, I2S, I2C, GPIO | 1x 40-pin UART, SPI, I2S, I2C, GPIO | ||
| Power Supply | DC jack 12 V / 5 A (5.5 / 2.5 mm) | DC jack 19 V | DC jack 19 V | |
| Dimensions | 130 x 120 x 50 mm | 103 x 79 x 21 mm | 103 x 90.5 x 34.77 mm | |
