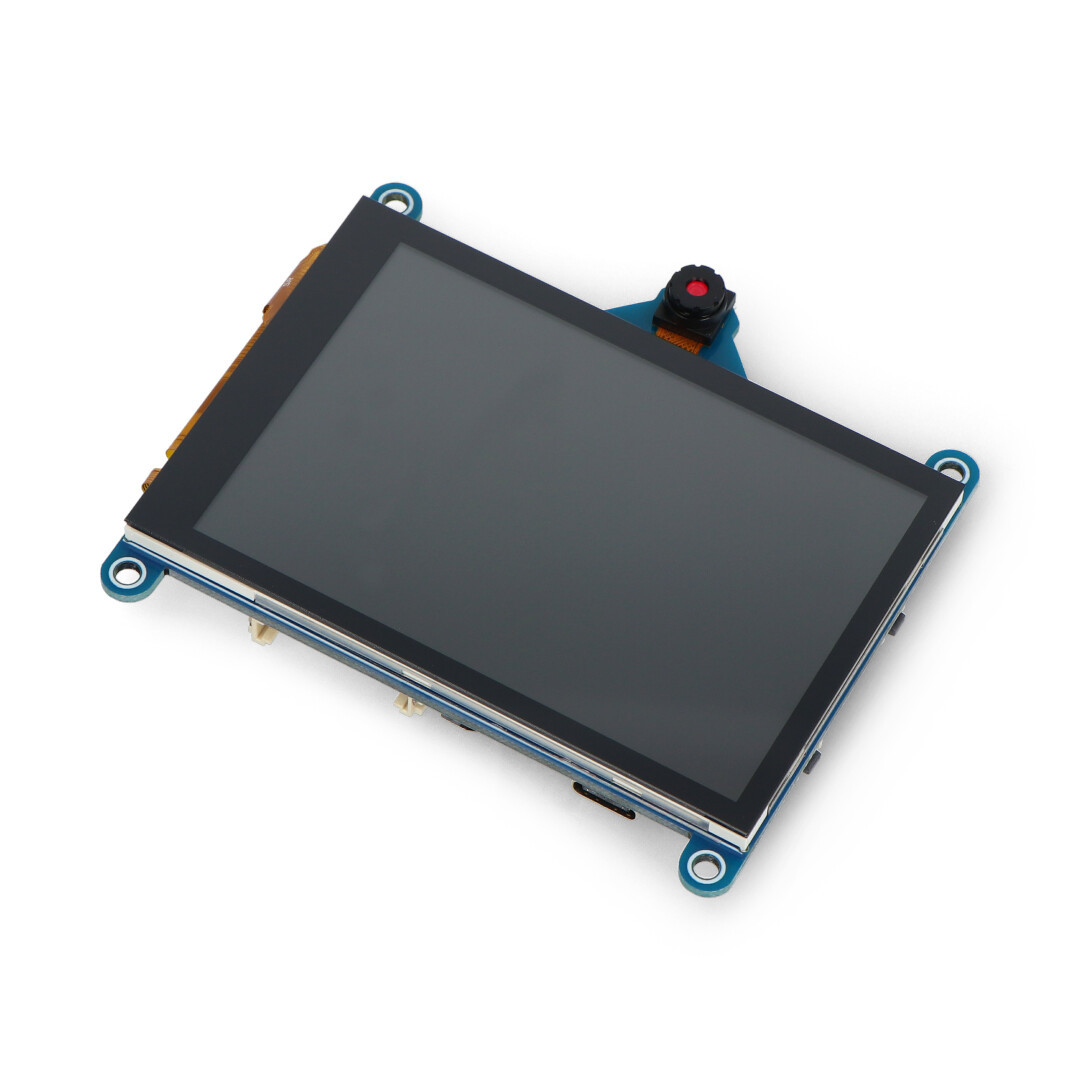

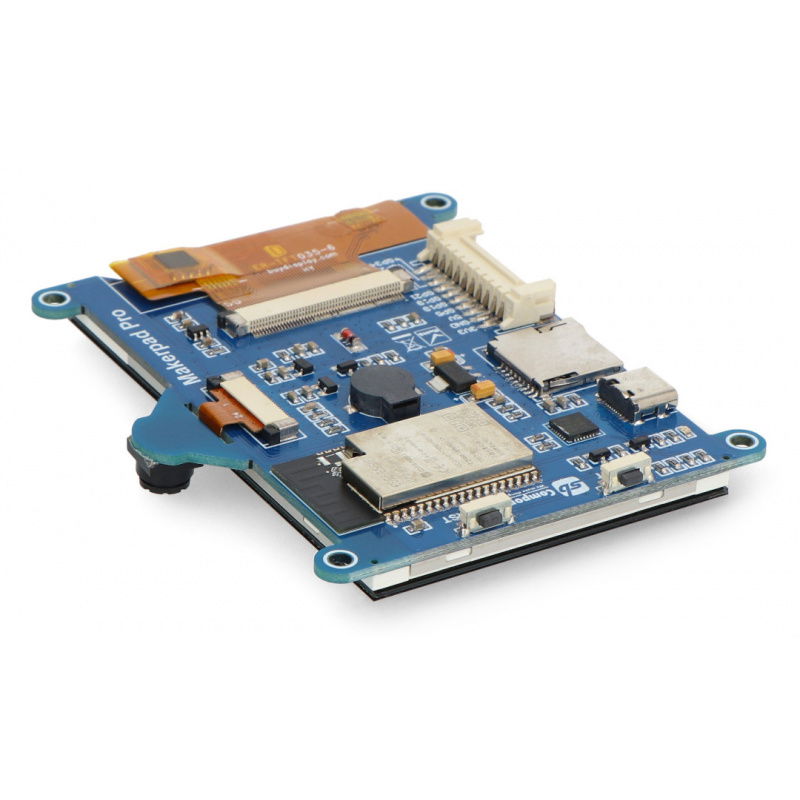

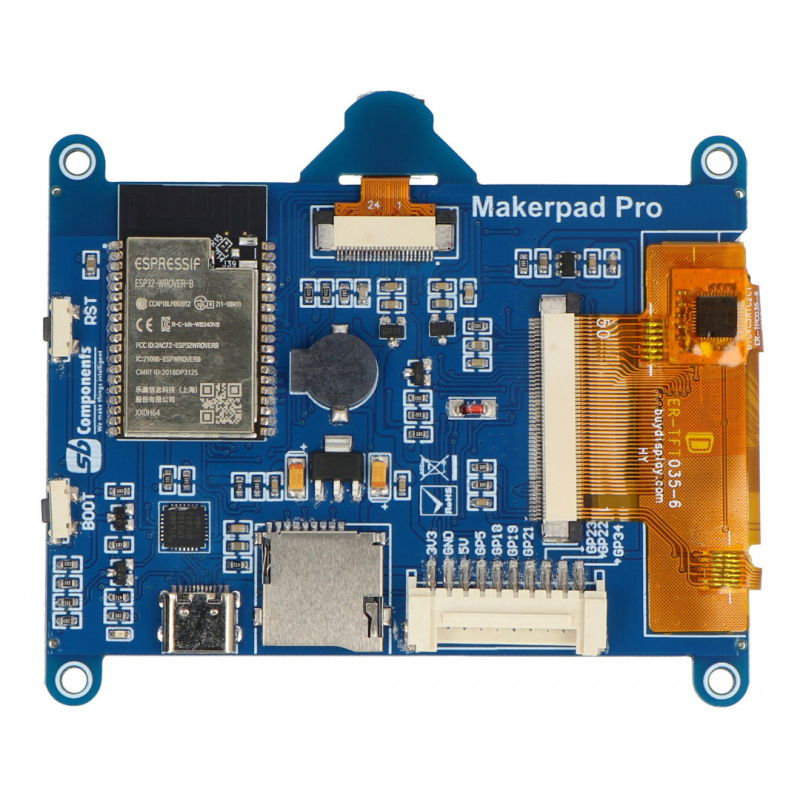

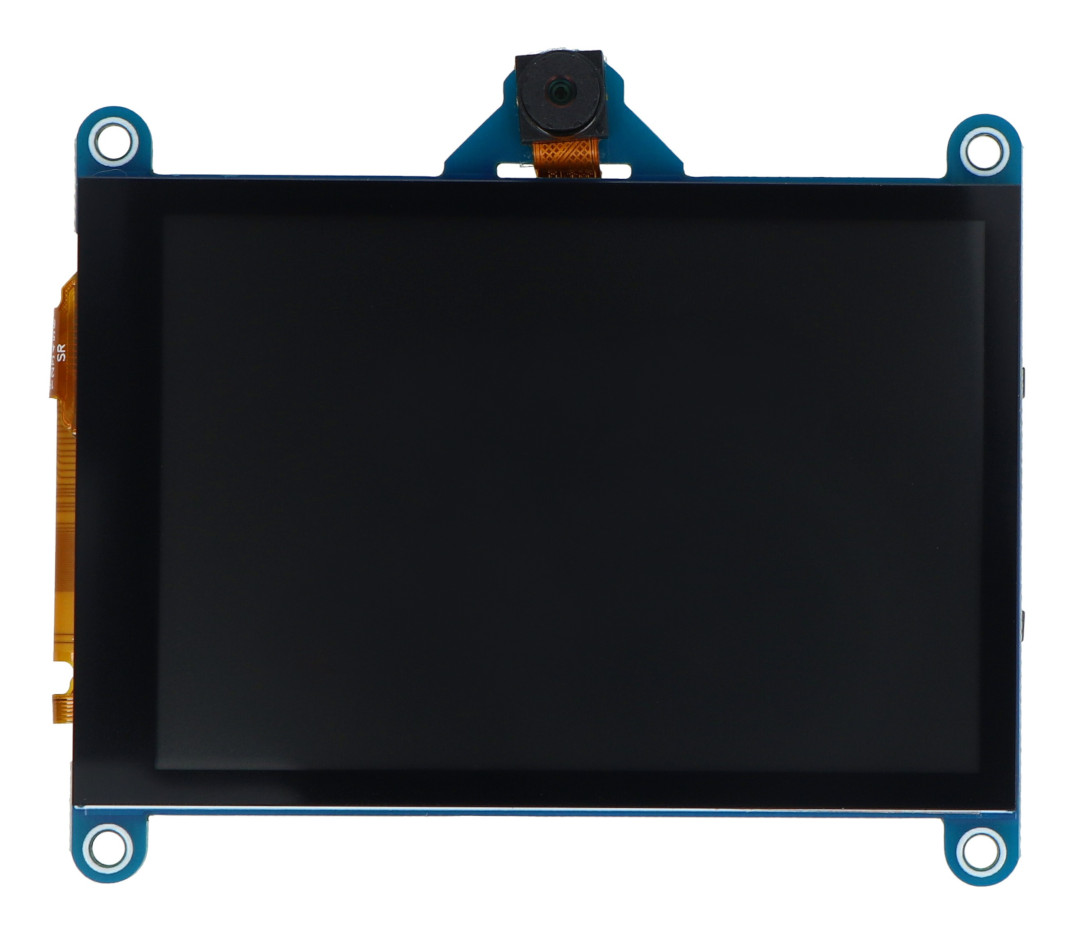

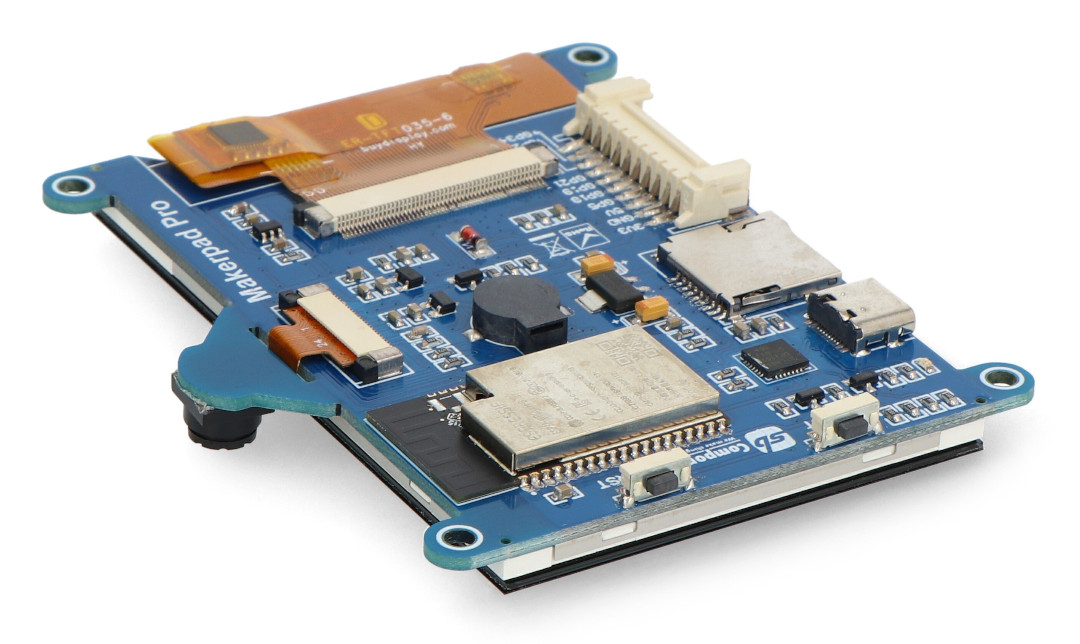

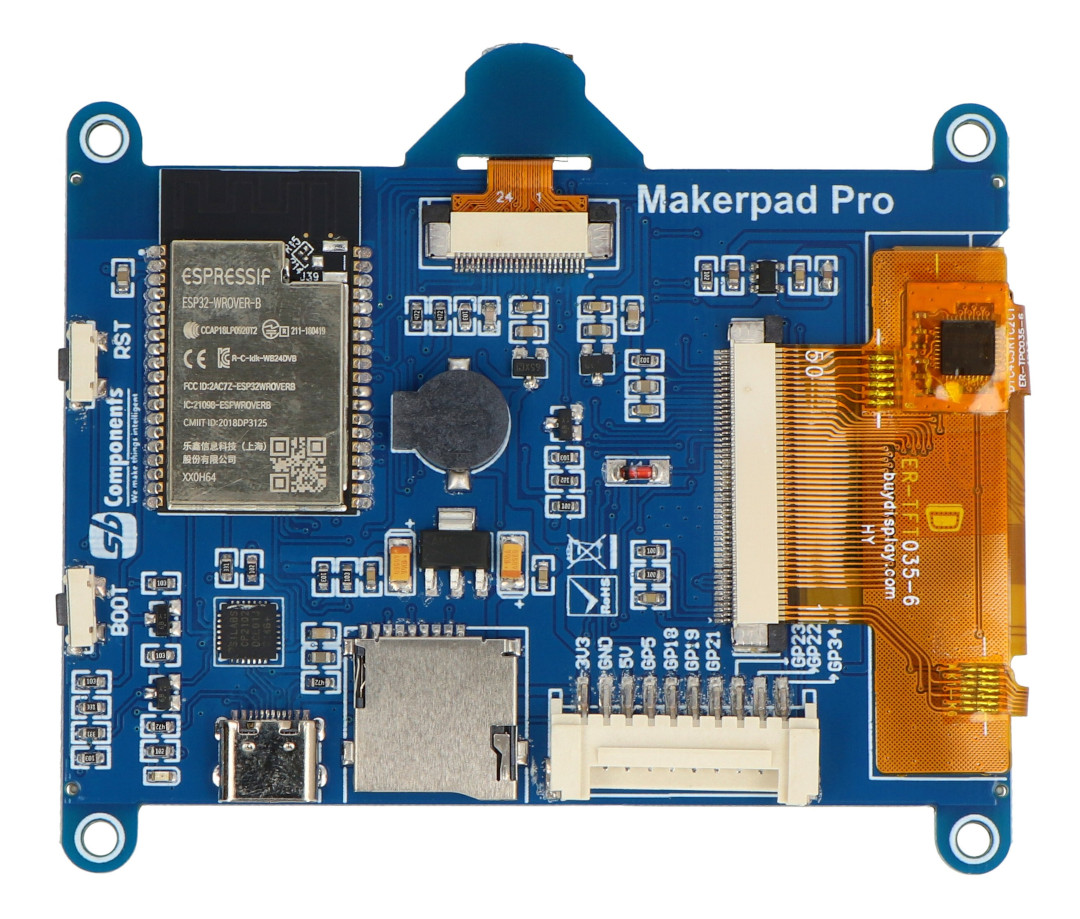

Product description: MakerPad - intelligent touch screen 3.5'' 320 x 480 px - ESP32-WROVER-B - OV2640 camera - SB Components 27699
MakerPad Pro is an advanced intelligent touch screen that combines the functionality of the ESP32 module, a high-quality display and a camera , creating an excellent platform for innovative IoT projects. With a 3.5-inch TFT display with a resolution of 320 x 480 px , supporting 65K RGB colors, it offers a clear image and convenient touch operation. The built-in 2 MPx camera allows the detection of objects, scenes and faces, which opens up new possibilities in the field of automation and interactive applications. The use of open LVGL software allows the design of intuitive graphical interfaces, and thanks to support for microSD cards and a USB Type-C interface, MakerPad Pro is a convenient and versatile tool for electronics enthusiasts and DIY creators.
MakerPad - 3.5'' smart touch screen - ESP32-WROVER-B - OV2640 camera - SB Components 27699.
MakerPad Pro is an advanced intelligent touchscreen that combines the functionality of an ESP32 module, a high-quality display and a camera.Special Features
- ESP32-WROVER-B module - supports WiFi, Bluetooth 4.2 BR/EDR and Bluetooth LE, which provides a wide range of communication possibilities
- 3.5'' TFT touch screen - 320 x 480 px resolution, 65,000 colors, high brightness 280 Cd/m²
- Built-in 2 MPx OV2640 camera - enables face, object and scene recognition
- MicroSD card support - ability to store data and log events
- Buzzer - allows for sound signaling in IoT projects
- USB Type-C interface - used to program and power the device
- GPIO available - additional input/output pins for connecting peripherals
- LVGL support - support for creating advanced user interfaces
Practical applications
- Smart control panels - management of home systems, smart lighting and IoT devices
- Interactive displays - ideal for information kiosks or registration systems
- Security systems - use of camera for monitoring and facial recognition
- IoT Prototyping - Rapid Creation of Innovative Projects for DIY Enthusiasts
- Education and learning programming - a great tool for learning embedded development
- Automation and process control - integration with sensors and control systems
Thanks to the 3.5-inch TFT display with a resolution of 320 x 480 px and 65,000 colors, it offers a clear image and comfortable touch operation.
The use of open-source LVGL software allows for the design of intuitive graphical interfaces.Technical specification
- Microcontroller: ESP32-WROVER-B, 32-bit Xtensa LX6
- Memory: 448 KB ROM, 520 KB SRAM, 8 MB Flash, 8 MB PSRAM
- Connectivity: WiFi 802.11 b/g/n, Bluetooth 4.2 BR/EDR and Bluetooth LE
- Screen type: TFT
- Screen diagonal: 3.5''
- Resolution: 320 x 480 px, RGB 65K
- Driver: ILI9488
- Touch panel: capacitive
- Controller: FT6236
- Camera: OV2640, 2 MPx, UXGA, SXGA, SVGA resolutions
- Power supply: 5V via USB Type-C
- GPIO operating voltage: 3.3V
- Operating temperature: -30°C to 70°C (stable image from 0°C to 50°C)
