Module 4 square display IPS TFT 1,54'' 240x240px - Raspberry Pi Pico W, RTC, BME280 - SB Components SKU30293

Index: SBC-25871 EAN: 5055652930293

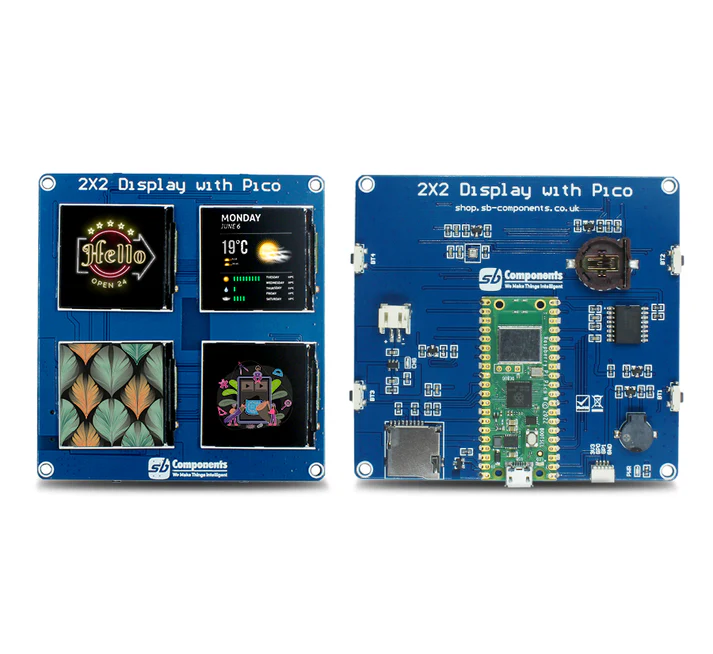

The module of four square IPS TFT displays with a diagonal of 1.54" located on one board offers extraordinary design possibilities. Equipped with Raspberry Pi Pico W , which has a dual-core Arm Cortex M0+ processor with a clock speed of up to 133 MHz. The built-in buzzer allows you to use the audible signal required in various types of projects, and the BME280 sensor allows you to monitor temperature, humidity and pressure. LEDs indicate the power status, and four programmable buttons allow you to easily control your projects. Additionally, the module has a microSD card slot for saving data.
Module 4 square display IPS TFT 1,54'' 240x240px - Raspberry Pi Pico W, RTC, BME280 - SB...
€78.50 -15%
€66.73
€54.25 tax excl.
Lowest price 30 days: €60.72
Available
Shipping in 24 hours
PayPal payment
Manufacturer: SB Components

Product description: Module of 4 square IPS TFT displays 1.54'' 240 x 240 px - Raspberry Pi Pico W, RTC, BME280 - SB Components SKU30293

The module of four square IPS TFT displays with a diagonal of 1.54" located on one board offers extraordinary design possibilities. Equipped with Raspberry Pi Pico W , which has a dual-core Arm Cortex M0+ processor with a clock speed of up to 133 MHz. The built-in buzzer allows you to use the audible signal required in various types of projects, and the BME280 sensor allows you to monitor temperature, humidity and pressure. LEDs indicate the power status, and four programmable buttons allow you to easily control your projects. Additionally, the module has a microSD card slot for saving data.

Module of 4 square IPS TFT displays 1.54'' 240 x 240 px - Raspberry Pi Pico W, RTC, BME280 - SB Components SKU30293

Module of 4 square IPS TFT displays 1.54'' 240 x 240 px - Raspberry Pi Pico W, RTC, BME280 - SB Components SKU30293.

Module of 4 square IPS TFT displays 1.54'' 240 x 240 px - Raspberry Pi Pico W, RTC, BME280 - SB Components SKU30293

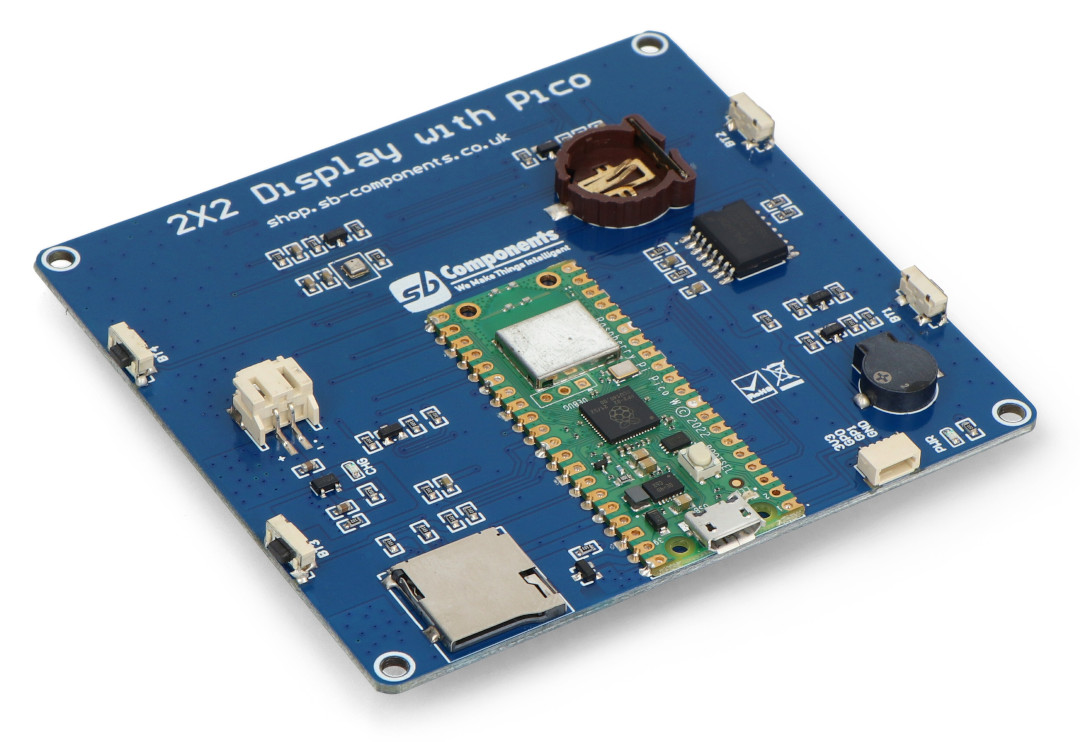

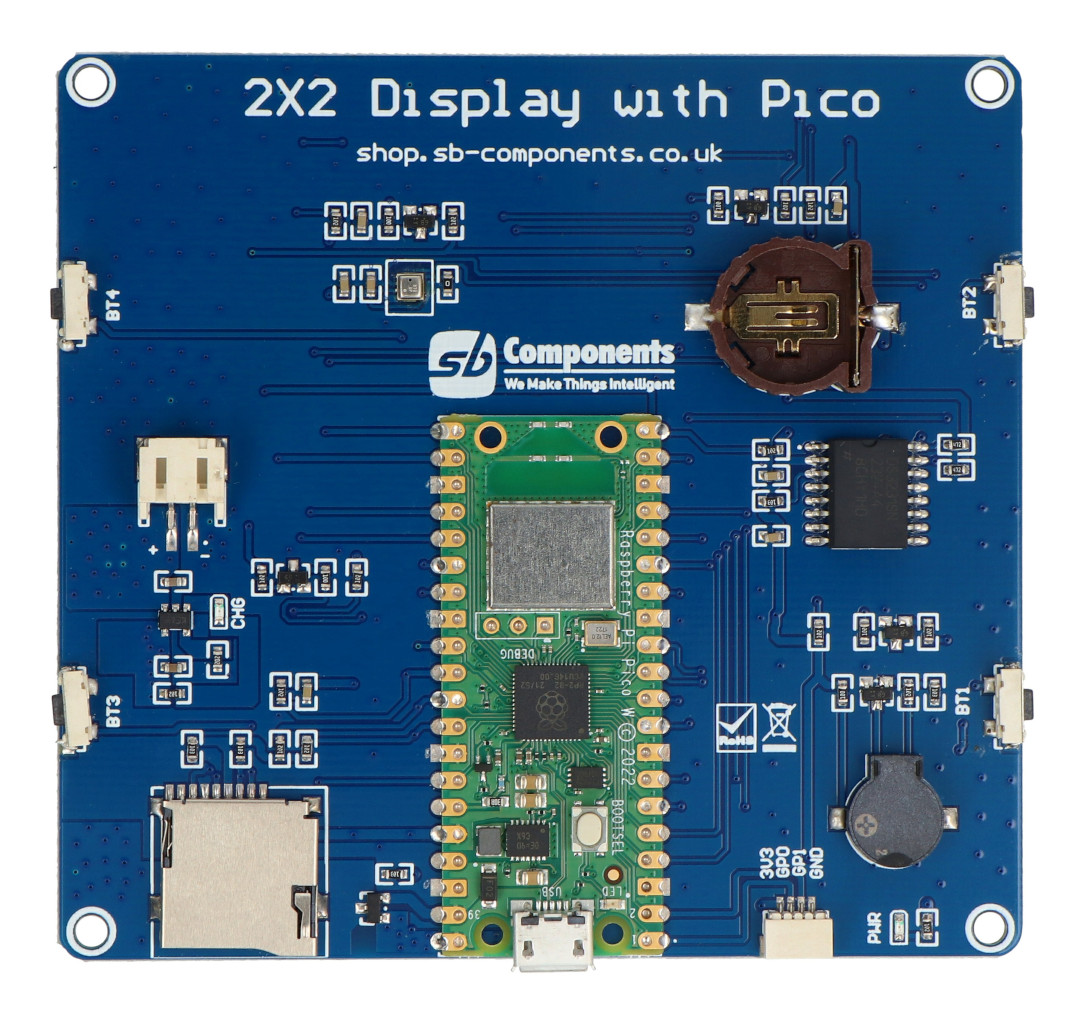

The display module has a soldered Raspberry Pi Pico W.

Main product features

  • The module is based on the Raspberry Pi Pico W , which has a dual-core Arm Cortex M0+ processor with a clock speed of up to 133 MHz.
  • High-quality 1.54-inch square display for clear viewing
  • The operating voltage of 3.3 V and a wide operating temperature range (from -20°C to 70°C) ensure reliable operation in various conditions
  • The built-in buzzer allows you to add an audible signal to a given project
  • The built-in BME280 sensor allows you to monitor temperature, humidity and pressure
  • LEDs indicate power status, making it easier to control your projects
  • Four programmable buttons allow you to easily control your projects
  • The microSD card slot allows you to record data

Display Applications

  • Digital Signage and Noticeboards
  • Interactive displays for smart gadgets
  • Portable weather station and real-time data logging
  • Electronic Device Prototyping and DIY IoT Projects
  • Intelligent Healthcare Automation and Monitoring
  • Human-Machine Interface
  • Retail Point of Sale Displays
Module of 4 square IPS TFT displays 1.54'' 240 x 240 px - Raspberry Pi Pico W, RTC, BME280 - SB Components SKU30293

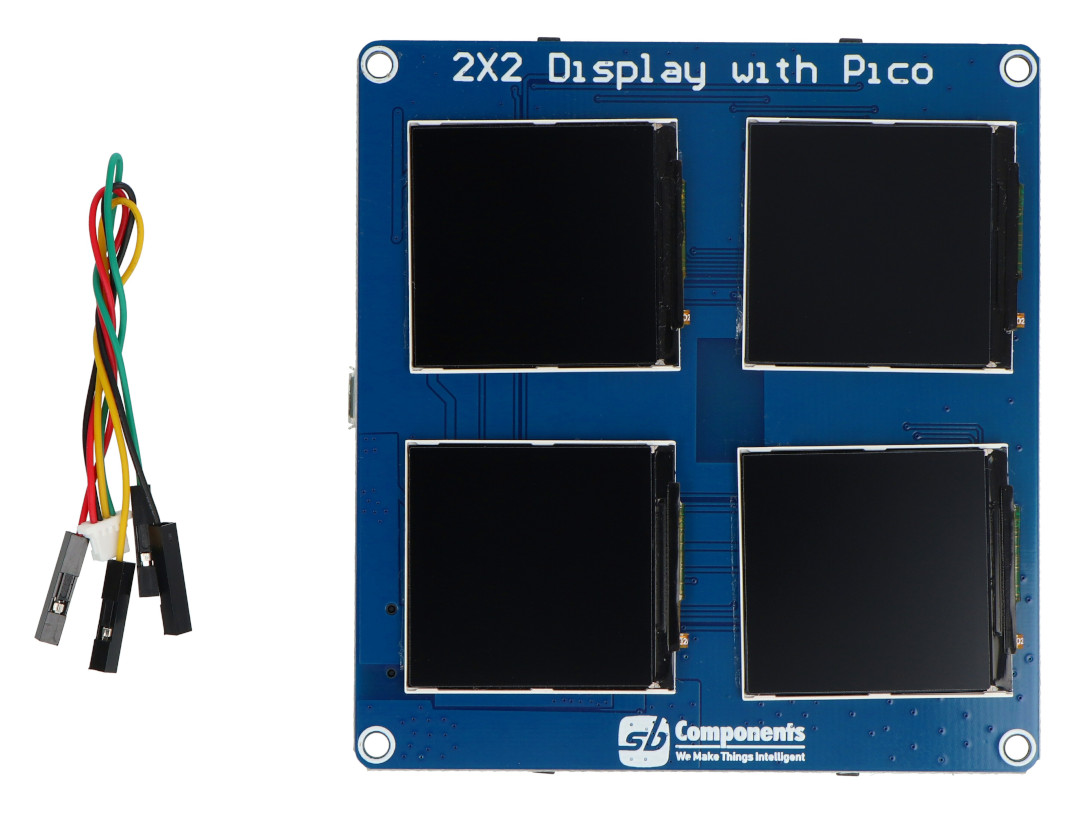

The module can be used for various projects using IPS TFT displays.

Module of 4 square IPS TFT displays 1.54'' 240 x 240 px - Raspberry Pi Pico W, RTC, BME280 - SB Components SKU30293

Module of 4 square IPS TFT displays 1.54'' 240x240px - Raspberry Pi Pico W, RTC, BME280.

Technical specification of the module

  • Microcontroller: Raspberry Pi Pico W
  • Connectivity: WiFi and Bluetooth
  • SRAM memory: 264 KB
  • Flash Memory: 2MB QSPI
  • Supply voltage: 5V
  • Operating voltage: 3.3 V
  • Sensor: BME280
  • RTC chip: DS3231SN
  • RTC battery holder: CR1220 3V
  • Operating temperature: -20°C to 70°C
  • Square display:
    • Type: IPS TFT
    • Diagonal: 1.54"
    • Resolution: 240 x 240 px
    • Display colors: 65K RGB
    • Display interface: SPI
    • Display Driver: ST7789V

Screen - type LCD IPS
Screen - diagonal 1,54''
Screen - interface SPI
Screen - touch no
Screen - resolution 240x240px
UC - Microcontroller RP2040
UC - Core ARM Cortex-M0+
UC - core 2. Dual Core
Package width 13 cm
Package height 9.5 cm
Package depth 2.5 cm
Package weight 0.054 kg
