Arduino Mega ADK Android Rev3

Index: ARD-01064

Popular module with AVR ATmega2560 microcontroller. It has 256 kB of flash memory, 8 kB of RAM, 54 digital inputs/outputs of which 15 can be used as PWM channels, 16 analogue inputs and popular communication interfaces and a USB controller enabling hardware communication with other devices.

Arduino Mega ADK Android Rev3
€48.50
€39.43 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: Arduino

Attention!

The sale of the product has been completed. Check otherdevices in this category.

Product description: Arduino Mega ADK Android Rev3

Arduino Mega ADK, similarly to Mega version, has ATmega2560 microcontroller, equipped with 54 digital inputs/outputs, of which 15 can be used as PWM outputs (e.g. for controlling motors) and 16 analog inputs. The system is clocked with 16 MHz clock signal, has 256 kB of flash program memory and 8 kB of SRAM memory.

Additionally, thanks to the MAX3421 chip, the user has the possibility to use the USB interface, which allows for data exchange with smartphones (Android system),computers, cameras,game and motion controllers.

Arduino Mega ADK - Android - moduł, platforma rev3The subject of sale is original Arduino product, Botland is theofficial distributor of this company.

Main features of Arduino Mega ADK

Below we present some features that distinguish Arduino modules from other programmable tiles.

The name Description

Installed

bootloader

Thanks to the installed bootloader, the appropriateUSB cable andsoftware from the manufactureris sufficient to program the device.

Arduino

Shield

The layout of connectors enables installation of dedicatedArduino Shieldcovers.

Controller

USB

This version has a built-in USB controller that allows you to exchange data with smartphones (Android), computers, game and motion controllers.

Queries

digital

56 digital inputs/outputs enable, among other things, to control LEDs, relays and read button statuses.

Performance

Current

The maximum current capacity of a single output is 40 mA.

Outputs

PWM

15 PWM outputs allow e.g. for motor control and diode brightness adjustment.

Inputs

analogue

16 inputs of the built-in 10-bit analogue-to-digital converter support, among others, sensors with analogue output.

Communication

serial

The device supports popular communication interfaces, among others: UART, I2C and SPI.
Special functions Some pins have special functions, a brief description of which is available in our guide.

Memory

Embedded

Atmega2560 chip is clocked with 16 MHz signal, has 256 kB of flash memory, 4 kB EEPROM and 8 kB SRAM.

Power supply

DC connector

Any power supplyfrom 7V to 12V with 5.5 x 2.1mm DC connector can be used to power Arduino.

Power supply

USB port

The board can be powered from a computer viaa USB cable witha maximum current capacity of 500 mA. Arduino has a system that protects the socket against short circuit and too high current flow.

Connector .

ICSP

The module has ICSP outputs for connecting an externalAVR programmer.

Pin

IOREF

The IOREF pin allows for direct access to the voltage with which the I/O outputs work.

Built-in

LED

The connected LED on pin 13 allows debugging of simple programs.

Output

3,3 V

The built-in voltage regulator enables external devices to be supplied with 3.3 V with current consumption of up to 50 mA.

First start-up

In order to make it easier to start working with the module, we have prepared aguidethat covers the installation and first start-up of Arduino environment.

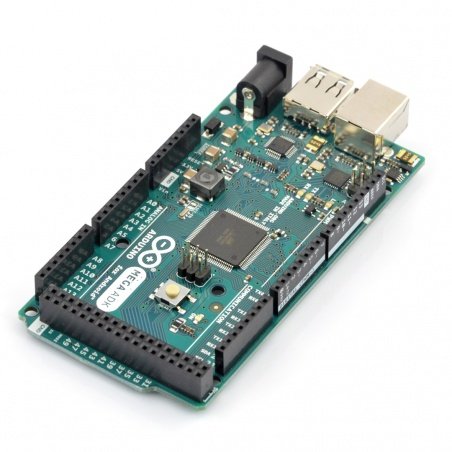

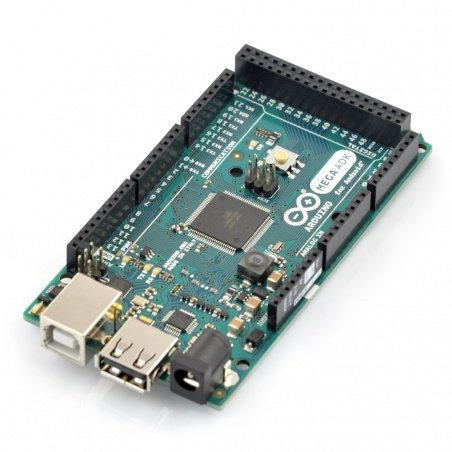

Arduino Mega ADK - Android - moduł, platforma rev3The distribution of elements on Arduino Mega ADK board.

Specification of Arduino Mega ADK

  • Power supply voltage:7 V to12 V
  • Microcontroller: ATmega 2560
    • Maximum clock frequency: 16 MHz
    • SRAM: 8 kB
    • Flash memory: 256 kB (8kB reserved for bootloader)
    • EEPROM memory: 4 kB
  • Pins I/O: 54
  • PWM channels: 14
  • Number of analog inputs: 16 (A/C converter channels)
  • Serial interfaces: 4xUART, SPI, I2C
  • External interruptions
  • Connected LED to pin 13
  • USB A socket for programming
  • 5.5 x 2.1 mm DC connector for power supply

UC - Microcontroller ATmega2560
UC - Core 8-bit AVR
UC - EEPROM 4 kB
UC - Flash 256 kB
UC - RAM 8 kB
UC - Digital pins 54
UC - analog in 16
UC - freq 16 MHz
UC - A/C 10-bit
UC - PWM 15
UC - USB USB B
Package width 0.001 cm
Package height 0.001 cm
Package depth 0.001 cm
Package weight 0.001 kg
