Milling machine CNC 3020

Index: CNC-18526 EAN: 5904422360801
The CNC 3020 milling machine is a compact device that allows you to experience the advantages of a stable CNC milling machine in your home or workshop. The working area of the machine is 200 x 300 x 60 mm, it is equipped with a powerful spindle and a separate controller that allows convenient connection to a computer.
Milling machine CNC 3020
€905.90
€736.50 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: OEM

Attention!

The product has been discontinued. Check other products in category.

Product description: CNC 3020 milling machine

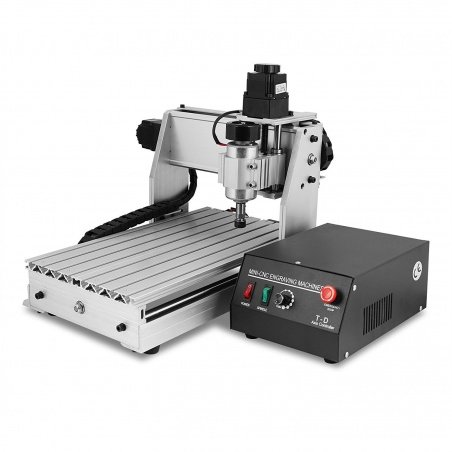

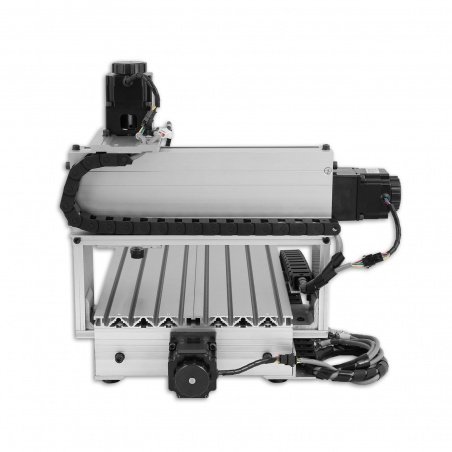

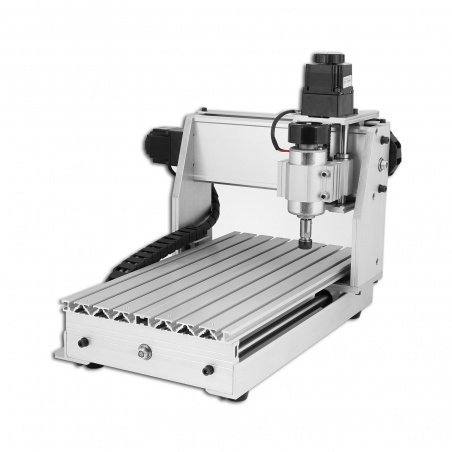

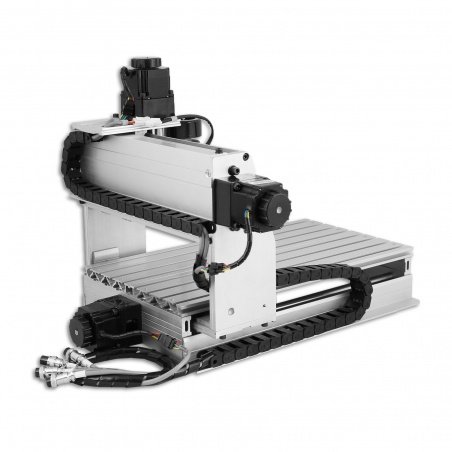

The CNC 3020 milling machineis a CNC class device that enables comfortable and precise processing of many materials. The simple yet proven design makes the milling machine a good tool to learn how to work withCNC equipmentand as a semi-professional equipment of a workshop or a company wishing to introduce CNC technology to its business at low cost. The machine is made of aluminum, making it one of the most stable machines in its price class and its accuracy is as high as 0.1 mm in each axis. The working area of the machine is 200 x 300 x 60 mm and the T-table with which the milling machine is equipped has no edge stops, thanks to which we have the possibility of clamping the workpiece longer than the working area. A controller is included in the set with the milling machine, which enables comfortable work with any program for CNC, enables connection with a computer viaUSBand LPTcable.

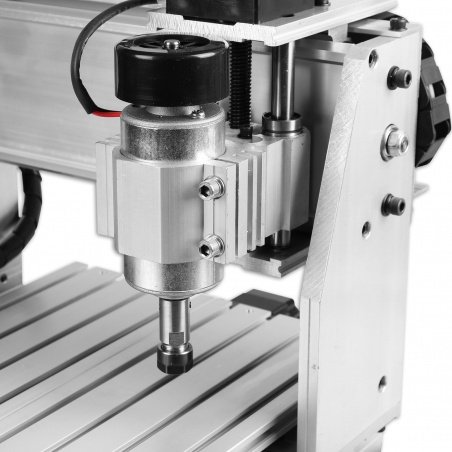

Milling machine spindle 3020

Test of the CNC 3020 milling machine on YouTube

Ability to work in many materials

The CNC 3020 milling machine, thanks to its stable construction and 200 W spindle, enables the machining of such materials as wood, plexiglass, carbon fibre sheets, PCB laminate, wax, pvc, acrylic, MDF boards, aluminium and brass. A set of accessories such asmaterial fixings and milling cuttersis included - this allows you to start working with the device after unpacking.

Technical specifications

  • Dimensions of the device: 550 x 400 x 350 mm
  • Work area: 200 x 300 x 60 mm
  • Spindle power: 200 W
  • Standard spindle attachment: ER11 (3,175 mm)
  • Accuracy: 0.01 mm
  • Spindle speed: 300 to 8000 RPM
  • Communication interfaces with the computer: USB and LPT
  • Power supply voltage: 220 V AC
  • Included accessories: mounting accessories, cutters, USB cable, power cord
  • Weight: 24 kg
Package width 51 cm
Package height 39 cm
Package depth 41 cm
Package weight 20.35 kg

Patryk

05/02/23

Question: Hello, Is it possible to process aluminum? To learn, to start.
Answer: Yes, the manufacturer declares that this model can process materials such as wood, Plexiglas, carbon fiber sheets, PCB laminate, wax, PvC, acrylic, MDF, aluminum and brass.
Rafał

01/31/22

Question: Hello, What programs can work with this milling machine? The included software is able to execute a tick 25 G lines of code.
Answer: From commercial (paid) solutions, the device can work with Mach3 software, for example.
From free solutions you can try to use:
https://planet-cnc.com/software
https://cnc-usb-controller.software.informer.com/Bezpieczne-pobieranie
