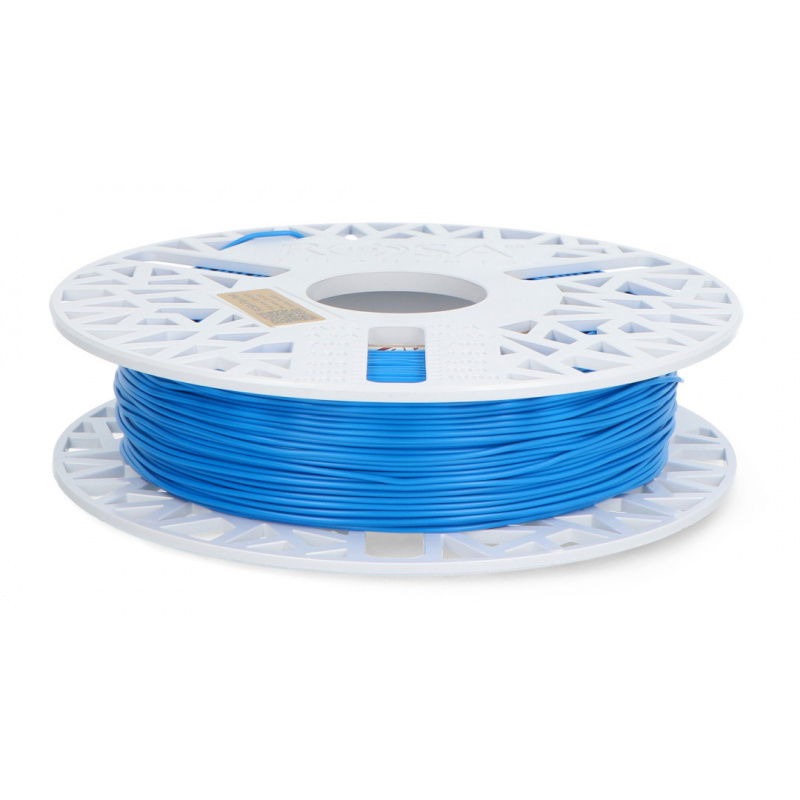

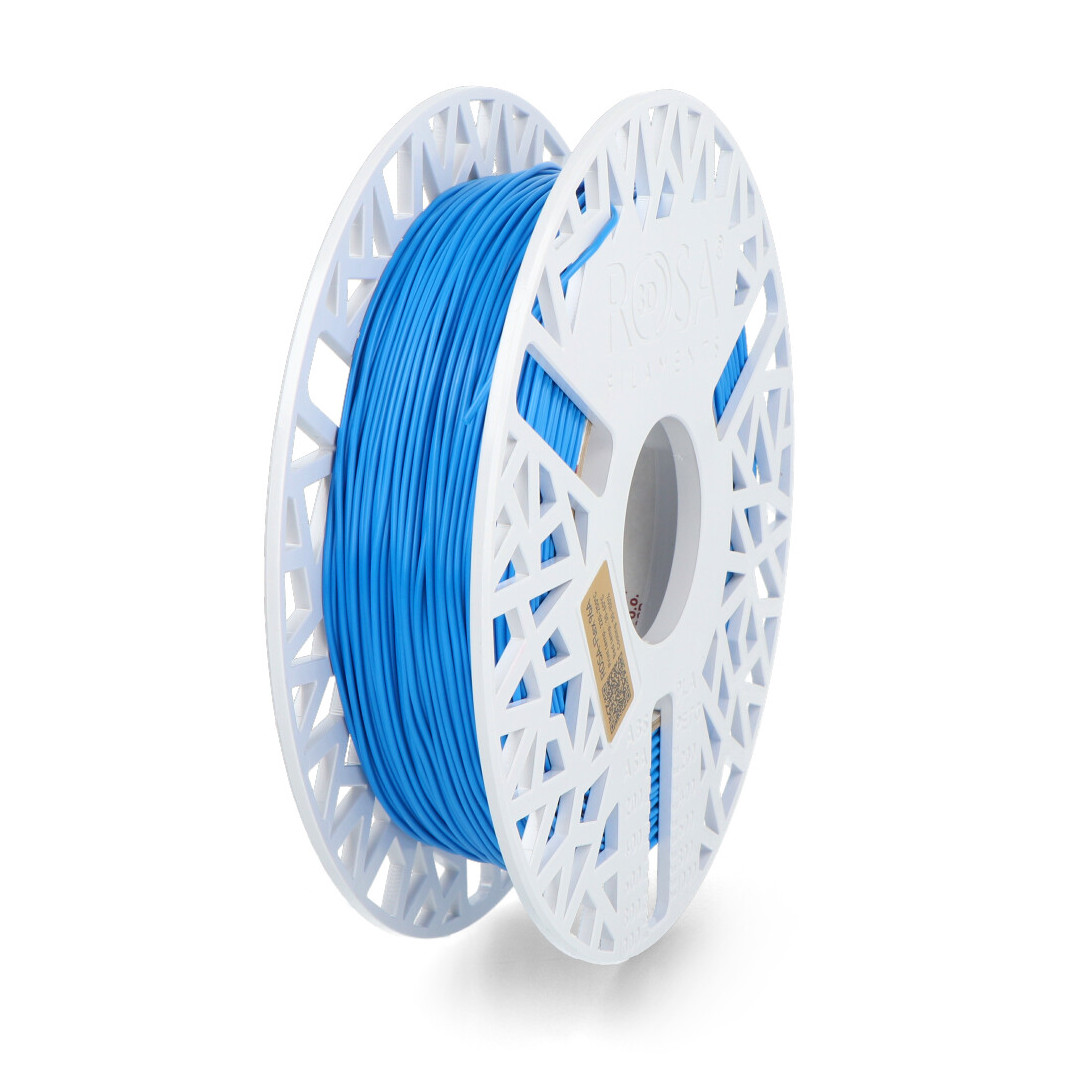

Product description: Filament Rosa3D Flex 96A 1.75 mm 0.5 kg - Blue
Filament Flex 96A is a blue thermoplastic polyurethane (TPU), used in 3D printers working in FFF / FDM technology. It is intended for intermediate users who want to print from flexible materials. The material has been factory-wound on a spool and vacuum-packed. The diameter of the filament is 1.75 mm . The material intended for technical applications, thanks to its flexibility and excellent interlayer adhesion, is suitable for applications where mechanical resistance and tensile strength are required. The filament is resistant to greases, oils and many solvents.
In our range of filaments you will also find other materials and colours.
Filament Rosa3D Flex 96A 1.75 mm 0.5 kg - Blue.
Key Features of Flex 96A Material
- Chemical resistance
- Flexibility
- Odorlessness
- Tensile strength
Practical use of Flex 96A filament
- Smartphone cases
- Drone and RC Car Parts
- Seals and covers
- Device casings
- Filament does not require a closed chamber
- In case of adhesion problems, we recommend using an adhesive agent.
- The filament can be printed on both direct feed and Bowden printers.
Suggested Filament Printing Parameters
| Printing temperature | From 220°C to 250°C |
| Table temperature | From 30°C to 60°C |
| Recommended print cooling | From 50% to 100% |
| Recommended Print Speed | From 15 to 50 mm/s |
| Compatible work tables | Glass, smooth PEI, textured PEI, aluminum |
| Due to differences in printer designs, the above data should be treated as guidelines and the appropriate values should be determined experimentally. |
Example print using Flex 96A filament.
Technical specifications and physical properties of the filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75mm |
| Filament dimensional tolerance | +/- 0.05mm |
| Color | Blue |
| Printing temperature | From 220°C to 250°C |
| Recommended print speed | From 50 to 70 mm/s |
| Material | Flex96A (TPU) |
| Spool diameter | 200mm |
| Spool width | 50mm |
| Mounting hole diameter | 52mm |
| Moisture absorber | Yes |
| Vacuum packaging | Yes |
| Material density | 1.22 g/ cm3 |
| Tensile strength at break | 55 MPa |
| Tensile elongation | 350% |
| Print speed | From 15 to 50 mm/s |
| Net weight | 0.5 kg |
If you experience problems with filament extrusion, you should:
- Loosen the screw that adjusts the knurl pressure level on the roller
- Reduce printing speed
- Install the Teflon tube sealing the filament feed path
