Product description: Two Trees TTC6050 CNC milling machine
The Two Trees TTC6050 CNC milling machine is designed for users seeking efficiency and precision in their work. Its robust aluminum construction ensures stability, while a machining speed of up to 5,000 mm/min and a spindle speed of up to 12,000 rpm guarantee high efficiency. Operation is via an intuitive touchscreen , and the GRBL system allows for easy control in both CNC mode and with the optional laser. With a large work surface measuring 600 x 500 x 100 mm and a high-power spindle (500 W) , you gain a wide range of possibilities when creating prototypes, functional, and decorative elements.

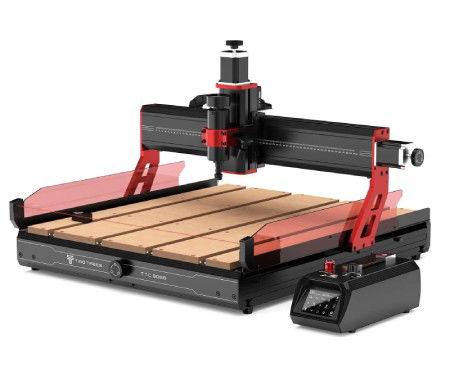

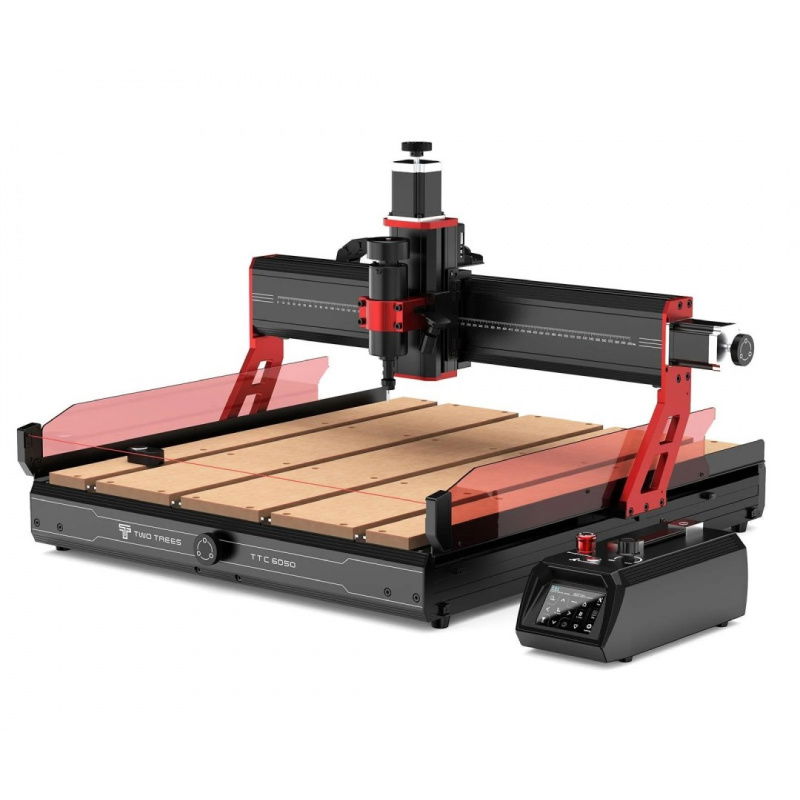

Two Trees TTC6050 CNC milling machine.
The large area allows for the implementation of even larger projects.
Precise CNC milling machine with a large working area
The Two Trees TTC6050 offers a 600 x 500 x 100 mm workspace, allowing you to tackle both small projects and large workpieces. This gives you the ability to process more complex details and combine multiple operations in a single process . It's the ideal solution for those who need design freedom and precision in cutting and engraving.
Efficient spindle motor and high operating speed
The machine is equipped with a 500W spindle motor with a speed of up to 12,000 rpm , ensuring smooth and efficient cutting in a variety of materials. An optional upgrade to an 800W spindle is also available, reaching up to 30,000 rpm. A feed rate of up to 5,000 mm/min makes the TTC6050 milling machine incredibly fast and efficient for everyday use.
Multi-material handling and practical applications
The machine can handle a wide range of materials — from wood and MDF, through acrylic and carbon fiber, to aluminum, copper, and stainless steel . This makes it suitable for use in carpentry workshops, prototyping studios, and the production of functional and decorative elements. Its versatility makes it suitable for both amateur and professional use.
Intuitive control and safe use
The Two Trees TTC6050 features a 3.5" touchscreen that makes it easy to control, calibrate, and switch between CNC and optional laser modes. The integrated safety system uses infrared sensors to stop the spindle within one second if a hazard is detected. Additionally, the device is equipped with an emergency stop function , which increases work comfort and safety.

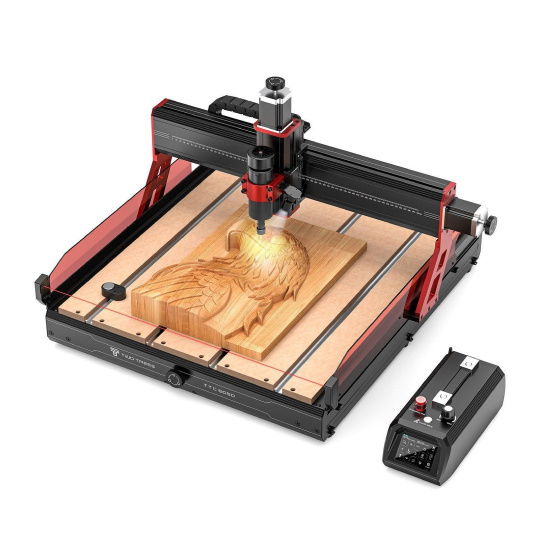

The powerful motor and high-torque design ensure efficient cutting and engraving of a variety of materials.

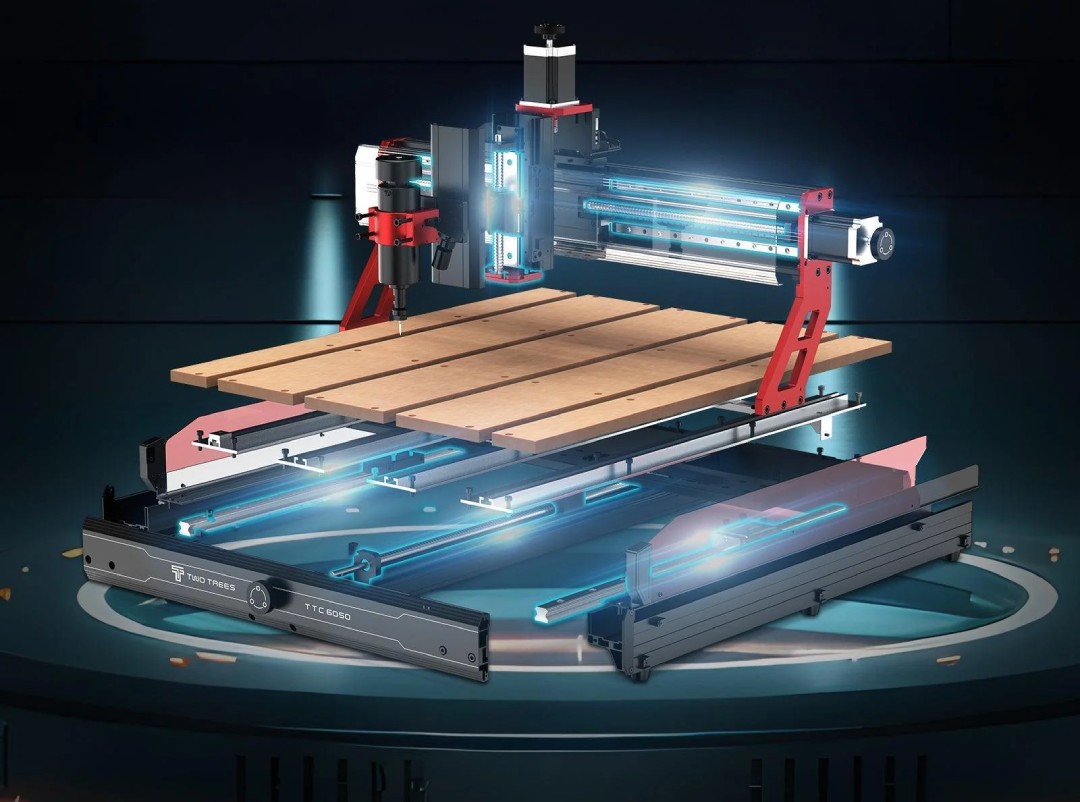

The milling machine has three axes with linear rails and ball screws.
Compatibility with accessories and software
The milling machine is fully compatible with popular CAD/CAM software such as Fusion 360, VCarve, Carveco Maker, and Easel , making project preparation easy. It can also be expanded with an optional rotary axis for engraving cylindrical elements, or with an additional 20W laser module for precise decorations. Dust extraction further enhances work comfort and ensures a clean workshop.
Solid construction and durability of components
The machine is constructed of high-quality aluminum , ensuring stability and vibration resistance during operation. Ball screws and linear guides ensure exceptional accuracy and long-lasting mechanical components. Additional dust protection protects the mechanisms from contamination, ensuring long-term, trouble-free operation.
| Technical specifications of the Two Trees TTC6050 CNC milling machine | |
|---|---|
| Work area | 600 x 500 x 100 mm |
| Spindle motor | 500 W (optional 800 W, up to 30,000 rpm) |
| Milling speed | up to 5000 mm/min |
| Maximum acceleration | 500 mm/s² |
| Spindle speed | up to 12000 rpm |
| Tool diameters | from 0.5 mm to 7 mm (ER11 holder) |
| Display | 3.5'', IPS, touchscreen, 480 x 320 px |
| Software | VCarve, Fusion360, EASEL, Carveco Maker |
| Operating system | Windows, MacOS, Linux |
| Supply voltage | 24V |
| Energy consumption | 110 W (15 W in standby mode) |
| Height of the processing layer | from 0.1 mm to 20 mm (non-metals), from 0.1 mm to 0.2 mm (metals) |
| Supported materials | wood, MDF, acrylic, carbon fiber, aluminum, copper, stainless steel |
| File format | .nc, .gcode |
| Interface languages | Chinese, English, German, Russian, Japanese, French, Portuguese, Spanish |
| Construction material | aluminum |
| Dimensions | 811 x 769 x 530 mm (without controller) |
| Mass | 35.9 kg |
