Product description: 3D Printer Snapmaker v2.0 3 in 1 model A250T - laser module, CNC, 3D printing in enclosure

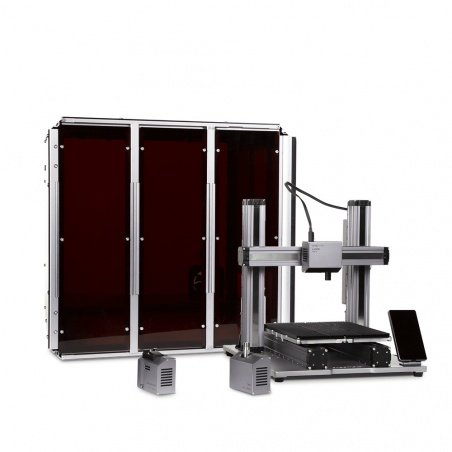

Snapmaker 2.0 A250T with protective chamber. The construction of the device was made entirely of metal. Assembly is very quick and easy and the whole Snapmaker construction is very stable. The working area is 230 x 250 x 235 mm. The set includes modules for printing with 1,75 mm diameter filament, laser engraving and CNC sculpting. The included enclosure makes working with Snapmaker much safer and more comfortable.
3D Printing Module in Snapmaker 2.0.
3D Printing is the flagship feature of Snapmaker 2.0
Thanks to its extremely stable construction and technologies used, Snapmaker 2.0 allows for fast and precise printing. The device is ideal for beginners , if only because it has a very intuitive software to operate the device in printer mode. More advanced users will also find something for themselves as they will be able to personalize the printing options. Thanks to the heated work platform and the direct type extruder we can use many materials for printing. Finally, the problems with flexible filaments are over!
Enhanced Snapmaker 2.0 A250T
Snapmaker 2.0 A250T version introduces several improvements over the original model. These allow for faster and quieter printing. The changes primarily include newly designed linear modules and feature improvements 3D printing. Modifications also included a power module with intelligent fan speed control.
New stepper motor drivers and line module improvements
The Snapmaker 2.0 A250T 3D printer features the TMC2209 low-noise stepper motor drivers. They effectively reduce the noise generated during the operation of the device. In the linear modules, the manufacturer modified the screw rods of the X and Y axes, increasing their stroke from 8 mm to 20 mm. This has increased the speed and stability of the A250T.
Enhanced Power Module
The new A250T power module uses a much quieter fan that can be automatically adjusted in real-time according to temperature. This reduces the noise level by about 16 dBA, making it even more comfortable to use.

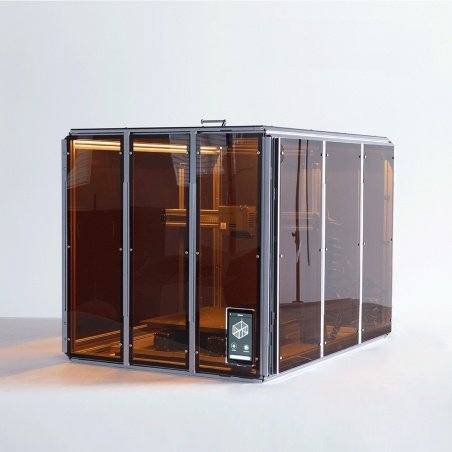

Snapmaker 2.0 A250T is sold with a dedicated case. It has the following performance features:
- Convenient to use folding acrylic doors
- Enclosed with acrylic panels to protect the user while using the laser module
- Equipped with a door opening sensor
- Exhaust fan
- LED lighting
The printhead has been redesigned with an improved cooling system, hot-end quick change system and improved quality of the extruder parts which significantly improves the quality and consistency of the print.
Variety of supported materials
The printer supports various types of materials such as PLA, ABS, PETG, TPU, PP, WoodFill and LayBrick. You can choose layer thicknesses from 0.05 to 0.3 mm.
The printer is equipped with a proximity sensor, so the table calibration is done automatically. You can switch to manual mode and calibrate the table yourself.
Precise sensor constantly monitors the state of the filament and in case of its lack stops the printing without damaging the printout. After refilling the material it is possible to resume printing.
Resume operation after power failure
SnapMaker 2.0 allows you to quickly resume printing after a power loss. To do this, simply press the "resume" button on the touch screen.
The use of housing allows you to maintain a constant temperature during printing, which greatly facilitates the work with filaments such as ABS without the risk of deformation of the print.
High quality not only on paper
Thanks to the stable combination of steel, aluminum and perfectly fitted parts the machine repeatability is as low as0.005 mm, which is a very good result. Snapmaker 2.0 will prove to you that making a short series of devices is trivial, and working with it is a pleasure.
Laser module during operation.
Laser engraving and cutting
Thelaser module allows for extremely efficient cutting and engraving. Start creating interesting ornaments made of wood, leather, fabric and acrylic. With the 1.6W laser, you can cut selected materials to bring more professionalism to your designs. The laser module is also equipped with a camera, so you can allow yourself to perfectly adjust the working area to the actual workpiece.
SnapMaker 2.0 printer laser module
The 1600 mW module allows you to engrave and cut materials such as wood, leather and plastic.
The laser module has a built-in camera for Auto Focus and Camera Capture, making it easier to align the laser beam and achieve optimal engraving results.
Engraving results are presented without the need to repeatedly test the focal point. The optimum parameters are selected automatically.
Camera image capture
The camera automatically takes a picture of the material placed on the workbench and sends the image to Luban's SnapMaker software where you can apply and edit designs, giving you an accurate preview of how the final result will look.
The housing is made of material that protects against the harmful effects of the laser on your eyes. In addition, the set includes protective goggles OD6.
The built-in fan allows you to extract the fumes generated during the laser engraving process.
Are you surprised by the capabilities of Snapmaker 2.0? If so, you should know that the Snapmaker 2.0 software also allows you to control all the functions of Snapmaker 2.0! You no longer have to look for separate software for your 3D printer, laser plotter and CNC milling machine, everything is in one place.
Presentation of the software to control the machine.
CNC module in operation.
CNC machining is just another advantage of Snapmaker 2.0
The CNCmodule allows for precision machining of materials such as wood, acrylic, carbon fiber sheets or even PCB laminate. Start making your own PCBs and put your devices in wood milled housings, instead of looking for barriers look for opportunities, there are plenty of them! To make working with the CNC safe the set includes a wooden table and a set of hooks that prevent the material from moving.
The new CNC unit uses ER11 collets with better concentricity for more precise and consistent results. The collets are interchangeable with other sizes. The module is compatible with drill bits with diameters from 0,5 to 6,35 mm.
Working speed of the CNC module
The spindle can operate from 6000 to 12000 revolutions per minute as required.
CNC working platform
The carving platform made of MDF provides stability and accuracy while working.
Snapmaker 2.0 modular design
Imagine that one design can replace several tools in the workshop. That is exactly what the Snapmaker 2.0 is! Thanks to its modular construction you can fully adjust the functionality to your needs. We're not dealing with a series of machines here, Snapmaker 2.0 is a powerful tool for people as creative as you.
The device is built with modules that make it easy to expand.
The process of assembling the device takes very little time.
Extremely easy to assemble!
Snapmaker 2.0 makes the process of assembly as easy as possible, the motors are built into the profiles, and the plates for connecting the components are permanently attached to the linear systems, this solution gives you great convenience and safety. Unlike amateur counterparts that take hours to assemble, the Snapmaker 2.0 takes just a moment to assemble.
Wi-Fi connectivity and touch screen
For maximum convenience in setting up the Snapmaker 2.0, Wi-Fi communication has been introduced. In addition to uploading files to the device, you can also update them easily, on devices on your local network you can also view the progress of your work. The touch screen is equipped with Android and an advanced processor so you can control your tools easier than ever before!
Numerous user-friendly features
The device is equipped with software and hardware routines that are sure to make using it easier. Auto-leveling of the work table eliminates the problem of manual platform calibration every few prints. Restoring work after a loss of voltage gives a great comfort, we do not have to be afraid that during the accidental disconnection of the device from the power supply we will lose our work. Improved in relation to the previous version of the device print cooling allows us to create elements that will be partially in the air without supports. Flexible adhesive pad makes the printout stick to the table without any additional preparations. We also do not have to use tools to unstick the printout from the platform, just bend it and the printout will fall off.
Thecamera built in the laser module helps to determine the area on which the laser works, no more self-centering on the element with an unusual shape. Linear modules have been fully encapsulated, so we avoid the possibility of blurring the moving parts by getting chips or dust.
Are you afraid that you will not be able to handle the device? Then you are wrong! The manufacturer provides a manual that explains step by step how to assemble the device and how to configure it for specific functions, this is a huge advantage.
Safety during operation
The casing frame was created from aluminum alloy and acrylic with a filter that reduces the harmful effects of the laser on your eyesight. It was designed to increase the level of safety while working with the device. It is equipped with a special sensor, which ensures that the chamber door is closed. In case of opening the chamber, it will immediately stop the device. The chamber is equipped with a backlight system and additional ventilation, so you can easily remove the unpleasant fumes produced during the work Snapmaker. The chamber is airtight, which minimizes the risk of damaging the printout by a strong gust of air, shrinking the filament or warping the printout. Tightness of the chamber is also a very important factor when working with CNCmodule.
Snapmaker 2.0 specification
|Color display:||5" touch screen|
|Frame material:||aluminum alloy, steel|
|Communication:||USB drive, USB cable, Wi-Fi|
|Supply voltage:||100 V to 240 V AC|
|Supported systems:||Mac OS, Windows, Linux|
|Dimensions of assembled device:||700 (L) x 660 (W) x 580 (H) mm|
|Working area for 3D printing:||230 (L) x 250 (W) x 235 (H) mm|
|Working area for laser:||230 (L) x 250 (W) mm|
|Working area for CNC:||230 (L) x 250 (W) x 180 (H) mm|
|Nozzle diameter:||0.4 mm|
|Maximum temperature of the printing nozzle:||275°C|
|Maximum work platform temperature:||100°C|
|Layer resolution:||50 to 300 microns|
|Supported materials:||PLA, ABS, PETG, TPU, PP, WoodFill, LayBrick|
|Filament diameter:||1.75 mm|
|Supported file formats in Snapmaker Luban:||.stl, .obj|
|Laser power:||1600 mW|
|Supported materials:||Wood, leather, plastic, fabric, paper, acrylic|
|Supported file formats in Snapmaker Luban:||.svg, .png, .jpg, .jpeg, .bmp, .dxf|
|Chuck diameter:||0.5 mm to 6.35 mm|
|Spindle speed:||6000 to 12000 RPM|
|Supported materials:||wood, acrylic, PCB, carbon fiber sheets|
|Supported file formats in Snapmaker Luban:||.svg, .png, .jpg, .jpeg, .bmp, .dxf, .step, .dwg|
- Linear modules
- Laser module (1600 mW with built-in camera)
- 3D printing module
- CNC module
- Controller (based on Cortex-M4 processor)
- 5" intelligent touch screen (operated by Android system, based on Quad Core A7 1.1 GHz processor)
- Power supply with power cables
- Magnetic table for 3D printing with pad for increased adhesion
- Aluminium table for laser module
- Wooden table for working with CNC module (module equipped with ER-11 holder)
- Machine base with anti-slip feet
- Base for working platform
- Supports for linear modules
- Mounting for touch screen
- Cable set for connection of the modules, work table, linear modules and screen
- Converters for cables
- Fiber holder
- Flash drive
- Material mounts for working with CNC module
- Set of tools (screwdriver with interchangeable tips, wrenches, pliers, tweezers, spatula)
- Set of screws
- Plates for leveling the working platform
- Assembly and use instruction manual
- Two pairs of protective goggles (for work with CNC and laser)
- Two cutters
- Spool of filament (1 kg of PLA)
- Set of test materials
- Material for cleaning
- Case for Snapmaker 2.0 A250T
Advanced workstation for many workshop applications!
Work in the electronics workshop involves not only soldering and measuring with a multimeter and oscilloscope, but also very often machining. When we want to create with our own hands a design of a housing or mechanical elements with non-standard shapes, then we can do the whole process at home! In such and similar tasks Snapmaker 2.0 A250T - Advanced workstation for many workshop applications will be perfect!
Versatile Uses of the Snapmaker 2.0 A250T 3D Printer
The Snapmaker 2.0 A250 is the bigger brother of the A150 and the little brother of the A250T. With this multifunctional machine, we can produce various physical objects using advanced processing techniques. Thus, using the 3D printing module, we can print a customized housing for our electronic device design, such as a Class A pocket audio amplifier. Whereas the laser engraving module will allow us to make permanent drawings on wooden and plastic surfaces.
